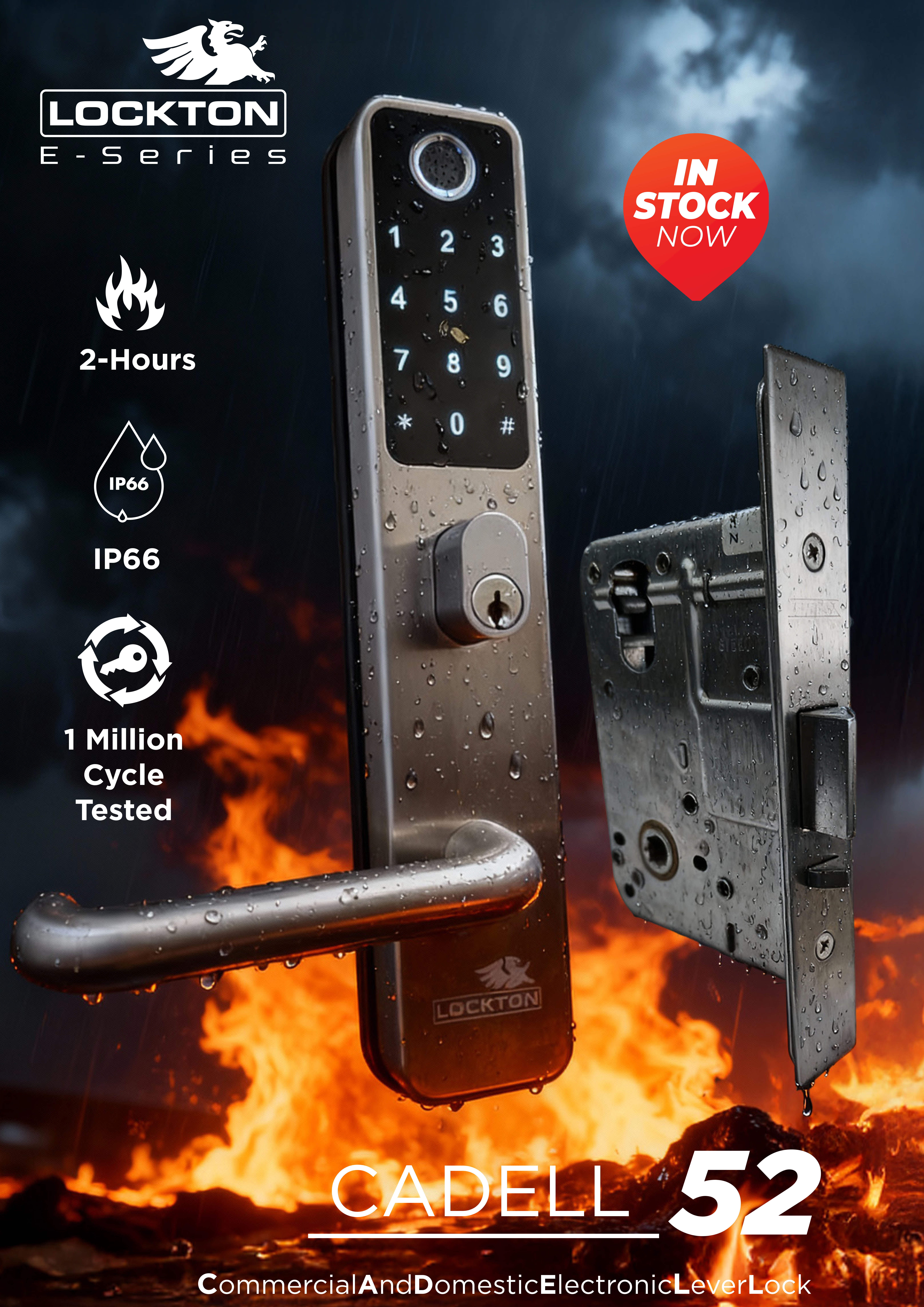

LOCKTON CADELL52 - Commercial and Domestic Electronic Lever Lock (95 mm Backset)
The CADELL52 is a commercial-grade electronic lever set that retrofits directly to Australian mortice lock furniture and replaces many knobsets, leversets and deadbolts. Designed for heavy-use environments and premium residences, it combines weather protection, fire performance and modern access control in a robust stainless steel form factor.
Key Features
- Retrofits over standard Australian mortice furniture post spacing
- Unlock using PIN code, fingerprint, RFID tag, Bluetooth TTLock app or 6-pin C4 oval key override
- IP66 weather rating on both external and internal handles
- Optional gateway enables remote access and code management
- Supports up to 100 fingerprint users, 1,000 RFID tags and unlimited Bluetooth users
- Internal handle supplied as passage and convertible using the included turnsnib kit
- Supplied complete with 95 mm mortice, oval cylinder, batteries and fixing hardware
Access and Technology
 Fingerprint access |
 Keypad PIN access |
 RFID key fobs |
 Bluetooth TTLock app |
 WiFi via optional gateway |
 6-pin C4 oval key override |
Suitable Uses
- Commercial premises including apartments, schools, hospitals, government and retail
- Private residences requiring commercial-grade strength and access control
Specifications
| Backset / Mortice | 95 mm (SG-ML95) mortice supplied |
| Handle (H x W x D) | 263 x 52 x 22 mm; projection 48 mm |
| Handle material | Solid stainless steel; 2 mm pressed 304 stainless steel furniture |
| Door thickness / weight | 32-60 mm / 20-120 kg |
| Power / life | 4 x AAA alkaline batteries; approximately 1 year typical |
| IP rating | IP66 external and internal handles |
| Warranty | 3-year electronic; 10-year mechanical |
What's In The Box
- 1 x CADELL52 Smart Lock Handle Set
- 1 x SG-ML95 95 mm Backset Mortice Lock
- 1 x 50 mm 6-Pin C4 Oval Cylinder - Art. 410/50-BLK-KD
- 2 x RFID Key Fobs
- 3 x Screw and Spindle Packs for varying door thicknesses
- 4 x AAA Batteries
- 1 x Turnsnib Conversion Kit
- 1 x Fitting Template
- 1 x Instruction Manual
Download PDF Resources
|
CADELL52 ML95 Product Brochure |
|
CADELL52 ML95 Installation Guide |
|
CADELL52 ML95 User Instructions |
.
