Vault Alpha Smart Lock for 85mm Mortice Hinged & Sliding Doors
The Vault Alpha Smart Lock is a slimline push pull smart lock designed for modern residential and light commercial doors requiring keyless entry with multiple authentication methods.
Built around an 85mm mortice platform, the Vault Alpha is suitable for both hinged and sliding door applications where a narrow profile lock body is required. The long form design integrates handle and access control into a single unit, reducing door hardware clutter.
Access is managed via the Vault app using Bluetooth connectivity, with optional remote functionality available when paired with the Vault G5 Gateway.
Usually ships in 1 - 2 business days.
Key Features

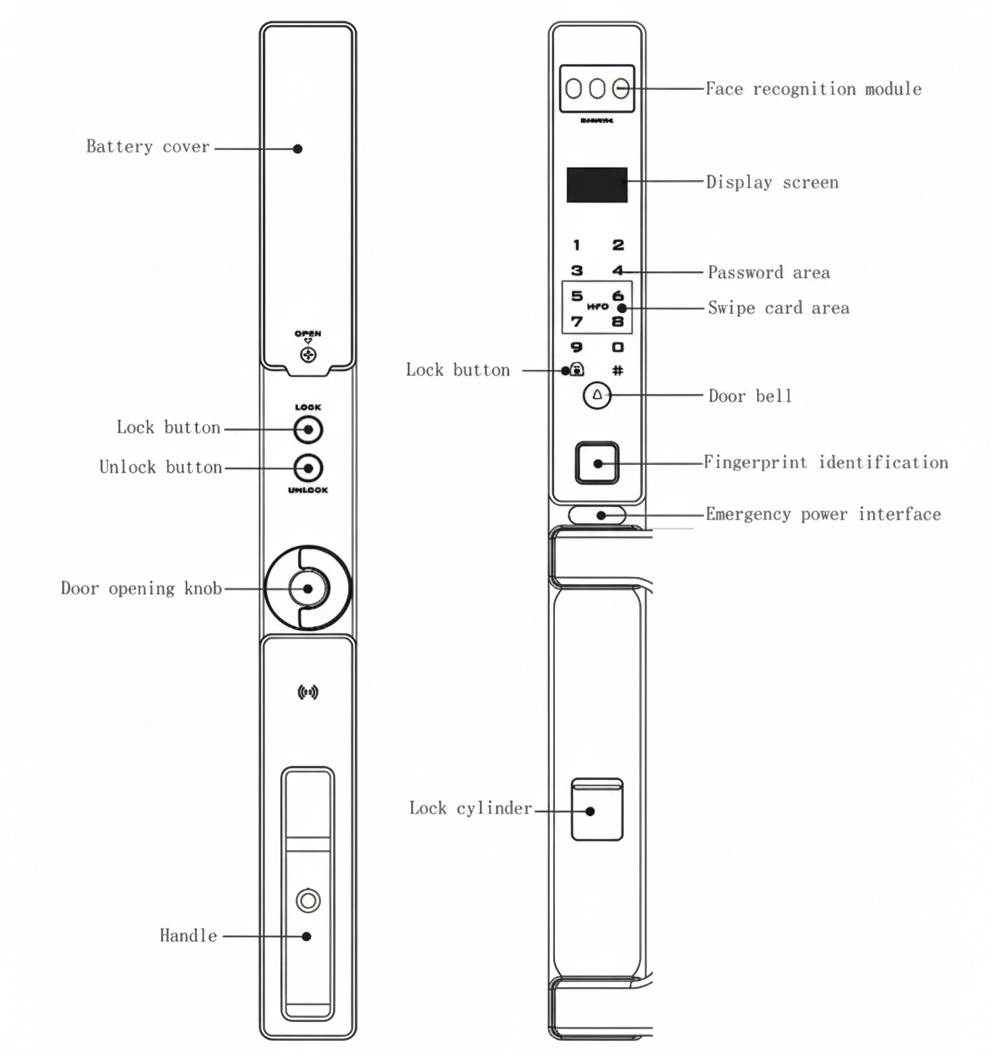

- Push pull smart lock design with integrated handle.
- Supports fingerprint, PIN code, RFID card and Bluetooth unlocking.
- Mobile app control for user management and access permissions.
- Optional remote access via Vault G5 WiFi Gateway.
- Suitable for hinged and sliding door configurations.
- Mechanical key override for emergency access.
- Designed for narrow profile aluminium and timber door applications.
What's in the Box
- Front panel assembly
- Rear panel assembly
- 6085 Mortice lock body (60mm Backset)
- Lock cylinder
- Lithium battery
- RFID cards
- Mounting hardware and fixings
- Charging cable
- Installation template and instructions
This lock is supplied with a 6085 (60mm Backset) mortice as standard, suitable for many hinged door applications.
Battery, Power & Backup Access
- Powered by a rechargeable lithium battery.
- Manual states battery capacity of 3200mAh.
- Undervoltage indication activates below 7V.
- 5V Micro USB emergency power input allows temporary operation if the internal battery is flat.
- Mechanical key override provides backup access in all power conditions.
- Battery charging cable is included in the box.
- For best reliability, keep the lock charged and confirm backup key access after installation.
Suitable Uses
- Residential front entry doors
- Apartment doors
- Sliding doors with compatible mortice
- Office entry doors
- Short-term rental and managed access properties
Access Methods
Facial Recognition Access
Selected Vault smart locks support facial recognition for convenient touch-free unlocking. This can be useful when hands are full or where fast everyday entry is preferred.
On supported models, facial recognition works alongside other entry methods such as fingerprint, PIN, RFID card, Bluetooth app control and backup key access where fitted.
Facial recognition is model-specific. Always confirm the exact access methods listed for the product you are viewing.
Specifications
Wi-Fi Remote Access (Optional)
This smart lock operates via Bluetooth connectivity as standard. Remote access and internet-based control are available only when paired with a compatible Vault Wi-Fi gateway.
When connected to a gateway, users can remotely lock and unlock the door, manage access credentials, and view activity records through the Vault app from any location with an internet connection.
For remote functionality, see the Vault G5 Gateway.
This lock includes a mechanical key override to ensure access is always available, regardless of battery condition or electronic operation.

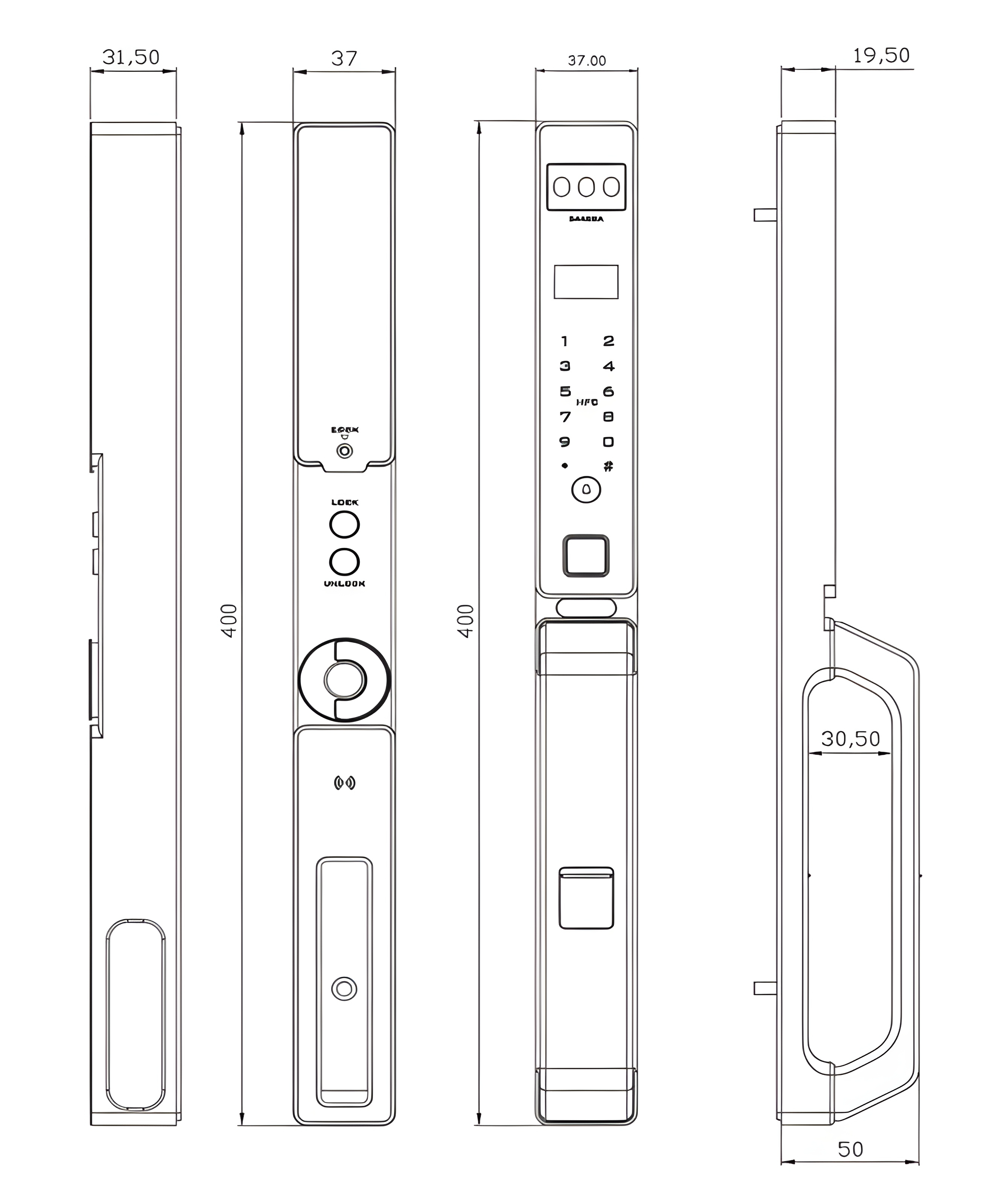

Dimensions
Frequently Asked Questions
- Does the Vault Alpha require WiFi to operate?
No. The lock operates via Bluetooth. WiFi functionality requires the optional Vault G5 Gateway. - Is the Vault Alpha suitable for sliding doors?
Yes, when paired with a compatible mortice system designed for sliding door applications. - Can multiple users be added?
Yes. Multiple fingerprints, PIN codes and RFID cards can be stored and managed through the app. - What happens if the battery goes flat?
The lock can be powered temporarily using a Micro USB connection and also includes a mechanical key override. - Is this lock weather resistant?
Yes. The lock has an IP66 rating, suitable for external door installations.
Additional Information
- Gateway Requirement: Remote access, monitoring and voice assistant integration require the optional Vault G5 Gateway.
- Installation Considerations: Correct mortice selection is critical for door type, especially for sliding door configurations.
- Door Compatibility: Designed for aluminium and timber doors within standard thickness ranges.
- Application Fit: Commonly used in residential entry doors and managed access environments.
- Maintenance: Regular cleaning of the fingerprint sensor improves reliability and performance.
Vault Smart Locks products purchased in Australia are covered against defects in materials and workmanship under normal use for:
- Mechanical components: 2 years
- Electronic components: 2 years
Vault Smart Locks Warranty Overview
Vault Smart Locks products sold in Australia are covered by a manufacturer warranty against defects in materials and workmanship under normal residential and light commercial use.
This overview summarises the structure of Vault warranty coverage. Full terms, exclusions and claim procedures are available via the official Vault warranty policy.
Warranty Periods Summary
What the Warranty Covers
- Defects in materials and workmanship under normal use.
- Repair or replacement of faulty components at manufacturer discretion.
- Assessment of product condition to determine appropriate remedy.
Common Exclusions
- Incorrect installation or failure to follow installation instructions.
- Misuse, abuse, forced entry damage or tampering.
- Exposure to extreme environmental conditions (water ingress, corrosion, chemicals).
- Normal wear and tear including surface finishes.
- Battery failure or damage caused by battery leakage.
- Use of non-approved accessories or components.
- Labour, removal, reinstallation or freight costs.
Installation & Usage Requirements
- Installation must follow manufacturer instructions.
- Products must be used within specified door thickness and application limits.
- Regular maintenance and cleaning must be carried out as recommended.
- Smart functions require correct configuration via the Vault app.
Warranty Claim Process
- Retain proof of purchase.
- Contact the original place of purchase or supplier.
- Provide details of the issue and supporting information.
- Return the product if requested for assessment.
- Outcome may include repair, replacement, or refund depending on assessment.
Australian Consumer Law
Vault Smart Locks warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Official Warranty Information
