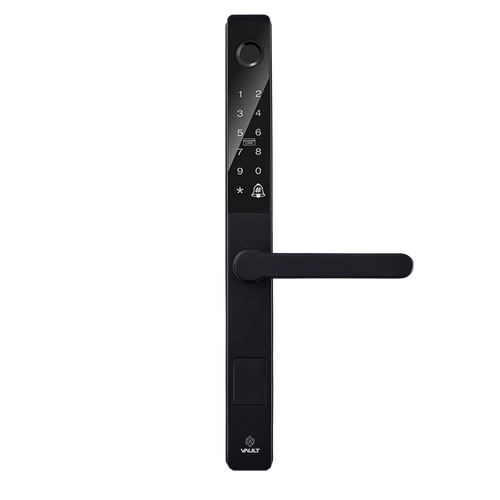

Vault Eclipse Slimline Smart Lock with Knob or Lever
The Vault Eclipse is a slimline smart lock designed for narrow aluminium and timber doors where a full-width smart lock may not suit the door profile. Its compact body and minimalist styling make it a practical option for modern doors where appearance and fitment both matter.
Eclipse is a narrow-door smart lock with fingerprint, PIN code, Bluetooth, RFID card, and app control, with optional remote access available through the Vault G5 Wi-Fi Gateway. It is available in knob and lever-handle variants.
Because narrow-profile doors vary significantly, confirming compatibility before ordering is recommended. This is especially important where existing mortices, striker positions, or frame clearances differ from standard hinged-door preparations.
Usually ships in 1 - 2 business days.
Key Features
- Slimline smart lock format for narrow aluminium and timber doors.
- Supports fingerprint, PIN code, RFID card, Bluetooth, and app control.
- Optional remote access and smart-home integration via Vault G5 Wi-Fi Gateway.
- Available in knob and lever-handle variants.
- Mechanical key backup included.
- Weather-rated body for external or exposed installations.
The Eclipse is IP65 weather rated, meaning it is protected against dust and resistant to low-pressure water jets.
What's in the Box
- Front panel
- Rear panel
- Front handle
- Rear handle
- Mortice lock body
- Cylinder
- Strike and strike box
- Spindle
- Rubber gaskets
- Fixing screws and mounting hardware
- Backup physical keys
- RFID fobs x2
- Installation template
- User manual (digital)
This lock is supplied with a 6085 (60 mm backset) mortice as standard, suitable for many hinged door applications.
Battery, Power & Backup Access
- Powered by 4 x AAA batteries (not included).
- Battery life is up to 10,000 normal unlocks or around 12 months under normal use.
- Bluetooth and smart functions require correctly installed batteries.
- Mechanical key backup remains available if batteries are depleted.
- Use fresh matching batteries and avoid mixing old and new cells.
Suitable Uses
- Narrow-profile residential entry doors
- Timber and aluminium hinged doors with compatible mortice preparation
- Sliding doors when paired with a compatible hook mortice
- Office and internal access doors requiring slim hardware
- Non-fire-rated doors where fitment has been confirmed before purchase
Access Methods
Dimensions
Specifications
Wi-Fi Remote Access (Optional)
This smart lock operates via Bluetooth connectivity as standard. Remote access and internet-based control are available only when paired with a compatible Vault Wi-Fi gateway.
When connected to a gateway, users can remotely manage access, view activity, create temporary credentials, and add compatible Alexa or Google Home functionality.
For remote functionality, see the Vault G5 Gateway.
This lock includes a mechanical key override to ensure access remains available if batteries are depleted or electronic access methods cannot be used.
Frequently Asked Questions
- Is the Vault Eclipse suitable for narrow aluminium doors?
Yes. Eclipse is specifically suited to narrow aluminium and timber doors. - Can the Vault Eclipse be used on sliding doors?
Yes, provided it is paired with a compatible sliding hook mortice suited to the application. - Does the Vault Eclipse support remote access?
Yes, but only when paired with the Vault G5 Wi-Fi Gateway. Without the gateway, it operates locally via Bluetooth and onboard credentials. - Does the Vault Eclipse support facial recognition?
No. Eclipse supports fingerprint, PIN code, Bluetooth, RFID card, and app control for this model. - Is the Vault Eclipse suitable for apartment entry doors?
Vault smart locks are not suitable for fire-rated doors such as apartment entry doors. Compatibility should be checked before purchase.
Additional Information
- Narrow-Profile Fitment: Eclipse is one of the more suitable Vault models for slimmer aluminium and timber door profiles.
- Variant Choice: Eclipse is available in knob and lever-handle options, so confirm the required variant before ordering.
- Mortice Selection: Correct mortice choice is critical, especially for aluminium doors and sliding hook-bolt applications.
- Battery Planning: Eclipse uses AAA batteries rather than a rechargeable lithium pack, so routine replacement planning matters on higher-use doors.
- Compatibility First: Confirming door compatibility before purchase is recommended.
Vault Smart Locks products purchased in Australia are covered against defects in materials and workmanship under normal use for:
- Mechanical components: 2 years
- Electronic components: 2 years
Vault Smart Locks Warranty Overview
Vault Smart Locks products sold in Australia are covered by a manufacturer warranty against defects in materials and workmanship under normal residential and light commercial use.
This overview summarises the structure of Vault warranty coverage. Full terms, exclusions and claim procedures are available via the official Vault warranty policy.
Warranty Periods Summary
What the Warranty Covers
- Defects in materials and workmanship under normal use.
- Repair or replacement of faulty components at manufacturer discretion.
- Assessment of product condition to determine appropriate remedy.
Common Exclusions
- Incorrect installation or failure to follow installation instructions.
- Misuse, abuse, forced entry damage or tampering.
- Exposure to extreme environmental conditions (water ingress, corrosion, chemicals).
- Normal wear and tear including surface finishes.
- Battery failure or damage caused by battery leakage.
- Use of non-approved accessories or components.
- Labour, removal, reinstallation or freight costs.
Installation & Usage Requirements
- Installation must follow manufacturer instructions.
- Products must be used within specified door thickness and application limits.
- Regular maintenance and cleaning must be carried out as recommended.
- Smart functions require correct configuration via the Vault app.
Warranty Claim Process
- Retain proof of purchase.
- Contact the original place of purchase or supplier.
- Provide details of the issue and supporting information.
- Return the product if requested for assessment.
- Outcome may include repair, replacement, or refund depending on assessment.
Australian Consumer Law
Vault Smart Locks warranties operate in addition to rights available under the Australian Consumer Law. Goods come with guarantees that cannot be excluded. Customers may be entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage.
Official Warranty Information
