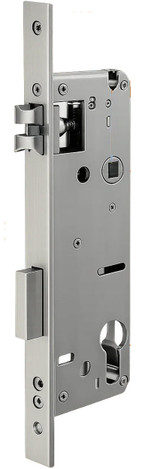

Vault Hinged Mortice Lock - Euro 85mm Pitch (2585-7085 Range)
The Vault Hinged Mortice Lock (Vault_Hinged_Mortice) is a Euro profile mortice lock designed for hinged swing doors, offering nine backset options (25mm to 70mm, 85mm pitch) to suit varying door preparations and handle positions. It is supplied with a 240mm x 22mm face plate as standard, and two alternative face plates make it a direct replacement for a Lockwood Induro or a Doric DS1273 mortice.
This lock body operates with both latch engagement and manual deadbolt activation via handle lift, making it suitable for a wide range of residential and commercial door applications. It is compatible with standard Euro cylinders and common lever furniture configurations.
Estimated Dispatch
Usually ships in 1-2 business days.
Usually ships in 1-2 business days.
Two Choices to Make When You Add This Mortice to Your Cart

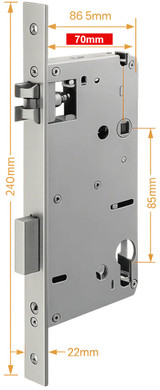

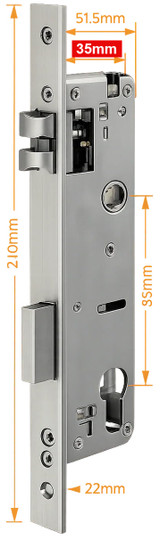

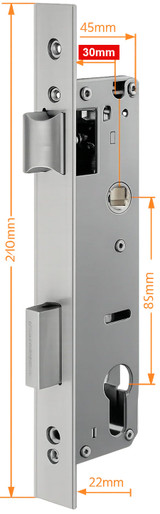

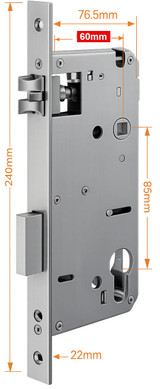

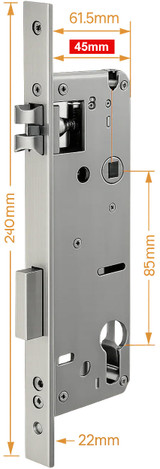

- Backset - nine sizes: 25mm, 28mm, 30mm, 35mm, 40mm, 45mm, 50mm, 60mm or 70mm. See Available Variants.
- Face plate - three sizes: 240mm x 22mm (standard, selected by default), 210mm x 24mm (replaces a Lockwood Induro mortice) or 290mm x 22mm (replaces a Doric DS1273 mortice). See Face Plate Options.
The 210mm x 24mm and 290mm x 22mm face plates are an additional-cost option and are available on every backset. Measure your backset and your existing face plate before ordering.
Key Features
- Designed for hinged swing door applications
- 85mm pitch (centre of spindle to centre of cylinder)
- Compatible with standard Euro profile cylinders
- Latch and deadbolt operation via handle lift
- Reversible latch for left or right hand doors
- Nine backset options, from 25mm to 70mm, for flexible installation
- Three face plate options, including direct-replacement sizes for Lockwood Induro and Doric DS1273 mortices
- Suitable for residential and commercial use
- 304 stainless steel construction for durability
Available Variants
Face Plate Options
The face plate is the stainless steel strip you see on the edge of the door. Its height and width decide whether a new mortice drops into the cut-out an old lock left behind, so this mortice is offered with three. All three are available on every backset, and the face plate is chosen when you add the mortice to your cart.
Replacing a Lockwood Induro or Doric DS1273?
Pick the matching face plate, then confirm the two measurements the face plate does not decide: the backset of the lock you are removing and its lock centres, which must be 85mm for this mortice. If you are unsure, send us photos of the door edge and the old lock before ordering - here is what to photograph - or contact us.
Pick the matching face plate, then confirm the two measurements the face plate does not decide: the backset of the lock you are removing and its lock centres, which must be 85mm for this mortice. If you are unsure, send us photos of the door edge and the old lock before ordering - here is what to photograph - or contact us.
Suitable Uses
- Hinged and swinging timber doors taking a Euro profile cylinder
- Residential entry, internal and commercial swing doors
- Retrofit or replacement of an existing 85mm-pitch Euro mortice - browse the full range of mortice locks for smart locks
- Vault lever or knob smart locks that specify an 85mm-pitch Euro mortice - for example the Vault Eclipse, which ships with the 6085 (60mm backset) option as standard
- Direct replacement of a Lockwood Induro mortice on aluminium doors - order the 210mm x 24mm face plate
- Direct replacement of a Doric DS1273 mortice - order the 290mm x 22mm face plate
- Left or right hand doors (reversible latch)
Available Finish Options
Satin Stainless Steel
(This Product)
STK Vault_Hinged_Mortice
This mortice is supplied in SS304 satin stainless steel. Finish selection does not affect functionality, compliance, or performance.
Full Specifications
Vault Mortice Comparison Guide
Use this table to identify the correct Vault mortice type for your door application. Mortice type, pitch, backset range and door style must all match the lock system being installed.
Important:
These mortice types are not interchangeable. Door type, pitch, backset and lock geometry must match the lock system being installed. Sliding hook mortices are for sliding doors only - including the 2885 sliding hook body, which shares its number with the 28mm hinged mortice on this page - while the 6068 smart mortice uses a different 68mm pitch and should not be confused with standard 85mm Euro mortice systems. The Vault Innovative Mortice is an auto-locking body specific to Vault push-pull smart locks.
These mortice types are not interchangeable. Door type, pitch, backset and lock geometry must match the lock system being installed. Sliding hook mortices are for sliding doors only - including the 2885 sliding hook body, which shares its number with the 28mm hinged mortice on this page - while the 6068 smart mortice uses a different 68mm pitch and should not be confused with standard 85mm Euro mortice systems. The Vault Innovative Mortice is an auto-locking body specific to Vault push-pull smart locks.
Frequently Asked Questions
What does 85mm pitch mean?
It is the distance between the handle spindle centre and the Euro cylinder centre - 85mm on this range. Pitch must match the smart lock or handle set being installed.
It is the distance between the handle spindle centre and the Euro cylinder centre - 85mm on this range. Pitch must match the smart lock or handle set being installed.
How do I choose the correct backset?
Backset is the distance from the door edge to the centre of the handle. This mortice comes in nine: 25, 28, 30, 35, 40, 45, 50, 60 and 70mm - measure the lock you are replacing, or the door preparation, and order the match. See our guide on how to measure backset and Chapter 02 - Measuring Your Door.
Backset is the distance from the door edge to the centre of the handle. This mortice comes in nine: 25, 28, 30, 35, 40, 45, 50, 60 and 70mm - measure the lock you are replacing, or the door preparation, and order the match. See our guide on how to measure backset and Chapter 02 - Measuring Your Door.
Is this compatible with Vault smart locks?
Yes, where the lock specifies an 85mm-pitch Euro mortice. The Vault Eclipse ships with the 6085 option; always confirm the correct backset and pitch for your specific lock model before ordering.
Yes, where the lock specifies an 85mm-pitch Euro mortice. The Vault Eclipse ships with the 6085 option; always confirm the correct backset and pitch for your specific lock model before ordering.
Can this be used on sliding doors?
No. This mortice is for hinged and swinging doors only. Sliding doors require the Vault Sliding Hook Mortice instead. Take care with the number 2885: the hinged 2885 here is a 28mm latch and deadbolt body, while the sliding hook 2885 is a different lock with a hook bolt.
No. This mortice is for hinged and swinging doors only. Sliding doors require the Vault Sliding Hook Mortice instead. Take care with the number 2885: the hinged 2885 here is a 28mm latch and deadbolt body, while the sliding hook 2885 is a different lock with a hook bolt.
Which face plate do I need?
The standard 240mm x 22mm face plate suits a new door preparation. If you are replacing a Lockwood Induro mortice - very common on aluminium doors - choose the 210mm x 24mm face plate; for a Doric DS1273, choose the 290mm x 22mm face plate. Both are an additional-cost option on any backset, selected when you add the mortice to your cart. See Face Plate Options.
The standard 240mm x 22mm face plate suits a new door preparation. If you are replacing a Lockwood Induro mortice - very common on aluminium doors - choose the 210mm x 24mm face plate; for a Doric DS1273, choose the 290mm x 22mm face plate. Both are an additional-cost option on any backset, selected when you add the mortice to your cart. See Face Plate Options.
Additional Information
Correct Use: This mortice is intended for hinged swing doors and is not suitable for sliding or frameless glass doors.
Backset Selection: Incorrect backset selection is a common cause of installation issues - always measure from door edge to handle centre, then order the matching size from the nine on offer. See Chapter 02 - Measuring Your Door, our note on choosing the wrong backset, and the backset mistake in Chapter 12.
System Compatibility: This lock follows standard 85mm-pitch Euro mortice geometry and differs from specialised smart-lock mortice systems such as the 6068 (68mm pitch) configuration.
Installation: Accurate door preparation is required for correct alignment of latch, cylinder and furniture. On a replacement job, order the face plate that matches the lock coming out - 210mm x 24mm for a Lockwood Induro, 290mm x 22mm for a Doric DS1273. See our guide to common hardware and backset selection mistakes, or ask about professional fitting via our Advice and Installation service.
Related Vault Mortices and Kits: Sliding doors use the Vault Sliding Hook Mortice; smart-mortice locks use the Vault 6068 Mortice; and for double-door conversions see the Vault Rebate Kit. Vault warranty assessments carry a refundable holding fee - $200 metro / $250 elsewhere.
Warranty
Vault Smart Locks Warranty (Australia)
Vault Smart Locks products purchased in Australia are covered against defects in materials and workmanship under normal residential or commercial use for:
Returns & Warranty|View Vault Warranty Policy
This warranty operates in addition to your rights under the Australian Consumer Law.
Vault Smart Locks products purchased in Australia are covered against defects in materials and workmanship under normal residential or commercial use for:
- Standard range: 12 months from the date of purchase
- Select Signature Range models: 24 months (as stated on the product listing or packaging)
Returns & Warranty|View Vault Warranty Policy
This warranty operates in addition to your rights under the Australian Consumer Law.
Download PDF Resources
Vault Euro Mortice 2585 - 7085 Specification Document (PDF)
3-page specification sheet - overview, key features and full specifications (25-70mm backsets, 85mm pitch, SS304 construction) for this Euro mortice range. The sheet predates the 28mm and 30mm backsets and the two alternative face plates, so it lists seven backsets and the standard 240mm x 22mm face plate only.
3-page specification sheet - overview, key features and full specifications (25-70mm backsets, 85mm pitch, SS304 construction) for this Euro mortice range. The sheet predates the 28mm and 30mm backsets and the two alternative face plates, so it lists seven backsets and the standard 240mm x 22mm face plate only.
Vault Eclipse User Manual (PDF)
User manual for the Vault Eclipse slimline smart lock, which ships with the 6085 mortice from this range as standard - inclusions, installation and everyday operation.
User manual for the Vault Eclipse slimline smart lock, which ships with the 6085 mortice from this range as standard - inclusions, installation and everyday operation.
Vault Euro Mortice - Specification Document
Newer Options Not Shown on This Sheet
This specification sheet predates the 28mm and 30mm backsets and the two alternative face plates (210mm x 24mm and 290mm x 22mm). The range now runs to nine backsets and three face plates, all chosen when the mortice is added to the cart.
This specification sheet predates the 28mm and 30mm backsets and the two alternative face plates (210mm x 24mm and 290mm x 22mm). The range now runs to nine backsets and three face plates, all chosen when the mortice is added to the cart.
Page 1 - Cover
Page 2 - Overview, Key Features, Specifications and Notes
Page 3 - Back Cover
PDF Files - Vault Hinged Euro Mortice
Vault Euro Mortice 2585 - 7085 Specification Document (PDF)
3-page specification sheet - overview, key features and full specifications for this Euro mortice range. It predates the 28mm and 30mm backsets and the two alternative face plates.
3-page specification sheet - overview, key features and full specifications for this Euro mortice range. It predates the 28mm and 30mm backsets and the two alternative face plates.
Vault Eclipse User Manual (PDF)
User manual for the Vault Eclipse slimline smart lock, which ships with the 6085 mortice from this range as standard.
User manual for the Vault Eclipse slimline smart lock, which ships with the 6085 mortice from this range as standard.
Vault Warranty
Vault Smart Locks products are backed by a manufacturer's warranty against defects in materials and workmanship under normal residential or commercial use. All claims are handled locally by Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries - start with us and we'll manage the process with Vault on your behalf.
Warranty Summary
How to Make a Claim
For full returns and warranty claim procedures, visit our Returns & Warranty page - this is kept up to date and is the authoritative reference for current claim steps.
- Contact Terry's Gold Coast Smart Locks through the Returns & Warranty page above, with your proof of purchase (invoice or receipt).
- Have your product model and serial number (if applicable) ready, along with a brief description of the fault and your installation address.
- We assess your claim with Vault and advise the outcome and next steps. You may be asked to return the product for inspection.
What This Warranty Does Not Cover
- Normal wear and tear.
- Cosmetic damage that does not affect performance.
- Damage caused by incorrect installation, misuse, neglect, modification, or accident.
- Damage due to improper handling, or installation by an unlicensed technician.
- Products that have been disassembled, tampered with, or where the security seal or warranty label has been removed.
- Battery leakage or failure, or damage caused by incorrect battery usage.
- Environmental or weather damage caused by use outside recommended operating conditions.
- Labour, installation, or removal costs associated with replacing or reinstalling products.
- Work performed before warranty approval or assessment.
Important Notes
IP ratings and weather resistance
Where a Vault product carries an Ingress Protection (IP) rating, that rating is stated on the individual product listing, packaging or technical documentation. Unless stated otherwise in writing, the IP rating applies only to the external-facing side of the lock - not to the internal assembly, handle, battery compartment, electronics, cables or connectors. The internal side must be installed in a dry, sheltered position. An IP rating describes water resistance, not waterproofing: the lock must not be submerged, pressure washed, or exposed beyond its stated rating, and all seals, gaskets and covers must be correctly fitted and undamaged.
Where a Vault product carries an Ingress Protection (IP) rating, that rating is stated on the individual product listing, packaging or technical documentation. Unless stated otherwise in writing, the IP rating applies only to the external-facing side of the lock - not to the internal assembly, handle, battery compartment, electronics, cables or connectors. The internal side must be installed in a dry, sheltered position. An IP rating describes water resistance, not waterproofing: the lock must not be submerged, pressure washed, or exposed beyond its stated rating, and all seals, gaskets and covers must be correctly fitted and undamaged.
Warranty assessment fee
Vault's manufacturer policy applies a warranty assessment holding fee, which is refundable if the fault is found to be covered under warranty. If a product is assessed as outside warranty or damaged by an excluded cause, a discounted replacement may be offered. We will confirm any applicable fees and options with you before any assessment proceeds.
Vault's manufacturer policy applies a warranty assessment holding fee, which is refundable if the fault is found to be covered under warranty. If a product is assessed as outside warranty or damaged by an excluded cause, a discounted replacement may be offered. We will confirm any applicable fees and options with you before any assessment proceeds.
Your Rights Under Australian Consumer Law
This warranty is provided in addition to your rights under the Australian Consumer Law (ACL). Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure, and to have goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.
This warranty is provided in addition to your rights under the Australian Consumer Law (ACL). Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure, and to have goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.
