McGrath Hamilton Smart Lock - Matt Black
The McGrath Hamilton Smart Lock in Matt Black is a trade-grade digital lock designed for Australian residential and commercial applications where fire compliance, accessibility, fingerprint access, and long-term reliability matter. It delivers five access methods in a single platform — fingerprint recognition, keypad PIN, RFID credential, Bluetooth eKey, and mechanical key override — and is supplied with a tubular latch suitable for fire-rated doorset configurations.
The Hamilton is one of the few smart locks available in Australia with confirmed fire compliance when installed on Firecore or E-Core doorsets in approved configurations. Its DDA-compliant lever design meets the requirements of AS 1428.1-2009, making it suitable for accessible door applications in residential, commercial, NDIS, and SDA environments.
The IP66-rated external housing provides resistance to dust and high-pressure water. The lock is managed via the McGrath Locks mobile app over Bluetooth, with optional remote access when paired with a compatible McGrath gateway — for a plain-English explanation of what that adds, see Chapter 14 - Bluetooth-only vs Gateway. A door sensor is included for optional door position monitoring within the app.
Same day if ordered before 11am AEST (excluding weekends and QLD public holidays)
Fire rated up to 2 hours when installed on Firecore or E-Core doorsets in approved configurations using the supplied McGrath tubular latch or Dormakaba MS2602 mortice lock. Fire compliance applies to the complete doorset, not the lock alone.
Lever design meets the requirements of AS 1428.1-2009 for accessible door hardware. Suitable for NDIS, SDA, and applications referencing the Disability (Access to Premises - Buildings) Standards 2010. See Chapter 09 - DDA, NDIS & Accessibility for full compliance guidance.
Available Finish Options
Matt Black (this page)
Finish selection does not affect functionality, compliance, or performance.
Looking for the Satin Nickel finish?
View the Satin Nickel variant: McGrath Hamilton Smart Lock - Satin Nickel
Key Features
- Five access methods: fingerprint recognition, keypad PIN, RFID credential, Bluetooth eKey, and mechanical key override.
- Fingerprint capacity up to 100 prints; RFID up to 1,000 credentials; PIN up to 250 users.
- Supplied with a door sensor for optional door position monitoring and activity alerts within the McGrath Locks App.
- Anti-peep PIN entry allows random digits before or after the correct code to reduce observation risk.
- Incorrect attempt lockout activates after repeated failed access attempts.
- Reset button can be disabled via the app for additional security.
- Passage mode allows the door to remain unlocked when required.
- Audit trail within the app records every door access event.
- Managed locally via Bluetooth 5.0 BLE; remote management available with compatible Wi-Fi gateway.
- DDA-compliant lever design for accessible door applications referencing AS 1428.1-2009.
- IP66-rated external housing for dust and high-pressure water resistance.
- Fire rated up to 2 hours in approved Firecore or E-Core doorset configurations.
- Compatible with common Australian commercial mortice locks in addition to the supplied tubular latch.
- 300,000-cycle durability rating.
Access Methods
The Hamilton supports five credential types simultaneously, including app-managed PIN codes that can be set as permanent, time-limited, or one-time passcodes. For a detailed comparison of how each access method works and which suits your application, see Chapter 03 - Smart Lock Access Methods in the Buyer's Guide.

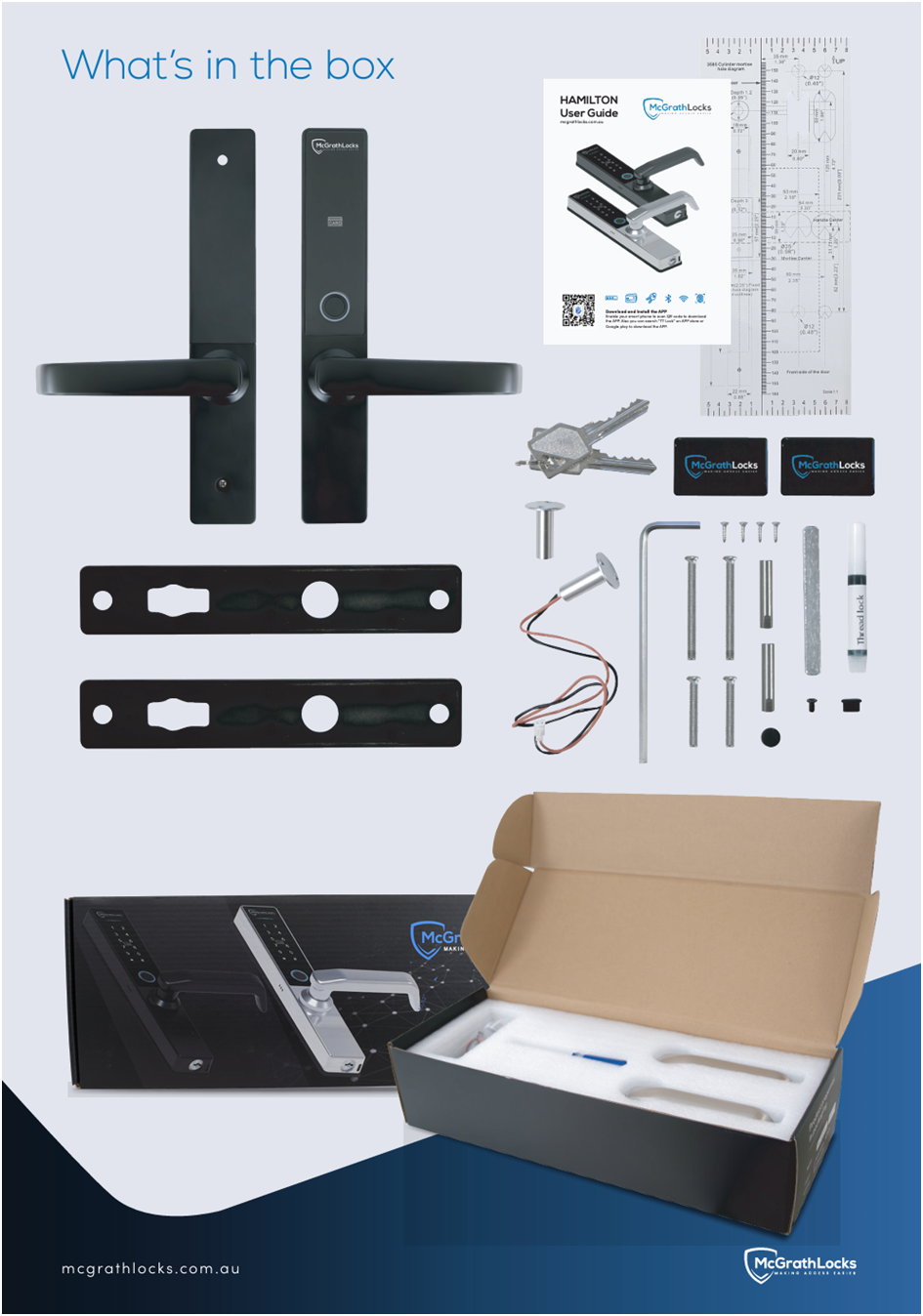

What's in the Box
- Exterior lock assembly (Matt Black)
- Interior lock assembly
- ATL6070 tubular latch (adjustable 60-70 mm) with strike plate
- Door sensor for optional door monitoring
- Drill positioning template
- 2 x backup mechanical keys
- 2 x RFID access tags
- Mounting screws
- Mini security screwdriver
- Installation guide
Suitable Uses
- Residential entry and internal doors requiring fingerprint recognition and smart access
- Commercial offices, strata entries, and shared access areas
- Fire-rated doorsets when installed in approved Firecore or E-Core configurations
- Accessible door applications referencing DDA / AS 1428.1-2009
- NDIS and SDA housing requiring accessible, fingerprint-enabled smart locks
- High-traffic doors requiring multiple access credential types
- Retrofit installations compatible with existing Australian commercial mortice locks
Specifications
Dimensions
Battery, Power & Backup Access
- Powered by 4 x AA alkaline batteries (not included). Terry's Locksmiths strongly recommends Duracell above other battery brands.
- Typical battery life up to 18 months based on approximately 10 uses per day.
- Low battery alerts visible in the McGrath Locks App and audible at the lock.
- Standby power consumption less than 30 mA.
- USB-C emergency power port allows temporary operation via a power bank if batteries are depleted.
- Mechanical key override provides emergency access if electronic methods are unavailable.
- User access credentials are retained during battery replacement.
Wi-Fi Remote Access (Optional)
This smart lock does not include native Wi-Fi connectivity. Remote access and management features are available only when the lock is paired with a compatible McGrath Locks gateway. When a gateway is installed, users can remotely unlock the door, issue or revoke access credentials, and view access activity through the McGrath Locks App from anywhere with an internet connection.
To choose the right McGrath gateway for your lock and home network, see Chapter 14 - choosing the right gateway.
The gateway connects to your home 2.4GHz Wi-Fi network. If your router merges its 2.4GHz and 5GHz bands under one name, this can interrupt the connection - see Chapter 08 - the Wi-Fi band-steering problem before installing. If a paired gateway repeatedly drops its connection, see our FAQ on smart locks dropping off Wi-Fi.
Not sure whether you need a gateway at all? See our guide to whether you actually need a gateway.
Fire Rating
- Fire rated up to 2 hours when installed on Firecore or E-Core doorsets.
- Fire performance applies only when installed with approved latch or mortice lock configurations.
- Supplied ATL6070 tubular latch and approved mortice locks have been assessed for use in fire-rated systems.
- Compatible mortice lock: Dormakaba MS2602.
- Fire compliance is system-based and limited by the Fire Resistance Level of the complete doorset.
For a full explanation of fire door types, certification scope, and how smart locks are assessed against Australian standards — including specific coverage of the Hamilton — see Chapter 05 - Fire Door Smart Locks in the Buyer's Guide.
Looking for other fire-rated smart lock options?
Fire-rated smart locks must be selected carefully. Fire performance applies to the complete doorset, including the lock, latch or mortice, door leaf, and installation method. Other fire-rated, DDA-compliant smart locks in the McGrath range include:
- McGrath Stafford Smart Lock - raised buttons, non-biometric, DDA-compliant lever, fire rated
- McGrath Bardon Smart Lock - raised buttons with Braille, fire assessed, DDA-compliant lever (mortice lock not included)
Further reading:
Disability Act Compliance (DDA)
- Lever design meets the requirements of AS 1428.1-2009 for accessible door hardware.
- Designed to assist users with limited grip strength or dexterity.
- Suitable for applications referencing the Disability (Access to Premises - Buildings) Standards 2010.
- Lever compliance relates to handle design only and does not imply full building-level compliance.
For guidance on which smart locks are certified for accessible housing, see the certified disability-access smart locks in Chapter 09, and our guide to DDA smart locks in NDIS and disability housing.
Frequently Asked Questions
Does the Hamilton require internet access to operate?
No. The lock operates locally via Bluetooth using the McGrath Locks App without any internet connection. Remote access, remote unlocking, and credential management from outside the property require an optional Wi-Fi gateway.
Is the Hamilton supplied with a mortice lock?
No. The lock is supplied with the ATL6070 adjustable 60-70 mm tubular latch. The Dormakaba MS2602 mortice lock is the confirmed approved alternative for fire door configurations and is specified separately.
Is the Hamilton suitable for fire-rated doors?
Yes, when installed on Firecore or E-Core doorsets using the approved ATL6070 tubular latch or Dormakaba MS2602 mortice lock. Fire compliance is system-based - the complete doorset must be compliant, not just the lock. See the Fire Rating section above for the approved configurations.
What should I check before ordering to confirm this lock fits my door?
Confirm your door thickness (35-54 mm), backset (60-70 mm adjustable), and spindle size (8 mm). For step-by-step measurement guidance, see our guide to measuring your lock backset.
What happens if the batteries go flat?
A USB-C emergency power port on the exterior allows temporary operation from a power bank so the door can be unlocked and batteries replaced. A mechanical key override is also provided.
Additional Information
The Hamilton suits both fresh installations and retrofit scenarios where existing lock cut-outs are present. For fire door installations, the approved latch or mortice configuration must be used and the complete doorset must comply. Installation should be carried out by a qualified locksmith or installer. For common DIY preparation mistakes, see choosing the wrong hardware or backset.
Fingerprint capacity and recognition accuracy depend on correct enrolment and user technique. Enrol each finger twice for best results. Up to 100 fingerprints can be stored. In high-humidity or very wet conditions, fingerprint recognition may be slower — PIN or RFID access provides a reliable alternative in these environments. For enrolment tips and wet-finger guidance, see TTLock tips and tricks for fingerprint access.
Battery life varies with usage frequency and the access methods used. Fingerprint access uses slightly more power than PIN or RFID. Terry's Locksmiths recommends Duracell AA batteries. The lock provides audible and in-app low-battery alerts well before batteries are fully depleted.
The external housing carries an IP66 rating, providing resistance to dust ingress and high-pressure water jets. This makes the Hamilton suitable for exposed outdoor entry positions. For what salt air, UV and humidity mean for an outdoor lock in this climate, see Chapter 11 - Queensland-specific considerations.
Gateway placement affects Wi-Fi performance and should be within the recommended range of the lock. To choose and position the right McGrath gateway for your setup, see our comparison of the McGrath G2, G3, G4 and G5 gateways.
The McGrath Locks app runs on the TT Lock platform. For an overview of how the platform manages users, passcodes and gateways, and how it compares to other app ecosystems, see Chapter 15 - Smart Lock App Platforms.
For an independent overview of the McGrath Locks range, engineering approach, fire and DDA-certified products, and the brand's position in the Australian smart lock market, see Chapter 10 - Smart Lock Brand Profiles.
The McGrath Locks mobile app is a customised, McGrath-branded version of the TT Lock platform, tailored specifically for the McGrath Locks product range. The app is managed, supported, and distributed locally by McGrath Locks in Australia. Australian-based support staff handle warranty claims, app troubleshooting, and platform queries — you’re not dealing with an overseas vendor. Cloud infrastructure is provided by TT Lock, a globally deployed IoT platform.
McGrath smart locks are backed by long-established industry partners and supported locally. To learn more about why we’re confident backing McGrath smart locks long-term, read: Why Terry’s Locksmiths, LSC & McGrath Locks Give Long-Term Confidence
The Hamilton is one of McGrath Locks’ named 24-month warranty models. 24-month warranty against defects in materials and workmanship. McGrath Locks will repair, replace, or refund at their discretion. Proof of purchase required for all claims. Named 24-month models: ALBION, ASCOT, WINDSOR, ULTRA SECUA, HAMILTON, BARDON and STAFFORD.
Returns & Warranty | McGrath Locks Warranty
Hamilton A4 Datasheet
Hamilton Product Brochure
Hamilton User & Installation Guide
What's in the Box - Complete Kit
- Exterior lock assembly (Matt Black)
- Interior lock assembly
- ATL6070 tubular latch (adjustable 60-70 mm) with strike plate
- Door sensor for optional door monitoring
- Drill positioning template
- 2 x backup mechanical keys
- 2 x RFID access tags
- Mounting screws
- Mini security screwdriver
- Installation guide
Dimensions
Installation Gallery - McGrath Hamilton Matt Black
Real installations by Terry's Gold Coast Smart Locks and customers across Australia.
McGrath Hamilton Product Brochure
Hamilton A4 Datasheet
Hamilton Product Brochure
Hamilton User & Installation Guide
Fire Certification Documents
McGrath Locks Warranty
Warranty Summary
How to Make a Claim
- Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries (the place of purchase) within the applicable warranty period.
- Supply your proof of original purchase — a receipt or tax invoice is required.
- Provide a clear description of the fault and your contact details.
- You may be asked to return the product for assessment before a remedy is determined.
- McGrath Locks will, at their discretion, repair the product, replace it with the same or an equivalent model, or provide a refund of the purchase price.
Exclusions
This warranty does not cover:
- Normal wear and tear
- Products that have been disassembled
- Damage caused by improper handling, incorrect installation, misuse, abuse, neglect, modification, or accident
- Installation by unlicensed persons (including non-licensed locksmiths or technicians)
- Products not used in accordance with the supplied instructions
- Cosmetic damage that does not affect functionality
- Labour or installation costs related to the removal or reinstallation of products
- Exposure to conditions outside normal environmental use
- Work completed before warranty approval
- Damage caused by battery leakage, battery failure, or force majeure
Important Notes
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to your rights and remedies under the Australian Consumer Law.
