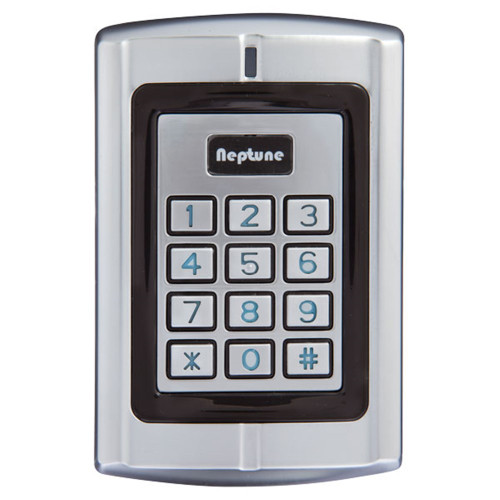

Neptune Standalone/Wiegand Keypad with Hid/EM Reader - IP68

Neptune

Terry's Online Price $256.96
(No reviews yet) Write a Review
SKU:
STK ACKPWB6K
UPC:
9329673251733
Availability:
Usually same day dispatch (if ordered before 11am)
Adding to cart… The item has been added
Neptune Logo

Neptune ACKPWB6K Standalone and Wiegand Access Control Keypad with EM and HID Reader - IP68

At A Glance

At A Glance

PIN code PIN Code Card or fob Card / Fob (EM + HID) Card and PIN Card + PIN Fingerprint not available Fingerprint
Not Available
App and WiFi not available App / WiFi
Not Available

The Neptune ACKPWB6K is a metal-cased access control keypad and card reader built around a 32-bit microcontroller. It works either as a fully standalone single-door controller or as a Wiegand output reader wired into an existing access control system, giving installers one unit that suits both jobs.

The integrated reader handles 125 kHz EM and HID proximity cards and fobs, and the keypad accepts a personal identification number (PIN), so users can be granted card access, PIN access, or both. Capacity runs to 20,000 users, and the fully potted electronics carry an IP68 ingress rating inside a vandal-resistant zinc alloy housing, making the unit suitable for indoor or outdoor mounting.

This is an access control keypad, not a door lock. It switches an electric strike, magnetic lock, or electric bolt through its relay outputs and is designed to be paired with the door hardware and power supply appropriate to the installation.

Dispatch
Estimated Dispatch
Usually ships same day if ordered before 11am AEST (excludes weekends and Queensland public holidays).

Key Features

  • Works as a standalone single-door controller or as a Wiegand output reader for an external system.
  • Selectable operating modes: Reader, Single-door, Double-doors, Interlock and Demo (available modes vary by configuration).
  • Built-in 125 kHz EM and HID proximity reader, with card, PIN, or card-plus-PIN entry.
  • Large user capacity of up to 20,000 users and up to 21 administrator cards.
  • Two relay outputs, allowing the double-door mode to manage two separate zones.
  • Supports Super-open, Add, Delete, Anti-duress, Authorisation and Normal-open administrator cards for fast on-door management.
  • Self-adaption infrared anti-demolition detection with a 24/7 alarm output that is not affected by ambient light.
  • Backlit push-button keypad with tricolour status indicator and built-in buzzer; the # key can double as a doorbell.
  • IP68-rated, potted electronics in a vandal-resistant zinc alloy case for indoor or outdoor use.

Access Methods

Method Available Notes
PIN Code Yes 4 to 6 digit user PIN via the backlit keypad.
Card / Fob (RFID) Yes 125 kHz EM and HID proximity cards and fobs (read distance up to 5 cm). Browse compatible RFID cards, fobs and tags.
Card and PIN Yes Dual-credential mode: present a card, then enter a PIN.
Fingerprint Not Available No biometric reader on this model.
App / WiFi / Bluetooth Not Available Offline access controller; no app, wireless, or remote management.

What's in the Box

  • 1 x Neptune ACKPWB6K keypad and reader unit
  • 1 x anti-demolition (security) screwdriver
  • 4 x plastic wall plugs and 4 x self-tapping mounting screws
  • User documentation

RFID cards and fobs are not included. Authorisation (header) cards, when required, must be ordered separately - see the Compatible Neptune Accessories below.

Suitable Uses

  • Standalone single-door access control for commercial, industrial and residential entries.
  • Two-door control from a single unit using the double-door (dual-relay) mode.
  • Outdoor gates, side doors and exposed entries needing an IP68-rated, vandal-resistant keypad.
  • Retrofitting a keypad or card reader onto an existing controller using the Wiegand output.
  • Sites that want both card and PIN access, or card-plus-PIN for higher-security doors.

Available Finish Options

  • Silver
    Silver
    (This Product)
    STK ACKPWB6K

Finish selection does not affect functionality, compliance, or performance.

Neptune Standalone and Wiegand Keypads - Item Code Family

Item Code Keypad Type Key Differences
ACKPWB6K 3 x 4 push button This model. Dual-relay standalone or Wiegand controller. EM and HID support, 20,000 users, vandal resistant.
ACKPW1C 2 x 6 mullion push button Slimline mullion format for narrow frames. Single-relay standalone keypad with EM reader.
NEKPWST2W 3 x 4 capacitive touch Touch keypad. Standalone or Wiegand output. Supports EM, HID and Mifare cards.
NEKPWST2S 2 x 6 mullion capacitive touch Slimline mullion touch keypad. Standalone or Wiegand output. EM, HID and Mifare support.

Compatible Neptune Accessories - Build the Full Door Package

The ACKPWB6K switches the door hardware through its relays, so a complete installation also needs the locking device, a power supply and usually an exit device - and the double-door mode can drive two of them. The matching Neptune access control range is stocked on our sister site, Terry's Gold Coast Hardware:

Accessory Item Code Where It Fits
Neptune ST160 Electric Strike ST160 / ST160F Strike driven by a relay output for a standard hinged door.
Neptune PGS701B Electric Strike PGS701B Fail-secure strike to suit Whitco Tasman security screen doors.
Neptune Maglock - Single Door NEML280M / NEML500M 280 kg or 500 kg magnetic lock for a single door, switched by a relay.
Neptune Maglock - Double Door, Monitored NEML280 / NEML500 Double-door maglock - a natural pairing for this keypad's dual-relay double-door mode.
Neptune Waterproof Maglock - Monitored NEWML280M / NEWML500M Stainless steel maglock for the outdoor gates this IP68 keypad suits.
Neptune 12VDC Power Supply with Battery Charging NEPSDC1A01B / NEPSDC5A01B Dedicated access control power supply in a lockable metal enclosure.
Neptune Press To Exit Button - ANSI, LED NEPACLB Stainless steel exit button for the request-to-exit input.
Neptune Infrared Touchless Exit Button - ANSI NEITB68W Touch-free IP65 exit sensor in the standard ANSI format.
Neptune Surface Mount Reed Switch NESMRW Door contact for door-position monitoring on the controller input.
Neptune Break Glass Call Point NECPGN / NECPWH Emergency door release for maglock circuits.
Neptune Door Loop - Aluminium DL045 / DL600 Armoured cable transfer between frame and door where wiring crosses the hinge side.

Compatible 125 kHz credentials, also on Terry's Gold Coast Hardware: EM ISO cards, HID ISO cards, HID colour-print cards, overmoulded pear fobs, Urban keyfobs, adhesive tags and silicone wristbands in EM or HID format (choose EM or HID 125 kHz options - this model does not read 13.56 MHz Mifare).

Full Specifications

  • Item Code: ACKPWB6K
  • Type: Standalone access controller / Wiegand output keypad and reader
  • Operating Modes: Reader, Single-door, Double-doors, Interlock, Demo
  • User Capacity: Up to 20,000 users
  • Administrator Card Capacity: Up to 21
  • Card Formats: 125 kHz EM and HID proximity
  • Card Read Distance: Up to 5 cm (EM and HID)
  • PIN Length: 4 to 6 digits
  • Keypad Layout: 3 x 4 backlit push button
  • Relay Outputs: 2 (normally open, normally closed, common)
  • Wiegand Interface: Input and output, selectable 26 to 66 bit
  • Working Voltage: 10 to 28 volt AC or DC
  • Standby Current: Less than or equal to 35 milliampere (at 12 volt DC)
  • Operating Current: Less than or equal to 100 milliampere (at 12 volt DC)
  • Lock Relay Contact Current: Maximum 1 ampere
  • Alarm / Doorbell (MOS) Output Current: Maximum 1 ampere
  • Anti-tamper: Self-adaption infrared anti-demolition alarm (24/7)
  • Ingress Protection: IP68
  • Housing: Vandal-resistant zinc alloy, potted electronics
  • Operating Temperature: -40 to 60 degrees Celsius
  • Operating Humidity: 0 to 95 percent
  • Dimensions (L x W x H): 128 mm x 82 mm x 28 mm
  • Lead Wires: 16

Frequently Asked Questions

Can it work on its own, or does it need a separate controller?
Both. In Single-door or Double-doors mode it is a complete standalone controller and drives the lock directly through its relay. In Reader mode it sends a Wiegand signal to an external controller instead. See how PIN and card credentials compare in the Access Methods buyers guide.
Is it suitable for outdoor installation?
Yes. The potted electronics are rated to IP68, so the unit withstands wet and exposed locations. Seal the cable entry and avoid a spot where water can pool against the housing. Our guide to IP ratings explains what IP68 covers. For an exposed gate, pair it with the Neptune waterproof monitored maglock.
What cards will it read?
The built-in reader supports 125 kHz EM and HID proximity cards and fobs. It does not read 13.56 MHz Mifare cards. Cards and fobs are ordered separately - compatible options include the Neptune EM ISO cards, HID ISO cards and pear fobs, or compare credential types in the Access Methods buyers guide.
What lock can the relay drive?
The lock relay is rated to a maximum of 1 ampere. Match the electric strike, magnetic lock or bolt to the relay rating and power the lock from a dedicated access control power supply rather than directly from the keypad; higher-current locks need an external relay.
Does the # key really work as a doorbell?
Yes. The # key can be assigned as a doorbell button, and the grey alarm wire can be switched to output a doorbell signal, so a single unit can handle both entry and a bell at the door.

Additional Information

  • On first use the default administrator password (888888) must be changed before any other programming will be accepted; this is a deliberate safety step, not a fault.
  • The anti-crack function locks the keypad or raises an alarm after a set number of invalid card or PIN attempts, which deters casual code-guessing at exposed doors.
  • For two-door sites, the double-door mode manages a second zone by prefixing the administrator password with a 2 to enter the zone 2 menu - pair it with the Neptune double-door monitored maglock. Power the system from a dedicated supply in our power accessories range.
  • This is an access control keypad, not a smart lock: it has no app, no Bluetooth or WiFi, and no mechanical key. If you want an app-managed lock, browse the Neptune range or the full Keypads for Smart Locks category.
  • For a slimline mullion alternative on a narrow frame, see the Neptune ACKPW1C mullion keypad.

Download PDF Resources

Neptune ACKPWB6K User Manual (PDF)
The 28-page V2.0 manual - operating modes, wiring colour table and diagrams, getting started, the full function reference (admin cards, multi-card open, anti-crack, doorbell output, Wiegand formats) and the per-mode management menu summary tables.
Neptune ACKPWB6K Programming / Add Codes Guide (PDF)
Neptune's 7-page quick-reference cheat sheet (Rev4) - change the master code, add and delete users, set lock timing and Wiegand options, super-open password, authorisation cards and the double-door zone 2 menu.
Neptune Product Catalogue (PDF)
The full 25-page Neptune Security Products range - keypads (this model appears in the keypads section), maglocks and brackets, receivers and remotes, exit buttons, call points, power supplies, fobs and cards.
Neptune Logo

What's in the Box - Neptune ACKPWB6K

  • 1 x Neptune ACKPWB6K keypad and reader unit
  • 1 x anti-demolition (security) screwdriver for the base fixing
  • 4 x plastic wall plugs
  • 4 x self-tapping mounting screws
  • User documentation
RFID cards and fobs are not supplied with the keypad. Authorisation (header) cards, used to restrict user access, must be ordered separately. The matching Neptune strikes, maglocks, power supplies and exit buttons are stocked on Terry's Gold Coast Hardware.
