McGrath SJ8015 Digital Lever Smart Lock - 4-in-1 Access, 60/70mm Adjustable Tubular Latch
At A Glance
At A Glance
DISPATCHSame Day Before 11am
PIN Code
RFID CardFob or Band
BluetootheKey
MechanicalKey
Wi-Fi(Gateway)
FingerprintNot Available
The McGrath SJ8015 is a compact 4-in-1 digital lever lock built for standard stile timber and aluminium hinged doors in homes, home offices and light commercial premises. Its small escutcheon (154mm high by 68mm wide) makes it one of the more discreet smart locks in the McGrath range, and it ships with an adjustable tubular latch already set up for the two backsets found on most Australian doors.
Day-to-day access runs through the McGrath Locks App over Bluetooth, with PIN codes, RFID cards, fobs and wristbands, Bluetooth eKeys and a mechanical key override all supported out of the box. Add a McGrath gateway and the same lock gains Wi-Fi remote access plus Alexa and Google Assistant voice control. New to keyless entry? Start with Chapter 01 - What Is a Smart Lock? and its explanation of the tubular latch format.
If you need a double-sided lever lock for an external gate, look at the McGrath Ascot. If your door is prepared for a deadbolt rather than a latch, the McGrath X3 uses the same 60/70mm adjustable platform. Not sure which format your door takes? Chapter 02 - Measuring Your Door walks through bored cylindrical versus mortice preparation.
Estimated Dispatch
Usually ships same day if ordered before 11am AEST (excludes weekends and Queensland public holidays).
Usually ships same day if ordered before 11am AEST (excludes weekends and Queensland public holidays).
Available Finish Options
Black
(This Product)
STK MLSJ8015
Silver
(This Product)
STK MLSJ8015
Both finishes are supplied under this single listing. McGrath names the lighter finish Satin Nickel on their own documentation, so you will see both terms used for the same product. Finish selection does not affect functionality, compliance or performance.
Key Features
- 4-in-1 access: keypad PIN, RFID card, fob, sticker or wristband, Bluetooth eKey through the app, and a mechanical key override. See Chapter 03 - Smart Lock Access Methods for how the four compare in practice.
- Compact escutcheon at 154mm x 68mm, with a 78mm projection - a discreet footprint for standard stile doors where a full longplate would crowd the glazing bead.
- Adjustable tubular latch supplied, switchable between 60mm and 70mm backset by hand. Unsure which you have? See Measuring Your Lock Backset and Chapter 02 - Backset.
- Backlit keypad for night use, with anti-peep entry so a code can be padded with random digits in front of an onlooker.
- Fast recognition: credentials are read in under 0.3 seconds and the lock releases in 1 to 1.5 seconds.
- Reversible handing - one unit suits a left or right-hand door, changed at installation step 3. See Understanding Door Handing in Australia or the SJ8015 Installation Guide (PDF).
- Optional Wi-Fi remote access when paired with a McGrath gateway, which also unlocks Alexa and Google Assistant voice control.
- Passage mode holds the lock unlocked when you want the door opening freely, and incorrect-attempt lockout plus reset disable tighten it back up when you do not.
- Audit trail in the app records who opened the door and when.
- IP65 rated on both the external and the internal housing - suited to sheltered outdoor doorways rather than fully exposed positions.
- Fits doors 38mm to 50mm thick on a stile of at least 110mm. Both figures come straight off the door preparation page of the SJ8015 datasheet (PDF, page 5), which also carries the full drilling map.
Access Methods
Palm Recognition
Face Recognition Wi-Fi Remote Access (Optional)
The SJ8015 has no Wi-Fi radio of its own. Everything it does day to day - PINs, cards, eKeys, the key override - works offline over Bluetooth, and a lot of owners never need more than that. Remote features arrive when you pair the lock with a McGrath gateway: unlocking the door from anywhere, issuing or revoking a code without being on site, and seeing the access log update in real time rather than the next time your phone is in range.
Three gateways suit this lock. The G3 runs on Power over Ethernet with no Wi-Fi at all, which is the right answer in a managed commercial network. The G4 adds a 4G SIM as a fallback for holiday houses and anywhere the internet is unreliable. The G5 is dual-band, which sidesteps the band-steering problem that causes most of the dropouts we get called about - see Chapter 08 - Band Steering and Why Smart Locks Drop Off Wi-Fi before you buy.
With a gateway fitted the lock also answers to Amazon Alexa and Google Assistant. Gateway placement matters more than most people expect, because the gateway has to hold a Bluetooth link to the lock as well as an internet connection - Chapter 08 - Gateway Placement covers the distances. Full range at Modules and Wi-Fi Gateways, and the gateway comparison blog opens with the honest question of whether you need one at all.
App Platform & Data Hosting
The McGrath Locks app is a McGrath-branded build tailored to the McGrath range, and it runs on iOS 7.0 or later and Android 4.4 or later . It is managed, supported and distributed here in Australia by McGrath Locks, so warranty claims, app troubleshooting and platform questions all go to Australian staff rather than an overseas vendor. The cloud infrastructure underneath is TTLock, a globally deployed IoT platform. New to it? Start with TT Lock Tips and Tricks - the 24-hour passcode activation rule catches nearly everyone out once - then the TT Lock Platform Guide (Chapter 14) for the six passcode types, and Chapter 15 - App Platforms if you are weighing TTLock against Yale Home or Igloohome. The full platform manual is on our TT Lock App User Manual page, or straight down as a PDF.
. It is managed, supported and distributed here in Australia by McGrath Locks, so warranty claims, app troubleshooting and platform questions all go to Australian staff rather than an overseas vendor. The cloud infrastructure underneath is TTLock, a globally deployed IoT platform. New to it? Start with TT Lock Tips and Tricks - the 24-hour passcode activation rule catches nearly everyone out once - then the TT Lock Platform Guide (Chapter 14) for the six passcode types, and Chapter 15 - App Platforms if you are weighing TTLock against Yale Home or Igloohome. The full platform manual is on our TT Lock App User Manual page, or straight down as a PDF.
Long-Term Support & Confidence
A smart lock is only as good as the people still standing behind it in five years. McGrath is distributed in Australia by LSC, and Terry's has been fitting and servicing locks on the Gold Coast for half a century - the reasoning is set out in Why Terry's Locksmiths, LSC and McGrath Locks Give Long-Term Confidence. Worth reading alongside How Long Do Digital Door Locks Last?, which deals plainly with what happens to a lock when its app platform is discontinued.
A smart lock is only as good as the people still standing behind it in five years. McGrath is distributed in Australia by LSC, and Terry's has been fitting and servicing locks on the Gold Coast for half a century - the reasoning is set out in Why Terry's Locksmiths, LSC and McGrath Locks Give Long-Term Confidence. Worth reading alongside How Long Do Digital Door Locks Last?, which deals plainly with what happens to a lock when its app platform is discontinued.
Where the SJ8015 Sits in the McGrath Range
Comparing across brands as well? Chapter 10 - Brand Profiles covers where McGrath sits against the rest of the market, and Which Smart Lock Platform Is Right for You? narrows it down in five questions.
Compatible Accessories & Spares
The SJ8015 datasheet also shows two weld-on lock boxes - galvanised alloy and stainless steel - for mounting the lock on a gate. Both are sold separately and are welded to the gate frame; talk to us before ordering, and read Gate Post Too Narrow for a 60mm Latch? first if your gate stile is slim. Browse the full Smart Lock Accessories range for anything not listed above.
Battery, Power & Backup Access
- Runs on 4 x AA alkaline batteries at DC 6V. The installation guide is explicit that only AA cells are used, and that old and new batteries, or batteries from different brands, must not be mixed.
- Up to 12 months of normal use, which McGrath puts at roughly 10,000 operations. Draw is 30 microamps at rest and under 200 milliamps while the motor runs.
- Low-battery warning at the lock and in the McGrath Locks App, well before it stops working. Batteries do not fail without notice on this platform - see Chapter 13 - Power and Battery.
- Micro-USB backup power interface on the external housing. If the batteries are flat you can hold a USB power bank against it, unlock normally, and fit new cells from the inside.
- Mechanical key override works in any power state at all. Two keys are supplied - keep one off site, and read Mechanical Key Override on Smart Locks on where to store it. A key safe beats under the mat.
- Terry's recommends quality alkaline cells and replacing all four together. Cheap cells leak, and battery leakage is not covered by the McGrath warranty.
Battery life is the single most over-promised figure in this category. The Realities of Electronic Door Locks sets out what actually drains a lock faster than the datasheet says, and what a power outage does and does not do to a battery-powered lock.
Full Specifications
Every figure above is taken from the SJ8015 technical datasheet (PDF, page 3) and the door preparation page (PDF, page 5). Where the datasheet's own summary page disagrees with its dimensioned drawing, we have followed the drawing.

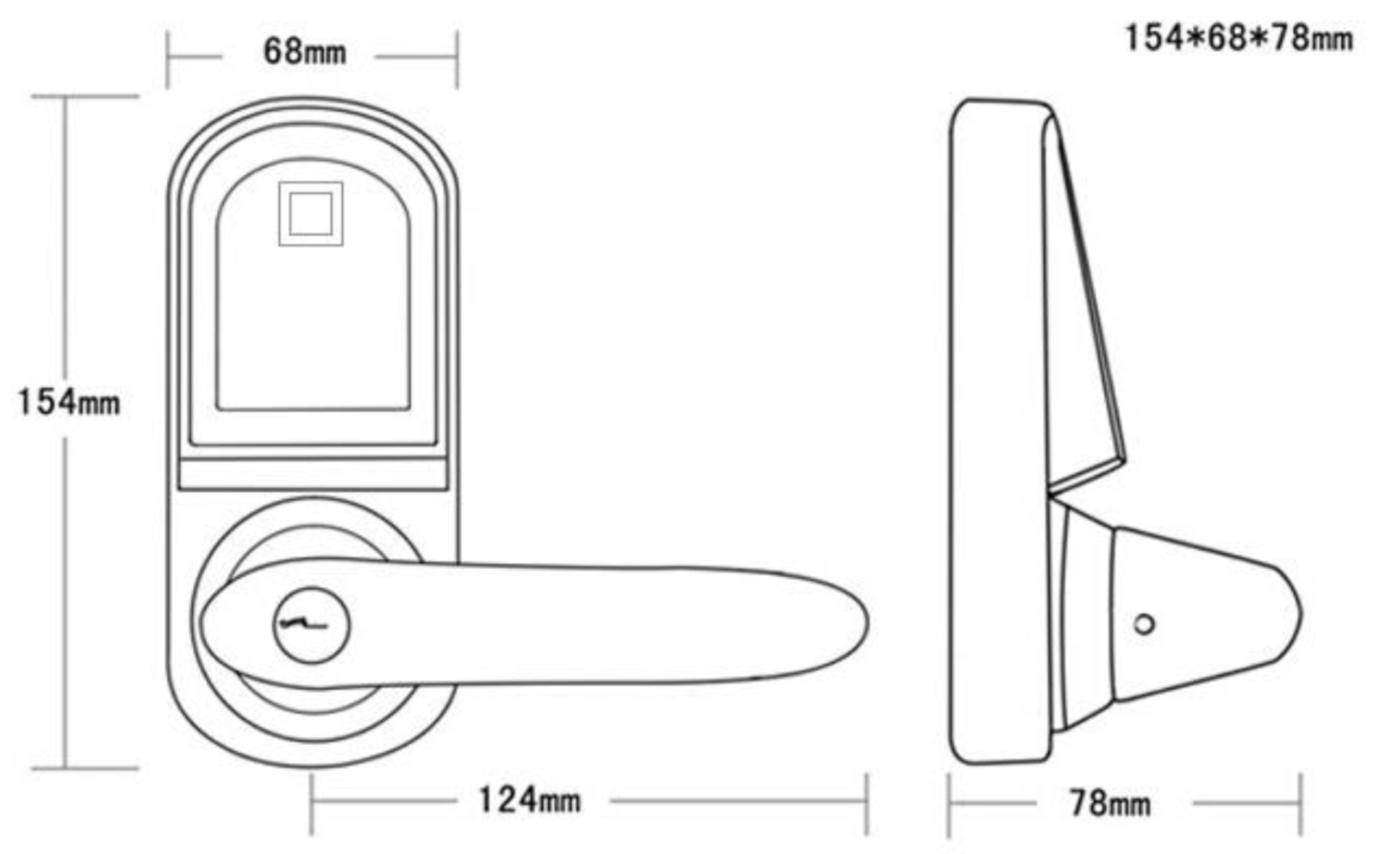

Dimensions
Escutcheon 154mm high x 68mm wide; handle length 124mm; projection from the door face 78mm. All dimensions in millimetres. The full-size drawing is in the Dimensions tab, and the drilling map sits on page 5 of the datasheet. Measuring up? Chapter 02 - Latch and Bolt (Cylindrical) Door Prep shows exactly which measurements matter.
What's In The Box
- Outdoor lock body x 1
- Indoor lock body x 1
- Mounting plate x 1
- Silicone gasket x 2
- Single tubular latch, adjustable 60/70mm x 1
- Strike plate x 1
- Latch holding plastic box x 1
- 80mm length square spindle x 1
- Fixed pin for square spindle x 1
- Cylindrical sleeve bolt 40mm x 1
- Cylindrical sleeve female bolt 35mm x 2
- M4 x 30mm cross flat head bolt x 3
- M4 x 8mm cross flat head bolt x 2
- M4 x 25mm cross flat head self-tapping screw x 4
- Mechanical key x 2
Not included: batteries (4 x AA), and the Wi-Fi gateway needed for remote access. RFID cards, fobs and wristbands are also sold separately - the lock reads them but none are supplied in the box. The full exploded parts diagram is in the What's In The Box tab.
Suitable Uses
- Front and back doors on a standard stile - timber or aluminium, 38mm to 50mm thick, on a stile of at least 110mm. This is the everyday case, and it is what the Regular Front Door range is built around.
- Internal offices, studies, store rooms and consulting rooms where you want keyless entry without a deadbolt. See Internal Doors.
- Short-stay and holiday rentals. The TTLock platform issues time-limited and one-time codes that expire on their own - no key handover, no lockbox. Read Chapter 07 - Airbnb and Short-Stay and what TTLock can do without Wi-Fi before committing.
- Retrofits onto an existing 60mm or 70mm door preparation. If the door already takes a standard entrance set, the SJ8015 usually goes straight in. Chapter 04 - Compatibility Matrix is the fastest check.
- Sheltered outdoor doorways - a porch, patio, carport entry or covered walkway. Both housings are IP65, which is a genuinely better position than most locks in this class, but it is not a licence for full exposure.
- Gates, with a weld-on lock box. McGrath supplies galvanised alloy and stainless steel boxes for this, welded to the gate frame. Check the stile first - Gate Post Too Narrow for a 60mm Latch? covers the trap.
- Small offices, clinics and workshops managing a handful of staff on cards rather than keys. With 150 codes and 100 cards it comfortably covers a team of that size, and every entry is logged.
Weather Rating - IP65 On Both Sides
Unusually for this class, McGrath rates both the external and the internal housing at IP65 - dust tight, and protected against water jets from any direction. Most two-part smart locks rate only the outside module. That said, IP65 is a splash and hose rating, not an immersion or driving-rain rating: a porch, patio or covered entry is ideal, a west-facing door that takes horizontal rain in a storm is not. Coastal buyers should also read what salt air does to a lock over time and Chapter 11 - IP Ratings Explained.
Unusually for this class, McGrath rates both the external and the internal housing at IP65 - dust tight, and protected against water jets from any direction. Most two-part smart locks rate only the outside module. That said, IP65 is a splash and hose rating, not an immersion or driving-rain rating: a porch, patio or covered entry is ideal, a west-facing door that takes horizontal rain in a storm is not. Coastal buyers should also read what salt air does to a lock over time and Chapter 11 - IP Ratings Explained.
Do Not Fit This Lock To A Fire Door
The SJ8015 carries no fire assessment. On a fire-rated door - which in Queensland means most apartment entry doors and a great many commercial doors - fitting unassessed hardware voids the door's certification, and that is a compliance problem for the building, not just for you. McGrath's fire-assessed lever locks are the Windsor, Stafford, Hamilton and Bardon. Not sure whether yours is a fire door? Chapter 05 - How to Identify a Fire Door and Apartment Fire Doors on the Gold Coast will tell you in a few minutes. Queensland apartment doors can also contain asbestos - read this before anyone drills.
The SJ8015 carries no fire assessment. On a fire-rated door - which in Queensland means most apartment entry doors and a great many commercial doors - fitting unassessed hardware voids the door's certification, and that is a compliance problem for the building, not just for you. McGrath's fire-assessed lever locks are the Windsor, Stafford, Hamilton and Bardon. Not sure whether yours is a fire door? Chapter 05 - How to Identify a Fire Door and Apartment Fire Doors on the Gold Coast will tell you in a few minutes. Queensland apartment doors can also contain asbestos - read this before anyone drills.
Where the SJ8015 Is Not The Answer
- Narrow stile aluminium doors under 110mm - look at the McGrath A210 or A231 in the narrow frame range instead.
- Sliding and security screen doors - different format entirely. See glass sliding doors and security screen doors.
- Doors thinner than 38mm or thicker than 50mm - the through-bolts and spindle will not make up the difference.
- Where a DDA compliant lever is specified - the SJ8015 lever is not AS 1428.1 compliant. See DDA smart locks for NDIS housing.
- Fully exposed positions - driving rain, unsheltered gates facing the weather, or direct afternoon sun all day. Heat is a bigger killer than water: why sunlight shortens a lock's life.
Before You Start Installing
Out of the box the SJ8015 sits in an always-open state: no power, free handle, and the door will not lock. That is normal, not a fault. It switches to private mode by itself once the batteries are in and an admin is set up in the app. Check every surface is flat and true before you drill - a warped or gappy door is the most common cause of a lock that binds or fails to latch. Full sequence in the datasheet from page 7, and the three mistakes we see most often are set out in Chapter 12. Would rather we did it? Advice and Installation.
Out of the box the SJ8015 sits in an always-open state: no power, free handle, and the door will not lock. That is normal, not a fault. It switches to private mode by itself once the batteries are in and an admin is set up in the app. Check every surface is flat and true before you drill - a warped or gappy door is the most common cause of a lock that binds or fails to latch. Full sequence in the datasheet from page 7, and the three mistakes we see most often are set out in Chapter 12. Would rather we did it? Advice and Installation.
Frequently Asked Questions
Will the SJ8015 fit my door?
Three numbers decide it. Your door needs to be 38mm to 50mm thick, the stile (the vertical timber or frame the lock sits in) needs to be at least 110mm wide, and your backset needs to be 60mm or 70mm - the supplied latch adjusts between the two. Measure the backset from the door edge to the centre of the existing hole; Measuring Your Lock Backset shows how, and Chapter 02 - Door Thickness covers the rest. If any of the three is out, send us a photo before you buy.
Three numbers decide it. Your door needs to be 38mm to 50mm thick, the stile (the vertical timber or frame the lock sits in) needs to be at least 110mm wide, and your backset needs to be 60mm or 70mm - the supplied latch adjusts between the two. Measure the backset from the door edge to the centre of the existing hole; Measuring Your Lock Backset shows how, and Chapter 02 - Door Thickness covers the rest. If any of the three is out, send us a photo before you buy.
Does the SJ8015 have a fingerprint reader?
No. It is a 4-in-1 lock: PIN keypad, RFID card or tag, Bluetooth eKey, and mechanical key override. There is no fingerprint, palm or face recognition. If biometrics matter to you, the McGrath Kedron is the fingerprint deadbolt on the same 60/70mm platform, the NX1 is the fingerprint lever, and the full range is at fingerprint smart locks. Chapter 03 - Fingerprint is worth reading first; readers are not magic and wet or worn fingers do fail.
No. It is a 4-in-1 lock: PIN keypad, RFID card or tag, Bluetooth eKey, and mechanical key override. There is no fingerprint, palm or face recognition. If biometrics matter to you, the McGrath Kedron is the fingerprint deadbolt on the same 60/70mm platform, the NX1 is the fingerprint lever, and the full range is at fingerprint smart locks. Chapter 03 - Fingerprint is worth reading first; readers are not magic and wet or worn fingers do fail.
Can I unlock it from my phone when I am not home?
Not on its own. Out of the box the lock is Bluetooth only, so your phone has to be within about ten metres. Add a McGrath gateway and you get remote unlocking, remote code issuing and a live access log from anywhere. The G5 is our usual recommendation because it is dual-band and sidesteps the band-steering problem behind most dropouts - Chapter 08 explains it. Everything else keeps working without a gateway, which is worth remembering: what happens when the internet goes down.
Not on its own. Out of the box the lock is Bluetooth only, so your phone has to be within about ten metres. Add a McGrath gateway and you get remote unlocking, remote code issuing and a live access log from anywhere. The G5 is our usual recommendation because it is dual-band and sidesteps the band-steering problem behind most dropouts - Chapter 08 explains it. Everything else keeps working without a gateway, which is worth remembering: what happens when the internet goes down.
Can it go outside, or on a gate?
Outside, yes, in a sheltered spot - both housings are IP65 rated, which is better than most locks in this class manage. A porch, patio or covered entry is fine; a door that takes driving rain across it in a storm is not. For a gate you also need a weld-on lock box, which McGrath supplies in galvanised alloy and stainless steel and which welds to the gate frame; those are sold separately, so talk to us before ordering. If the gate is fully exposed, the McGrath Ascot is the purpose-built gate lock in the range.
Outside, yes, in a sheltered spot - both housings are IP65 rated, which is better than most locks in this class manage. A porch, patio or covered entry is fine; a door that takes driving rain across it in a storm is not. For a gate you also need a weld-on lock box, which McGrath supplies in galvanised alloy and stainless steel and which welds to the gate frame; those are sold separately, so talk to us before ordering. If the gate is fully exposed, the McGrath Ascot is the purpose-built gate lock in the range.
What happens if the batteries go flat while I am out?
You will have had warnings for weeks first, at the lock and in the app. If it does happen, there are two ways in: hold a USB power bank against the Micro-USB port on the outside housing to wake the lock and enter your code normally, or use one of the two mechanical keys, which work regardless of power. Keep a key somewhere sensible off site - not under the doormat. A key safe is the tidy answer.
You will have had warnings for weeks first, at the lock and in the app. If it does happen, there are two ways in: hold a USB power bank against the Micro-USB port on the outside housing to wake the lock and enter your code normally, or use one of the two mechanical keys, which work regardless of power. Keep a key somewhere sensible off site - not under the doormat. A key safe is the tidy answer.
Additional Information
This is a latch, not a deadbolt - and that matters
The SJ8015 drives a spring latch through its lever. It holds the door shut and it stops the handle turning from outside, but it does not throw a solid bolt into the frame the way a deadbolt does. For most internal doors, offices and sheltered entries that is exactly right. For a front door where kick-in resistance is the concern, a deadbolt gives you more - the McGrath X3 is the deadbolt on this same 60/70mm platform, and plenty of homes run both. Latch vs Bolt and Chapter 01 - The Mechanical Layer set out the difference properly.
The SJ8015 drives a spring latch through its lever. It holds the door shut and it stops the handle turning from outside, but it does not throw a solid bolt into the frame the way a deadbolt does. For most internal doors, offices and sheltered entries that is exactly right. For a front door where kick-in resistance is the concern, a deadbolt gives you more - the McGrath X3 is the deadbolt on this same 60/70mm platform, and plenty of homes run both. Latch vs Bolt and Chapter 01 - The Mechanical Layer set out the difference properly.
The handle turns freely when the door is locked - that is the clutch
When the SJ8015 is locked, the outside lever still rotates. It feels wrong the first time, and we get calls about it. The lever is disconnected from the latch by an internal clutch, so turning it achieves nothing and the door stays shut. It is deliberate: a lever that refuses to move is a lever people force, and a forced lever is a broken lock. McGrath documents the behaviour in step 7 of the installation sequence.
When the SJ8015 is locked, the outside lever still rotates. It feels wrong the first time, and we get calls about it. The lever is disconnected from the latch by an internal clutch, so turning it achieves nothing and the door stays shut. It is deliberate: a lever that refuses to move is a lever people force, and a forced lever is a broken lock. McGrath documents the behaviour in step 7 of the installation sequence.
Codes have an activation window - read this before you hand one out
On the TTLock platform a newly created permanent passcode must be used at the lock within 24 hours or it expires quietly. Hosts and property managers get caught by this constantly: the code is created on Monday, the guest arrives on Friday, and nothing works. The fix is simple once you know - how to stop codes expiring. The six passcode types are on page 24 of the platform manual, and Chapter 14 covers when to use each.
On the TTLock platform a newly created permanent passcode must be used at the lock within 24 hours or it expires quietly. Hosts and property managers get caught by this constantly: the code is created on Monday, the guest arrives on Friday, and nothing works. The fix is simple once you know - how to stop codes expiring. The six passcode types are on page 24 of the platform manual, and Chapter 14 covers when to use each.
If you see a "tamper" toggle in the app, leave it off
The TTLock app carries a tamper setting that this hardware does not support. Switching it on produces phantom alerts - notifications for nothing at all, at three in the morning. It is a legacy item in the app rather than a feature of the lock. Background in Tamper Alert on Smart Locks, and if it is already on, three steps to turn it off.
The TTLock app carries a tamper setting that this hardware does not support. Switching it on produces phantom alerts - notifications for nothing at all, at three in the morning. It is a legacy item in the app rather than a feature of the lock. Background in Tamper Alert on Smart Locks, and if it is already on, three steps to turn it off.
Looking after it
Never spray cleaner directly at the lock. Clean water and a mild cleaner on a soft, non-abrasive cloth is all it needs, and keeping liquid away from the electrics is the whole point. There is a protective film on the touch panel from the factory - peel it off when you are done installing if you want to, or leave it. Use quality alkaline cells and change all four together; leaking cheap batteries are a common cause of failure and are excluded from warranty. If you would rather not drill your own door, we install these every week, and a free site survey is available if you are unsure what your door needs.
Never spray cleaner directly at the lock. Clean water and a mild cleaner on a soft, non-abrasive cloth is all it needs, and keeping liquid away from the electrics is the whole point. There is a protective film on the touch panel from the factory - peel it off when you are done installing if you want to, or leave it. Use quality alkaline cells and change all four together; leaking cheap batteries are a common cause of failure and are excluded from warranty. If you would rather not drill your own door, we install these every week, and a free site survey is available if you are unsure what your door needs.
Warranty
Warranty
12-month warranty against defects in materials and workmanship (24-month on ALBION, ASCOT, ASHGROVE, BARDON, GRANGE, HAMILTON, KEDRON, MANLY, SANDGATE, STAFFORD, ULTRA SECUA and WINDSOR models). McGrath Locks will repair, replace, or refund at their discretion. Proof of purchase required for all claims. Returns & Warranty | McGrath Locks Warranty
12-month warranty against defects in materials and workmanship (24-month on ALBION, ASCOT, ASHGROVE, BARDON, GRANGE, HAMILTON, KEDRON, MANLY, SANDGATE, STAFFORD, ULTRA SECUA and WINDSOR models). McGrath Locks will repair, replace, or refund at their discretion. Proof of purchase required for all claims. Returns & Warranty | McGrath Locks Warranty
Download PDF Resources
SJ8015 Technical Datasheet (PDF)
Twelve pages, and the most complete document of the four. Full system specification table, safety notes, door preparation with the drilling map, the exploded parts diagram, all seven installation steps, the factory reset procedure, the gate lock boxes, and the app screen map.
Twelve pages, and the most complete document of the four. Full system specification table, safety notes, door preparation with the drilling map, the exploded parts diagram, all seven installation steps, the factory reset procedure, the gate lock boxes, and the app screen map.
SJ8015 Installation Guide (PDF)
Seven pages covering door preparation, the A to O packing list, the exploded diagram, the seven installation steps and the factory reset. The same content as pages 4 to 10 of the datasheet, extracted as a standalone document for the installer.
Seven pages covering door preparation, the A to O packing list, the exploded diagram, the seven installation steps and the factory reset. The same content as pages 4 to 10 of the datasheet, extracted as a standalone document for the installer.
SJ8015 Product Brochure (PDF)
A single A4 marketing sheet - the unlock methods at a glance, the product description, and a QR code to the online listing. Handy to print or forward; the datasheet above is the one to read for specifications.
A single A4 marketing sheet - the unlock methods at a glance, the product description, and a QR code to the online listing. Handy to print or forward; the datasheet above is the one to read for specifications.
TT Lock App User Manual (PDF)
Fifty-six pages on the app platform behind the McGrath Locks App - registration, adding a lock, eKeys, the six passcode types, card management, Bluetooth unlocking, system settings and gateway setup. Written in generic TTLock branding rather than the McGrath skin, but the functions are the same.
Fifty-six pages on the app platform behind the McGrath Locks App - registration, adding a lock, eKeys, the six passcode types, card management, Bluetooth unlocking, system settings and gateway setup. Written in generic TTLock branding rather than the McGrath skin, but the functions are the same.
McGrath SJ8015 - FAQ, Setup and Owner's Guide
Everything we get asked about the SJ8015, from measuring up before you buy through to the things that only come up six months in. Broader questions across every brand we stock are answered in Chapter 13 - Smart Lock FAQ, and the full Smart Lock Buyer's Guide runs to sixteen chapters. In a hurry? The Quick Start Guide gets you to the right lock in five decisions.
Fit and Door Preparation
What is backset, and how do I measure mine?
Backset is the distance from the edge of the door to the centre of the big round hole the lock sits in. In Australia it is almost always 60mm or 70mm. Open the door, put a tape on the edge, measure across to the centre of the hole. The SJ8015 ships with a latch that adjusts to either, so both are covered without ordering anything extra. Step by step in Measuring Your Lock Backset, with the standard sizes listed in the same article and in Chapter 02.
Backset is the distance from the edge of the door to the centre of the big round hole the lock sits in. In Australia it is almost always 60mm or 70mm. Open the door, put a tape on the edge, measure across to the centre of the hole. The SJ8015 ships with a latch that adjusts to either, so both are covered without ordering anything extra. Step by step in Measuring Your Lock Backset, with the standard sizes listed in the same article and in Chapter 02.
My door is 55mm thick. Will it still work?
No. The stated range is 38mm to 50mm, and the through-bolts and 80mm spindle supplied will not reach any further. This is worth being careful about, because an older version of this listing said 55mm - the door preparation page of McGrath's own documentation says 50mm and that is the figure we stand behind. If your door is thicker, tell us the measurement and we will point you at something that suits; Chapter 02 - Door Thickness covers the wider picture.
No. The stated range is 38mm to 50mm, and the through-bolts and 80mm spindle supplied will not reach any further. This is worth being careful about, because an older version of this listing said 55mm - the door preparation page of McGrath's own documentation says 50mm and that is the figure we stand behind. If your door is thicker, tell us the measurement and we will point you at something that suits; Chapter 02 - Door Thickness covers the wider picture.
What is the minimum stile width?
110mm. That is the vertical section of door or frame the lock body sits in, and it is the measurement most people forget. Aluminium doors are where it bites - a lot of them run narrower than that. If yours does, the slimline range is the answer: the McGrath A210 handles 43mm stiles and the A231 is slimmer again. Browse the narrow frame category, and read Chapter 02 - Stile Width first.
110mm. That is the vertical section of door or frame the lock body sits in, and it is the measurement most people forget. Aluminium doors are where it bites - a lot of them run narrower than that. If yours does, the slimline range is the answer: the McGrath A210 handles 43mm stiles and the A231 is slimmer again. Browse the narrow frame category, and read Chapter 02 - Stile Width first.
Do I need to specify left or right hand?
No. The lever is reversible and it is changed during installation - step 3 in the sequence. One SKU covers every door in the house. If you are ordering other hardware at the same time and need to know your handing anyway, how to determine your door's handing takes about a minute, and field-reversible versus fixed explains why some locks are fussier than this one.
No. The lever is reversible and it is changed during installation - step 3 in the sequence. One SKU covers every door in the house. If you are ordering other hardware at the same time and need to know your handing anyway, how to determine your door's handing takes about a minute, and field-reversible versus fixed explains why some locks are fussier than this one.
Will it cover the marks left by my old lock?
The escutcheon is 154mm by 68mm, which is small - that is the point of this model, but it also means it covers less than a longplate lock. If your old hardware left a bigger footprint, you may need a scar plate. The SJ8015 has no dedicated scar plate in the McGrath range, so send us a photo and a measurement before you order. When do you need a scar plate? explains what to look for, and the scar and adaptor plate range is worth a look.
The escutcheon is 154mm by 68mm, which is small - that is the point of this model, but it also means it covers less than a longplate lock. If your old hardware left a bigger footprint, you may need a scar plate. The SJ8015 has no dedicated scar plate in the McGrath range, so send us a photo and a measurement before you order. When do you need a scar plate? explains what to look for, and the scar and adaptor plate range is worth a look.
Access, Codes and Credentials
How many codes can I have, and how long can they be?
Up to 150 PIN codes, each 6 to 8 digits. That is comfortably more than a household needs and enough for a small team or a busy short-stay property. Codes can be permanent, time-limited down to the hour, one-time, or cyclic - a cleaner's code that only works Tuesday mornings, for instance. The six types are set out in Chapter 14 - The Six Passcode Types and on page 24 of the platform manual.
Up to 150 PIN codes, each 6 to 8 digits. That is comfortably more than a household needs and enough for a small team or a busy short-stay property. Codes can be permanent, time-limited down to the hour, one-time, or cyclic - a cleaner's code that only works Tuesday mornings, for instance. The six types are set out in Chapter 14 - The Six Passcode Types and on page 24 of the platform manual.
What cards and fobs work with it?
13.56MHz MIFARE credentials, up to 100 of them. We stock four formats: the MIFARE 1K card for wallets, the keyring fob, the adjustable wristband - which McGrath names as a factory unlock method on this model, and which suits kids and anyone without pockets - and the 25mm adhesive sticker that goes on a phone case. Each is enrolled and revoked individually in the app, so losing one is a two-minute problem. See Chapter 03 - RFID and the full credential range.
13.56MHz MIFARE credentials, up to 100 of them. We stock four formats: the MIFARE 1K card for wallets, the keyring fob, the adjustable wristband - which McGrath names as a factory unlock method on this model, and which suits kids and anyone without pockets - and the 25mm adhesive sticker that goes on a phone case. Each is enrolled and revoked individually in the app, so losing one is a two-minute problem. See Chapter 03 - RFID and the full credential range.
Why did the code I created stop working?
Almost always the 24-hour activation rule. A new permanent passcode on this platform has to be entered at the lock once within 24 hours of being created, or it dies quietly. Create it the day the guest arrives, not a week early. If a code has already lapsed, delete it and issue a fresh one. The full explanation, and the activation window for each passcode type, is in the 24-hour activation rule and the activation windows table.
Almost always the 24-hour activation rule. A new permanent passcode on this platform has to be entered at the lock once within 24 hours of being created, or it dies quietly. Create it the day the guest arrives, not a week early. If a code has already lapsed, delete it and issue a fresh one. The full explanation, and the activation window for each passcode type, is in the 24-hour activation rule and the activation windows table.
Can someone work out my code by watching me, or from fingerprints on the keys?
Anti-peep entry deals with both. You can type any number of random digits before and after your real code and the lock will still open, so a shoulder-surfer sees nothing useful and the wear pattern on the keypad gives nothing away. Enter too many genuinely wrong codes and the lock locks out for a period. Worth pairing with sensible code hygiene - Chapter 13 - Security covers the rest.
Anti-peep entry deals with both. You can type any number of random digits before and after your real code and the lock will still open, so a shoulder-surfer sees nothing useful and the wear pattern on the keypad gives nothing away. Enter too many genuinely wrong codes and the lock locks out for a period. Worth pairing with sensible code hygiene - Chapter 13 - Security covers the rest.
Where is the keyhole?
In the lever itself, on the outside. It is not hidden behind a cover on this model the way it is on some smart locks. Two keys come in the box. There is no SJ8015-specific key blank in the McGrath spares range, so if you lose both, talk to us rather than assuming a replacement is a shelf item. Where is the keyhole? covers why it is worth locating before you need it.
In the lever itself, on the outside. It is not hidden behind a cover on this model the way it is on some smart locks. Two keys come in the box. There is no SJ8015-specific key blank in the McGrath spares range, so if you lose both, talk to us rather than assuming a replacement is a shelf item. Where is the keyhole? covers why it is worth locating before you need it.
Remote Access and Gateways
Do I actually need a gateway?
Often, no. If you are at the door when you use the lock, Bluetooth does everything: unlock from the app, add and delete codes, read the access log when you are next in range. A gateway earns its keep when you need to let someone in while you are elsewhere, when you want the log updating live rather than on sync, or when you are running a short-stay property. Do You Actually Need a Gateway? is the honest version, and Chapter 08 covers what one adds.
Often, no. If you are at the door when you use the lock, Bluetooth does everything: unlock from the app, add and delete codes, read the access log when you are next in range. A gateway earns its keep when you need to let someone in while you are elsewhere, when you want the log updating live rather than on sync, or when you are running a short-stay property. Do You Actually Need a Gateway? is the honest version, and Chapter 08 covers what one adds.
Which gateway should I get - G3, G4 or G5?
The G5 for most homes: it is dual-band, so it does not fall over when your router band-steers, and it handles up to 100 locks. The G3 if you have structured cabling and want Power over Ethernet with no Wi-Fi in the path at all - the usual choice in commercial buildings. The G4 if the property has unreliable internet and you want a 4G SIM as backup - holiday houses, rural blocks. Side by side in the gateway comparison and Chapter 08. Do not forget the wall adaptor - gateways ship without one.
The G5 for most homes: it is dual-band, so it does not fall over when your router band-steers, and it handles up to 100 locks. The G3 if you have structured cabling and want Power over Ethernet with no Wi-Fi in the path at all - the usual choice in commercial buildings. The G4 if the property has unreliable internet and you want a 4G SIM as backup - holiday houses, rural blocks. Side by side in the gateway comparison and Chapter 08. Do not forget the wall adaptor - gateways ship without one.
Where should the gateway go?
Between your router and the lock, and closer to the lock than you would expect - it has to hold a Bluetooth connection to the lock as well as a network connection, and Bluetooth is the shorter of the two. Eight to ten metres with a clear line is realistic; a brick wall or two will cut that. Chapter 08 - Gateway Placement has the detail. Adding gateways in the app is covered on page 53 of the platform manual.
Between your router and the lock, and closer to the lock than you would expect - it has to hold a Bluetooth connection to the lock as well as a network connection, and Bluetooth is the shorter of the two. Eight to ten metres with a clear line is realistic; a brick wall or two will cut that. Chapter 08 - Gateway Placement has the detail. Adding gateways in the app is covered on page 53 of the platform manual.
Does it work with Alexa or Google?
Yes, once a gateway is fitted - McGrath lists Amazon Alexa and Google Assistant support on the SJ8015 datasheet. Without a gateway there is no cloud connection for a voice assistant to talk to, so voice control is a gateway feature rather than a lock feature. Worth knowing what voice control does and does not give you before you buy on the strength of it: Chapter 15 - Platform at a Glance compares the ecosystems.
Yes, once a gateway is fitted - McGrath lists Amazon Alexa and Google Assistant support on the SJ8015 datasheet. Without a gateway there is no cloud connection for a voice assistant to talk to, so voice control is a gateway feature rather than a lock feature. Worth knowing what voice control does and does not give you before you buy on the strength of it: Chapter 15 - Platform at a Glance compares the ecosystems.
My gateway keeps dropping off the Wi-Fi. Why?
Nine times in ten it is band steering - your router presents 2.4GHz and 5GHz under one network name and quietly moves devices between them, and a 2.4GHz-only gateway loses its footing. Either split the bands into separate network names, or fit the dual-band G5, which is immune to it. Full diagnosis in Why Smart Locks Drop Off Wi-Fi, the hardware fix, and Chapter 13, Q11.
Nine times in ten it is band steering - your router presents 2.4GHz and 5GHz under one network name and quietly moves devices between them, and a 2.4GHz-only gateway loses its footing. Either split the bands into separate network names, or fit the dual-band G5, which is immune to it. Full diagnosis in Why Smart Locks Drop Off Wi-Fi, the hardware fix, and Chapter 13, Q11.
Power and Batteries
Which batteries, and how long do they really last?
Four AA alkaline cells, all changed together, never mixed brands or mixed old and new. McGrath rates it at twelve months or around 10,000 operations, and in a normal household that is about right. A busy office door, a lot of Bluetooth wake-ups, or cold weather will pull it in. Do not use rechargeables - the lower voltage brings the low-battery warning on early. The Realities of Electronic Door Locks is the unvarnished version, and Chapter 13 - Power and Battery answers the rest.
Four AA alkaline cells, all changed together, never mixed brands or mixed old and new. McGrath rates it at twelve months or around 10,000 operations, and in a normal household that is about right. A busy office door, a lot of Bluetooth wake-ups, or cold weather will pull it in. Do not use rechargeables - the lower voltage brings the low-battery warning on early. The Realities of Electronic Door Locks is the unvarnished version, and Chapter 13 - Power and Battery answers the rest.
How does the Micro-USB emergency power work?
There is a Micro-USB port on the outside housing. Hold a phone power bank against it with a Micro-USB cable, the keypad wakes, you enter your code and the door opens - then fit fresh batteries from the inside. It is a rescue path, not a way to run the lock; it powers the electronics long enough to get you in. Note this is Micro-USB, not USB-C - worth having the right cable in the car if this is a rental or a holiday house.
There is a Micro-USB port on the outside housing. Hold a phone power bank against it with a Micro-USB cable, the keypad wakes, you enter your code and the door opens - then fit fresh batteries from the inside. It is a rescue path, not a way to run the lock; it powers the electronics long enough to get you in. Note this is Micro-USB, not USB-C - worth having the right cable in the car if this is a rental or a holiday house.
Does a power cut affect it?
Not at all - it runs on batteries, so it keeps working through a blackout. What a power cut does affect is remote access: no power means no router, no router means no gateway, and no gateway means no remote unlocking until the power is back. Everything at the door itself - codes, cards, Bluetooth, the key - carries on. Power Outages - What Actually Happens.
Not at all - it runs on batteries, so it keeps working through a blackout. What a power cut does affect is remote access: no power means no router, no router means no gateway, and no gateway means no remote unlocking until the power is back. Everything at the door itself - codes, cards, Bluetooth, the key - carries on. Power Outages - What Actually Happens.
Installation and Setup
Can I fit it myself?
If the door is already prepared for a standard entrance set at 60mm or 70mm backset, this is a straightforward swap - remove the old lock, fit the latch, bolt the two halves together through the door, fit the batteries. If you are drilling a door from scratch you need the template, a hole saw and a steady hand: 54mm cross bore, 27mm edge bore, and everything square. The drilling map is on page 5 of the datasheet and the steps run from page 7. Chapter 12 - When DIY Is Appropriate is a fair test of whether to have a go. If not, we install these every week.
If the door is already prepared for a standard entrance set at 60mm or 70mm backset, this is a straightforward swap - remove the old lock, fit the latch, bolt the two halves together through the door, fit the batteries. If you are drilling a door from scratch you need the template, a hole saw and a steady hand: 54mm cross bore, 27mm edge bore, and everything square. The drilling map is on page 5 of the datasheet and the steps run from page 7. Chapter 12 - When DIY Is Appropriate is a fair test of whether to have a go. If not, we install these every week.
I have fitted it and it will not lock. Is it broken?
No - this is the single most common call we get on a new install. In its factory state the lock is deliberately held open: no power, free handle, door will not lock. It stays that way until you put the batteries in and set up an admin in the app, at which point it switches itself to private mode and starts behaving. If it still will not latch after that, the problem is alignment, not electronics - Smart Lock Not Locking - Mistake 1 and Chapter 12 - Door Misalignment.
No - this is the single most common call we get on a new install. In its factory state the lock is deliberately held open: no power, free handle, door will not lock. It stays that way until you put the batteries in and set up an admin in the app, at which point it switches itself to private mode and starts behaving. If it still will not latch after that, the problem is alignment, not electronics - Smart Lock Not Locking - Mistake 1 and Chapter 12 - Door Misalignment.
Do I need the sleeve bolt that came in the box?
Only if your door has a hole for it. The 40mm cylindrical sleeve bolt is there for doors prepared with an extra fixing point; on a door without one, leave it in the box. McGrath states this explicitly at step 3 of the installation sequence. A spare part in the bag is not a sign you have done something wrong.
Only if your door has a hole for it. The 40mm cylindrical sleeve bolt is there for doors prepared with an extra fixing point; on a door without one, leave it in the box. McGrath states this explicitly at step 3 of the installation sequence. A spare part in the bag is not a sign you have done something wrong.
How do I set it up in the app the first time?
Install the McGrath Locks App, register with your phone number or email, then stand at the door and add the lock over Bluetooth - it has to be initialised in person, once. Whoever does this becomes the administrator, so make it the person who should own the lock long term. Adding a lock is covered on page 15 of the platform manual, and transferring administrator rights later on page 48. Chapter 14 - eKeys covers sharing access with the rest of the household.
Install the McGrath Locks App, register with your phone number or email, then stand at the door and add the lock over Bluetooth - it has to be initialised in person, once. Whoever does this becomes the administrator, so make it the person who should own the lock long term. Adding a lock is covered on page 15 of the platform manual, and transferring administrator rights later on page 48. Chapter 14 - eKeys covers sharing access with the rest of the household.
How do I factory reset it?
The reset button is on the back of the rear panel, directly behind the number 4 on the touchpad. Press and hold it with a long thin pin for more than five seconds. It wipes everything - every paired phone, every code, every card - and returns the lock to its factory state, so only do this when you mean it. The most common legitimate reason is taking over a lock from a previous owner or tenant. Documented on page 10 of the datasheet.
The reset button is on the back of the rear panel, directly behind the number 4 on the touchpad. Press and hold it with a long thin pin for more than five seconds. It wipes everything - every paired phone, every code, every card - and returns the lock to its factory state, so only do this when you mean it. The most common legitimate reason is taking over a lock from a previous owner or tenant. Documented on page 10 of the datasheet.
Living With It
Can I leave it unlocked during the day?
Yes - passage mode holds the lock open so the door opens on the handle without any credential, which suits a shop, a reception area or a house full of tradespeople for the afternoon. Turn it off and normal locking resumes. It is set in the app. Just be deliberate about it: an unlocked door is an unlocked door, and passage mode left on overnight is the kind of thing that shows up in an insurance conversation.
Yes - passage mode holds the lock open so the door opens on the handle without any credential, which suits a shop, a reception area or a house full of tradespeople for the afternoon. Turn it off and normal locking resumes. It is set in the app. Just be deliberate about it: an unlocked door is an unlocked door, and passage mode left on overnight is the kind of thing that shows up in an insurance conversation.
Can I see who came and went?
Yes. Every unlock is logged against the credential that opened the door, so you can see that the cleaner's code was used at 9:14 on Tuesday rather than just that "someone" came in. Without a gateway the log syncs to your phone next time you are in Bluetooth range; with one it updates live. This is the feature short-stay hosts value most when there is a dispute - Chapter 07 - Audit Trails for Dispute Resolution.
Yes. Every unlock is logged against the credential that opened the door, so you can see that the cleaner's code was used at 9:14 on Tuesday rather than just that "someone" came in. Without a gateway the log syncs to your phone next time you are in Bluetooth range; with one it updates live. This is the feature short-stay hosts value most when there is a dispute - Chapter 07 - Audit Trails for Dispute Resolution.
Is it any good for an Airbnb?
It works well for it, with one caveat. Time-limited codes that expire on checkout day, a log of every entry, and no key handover - that is most of what a host needs, and it does all of it over Bluetooth alone. What it will not do is generate codes offline in advance the way Igloohome's algoPIN does, so if you want fully automated code delivery you will want a gateway. Read what TTLock can do without Wi-Fi, then Chapter 07 - Igloohome vs TTLock and which Airbnb setup is right for you before you decide.
It works well for it, with one caveat. Time-limited codes that expire on checkout day, a log of every entry, and no key handover - that is most of what a host needs, and it does all of it over Bluetooth alone. What it will not do is generate codes offline in advance the way Igloohome's algoPIN does, so if you want fully automated code delivery you will want a gateway. Read what TTLock can do without Wi-Fi, then Chapter 07 - Igloohome vs TTLock and which Airbnb setup is right for you before you decide.
Where does my data go?
The lock itself holds your codes and cards locally and works with no internet at all. The account layer - eKeys, remote features, the cloud copy of your access log - lives on TTLock's platform. That is a fair question to ask of any connected lock, and we would rather you asked it than not: where each smart lock platform hosts its data lays it out platform by platform, TTLock vs Tuya covers the published vulnerabilities, and Chapter 15 - Security and Data Sovereignty puts it in context. If data sovereignty is a deciding factor for you, say so and we will point you at the alternatives.
The lock itself holds your codes and cards locally and works with no internet at all. The account layer - eKeys, remote features, the cloud copy of your access log - lives on TTLock's platform. That is a fair question to ask of any connected lock, and we would rather you asked it than not: where each smart lock platform hosts its data lays it out platform by platform, TTLock vs Tuya covers the published vulnerabilities, and Chapter 15 - Security and Data Sovereignty puts it in context. If data sovereignty is a deciding factor for you, say so and we will point you at the alternatives.
We are near the water. Will it last?
Salt air is harder on hardware than rain is, and it works on everything - fixings, the finish, the electronics inside. McGrath does not publish a salt spray figure for the SJ8015, so we will not quote one. What we can tell you from fitting locks on this coast for fifty years is that a sheltered position, a rinse with fresh water now and then, and replacing batteries before they leak will get you years more than the alternative. Coastal Queensland is not gentle is worth ten minutes if you are within a few streets of the beach.
Salt air is harder on hardware than rain is, and it works on everything - fixings, the finish, the electronics inside. McGrath does not publish a salt spray figure for the SJ8015, so we will not quote one. What we can tell you from fitting locks on this coast for fifty years is that a sheltered position, a rinse with fresh water now and then, and replacing batteries before they leak will get you years more than the alternative. Coastal Queensland is not gentle is worth ten minutes if you are within a few streets of the beach.
Suitability and Limitations
Can I put it on my apartment door?
Only if that door is not a fire door, and in a Queensland apartment building it very often is. Fitting unassessed hardware to a fire door voids its certification. Check first - how to identify a fire door takes a minute, and Chapter 04 - Strata Apartments, Four Checks covers the body corporate side. If it is a fire door, the Windsor and Stafford are the fire-assessed equivalents, and the whole fire door range is here.
Only if that door is not a fire door, and in a Queensland apartment building it very often is. Fitting unassessed hardware to a fire door voids its certification. Check first - how to identify a fire door takes a minute, and Chapter 04 - Strata Apartments, Four Checks covers the body corporate side. If it is a fire door, the Windsor and Stafford are the fire-assessed equivalents, and the whole fire door range is here.
Is the lever DDA compliant?
No. The SJ8015 lever is not AS 1428.1 compliant, so it is not the lock for an NDIS or SDA property, a public building, or anywhere accessible hardware is specified. McGrath's DDA-compliant lever locks are the Stafford, Hamilton and Bardon, all of which also carry braille raised buttons. See Chapter 09 and DDA smart locks for NDIS and disability housing.
No. The SJ8015 lever is not AS 1428.1 compliant, so it is not the lock for an NDIS or SDA property, a public building, or anywhere accessible hardware is specified. McGrath's DDA-compliant lever locks are the Stafford, Hamilton and Bardon, all of which also carry braille raised buttons. See Chapter 09 and DDA smart locks for NDIS and disability housing.
Can it go on a pool gate?
Not as the barrier latch. A pool barrier gate must self-close and self-latch to a compliant standard, and that job belongs to a certified pool latch - the SJ8015 is access control sitting alongside it, never a substitute for it. Get a certifier to sign off any pool barrier arrangement. For gates generally, the lock needs a weld-on lock box, and you should check the stile width first: Gate Post Too Narrow for a 60mm Latch?. The McGrath Ascot is the purpose-built gate lock.
Not as the barrier latch. A pool barrier gate must self-close and self-latch to a compliant standard, and that job belongs to a certified pool latch - the SJ8015 is access control sitting alongside it, never a substitute for it. Get a certifier to sign off any pool barrier arrangement. For gates generally, the lock needs a weld-on lock box, and you should check the stile width first: Gate Post Too Narrow for a 60mm Latch?. The McGrath Ascot is the purpose-built gate lock.
Is it up to a high-traffic commercial door?
Not really. The SJ8015 is built for residential, home office and light commercial duty - a front door, a study, a store room, a small clinic. A door taking hundreds of cycles a day wants a heavier specification: the McGrath Bardon is the high-traffic commercial lever in the range, on an ANSI mortice body. If you are unsure where your door sits, tell us the daily traffic and we will be straight with you.
Not really. The SJ8015 is built for residential, home office and light commercial duty - a front door, a study, a store room, a small clinic. A door taking hundreds of cycles a day wants a heavier specification: the McGrath Bardon is the high-traffic commercial lever in the range, on an ANSI mortice body. If you are unsure where your door sits, tell us the daily traffic and we will be straight with you.
Warranty and Support
What is covered, and what is not?
Twelve months against defects in materials and workmanship, with proof of purchase. Two exclusions catch people out: installation by an unlicensed person, and battery leakage. Both are avoidable - use quality alkaline cells, change them before they are flat, and either follow the guide carefully or have it fitted. Note the 24-month term McGrath applies to several models does not extend to the SJ8015. Claims come to us first and we deal with LSC on your behalf: Returns and Warranty.
Twelve months against defects in materials and workmanship, with proof of purchase. Two exclusions catch people out: installation by an unlicensed person, and battery leakage. Both are avoidable - use quality alkaline cells, change them before they are flat, and either follow the guide carefully or have it fitted. Note the 24-month term McGrath applies to several models does not extend to the SJ8015. Claims come to us first and we deal with LSC on your behalf: Returns and Warranty.
Who do I call when something goes wrong?
Us. Terry's has been on the Gold Coast for fifty years, McGrath is distributed in Australia by LSC, and the app is supported by Australian staff - there is no overseas ticket queue in the middle. That chain is the reason we sell this brand, and it is set out in Terry's, LSC and McGrath. For advice before you buy, or a hand afterwards, use our free recommendation service or contact us.
Us. Terry's has been on the Gold Coast for fifty years, McGrath is distributed in Australia by LSC, and the app is supported by Australian staff - there is no overseas ticket queue in the middle. That chain is the reason we sell this brand, and it is set out in Terry's, LSC and McGrath. For advice before you buy, or a hand afterwards, use our free recommendation service or contact us.
Related Products, Guides and Chapters
Alternatives and siblings: McGrath Albion · Windsor (fire rated) · Stafford (fire + DDA) · Hamilton · Bardon (commercial) · NX1 (fingerprint lever) · Ascot (gates) · X3 (deadbolt) · Ashgrove · Kedron (fingerprint deadbolt) · A210 (narrow stile) · A231 (slimline) · NX6 (euro mortice)
Accessories: adjustable 60/70mm latch · fixed 60mm latch · fixed 70mm latch · fire-rated latch (satin stainless) · fire-rated latch (black) · RFID card · fob · wristband · sticker · G3 gateway · G4 gateway · G5 gateway · gateway wall adaptor
Browse by need: all smart locks · PIN code · Bluetooth · card and fob · has backup key · Wi-Fi · app enabled · fingerprint · regular front doors · internal doors · fire doors · narrow frame · accessories · key storage
Buyer's Guide chapters: 01 What Is a Smart Lock · 02 Measuring Your Door · 03 Access Methods · 04 Door Types · 05 Fire Doors · 07 Airbnb · 08 Gateways · 09 DDA · 10 Brand Profiles · 11 Standards and IP · 12 Installation · 13 FAQ · 14 TT Lock Platform · 15 App Platforms
What's In The Box - McGrath SJ8015
- A) Outdoor lock body x 1
- B) Silicone gasket x 2
- C) Mounting plate x 1
- D) Indoor lock body x 1
- E) Single tubular latch, adjustable 60/70mm backset x 1
- F) Cylindrical sleeve bolt, 40mm x 1
- G) Fixed pin for square spindle x 1
- H) Cylindrical sleeve female bolt, 35mm x 2
- I) Square spindle, 80mm length x 1
- J) M4 x 30mm cross flat head bolt x 3
- K) M4 x 8mm cross flat head bolt x 2
- L) M4 x 25mm cross flat head self-tapping screw x 4
- M) Mechanical key x 2
- N) Strike plate x 1
- O) Latch holding plastic box x 1
Two things to know before you open the bag. Batteries are not included - you need four AA alkaline cells. And sleeve bolt F is optional: it only goes in if your door has a hole prepared for it, so a leftover part is not a mistake. McGrath says so at step 3 of the installation sequence. Also not in the box: RFID cards, fobs and wristbands, and the gateway for remote access.
McGrath SJ8015 - Real Installations
Every lock we sell, we also fit. If you would rather not drill your own door, or you are not certain the SJ8015 is the right lock for it, book a free site survey or go straight to Advice and Installation.
McGrath SJ8015 - Dimensions
Escutcheon 154mm (H) x 68mm (W); handle length 124mm; projection from the door face 78mm. All dimensions in millimetres.
Specifications - McGrath SJ8015
Where Each Figure Comes From
Everything above is traceable to a page of McGrath's own documentation. These links open the datasheet at the relevant page.
McGrath SJ8015 - Technical Datasheet
All twelve pages of McGrath's SJ8015 datasheet, page by page. It runs from the specification table through door preparation and the full installation sequence to the app and gateway overview. Prefer it as a file? Download the datasheet (PDF), or take the installation guide (PDF) on its own.
Page 1 - Cover; unlock methods and typical applications
Page 2 - Description and headline specifications
Page 3 - Full system specifications table
Page 4 - Information and safety warnings
Page 5 - Door preparation, drilling map, packing list and dimensions
Page 6 - Exploded assembly diagram, A to O parts key
Page 7 - Installation steps 1 and 2, drilling and latch
Page 8 - Installation steps 3 and 4, outdoor unit and spindle
Page 9 - Installation steps 5 and 6, mounting plate and indoor unit
Page 10 - Step 7, clutch behaviour, strike fitting and factory reset
Page 11 - Weld-on gate lock boxes, sold separately
Page 12 - App screen map and gateway network diagram
PDF Files - STK MLSJ8015
SJ8015 Technical Datasheet (PDF)
Twelve pages, and the document to keep. Specification table, safety notes, door preparation and drilling map, exploded parts diagram, all seven installation steps, the factory reset procedure, the weld-on gate lock boxes, and the app and gateway overview.
Twelve pages, and the document to keep. Specification table, safety notes, door preparation and drilling map, exploded parts diagram, all seven installation steps, the factory reset procedure, the weld-on gate lock boxes, and the app and gateway overview.
SJ8015 Installation Guide (PDF)
Seven pages for the installer - door preparation, the A to O packing list, exploded diagram, the seven steps and the factory reset. Identical to pages 4 to 10 of the datasheet, published as a standalone document; note its printed page numbers start at 4.
Seven pages for the installer - door preparation, the A to O packing list, exploded diagram, the seven steps and the factory reset. Identical to pages 4 to 10 of the datasheet, published as a standalone document; note its printed page numbers start at 4.
SJ8015 Product Brochure (PDF)
A one-page A4 sheet - unlock methods at a glance, the short product description, and a QR code back to this listing. Useful to print or forward to a client; the datasheet is the technical document.
A one-page A4 sheet - unlock methods at a glance, the short product description, and a QR code back to this listing. Useful to print or forward to a client; the datasheet is the technical document.
TT Lock App User Manual (PDF)
Fifty-six pages on the platform behind the McGrath Locks App - registration, adding and initialising a lock, eKeys, the six passcode types, IC card management, Bluetooth unlocking, attendance, system settings and gateway setup. Generic TTLock branding, same functions. Also on our TT Lock App User Manual page.
Fifty-six pages on the platform behind the McGrath Locks App - registration, adding and initialising a lock, eKeys, the six passcode types, IC card management, Bluetooth unlocking, attendance, system settings and gateway setup. Generic TTLock branding, same functions. Also on our TT Lock App User Manual page.
McGrath Locks Warranty
Warranty Summary
How to Make a Claim
For full returns and warranty claim procedures, visit our Returns & Warranty page - this is kept up to date and is the authoritative reference for current claim steps.
- Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries (the place of purchase) within the applicable warranty period.
- Supply your proof of original purchase - a receipt or tax invoice is required.
- Provide a clear description of the fault and your contact details.
- You may be asked to return the product for assessment before a remedy is determined.
- McGrath Locks will, at their discretion, repair the product, replace it with the same or an equivalent model, or provide a refund of the purchase price.
Exclusions
This warranty does not cover:
- Normal wear and tear
- Products that have been disassembled
- Damage caused by improper handling, incorrect installation, misuse, abuse, neglect, modification, or accident
- Installation by unlicensed persons (including non-licensed locksmiths or technicians)
- Products not used in accordance with the supplied instructions
- Cosmetic damage that does not affect functionality
- Labour or installation costs related to the removal or reinstallation of products
- Exposure to conditions outside normal environmental use
- Work completed before warranty approval
- Damage caused by battery leakage, battery failure, or force majeure
Australian Consumer Law
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to your rights and remedies under the Australian Consumer Law.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to your rights and remedies under the Australian Consumer Law.
Confused? Overwhelmed? We get it.
Choosing the right smart lock can be genuinely tricky - door types, backsets, app platforms, compatibility with your existing hardware... there is a lot to consider. We have decades of experience fitting locks of all types, including smart locks, and we are happy to help.
Our expert recommendation service is free. Upload a few photos of your door and describe what you need, and one of our qualified locksmiths will give you a personalised recommendation.
Get Your Free Recommendation →How it works - three easy steps:
1. Upload photos
A few clear shots of your door, lock and frame - inside and out.
2. We assess
Our locksmith reviews your setup and requirements - door type, weather exposure, how you want to use it.
3. You get a recommendation
A personalised recommendation tailored to your door, budget and needs. No pressure, no upsell.
Also useful while you are deciding:
