Zanda Stealth Longplate Smart Lock - 60mm Backset - Mortice
The Zanda Stealth Longplate Smart Lock (Item Code: 1326) is a Bluetooth-enabled mortice lever lock designed for residential timber and aluminium doors. Unlike a standalone deadbolt, the Stealth Longplate is a complete smart lock set - it incorporates lever handles on both the external keypad panel and the internal back panel, providing full door operation without requiring a separate pull handle or passage set.
The lock provides five access methods: Bluetooth app control, PIN code, RFID card, fingerprint (optional configuration), and mechanical key override. It is managed via the TTLock mobile app (iOS and Android)
for local access management within Bluetooth range. Remote access from anywhere with an internet connection requires pairing with a compatible Zanda Wi-Fi gateway (sold separately).
The Stealth Longplate is rated IP66 for weather resistance, suits door thicknesses of 35-65mm, and is available in four finishes: Matt Black, Brushed Nickel, Graphite Nickel, and Satin Brass. Two square shafts (60mm and 80mm) are included to accommodate different door depths. The lever handle direction on both front and rear panels is fully adjustable to suit left or right opening doors.
Available Finish Options
Matt Black
STK 1326.BLK
Brushed Nickel
STK 1326.BN
Graphite Nickel
STK 1326.GN
Satin Brass
STK 1326.SB
Finish selection does not affect functionality, compliance, or performance.
Key Features
- Complete mortice lever lock set - lever handles integrated into both external and internal panels; no separate handle hardware required.
- Five access methods: Bluetooth app, PIN code, RFID card, fingerprint (optional), and mechanical key override.
- Managed via the TTLock app (iOS and Android) for credential management, access logs, timed codes, and e-key sharing.
- Remote access and monitoring available when paired with a compatible Zanda Wi-Fi gateway (sold separately).
- Auto-lock function configurable via the TTLock app.
- Passage mode available - hold lever in unlocked position when required.
- IP66 rated - suitable for external doors exposed to weather.
- Credential capacity: up to 200 fingerprints, 150 passwords, and 200 RFID cards.
- PIN code lockout after five consecutive incorrect entries (keypad locks for 5 minutes).
- Password types: permanent, time-limited, one-time, recurring, and custom.
- e-Key sharing - issue time-limited digital access to other TTLock users via the app.
- Lever handle direction adjustable on both front and rear panels to suit left or right opening doors.
- 60mm fixed backset; suits door thicknesses of 35-65mm.
- Two square shafts included (60mm and 80mm) for different door depths.
- Compatible with timber and aluminium door constructions.
- Available in four finishes: Matt Black, Brushed Nickel, Graphite Nickel, and Satin Brass.
- Zanda mechanical warranty (term varies by product and finish - see Warranty).
Access Methods
Suitable Uses
- Residential front and rear entry doors requiring a complete smart lever lock set (no separate handle required)
- Timber and aluminium door constructions from 35-65mm thick
- External doors requiring IP66 weather-rated smart locking hardware
- Short-term rental and holiday home access management via time-limited PIN codes (see Chapter 07 - Airbnb and using TTLock for Airbnb)
- Applications requiring multiple access credential types on a single mortice lock
- Doors where remote access management via optional gateway is required
What's in the Box
- 1 x front panel (external keypad and lever assembly)
- 1 x back panel (internal lever assembly)
- 1 x mortice lock body
- 3 x RFID IC cards
- 2 x mechanical keys
- 2 x waterproof rubber plates
- 1 x U-clip
- 1 x strike and strike box
- 1 x 60mm square shaft
- 1 x 80mm square shaft
- 1 x user manual
- Fixing hardware: screw stubs, sliding screws, mortice screws (timber and aluminium sets), and assorted M5 fixing screws
Zanda Stealth Smart Range - Item Code Family
The Stealth range shares one app, credential set and optional Wi-Fi gateway, differing mechanically in body style, backset and installation method. This 1326 is the 60mm mortice longplate; the 1325 is the 35mm mortice version, the 1327 is the tubular-latch longplate, and the 1320 is a bolt-only deadbolt. If backset or door thickness is a live decision, see Chapter 02 - Measuring Your Door.
Accessories & Spares
- Zanda Stealth Electronic Lock Gateway / Wi-Fi Bridge (STK 1330.-) - the optional Wi-Fi bridge that adds remote access, remote credential management and remote history review. Without it the lock still runs fully via Bluetooth, PIN, card, fingerprint (if fitted) and key. See do you need a gateway?
- Mortice Lock to Suit Stealth 60mm (STK 1153.SS) - the matching replacement 60mm mortice lock body for this longplate.
- 4 x AA batteries - required to power the lock; not supplied. Use quality alkaline cells.
Full Specifications
Dimensions
Battery, Power & Backup Access
- Powered by 4 x AA batteries - not included; install before commissioning the lock.
- Batteries are fitted in the internal back panel battery compartment.
- Low battery alerts are provided through the TTLock app and via the lock's onboard indicators.
- Mechanical key override provides physical backup entry if batteries are depleted or electronic access methods fail.
- Note: standby power consumption on smart locks of this type is relatively high - quality alkaline batteries are recommended for best service life.
Remote App Access (Optional - Gateway Required)
The Stealth Longplate communicates via Bluetooth. Within Bluetooth range, the TTLock app provides full lock management including unlocking, credential management, and access log review. Remote access from outside Bluetooth range requires pairing with the compatible Zanda Stealth Electronic Lock Gateway / Wi-Fi Bridge (sold separately). For what a gateway adds see Chapter 08, and if a bridge drops off Wi-Fi, our fixes guide. Once the gateway is connected to your home Wi-Fi network, the lock can be managed from anywhere with an internet connection - including remote unlock, credential changes, and access history review.
Without a gateway, the lock operates fully as a standalone unit using onboard access methods: Bluetooth (in proximity), PIN code, RFID card, fingerprint (if fitted), and mechanical key.
Frequently Asked Questions
No. The Stealth Longplate is a complete lock set with lever handles integrated into both the external and internal panels. It operates as the primary hardware on the door - no separate handle or passage set is required. See Chapter 01 - mortice lever locks.
No. The lock communicates via Bluetooth. Remote access requires a compatible Zanda Wi-Fi gateway (G2 or later) connected to your home network, which bridges the lock to the TTLock app for remote control from anywhere with internet access. The bridge is the Zanda Stealth gateway; Chapter 08 explains what it adds.
The lever handle direction on both the front and rear panels is adjustable before installation. To change direction, loosen the inner hex screw on the handle counterclockwise, remove the handle, rotate it to the correct orientation, then reinsert and re-lock the hex screw. The square shaft triangle must also be set to point left or right to match the door handing. Refer to the installation instructions before drilling. See determining door handing and Chapter 02 - handing.
Two shafts are included - 60mm and 80mm. The correct shaft depends on your door thickness. Select the shaft length that suits your door so the spindle connects the front and back panels correctly without play. Refer to the installation template for guidance. See Chapter 02 - door thickness.
If the wrong password is entered five consecutive times, the keypad locks out for 5 minutes. The lock can still be opened during this period using other access methods such as an RFID card, fingerprint (if fitted), or mechanical key. See how PIN access works.
Additional Information
Both the front and rear lever handles must be oriented to match the direction in which the door opens before installation. The inner hex screw is loosened to remove and refit each handle. The triangle on the square shaft spindle must also point in the correct direction (left or right). Setting handing incorrectly will cause the lock to malfunction. Confirm door handing before drilling any holes - follow the manufacturer installation instructions carefully.
The front and rear panels are connected by a wire that passes through the door. This wire hole must be drilled 65-110mm from the centre of the spindle shaft. If an existing hole is within this range, it can be reused. The wire must be fed through before the panels are fixed in position.
IP66 confirms the lock has been tested for complete protection against dust ingress and resistance to powerful water jets from any direction. This makes the Stealth Longplate suitable for external residential entry doors exposed to the elements. IP66 does not mean fully submersible - avoid direct immersion.
All new Zanda Stealth locks ship with a default TTLock password of 123456. This must be changed immediately after pairing with the app. Bluetooth must be enabled on your phone during initial setup. The lock is added via the TTLock app by touching the lock screen to wake it, then selecting "Add Lock" in the app.
The spec sheet lists fingerprint access as "(option)" - confirm whether the fingerprint module is included in your specific unit before ordering. For reliable fingerprint registration, fingers must be clean and dry. Each fingerprint can be assigned a start and end time for time-limited access control.
Backed by the Zanda mechanical warranty against manufacturing defects in materials and workmanship under normal domestic use. Warranty length varies by product and finish - see the Zanda Warranty document for the term that applies to this item. Proof of purchase required for all claims. Zanda Warranty · Returns & Warranty
Zanda Stealth Longplate 1325/1326 - Spec Sheet and User Manual
What's in the Box - Zanda Stealth Longplate 1326
- 1 x front panel (external keypad and lever assembly)
- 1 x back panel (internal lever assembly)
- 1 x mortice lock body
- 3 x RFID IC cards
- 2 x mechanical keys
- 2 x waterproof rubber plates
- 1 x U-clip
- 1 x strike and strike box
- 1 x 60mm square shaft
- 1 x 80mm square shaft
- 1 x user manual
- 2 x screw stubs (M5x35mm)
- 2 x sliding screws (M5x11mm)
- 4 x mortice screws for aluminium doors (M*10mm)
- 5 x mortice screws for timber doors (M4x20mm)
- Assorted fixing screws (M5x25, M5x30, M5x40, M5x50, M5x70)
Zanda Stealth Longplate Smart Lock 1326 - Real Installations

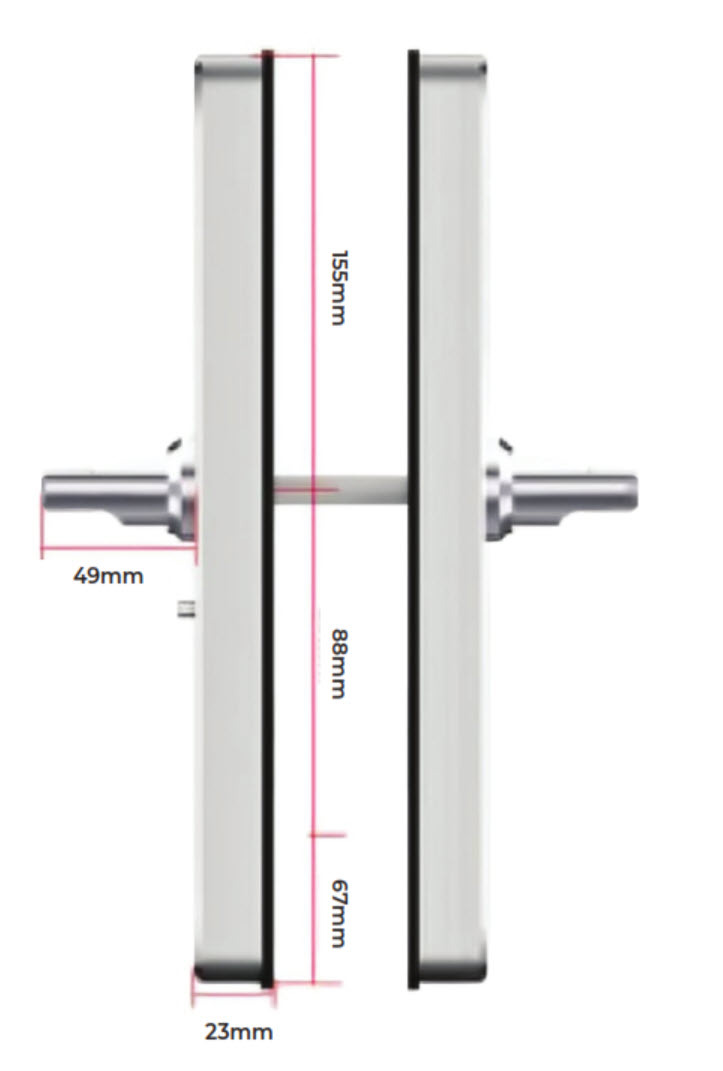

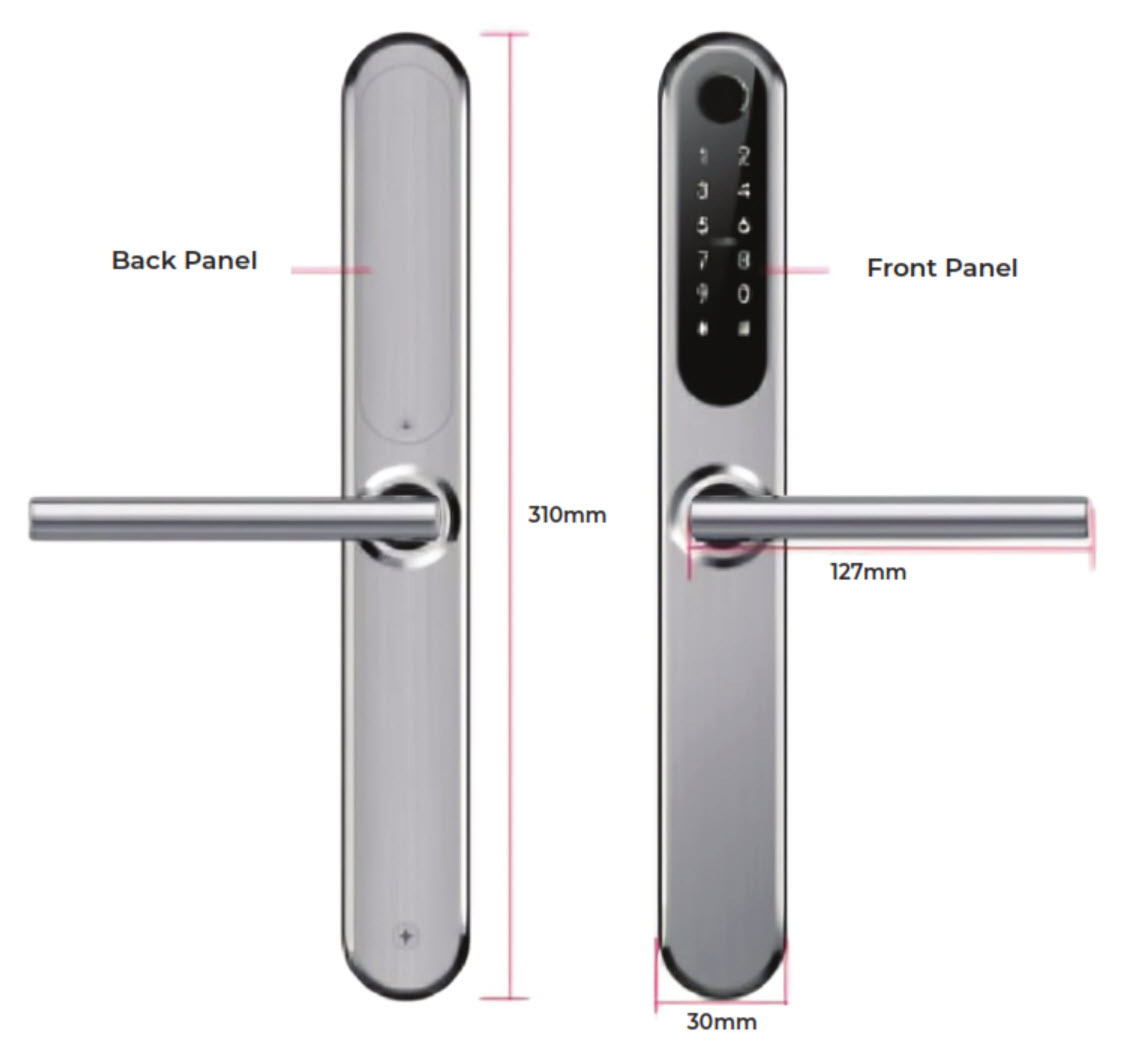

Zanda Stealth Longplate 1326 - Dimensions
Zanda Stealth Longplate 1325/1326 - Spec Sheet & User Manual
Zanda Stealth Longplate 1325/1326 - Spec Sheet and User Manual
Zanda Warranty
Zanda Architectural products carry a limited warranty against defects in material or workmanship under normal use during the warranty period. During the warranty period, Zanda Architectural will repair or replace the product (or the defective parts) at no charge, using new or refurbished replacement parts. Warranty periods vary by product range and by component (mechanical and finish), so please check the row that matches your product below.
Warranty Summary
* Warranty periods run from the proven date of purchase and apply only when the product is properly installed and subjected to no more than fair wear and tear. See the exclusions and important notes below for full conditions.
How to Make a Claim
Zanda's warranty process starts with the reseller you purchased from. As your place of purchase, we handle the claim for you:
- Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries (the place of purchase) with your proof of purchase and the date the product was purchased.
- Provide a clear description of the fault, along with the product range and model.
- We complete the necessary claim forms and process the claim with Zanda Architectural on your behalf. You may be asked to return the product for assessment.
- If the product is found to be defective under the warranty terms, Zanda will repair or replace it at no charge, using new or refurbished parts.
Exclusions
A warranty claim cannot be accepted for damage unless it resulted from a defect in Zanda's materials and workmanship. The following are expressly excluded:
- Surface damage occurring after purchase and not caused by defects in materials and workmanship.
- Misuse, neglect or accidental damage.
- Failure to maintain and care for the product.
- Defects or damage caused by using the product for a purpose other than that for which it was designed, such as commercial use.
- Defects or damage caused by improper installation.
- Damage caused by batteries.
- Modification and/or alteration to the product.
- Discolouration and scratches to finishes through normal use and ageing.
- Replacement of batteries.
- Normal wear and tear.
This guarantee does not extend to labour costs, freight, personal loss, death or injury, or economic, consequential or property damage of any kind. The warranty also excludes extreme environments where heat, weather and salty conditions are prevalent, and does not cover products that have not been properly maintained.
Important Notes
The products covered by this warranty are designed for residential use only - any other use (including commercial use) voids the warranty. This is a parts-only warranty: it does not cover labour costs for product removal and reinstallation.
Proper maintenance, care, cleaning and polishing in accordance with Zanda's instructions are essential to retain a product's finish - particularly soft finishes or finishes that naturally age, such as Brushed Nickel, Satin Chrome, Polished Brass, Graphite Nickel, Matt Chrome, Unlacquered Brass, Matt Brass, Rumbled Brass, Roman Brass, Natural Bronze, Oil Rubbed, Satin Brass, Brushed Bronze, Antique Bronze, Buffed Bronze, Matt Antique Bronze, Venetian Bronze and Powdercoat. These finishes are subject to deterioration, corrosion and oxidation from conditions such as salt deposits, scratches from sharp objects, paint thinners and caustic agents. For care of stainless steel products, see the ASSDA guidance on preventing coastal corrosion and tea staining.
This is a limited, express warranty and is provided in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Nothing in this express warranty limits or restricts any other statutory right or remedy available to you.
