Lockwood 3782-DXKITSC DX Digital Conversion Kit for Selector 3782 Short Backset Mortice Locks

Lockwood 3782-DXKITSC DX Digital Conversion Kit for Selector 3782 Short Backset Mortice Locks - Satin Chrome

At A Glance

• PRODUCT TYPEKit Only - No Lock Included
• LOCK TYPEMechanical Digital
• POWERNo Batteries
• PRIMARY LOCKSelector 3782 Short Backset
• BACKSETS23 / 25.4 / 30 / 38mm
• DOOR TYPENarrow Stile / Aluminium
• DOOR THICKNESSTimber 32-50mm Metal 35-50mm
• KEY OVERRIDENone - See 3782-DXKOKITSC
• CODE CHANGEFiddly - Bench Job
• CODE LENGTH4, 5 or 6 Digits
• FINISHSatin Chrome
• WARRANTY25 Year Mechanical
• WITH KEY OVERRIDESee 3782-DXKOKITSC
• DISPATCHUsually 3 Business Days

Unlock With

PIN Code No Key Override

The Lockwood 3782-DXKITSC is the DX digital conversion kit for the Selector 3782 short backset mortice lock platform. It turns a compatible 3782-series primary lock into a mechanical keypad-controlled entry point - no batteries, no wiring, no app. The kit is designed for narrow-stile and aluminium door applications where a standard 60mm backset mortice would not fit.

This is a kit only. It does not include the primary 3782-series mortice lock or the Lockwood 4800 or 5800 series furniture. The kit supplies the digital codepad, mounting plate, codepad spindle, mounting hardware (SP3772DX-119 accessory pack), latching adaptor, and code change kit. The primary lock body and door furniture are ordered separately to match your door and functional requirements.

The 3782 short backset family covers four backset dimensions: 23mm, 25.4mm, 30mm and 38mm. On open-in doors, the 38mm backset (6782SS primary lock) is generally preferred to avoid door stop clearance issues that affect the three shorter options. This is the version without key override - the 3782-DXKOKITSC adds key override but is restricted to a narrower 43-46mm door range.

Conversion Kit Only - Primary Lock and Furniture Not Included
This SKU is a DX digital conversion kit, not a complete mortice lockset. To install it you also need: a compatible Lockwood Selector 3782-series primary mortice lock (3782SS, 4782SS, 5782SS or 6782SS depending on your backset), and Lockwood 4800 or 5800 series door furniture. These are ordered separately. If you need key override, the correct product is the 3782-DXKOKITSC.

Built for Commercial Aluminium Door Applications
The 3782 DX platform is the trade-standard solution for narrow-stile commercial aluminium doors where a short backset mortice is required. The Selector 3780 series carries S7/S8 physical security, D8 durability and C6 anti-corrosion ratings per AS 4145.2-2008, and is fire tested to up to 4 hours doorset-dependent per AS 1905.1-2005. See the full Digital Mechanical Locks range.

Estimated Warehouse Dispatch
Usually ships in 3 business days. Shipping and returns information.

Key Features

• Mechanical digital keypad conversion kit - no batteries or electrical wiring required
• Designed for the Lockwood Selector 3782 short backset mortice lock platform
• Covers the full 3782 backset family: 23mm, 25.4mm, 30mm and 38mm
• 4-digit factory code; field-changeable to any 4, 5 or 6 digit combination (each digit used once)
• Press C, enter the code, turn the knob to operate the latch
• Code resets automatically when the knob is released
• Inside lever operates freely at all times - no code required to exit
• Clutching knob mechanism: disengages under forced attack without damaging the lock body
• Suited to narrow-stile and aluminium door applications where a short backset mortice is required
• No key override on this version - see 3782-DXKOKITSC for the key override version
• Satin Chrome brushed finish on all external components

Need a Complete Internal/External Package?

If you want a single box that includes both the Digital DX keypad for the outside and a matching internal lever or knob - ready to install with nothing else to source - the Lockwood 002DX deadlatch family is the one to look at. It is also a common choice for apartment fire doors, where the 002 deadlatch combined with coded entry and free internal exit meets the egress requirements of most tested doorset schedules - always confirm against your building's approved fire door schedule before ordering.

• 002-1LDXSC - Lever inside, door opens inwards
• 002-1KDXSC - Knob inside, door opens inwards
• 002-4LDXSC - Lever inside, door opens outwards
• 002-4KDXSC - Knob inside, door opens outwards

The key choice is which way your door opens (inwards or outwards) and whether you prefer a lever or knob on the inside face. Not sure? Contact Us and we will confirm the right variant for your door.

Compatibility - Which Primary Locks This Kit Suits

This kit suits the 3782-series primary mortice locks only. The primary lock is ordered separately and selected by backset dimension. Cylinders and furniture are also ordered separately.

Primary locks and furniture are not included. For key override see 3782-DXKOKITSC (43-46mm metal doors only). Aluminium door mounting templates are on pages 69-74 of the 3700 Series Service Manual.

Decoding Lockwood Codes - The 3782 and DX Kit System

The 3782 short backset family uses a number-prefix scheme that differs from the standard Lockwood DX mortice range. Understanding it prevents ordering the wrong primary lock.

Catalogue pages for the 3782 DX kit: pages 11-13 of the Lockwood DX Catalogue Excerpt and pages 65-71 of the Selector 3700 Series Catalogue.

Code Control - How the Code Works and How to Change It

The 3782-DXKITSC uses the same DX coding chamber as every other Lockwood DX product. Digit order does not matter - any combination of the same digits opens the lock. Each digit can only appear once in the code. The factory code is 4 digits.

Operation
Press C (clears any prior entry), enter your code digits in any order, turn the knob. Release the knob and the code clears automatically.

Changing the Code - A Fiddly Bench Job
The keypad comes off the door. Small metal tumblers inside the coding chamber are repositioned to set the new code. It is doable with the supplied kit, but the tumblers are small and the sequence matters. Procedure on page 4 of the Lockwood DX Digital Service Manual. Plain-English walkthrough: Lockwood DX section and the bench method. Rule: test the new code five times before closing the door.

Access Methods

Method	Detail	Notes
PIN Code	4, 5 or 6 digits. Any digit order. Each digit used once.	Single shared code. Factory code is 4 digits. Bench job to change.
Free Egress (Inside)	Inside lever operates freely at all times. No code required to exit.	Platform tested to 4hr doorset-dependent - confirm with complete doorset certifier for fire doors.
Key Override	Not available on this kit	For key override use 3782-DXKOKITSC (43-46mm metal doors only).

What's in the Box

• Digital codepad assembly - Satin Chrome
• Mounting plate
• Codepad spindle
• SP3772DX-119 accessory pack (mounting screws and hardware)
• Latching adaptor (MkI - correct for the 3780 MkI platform)
• Code change kit (metal tumblers, tweezers, instructions)

Note: The mounting plate with lower cylinder hole, lower cylinder mounting plate and spindle cam are only in the key override version (3782-DXKOKITSC) and are NOT included in this kit.

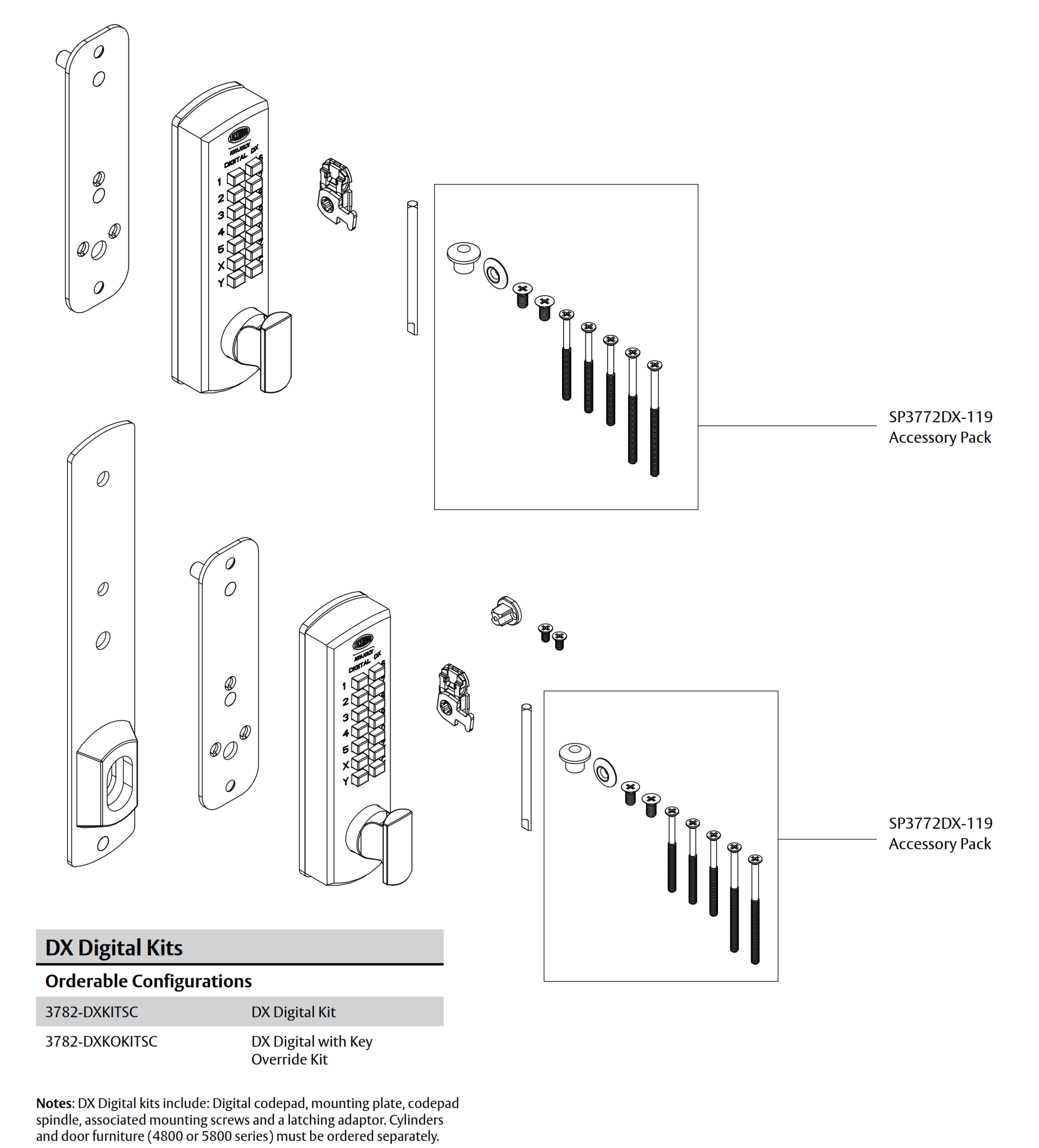

Manufacturer parts diagram showing both kit configurations. Top: 3782-DXKITSC (this product - no key override). Bottom: 3782-DXKOKITSC (key override version, adds cylinder components). Both kits include the SP3772DX-119 accessory pack. Cylinders and door furniture are ordered separately for both kits.

Not Included - Must Be Ordered Separately

• Primary Lockwood Selector 3782-series mortice lock body (3782SS, 4782SS, 5782SS or 6782SS)
• Lockwood 4800 or 5800 series door furniture (levers, roses, escutcheons)
• Key override cylinder (not available on this kit - see 3782-DXKOKITSC)
• Additional cylinders or keying services

Suitable Uses

• Commercial aluminium narrow-stile doors using Selector 3782 short backset mortice locks
• Applications where a standard 60mm backset mortice would not fit the door stile
• Shared-access doors where a single mechanical code is acceptable
• Sites that need keypad access without batteries, app connectivity or electronic programming
• Fire door assemblies (Selector 3780 platform tested to up to 4 hours doorset-dependent per AS 1905.1-2005 - confirm with complete doorset certifier)
• Browse the Digital Mechanical Locks collection and PIN Code category for the full range

Not Suitable For

• Standard stile doors - use the 3772-DXKITSC (standard backset) or a complete lockset like the 3572DX
• Any application requiring key override - use 3782-DXKOKITSC instead (43-46mm metal doors only)
• Sites needing multiple independent user codes, audit trail or remote access
• Doors that take a standard 60mm or longer backset mortice lock
• Retrofit onto non-Selector 3782 series primary locks

Available Finish Options

•
  Satin Chrome
  (This Product)
  3782-DXKITSC

Keypad finish is Satin Chrome. The primary 3782-series mortice lock is Stainless Steel (SS). Door furniture is ordered separately in your required finish.

Item Code Family - Lockwood DX Mechanical Keypad Range

Conversion kits require a compatible existing Selector mortice lock. Check 3772 (standard stile) vs 3782 (short backset / narrow stile). Key distinction within the 3782 family: this kit suits timber 32-50mm and metal 35-50mm; the KO version suits metal 43-46mm only.

Full Specifications

Dimensions

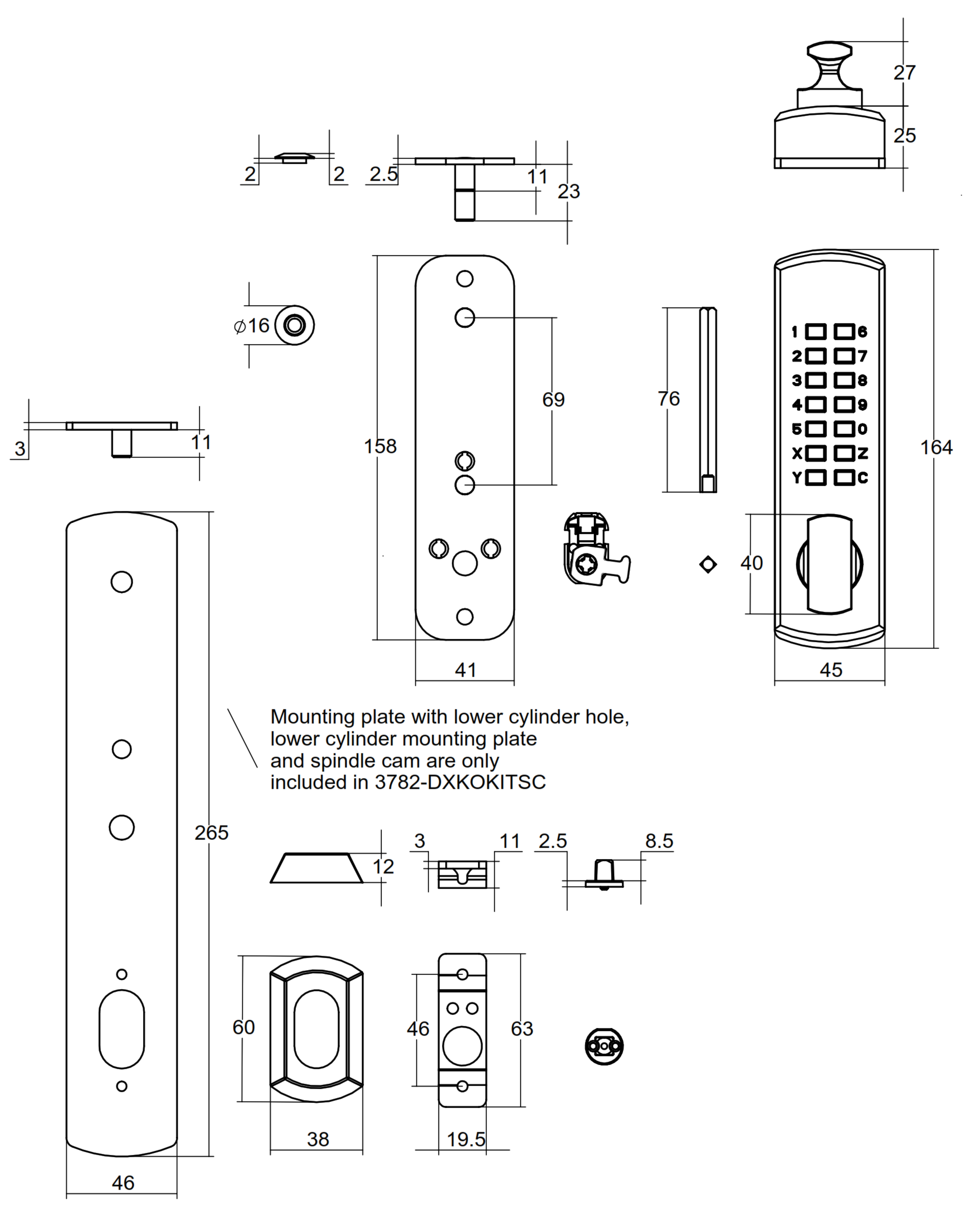

Manufacturer dimension drawing for the Lockwood 3782-DXKITSC conversion kit components. Codepad: 45mm wide x 164mm tall x 40mm knob projection. Mounting plate: 41mm wide x 158mm tall. Internal plate: 265mm tall x 46mm wide. Strike: 19.5mm x 46mm. Cylinder aperture: 16mm diameter. Aluminium door mounting templates are on pages 69-74 of the 3700 Series Service Manual.

Frequently Asked Questions

Does this kit include the mortice lock body?
No. You need a compatible Selector 3782-series primary mortice lock (3782SS, 4782SS, 5782SS or 6782SS) ordered separately, plus Lockwood 4800 or 5800 series door furniture. The kit supplies the digital codepad, mounting plate, spindle, hardware and latching adaptor.

Does this kit include key override?
No. The 3782-DXKOKITSC includes key override but is restricted to 43-46mm metal doors. This kit suits a wider door range: timber 32-50mm, metal 35-50mm.

Which primary lock suits my door - 3782SS, 4782SS, 5782SS or 6782SS?
The number prefix encodes the backset: 3=23mm, 4=25.4mm, 5=30mm, 6=38mm. Measure from the door edge to the centre of the existing cylinder or handle spindle. For open-in doors, 6782SS (38mm) is recommended to avoid door stop clearance issues. Our short backset guide covers narrow stile measurement in detail.

Does it need batteries or wiring?
No. The 3782-DXKITSC is entirely mechanical. The DX coding chamber is a physical tumbler system with no electronics of any kind. It operates on a power cut, never needs charging, and has no firmware to update.

How is the code changed?
The keypad comes off the door. Metal tumblers inside the coding chamber are repositioned to set the new combination. Fiddly bench job but doable with the supplied kit. Procedure on page 4 of the DX Digital Service Manual and in our plain-English walkthrough. Test the new code five times with the door open before closing.

Additional Information

Open-In Door Clearance
On open-in doors, the 23mm, 25.4mm and 30mm backset options may require machining of the door stop to clear the digital codepad. The 38mm backset (6782SS) is generally preferred for open-in applications as it provides additional clearance. See measuring the stile for sizing guidance.

3772 vs 3782 - Choose the Right Platform
The 3772 (standard backset, 60/89/127mm) is for standard stile timber doors - see the 3772-DXKITSC. The 3782 (short backset, 23-38mm) is for narrow-stile aluminium and metal section doors. They are not interchangeable. Our narrow stile guide explains when short backset locks are needed.

Single Code System
The DX keypad operates on one shared code. No individual user management, audit trail or remote access. For sites that need these features, a smart lock is the appropriate solution - see our platform selection guide and honest assessment of mech-digi limitations.

Installation Accuracy Matters
Correct alignment of the codepad mounting plate, spindle and latching adaptor is essential. This is a commercial product intended for installation by a qualified locksmith, particularly on aluminium frame doors. Local to the Gold Coast? Terry's installs what we sell. Aluminium door installation templates are in the 3700 Series Service Manual (pages 69-74).

Commercial Range Context
The Selector 3780 platform is the trade-standard for narrow-stile commercial aluminium doors across Australia. For heavy-duty commercial context across the mech-digi category, see our commercial locks guide and the three-brand comparison at Lockwood vs Borg vs Carbine.

Lockwood Warranty - 25 Year Mechanical (Australia)
Lockwood branded products purchased new in Australia from authorised resellers are covered against defects in materials and workmanship for:

• Mechanical components: 25 years from date of sale
• Electrical and electronic components: 3 years (not applicable on this fully mechanical product)

Excluded: corrosion and surface finishes, normal wear and tear, misuse, unauthorised modification, labour and freight costs. Corrosion is excluded - for exposed environments consider a product with a published salt-spray rating. Terry's manages warranty claims on your behalf.

Download Lockwood Mechanical Warranty (PDF) | Lockwood Official Warranty Page

This warranty operates alongside rights available under Australian Consumer Law. Returns and warranty claim process at Terry's.

Download PDF Resources
Lockwood DX Mechanical Digital Range - Catalogue Excerpt - 3782 DX kit on pages 11-13
Lockwood Selector 3700 Series Mortice Locks Catalogue - 3782 DX section on pages 65-71
Lockwood 3700 Series Mortice Locks Service Manual - aluminium door mounting on pages 69-74, 3782 DX exploded parts on pages 32-33
Lockwood DX Digital Service Manual - code change on page 4
Lockwood Warranty - 25 Year Mechanical (PDF)

Lockwood 3782-DXKITSC - FAQ, Setup and Specifier's Guide

Everything a specifier, locksmith or building manager needs to know about the 3782-DXKITSC. For the broader mech-digi category see Chapter 16 - Mechanical Digital Locks and our What Is a Mechanical Digital Lock? guide.

Kit Ordering and Compatibility

What is the difference between the 3782-DXKITSC and the 3782-DXKOKITSC?
The 3782-DXKITSC (this product) is the non-key-override version. PIN code entry only; no cylinder. Suits timber 32-50mm, metal 35-50mm. The 3782-DXKOKITSC adds key override but is restricted to 43-46mm metal doors only. Choose the no-KO kit unless key override is specifically required. See when key override is worth specifying.

What is the difference between the 3782-DXKITSC and the 3772-DXKITSC?
Different lock platforms entirely. The 3772-DXKITSC suits the Selector 3772 standard backset mortice (60/89/127mm) for standard timber stile doors. The 3782-DXKITSC suits the Selector 3782 short backset mortice (23-38mm) for narrow-stile aluminium and metal section doors. The primary lock body for each is different and the kits are not interchangeable. Our narrow stile guide explains when the short backset format is needed.

How do I identify which backset (and therefore which primary lock) I need?
Measure from the door edge to the centre of the existing cylinder or spindle. The 3782 family encodes this in the first digit: 3782SS=23mm, 4782SS=25.4mm, 5782SS=30mm, 6782SS=38mm. For open-in doors use 6782SS (38mm) unless clearance is confirmed. The Selector 3700 Catalogue (page 49) has the full 3780 series overview and door range specifications.

Installation and Door Suitability

What door types and thicknesses does this kit suit?
Timber doors 32-50mm and metal doors 35-50mm, per the Selector 3700 Series Catalogue. The door must have a minimum internal depth of 38mm to accommodate the fitting. This kit is specifically designed for narrow-stile aluminium and metal section doors. Confirm your door preparation against the mounting templates in the 3700 Series Service Manual before ordering.

Is this suitable for a DIY install?
In most cases, no. The 3782 platform requires cutting into an aluminium frame to tight tolerances, aligning the codepad spindle and mounting plate accurately, and matching the latching adaptor to the correct cam configuration. A measurement or alignment error means the lock will not operate reliably. We recommend a qualified locksmith for this installation. Local to the Gold Coast? Terry's installs what we sell.

Can this kit be used on a fire door?
The Selector 3780 platform is fire tested to up to 4 hours doorset-dependent per AS 1905.1-2005. However, "platform tested" and "your specific doorset is compliant" are not the same thing. Final compliance depends on the complete tested doorset: primary lock, frame, latch preparation, closer, seals, and installation method. The certifier assesses the assembly, not just the kit. If specifying for a fire door, confirm with a fire door assessor before ordering. See also: Fire Door Types and Certification.

Code Operation and Product Selection

How does the any-order coding work?
The DX coding chamber is mechanical - metal tumblers correspond to each digit. The chamber does not care what order you press the buttons; it only checks which buttons were pressed. "1234", "4321" and "2143" all open the same lock. Each digit can only appear once. This is the standard DX architecture used across all Lockwood DX products - 002, 530, 3572 and both Selector kit families. See any-order codes explained.

When should I choose the 3782 DX kit versus a complete DX lockset like the 3572DX?
The 3782 kit is for narrow-stile and aluminium section doors where the door construction dictates a short backset format. If your door can accept a standard 60mm mortice backset on a conventional stile, the 3572DX or 5572DX will give a simpler installation. For 530-format tubular latch entry sets, see the 530DXSC. The three-brand comparison: Lockwood vs Borg vs Carbine.
