Lockwood 5572DX Digital DX Mechanical Keypad Mortice Lock - 127mm Backset
At A GlanceAt A Glance
DISPATCHShips in about 12 business days
SPECIAL ORDERNot returnable
PIN Code
Key OverrideNot Available
The Lockwood 5572DX is a fully mechanical keypad mortice lock for commercial doors that need coded entry without any wiring, batteries or electronics. It is the 127mm backset member of Lockwood's Mortice Digital DX family, built for the deep lock cases found on many older commercial doors and heavier door sections.
The lockset pairs a Lockwood 5572 cylinder mortice lock with the Digital DX keypad on the outside face, and is matched with Lockwood 1800 or 2800 series door furniture on the inside. Enter the code, turn the keypad knob, and the latch retracts; from the inside, the handle opens the door freely at all times with no code required.
Because the whole mechanism is mechanical, there is nothing to charge, pair or replace. That is exactly why locks like this remain the default choice for plant rooms, staff doors and service corridors that see heavy daily use. If you are new to battery-free keypad locks, our guide What Is a Mechanical Digital Lock? explains how the coding chamber inside works.
View the full range of battery-free keypad locks here: Digital Mechanical Locks Collection
Battery free. Hassle free.
Usually ships in 12 business days
This product is a special order item and is not returnable. It is also handed, so please confirm your door's handing and suitability before ordering - see Handing and Ordering below, or Contact Us if you are not sure.
A mortice lock body and all-mechanical keypad built for frequent daily use on commercial doors. For a plain-English look at what separates commercial-grade keypad locks from light-duty units, see Heavy Duty Commercial Mechanical Digital Locks.
Key Features
- Fully mechanical keypad lock - no batteries, no wiring, no electronics to fail
- 5572 cylinder mortice lock body with 127mm backset for deep commercial door preparations
- Coded entry: press C to clear, enter your code, then turn the keypad knob to retract the latch
- The keypad knob freewheels until a valid code is entered - a clutching action that protects the internal parts if someone forces the knob
- The entered code cancels automatically once the knob is operated, so the door is never left standing on an open code
- Inside lever or knob gives free single-action exit at all times - no code needed to get out
- Stainless steel latch bolt with 19.5mm projection
- Code is set by a mechanical tumbler chamber and re-set at the bench using the supplied code change kit - any 4, 5 or 6 digit code
- Handed at order (left or right hand) to match your door - see Handing and Ordering
- Field-serviceable: replacement keypads and spare code tumblers keep the lock in service for decades
Need a Complete Internal/External Package?If you want a single box that includes both the Digital DX keypad for the outside and a matching internal lever or knob - ready to install with nothing else to source - the Lockwood 002DX deadlatch family is the one to look at. It is also a common choice for
apartment fire doors, where the 002 deadlatch combined with coded entry and free internal exit meets the egress requirements of most tested doorset schedules - always confirm against your building's approved fire door schedule before ordering.
- 002-1LDXSC - Lever inside, door opens inwards
- 002-1KDXSC - Knob inside, door opens inwards
- 002-4LDXSC - Lever inside, door opens outwards
- 002-4KDXSC - Knob inside, door opens outwards
The key choice is which way your door opens (inwards or outwards) and whether you prefer a lever or knob on the inside face. Not sure? Contact Us and we will confirm the right variant for your door.
Decoding Lockwood Model Numbers
Lockwood's DX model numbers look cryptic, but they follow a simple pattern once you know it. Reading a code like 5572DXLSC from left to right:
One caveat: the short backset families count differently (3782, 4782, 5782 and 6782 step through 23, 25.4, 30 and 38mm backsets), but the idea is the same - the first digit steps through the backset options. We stock the 60mm (3572DX) and 127mm (5572DX) mortice versions; the 89mm size (4572DX) sits between them in the numbering. Not sure which backset your door has? Our guide to measuring your lock backset shows you in two minutes.
Code Control - How the Code Works and How to Change It
The 5572DX ships with a factory-set 4 digit code, which you can change to any 4, 5 or 6 digit code of your own. The code lives in a mechanical tumbler chamber behind the keypad - there is no memory chip and nothing to reset electronically. Because it is a chamber rather than a sequence, each digit can be used once per code and the digits can be pressed in any order; the C button always clears a wrong entry and cannot be part of the code. Our pillar guide explains how the coding chamber works and why the digits are order-independent.
Changing the code is a bench job, and an honest word: it is a fiddly one - the tumblers are small and the sequence matters - but it is entirely doable with the kit and the instructions in front of you. The full procedure is on page 4 of the Lockwood DX Digital Service Manual. We have also written the whole thing up in plain English - see the Lockwood DX section of our code-changing guide, the shared bench method, and the one rule that saves callouts: test the new code five times before you close the door.
Access Methods
What's in the Box
- Digital DX keypad access pad
- 5572 cylinder mortice lock body (127mm backset)
- Mounting plate
- Spindle components
- Adaptor components
- Mounting hardware and screws
- Code change kit
- Installation instructions
Parts & Components
Suitable Uses
- Commercial access doors with deep (127mm backset) lock preparations
- Office entry points and staff-only doors
- Service corridors, plant rooms and utility rooms
- Replacing an existing 127mm backset mortice lock without re-machining the door
- Any door that needs keypad entry but where batteries, wiring or app dependence are unwanted - browse the full Digital Mechanical Locks range, or read mechanical vs smart locks if you are weighing up both paths
Handing and Ordering
The Lockwood mortice DX platform is not field-reversible: the orderable models are 5572DXLSC (left hand) and 5572DXRSC (right hand), and the correct one must be selected when you order. Stand on the outside (keypad side) of the closed door: if the hinges are on your left, you need the left-hand unit; hinges on your right, the right-hand unit. If you have never had to think about door handing before, our guide Understanding Door Handing in Australia walks through it with diagrams, and explains what goes wrong when the handing is wrong. Still unsure? Send us a photo via Contact Us and we will confirm it for you.
Available Finish Options
Satin Chrome
(This Product)
STK 5572DX
Finish selection does not affect functionality, compliance, or performance.
Item Code Family - Lockwood DX Mechanical Keypad Range
This table combines complete Lockwood DX locksets, replacement keypad assemblies and Selector conversion kits. Check carefully whether the product is a full lockset, a keypad-only replacement part, or a kit that requires an existing compatible mortice lock. For an honest comparison of how the Lockwood DX range stacks up against the other battery-free brands we stock, read Lockwood vs Borg vs Carbine.
Full Specifications
Dimensions
Fire Doors and Egress
Mortice DX locksets are commonly specified on commercial fire door assemblies, and the 5572DX suits that egress logic: entry is code-controlled, but exit through the inside handle is always free and single-action. Even so, no lock should be described as automatically fire compliant on its own. Fire performance belongs to the complete tested doorset - the door leaf, frame, lock, furniture, latch preparation and the installer's compliance - not to the lock in isolation.
Before fitting this lock to a fire door, always confirm suitability against the approved fire door schedule, the door manufacturer's requirements and the complete tested hardware combination. Our guides explain the ground rules: Apartment Fire Doors on the Gold Coast - What Locks Are Actually Compliant? and Fire Door Types and Lock Certification in Australia. You can also browse the locks we list for fire doors in the Fire Door category.
Important: If you are not sure whether your door is a fire door, or what its schedule allows, Contact Us before ordering - and before anyone drills. On older Gold Coast fire doors, read why your locksmith warns you about asbestos before drilling.
Frequently Asked Questions
Take the keypad off the door and use the supplied code change kit to reposition the tumblers - a fiddly bench job, but a doable one - the full procedure is on page 4 of the DX Digital Service Manual, and our plain-English walkthrough covers the same steps with the traps to avoid. You can set any 4, 5 or 6 digit code, each digit used once, and the C button is always the clear key. Test the new code five times before you shut the door.
No - the 5572DX is PIN-only from the outside, with a free handle inside. If you want a keyed override cylinder (for fire brigade access, a master key system, or simply peace of mind), choose the 3572DXKO instead, noting it is the 60mm backset version.
Stand on the outside (keypad side) of the closed door. Hinges on your left means the left-hand unit (5572DXLSC); hinges on your right means the right-hand unit (5572DXRSC). This lock is not field-reversible, so getting this right at order time matters - our door handing guide has diagrams, or send us a photo and we will confirm it.
Only with the doorset's paperwork behind you. The 5572DX has the right egress behaviour for fire doors - free single-action exit from the inside - but fire compliance belongs to the complete tested door assembly, not the lock alone. Check the approved fire door schedule first, and see our fire door compliance guide or ask us before ordering.
That is exactly what the 5572DX is for. The 127mm backset matches the deep mortice preparations found on many older commercial doors, so you can move to keypad entry without cutting a new lock pocket. Measure your current backset first - centre of the keyhole or spindle to the door edge - using our backset measuring guide, and if the number is 60mm rather than 127mm, the 3572DX is your model.
Additional Information
Lockwood branded products purchased new in Australia are warranted by ASSA ABLOY Australia against defects in materials and workmanship:
- Mechanical components: 25 years from the date of purchase - and because the DX range is entirely mechanical, this clause covers the whole lock
- Satin Chrome plated finish: 10 years
Lockwood DX Digital Service Manual - jump straight to setting a new code (page 4), the 3572/4572/5572 parts tables (page 9) or the mounting instructions and drilling templates (page 19)
Lockwood DX Mechanical Digital Range - Catalogue Excerpt (the 002, 530 and Selector families that sit alongside this lock)
Lockwood Warranty - 25 Year Mechanical (PDF)
Lockwood 5572DX - FAQ, Setup and Owner's Guide
Everything owners, installers and specifiers ask about the 5572DX, in one place. For the wider battery-free picture, start with Chapter 16 of our Buyer's Guide (Mechanical Digital Locks) and the pillar guide What Is a Mechanical Digital Lock?
Codes and Everyday Use
Press C to clear anything already entered, press your code digits, then turn the keypad knob. The latch retracts, the door opens, and the code cancels automatically as the knob is operated - the lock relatches behind you and is never left sitting on an entered code.
That is the clutching action, and it is deliberate. Until a valid code is entered, the knob freewheels rather than driving the latch, so forcing or wrenching it transfers no load into the mechanism. It is one of the reasons these locks survive high-traffic commercial doors for decades.
It is a fiddly bench job, not an on-door job: the keypad comes off the door and the supplied kit repositions the code tumblers, then everything goes back together. Follow page 4 of the Service Manual or our bench method guide, watch the common traps, and budget the time realistically - our guide covers how long a code change actually takes. And always: test the new code five times with the door open.
Any 4, 5 or 6 digit code, with each digit used once per code. Because the code lives in a tumbler chamber rather than a sequence, the digits are order-independent - 2580 and 0852 open the same chamber - so pick digits, not patterns. The C button is the clear key and can never be part of the code. The mechanics are explained in our coding chamber explainer.
You are locked out of the keypad side (the inside handle still opens the door from within, and there is no key override on this model). A locksmith can recover the situation - the keypad comes off the door and the chamber can be read and re-set with the code kit. If you are local, call Terry's; spare tumbler kits are covered in our spares rundown.
Ordering, Handing and Variants
Stand outside the closed door, facing the keypad side. Hinges on your left: order the left-hand 5572DXLSC. Hinges on your right: order the right-hand 5572DXRSC. The mortice DX platform is handed at the factory and is not field-reversible, so a wrong choice means a return trip - our guides cover how to determine handing, the US-vs-Australian naming trap, and what happens when the handing is wrong.
Same lock, different backset: the 3572DX is 60mm, this 5572DX is 127mm, and the 89mm size (4572DX) sits between them in the numbering. Measure from the centre of the existing spindle or keyhole to the door edge - two minutes with our backset measuring guide settles it. Ordering the wrong backset is the most common mortice mistake we see; here is why it hurts.
The 3572DXKO adds a keyed override cylinder (60mm backset), and the 3572DXKONCYL is the same lock supplied without the cylinder, for sites that fit their own to suit an existing key system. Key override on high-duty commercial doors is a genuine planning question - our commercial guide covers when key override earns its place.
Not as supplied. On the Lockwood mortice DX platform, hold-back is a key-operated option tied to a cylinder rather than a button on the keypad, so the standard 5572DX (which has no cylinder) does not ship with it. If trading-hours free passage matters to your door, tell us before you order and we will steer you to the right configuration - and read Passage Mode vs Holdback Mode first, including why hold-back is never used on fire doors.
Installation and Door Prep
On a fresh timber door with the manual in hand, a confident DIYer can do it: the mounting instructions and full-size drilling templates for the mortice platform are on pages 19-20 of the Service Manual, covering all three backsets. On a door that already has hardware, a fire door, or anything metal-framed, use a locksmith - the prep tolerances are what make these locks run sweetly for years. Local to the Gold Coast? Terry's installs what we sell.
The 5572DX suits doors from 32mm to 50mm thick. Standard Australian commercial doors sit comfortably inside that range; if your door is outside it (very thin aluminium infill, or an unusually thick solid-core leaf), talk to us before ordering rather than after.
Gold Coast apartment fire doors from certain eras can contain asbestos in the core, and drilling one without checking is a genuine health and legal risk. Read the three risk windows and what to do next before any holes go in.
Fire Doors and Egress
Its behaviour is right for it: exit through the inside handle is single-action and never needs a code, which is the pattern egress paths demand. What the lock cannot do is make the doorset compliant by itself - that certification belongs to the whole tested assembly. Our commercial guide explains how exit paths are assessed, and the fire door rules are laid out in our fire door compliance guide.
Because printing a rating a doorset does not hold would be doing you a disservice. Fire performance is tested and certified against complete door assemblies - leaf, frame, lock, furniture, prep and installation together - and it is the approved fire door schedule for your building that says what may go on your door. Bring us the schedule (or a photo of the door tag) and we will give you a straight answer. Background reading: Fire Door Types and Lock Certification in Australia.
Care, Coastal Conditions and Warranty
Wash it. The 25 year mechanical warranty excludes corrosion damage from coastal air, salt spray and high humidity, so near the water a regular fresh-water wipe-down of the keypad, knob and furniture - and following Lockwood's published care guidance at lockweb.com.au - is what keeps both the finish and the claim alive. For doors in direct salt spray, compare the salt-spray-rated Carbine CDL7 range and read our honest brand corrosion comparison.
The keypad assembly itself is replaceable (SPDX-50SC and SPDX-20SC), spare code tumblers are stocked, and the orderable parts tables for the whole 3572/4572/5572 family are on page 9 of the Service Manual. This serviceability is a large part of why mechanical digital locks out-live sealed electronic units.
The DX Range - Related Products, Guides and Chapters
Products: 3572DX (60mm backset) | 3572DXKO (key override) | 3572DXKONCYL | 530DXSC | 530DXSC/PADSX2 (dual keypad) | 002DX deadlatch family | SPDX-50SC spare keypad | SPDX-20SC spare keypad | 3772-DXKITSC | 3772-DXKOKITSC | 3782-DXKITSC | 3782-DXKOKITSC | Browse the whole Digital Mechanical Locks category or the Lockwood range.
Guides: What Is a Mechanical Digital Lock? | Changing Codes on Mechanical Digital Locks | Lockwood vs Borg vs Carbine | Heavy Duty Commercial Mechanical Digital Locks | Measuring Your Lock Backset | Understanding Door Handing in Australia | Latch vs Bolt Mechanical Digital Locks | Buyer's Guide Chapter 16: Mechanical Digital Locks.
What's in the Box - Lockwood 5572DX
- Digital DX keypad access pad (Satin Chrome)
- 5572 cylinder mortice lock body - 127mm backset, handed as ordered
- Mounting plate
- Spindle components
- Adaptor components
- Mounting hardware and screws
- Code change kit
- Installation instructions
Lockwood DX Mechanical Digital Locks - Real Installations

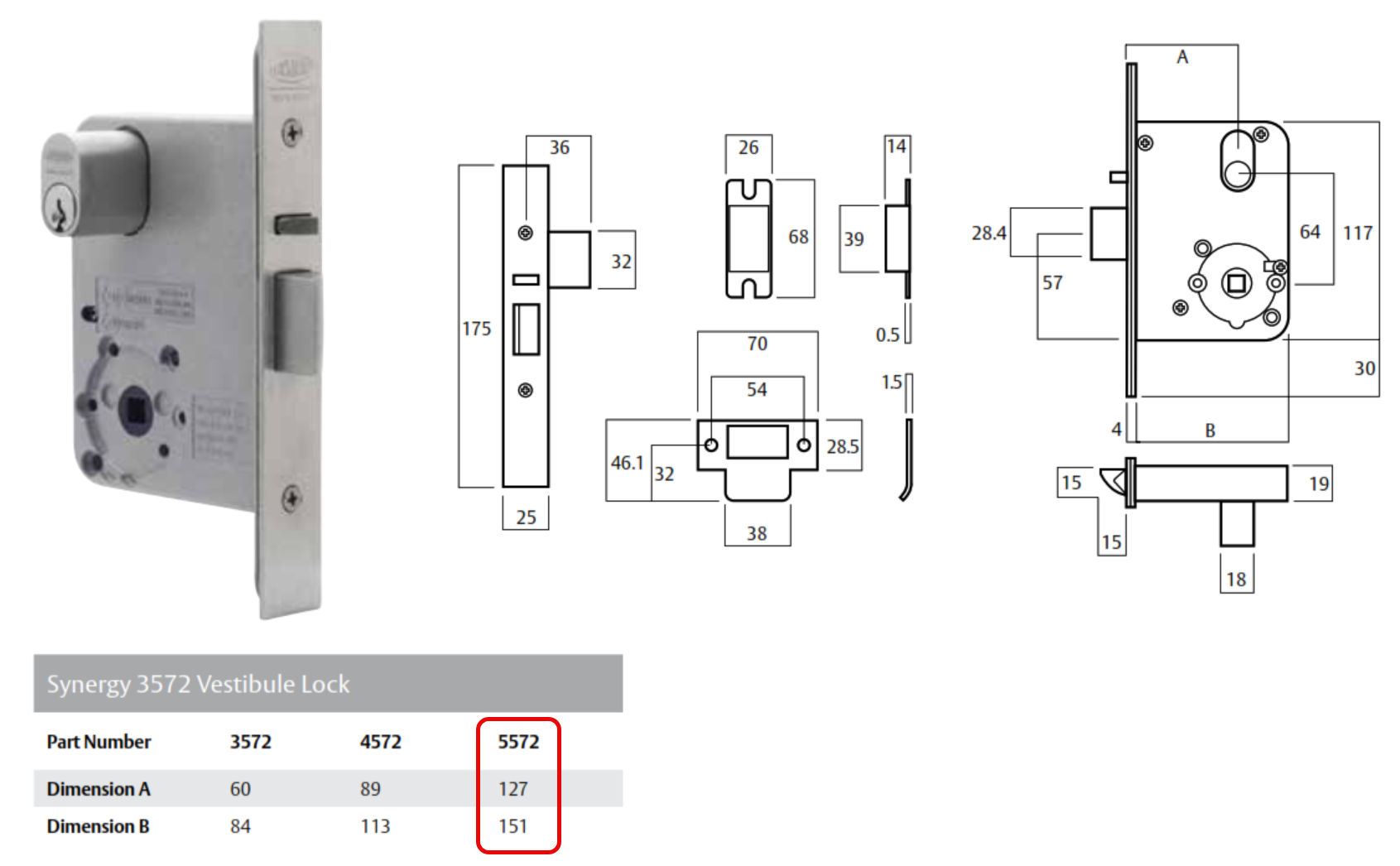

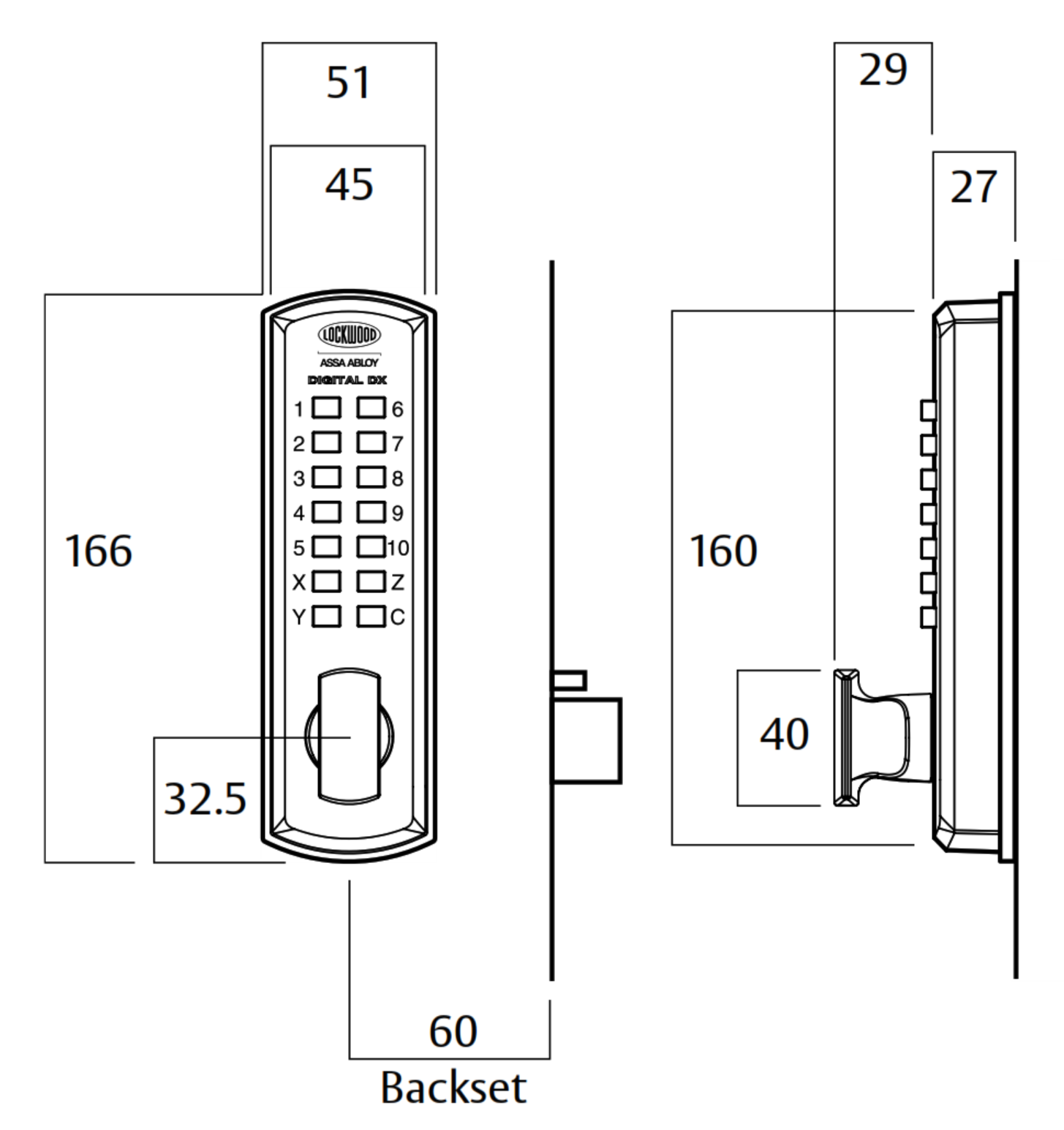

Lockwood 5572DX - Dimensions
Lockwood DX Mechanical Digital Range - Product Brochure
The complete mechanical digital section of the Lockwood Keyless Entry Catalogue - the 002, 530 and Selector DX families that sit alongside the 5572DX, plus the accessories, kits and ordering procedure for the range. Prefer it as a file? Download the catalogue excerpt (PDF).
Lockwood DX Digital - Schematics and Exploded Views
The manufacturer's schematic and exploded-view sheets for the Lockwood DX digital lock range - useful for identifying parts, understanding the assembly, and ordering spares. The matching orderable parts tables are in the DX Digital Service Manual.
Lockwood DX Digital Service Manual - parts diagrams, code change procedure, mounting instructions and drilling templates
Lockwood DX Mechanical Digital Range - Catalogue Excerpt - the 002, 530 and Selector DX families, accessories and ordering procedure
Lockwood Warranty - 25 Year Mechanical - the full warranty terms, limitations and claims process
