Lockwood 3572DX Digital DX Mechanical Keypad Mortice Lock - 60mm Backset
At A GlanceAt A Glance
DISPATCHShips in about 3 business days
SPECIAL ORDERNot returnable
PIN Code
Key OverrideNot Available
The Lockwood 3572DX is a fully mechanical keypad mortice lock for commercial doors that need coded entry without any wiring, batteries or electronics. At 60mm backset it is the standard-depth member of Lockwood's Mortice Digital DX family - the version that fits the majority of commercial timber doors without any modification to the existing door preparation.
The lockset pairs a Lockwood 3572 cylinder mortice lock with the Digital DX keypad on the outside face, and is matched with Lockwood 1800 or 2800 series door furniture on the inside. Enter the code, turn the keypad knob, and the latch retracts; from the inside, the handle opens the door freely at all times with no code required.
Because the whole mechanism is mechanical, there is nothing to charge, pair or replace. That is exactly why locks like this remain the default choice for plant rooms, staff doors and service corridors that see heavy daily use. If you are new to battery-free keypad locks, our guide What Is a Mechanical Digital Lock? explains how the coding chamber inside works - and Chapter 16 of the Buyer's Guide covers the whole category.
View the full range of battery-free keypad locks here: Digital Mechanical Locks Collection
Battery free. Hassle free.
Usually ships in 3 business days
This product is a special order item and is not returnable. It is also handed, so please confirm your door's handing and suitability before ordering - see Handing and Ordering below, or Contact Us if you are not sure.
A mortice lock body and all-mechanical keypad built for frequent daily use on commercial doors. For a plain-English look at what separates commercial-grade keypad locks from light-duty units, see Heavy Duty Commercial Mechanical Digital Locks.
Key Features
- Fully mechanical keypad lock - no batteries, no wiring, no electronics to fail
- 3572 cylinder mortice lock body with the standard Australian 60mm backset - fits most commercial timber doors without re-cutting the door
- Coded entry: press C to clear, enter your code, then turn the keypad knob to retract the latch
- The keypad knob freewheels until a valid code is entered - a clutching action that protects the internal parts if someone forces the knob
- The entered code cancels automatically once the knob is operated, so the door is never left standing on an open code
- Inside lever or knob gives free single-action exit at all times - no code needed to get out
- Stainless steel latch bolt with 19.5mm projection
- Code is set by a mechanical tumbler chamber and re-set at the bench using the supplied code change kit - any 4, 5 or 6 digit code
- Handed at order (left or right hand) to match your door - not field-reversible
- Field-serviceable: replacement keypads and spare code tumblers keep the lock in service for decades
- No key override on this model - if you need a keyed cylinder alongside the code, see the 3572DXKO
Need a Complete Internal/External Package?If you want a single box that includes both the Digital DX keypad for the outside and a matching internal lever or knob - ready to install with nothing else to source - the Lockwood 002DX deadlatch family is the one to look at. It is also a common choice for
apartment fire doors, where the 002 deadlatch combined with coded entry and free internal exit meets the egress requirements of most tested doorset schedules - always confirm against your building's approved fire door schedule before ordering.
- 002-1LDXSC - Lever inside, door opens inwards
- 002-1KDXSC - Knob inside, door opens inwards
- 002-4LDXSC - Lever inside, door opens outwards
- 002-4KDXSC - Knob inside, door opens outwards
The key choice is which way your door opens (inwards or outwards) and whether you prefer a lever or knob on the inside face. Not sure? Contact Us and we will confirm the right variant for your door.
Decoding Lockwood Model Numbers
Lockwood's DX model numbers look cryptic, but they follow a simple pattern once you know it. Reading a code like 3572DXLSC from left to right:
One caveat: the short backset families count differently (3782, 4782, 5782 and 6782 step through 23, 25.4, 30 and 38mm backsets), but the idea is the same - the first digit steps through the backset options. Not sure which backset your door has? Our guide to measuring your lock backset shows you in two minutes. Need the 127mm version? That is the 5572DX.
Code Control - How the Code Works and How to Change It
The 3572DX ships with a factory-set 4 digit code, which you can change to any 4, 5 or 6 digit code of your own. The code lives in a mechanical tumbler chamber behind the keypad - there is no memory chip and nothing to reset electronically. Because it is a chamber rather than a sequence, each digit can be used once per code and the digits can be pressed in any order; the C button always clears a wrong entry and cannot be part of the code. Our pillar guide explains how the coding chamber works and why the digits are order-independent.
Changing the code is a bench job, and an honest word: it is a fiddly one - the tumblers are small and the sequence matters - but it is entirely doable with the kit and the instructions in front of you. The full procedure is on page 4 of the Lockwood DX Digital Service Manual. We have also written the whole thing up in plain English - see the Lockwood DX section of our code-changing guide, the shared bench method, and the one rule that saves callouts: test the new code five times before you close the door.
Access Methods
What's in the Box
- Digital DX keypad access pad
- 3572 cylinder mortice lock body (60mm backset)
- Mounting plate
- Spindle components
- Adaptor components
- Mounting hardware and screws
- Code change kit
- Installation instructions
Parts & Components
Suitable Uses
- Commercial access doors with standard 60mm mortice preparations - the lock fits directly without re-cutting the door. Browse the Digital Mechanical Locks category for the full range
- Office entry points, reception areas and staff-only doors
- Service corridors, plant rooms and utility rooms where reliability over complexity matters
- Replacing an existing 60mm mortice lock with keypad entry - no new door preparation needed
- Commercial fire door assemblies where the complete tested doorset includes the 3572DX and its installation meets the approved schedule
- Any door requiring keypad entry without batteries, wiring or an app - see Mechanical vs Smart Locks in Chapter 16 for an honest comparison
Handing and Ordering
The Lockwood mortice DX platform is not field-reversible: the orderable models are 3572DXLSC (left hand) and 3572DXRSC (right hand), and the correct one must be selected when you order. Stand on the outside (keypad side) of the closed door: if the hinges are on your left, you need the left-hand unit; hinges on your right, the right-hand unit. Our guide Understanding Door Handing in Australia walks through it with diagrams, and explains what goes wrong when the handing is wrong. Still unsure? Send us a photo via Contact Us and we will confirm it.
Available Finish Options
Satin Chrome
(This Product)
STK 3572DX
Finish selection does not affect functionality, compliance, or performance.
Item Code Family - Lockwood DX Mechanical Keypad Range
This table combines complete Lockwood DX locksets, replacement keypad assemblies and Selector conversion kits. Check carefully whether the product is a full lockset, a keypad-only replacement part, or a kit that requires an existing compatible mortice lock. For an honest comparison of how the Lockwood DX range stacks up against the other battery-free brands we stock, read Lockwood vs Borg vs Carbine.
Full Specifications
Dimensions
Fire Doors and Egress
Mortice DX locksets are commonly specified on commercial fire door assemblies, and the 3572DX suits that egress logic: entry is code-controlled, but exit through the inside handle is always free and single-action. Even so, no lock should be described as automatically fire compliant on its own. Fire performance belongs to the complete tested doorset - the door leaf, frame, lock, furniture, latch preparation and the installer's compliance - not to the lock in isolation. For Digital DX fire door applications, the rubber mounting pad must not be fitted where the manufacturer's instructions require its omission.
Before fitting this lock to a fire door, always confirm suitability against the approved fire door schedule, the door manufacturer's requirements and the complete tested hardware combination. Our guides explain the ground rules: Apartment Fire Doors on the Gold Coast - What Locks Are Actually Compliant? and Fire Door Types and Lock Certification in Australia. You can also browse the locks we list for fire doors in the Fire Door category.
Important: If you are not sure whether your door is a fire door, or what its schedule allows, Contact Us before ordering - and before anyone drills. On older Gold Coast fire doors, read why your locksmith warns you about asbestos before drilling.
Frequently Asked Questions
Take the keypad off the door and use the supplied code change kit to reposition the tumblers - a fiddly bench job, but a doable one. The full procedure is on page 4 of the DX Digital Service Manual, and our plain-English walkthrough covers the same steps with the traps to avoid. You can set any 4, 5 or 6 digit code, each digit used once, and the C button is always the clear key. Test the new code five times before you shut the door.
No - the 3572DX is PIN-only from the outside, with a free handle inside. If you need a keyed override cylinder (for fire brigade access, a master key system, or simply peace of mind), choose the 3572DXKO instead.
Stand on the outside (keypad side) of the closed door. Hinges on your left means the left-hand unit (3572DXLSC); hinges on your right means the right-hand unit (3572DXRSC). This lock is not field-reversible, so getting this right at order time matters - our door handing guide has diagrams, or send us a photo and we will confirm it.
Only with the doorset's paperwork behind you. The 3572DX has the right egress behaviour for fire doors - free single-action exit from the inside - but fire compliance belongs to the complete tested door assembly, not the lock alone. Check the approved fire door schedule first, and see our fire door compliance guide or ask us before ordering.
60mm is the standard Australian mortice backset and suits the majority of commercial timber doors. Measure from the centre of the existing keyhole or spindle to the door edge - our backset measuring guide shows you how in two minutes. If your door measures 127mm, see the 5572DX instead.
Additional Information
Lockwood branded products purchased new in Australia are warranted by ASSA ABLOY Australia against defects in materials and workmanship:
- Mechanical components: 25 years from the date of purchase - and because the DX range is entirely mechanical, this clause covers the whole lock
- Satin Chrome plated finish: 10 years
Lockwood DX Digital Service Manual - jump straight to setting a new code (page 4), the 3572/4572/5572 parts tables (page 9) or the mounting instructions and drilling templates (page 19)
Lockwood DX Mechanical Digital Range - Catalogue Excerpt (the 002, 530 and Selector families that sit alongside this lock)
Lockwood Warranty - 25 Year Mechanical (PDF)
Lockwood 3572DX - FAQ, Setup and Owner's Guide
Everything owners, installers and specifiers ask about the 3572DX, in one place. For the wider battery-free picture, start with Chapter 16 of our Buyer's Guide (Mechanical Digital Locks) and the pillar guide What Is a Mechanical Digital Lock?
Codes and Everyday Use
Press C to clear anything already entered, press your code digits in any order, then turn the keypad knob. The latch retracts, the door opens, and the code cancels automatically as the knob is operated. From the inside, the handle always opens the door freely - no code, no key needed.
That is the clutching mechanism doing its job. Until a valid code is entered, the knob freewheels and is not connected to the latch - so forcing or wrenching it transmits nothing to the lock's internals. Enter the code and the knob engages for one operation. It is one of the reasons these locks survive decades on high-traffic commercial doors. Our pillar guide covers how the coding chamber works in detail.
It is a bench job with small parts - fiddly but doable. The keypad comes off the door and the code tumblers are repositioned with the supplied kit. The factory procedure is on page 4 of the Service Manual; our plain-English version is the Lockwood DX section and bench method of the code-changing guide. Golden rule: test the new code five times before you close the door.
Any 4, 5 or 6 digit code - with one mechanical rule: each digit can be used only once per code, because the code lives in a physical tumbler chamber rather than a memory chip. The digits can be pressed in any order. The C button is always the clear key and can never be part of the code. The pillar guide explains why order does not matter.
On this PIN-only model there is no key fallback - a forgotten code means the keypad comes off the door and goes to the bench for a re-code. That is why we always recommend testing the new code thoroughly before shutting the door, and noting it down somewhere secure. If a guaranteed emergency key path matters to you, choose the 3572DXKO with its keyed override cylinder instead.
Ordering, Handing and Variants
Stand on the outside (keypad side) of the closed door: hinges on your left means 3572DXLSC, hinges on your right means 3572DXRSC. The mortice DX platform is handed at order and not field-reversible. Our handing guide covers how to determine handing with diagrams, the US vs Australian naming convention, and what happens when the handing is wrong.
Measure from the centre of the existing keyhole or spindle to the door edge - two minutes with our backset measuring guide settles it. 60mm is the standard for most commercial timber doors. If your door is 127mm, the family's deep-backset lock is the 5572DX. Our guide to standard Australian backset sizes explains where each backset turns up.
The 3572DXKO adds a keyed override cylinder (60mm backset), and the 3572DXKONCYL is the same lock without the cylinder for sites fitting their own to suit an existing key system. Key override is a genuine planning question for commercial sites - our commercial guide covers when key override earns its place.
Not as supplied. On the Lockwood mortice DX platform, hold-back is a key-operated option tied to a cylinder - the standard 3572DX (no cylinder) does not ship with it. If trading-hours free passage matters to your door, tell us before you order and we will steer you to the right configuration. Read Passage Mode vs Holdback Mode first, including why hold-back is never used on fire doors.
Installation and Door Prep
On a fresh timber door with the manual in hand, a confident DIYer can do it: mounting instructions and full-size drilling templates are on pages 19-20 of the Service Manual, covering all three backsets. On a door that already has hardware, a fire door, or anything metal-framed, use a locksmith. Local to the Gold Coast? Terry's installs what we sell.
The 3572DX suits doors from 32mm to 50mm thick. Standard Australian commercial timber doors sit comfortably inside that range. If your door is outside it - very thin aluminium infill or an unusually thick solid-core leaf - talk to us before ordering.
Gold Coast apartment fire doors from certain eras can contain asbestos in the core, and drilling one without checking is a genuine health and legal risk. Read the three risk windows and what to do next before any holes go in.
Fire Doors and Egress
Its behaviour is right for it: exit through the inside handle is single-action and never needs a code, which is the pattern egress paths demand. What the lock cannot do is make the doorset compliant by itself - that certification belongs to the whole tested assembly. Our commercial guide explains how exit paths are assessed, and the fire door rules are in our fire door compliance guide. Browse the Fire Door category for all locks we list as fire-door suitable.
Because printing a rating a doorset does not hold would be doing you a disservice. Fire performance is tested and certified against complete door assemblies - leaf, frame, lock, furniture, prep and installation together - and it is the approved fire door schedule for your building that says what may go on your door. Bring us the schedule (or a photo of the door tag) and we will give you a straight answer. Background: Fire Door Types and Lock Certification in Australia.
Care, Coastal Conditions and Warranty
Wash it. The 25 year mechanical warranty excludes corrosion damage from coastal air, salt spray and high humidity, so near the water a regular fresh-water wipe-down of the keypad, knob and furniture - and following Lockwood's published care guidance at lockweb.com.au - is what keeps both the finish and the claim alive. For doors in direct salt spray, compare the salt-spray-rated Carbine CDL7 range and read our honest brand corrosion comparison.
The keypad assembly itself is replaceable (SPDX-50SC and SPDX-20SC), spare code tumblers are stocked, and the orderable parts tables for the 3572/4572/5572 family are on page 9 of the Service Manual. This serviceability is a large part of why mechanical digital locks out-live sealed electronic units.
The DX Range - Related Products, Guides and Chapters
Products: 3572DXKO (key override) | 5572DX (127mm backset) | 530DXSC | 530DXSC/PADSX2 (dual keypad) | 002DX deadlatch family | SPDX-50SC spare keypad | SPDX-20SC spare keypad | 3772-DXKITSC | 3772-DXKOKITSC | 3782-DXKITSC | 3782-DXKOKITSC | Browse the whole Digital Mechanical Locks category or the Lockwood range.
Guides: What Is a Mechanical Digital Lock? | Changing Codes on Mechanical Digital Locks | Lockwood vs Borg vs Carbine | Heavy Duty Commercial Mechanical Digital Locks | Measuring Your Lock Backset | Understanding Door Handing in Australia | Latch vs Bolt Mechanical Digital Locks | Passage Mode vs Holdback Mode | Why Our Mech-Digi Range Beats Hardware Store Imitations | Buyer's Guide Chapter 16: Mechanical Digital Locks | Chapter 02: Measuring Your Door.
What's in the Box - Lockwood 3572DX
- Digital DX keypad access pad (Satin Chrome)
- 3572 cylinder mortice lock body - 60mm backset, handed as ordered
- Mounting plate
- Spindle components
- Adaptor components
- Mounting hardware and screws
- Code change kit
- Installation instructions
Lockwood DX Mechanical Digital Locks - Real Installations

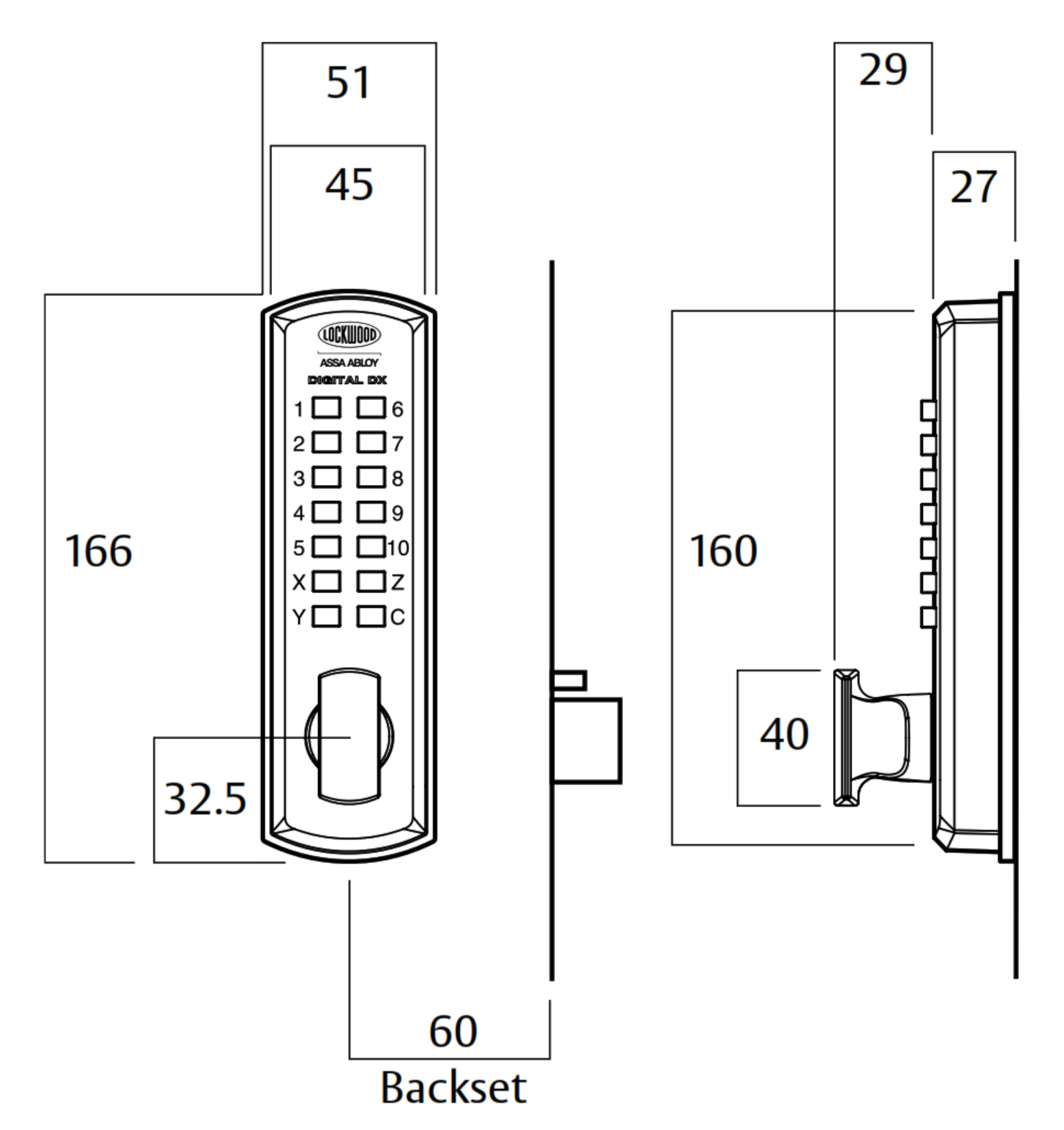

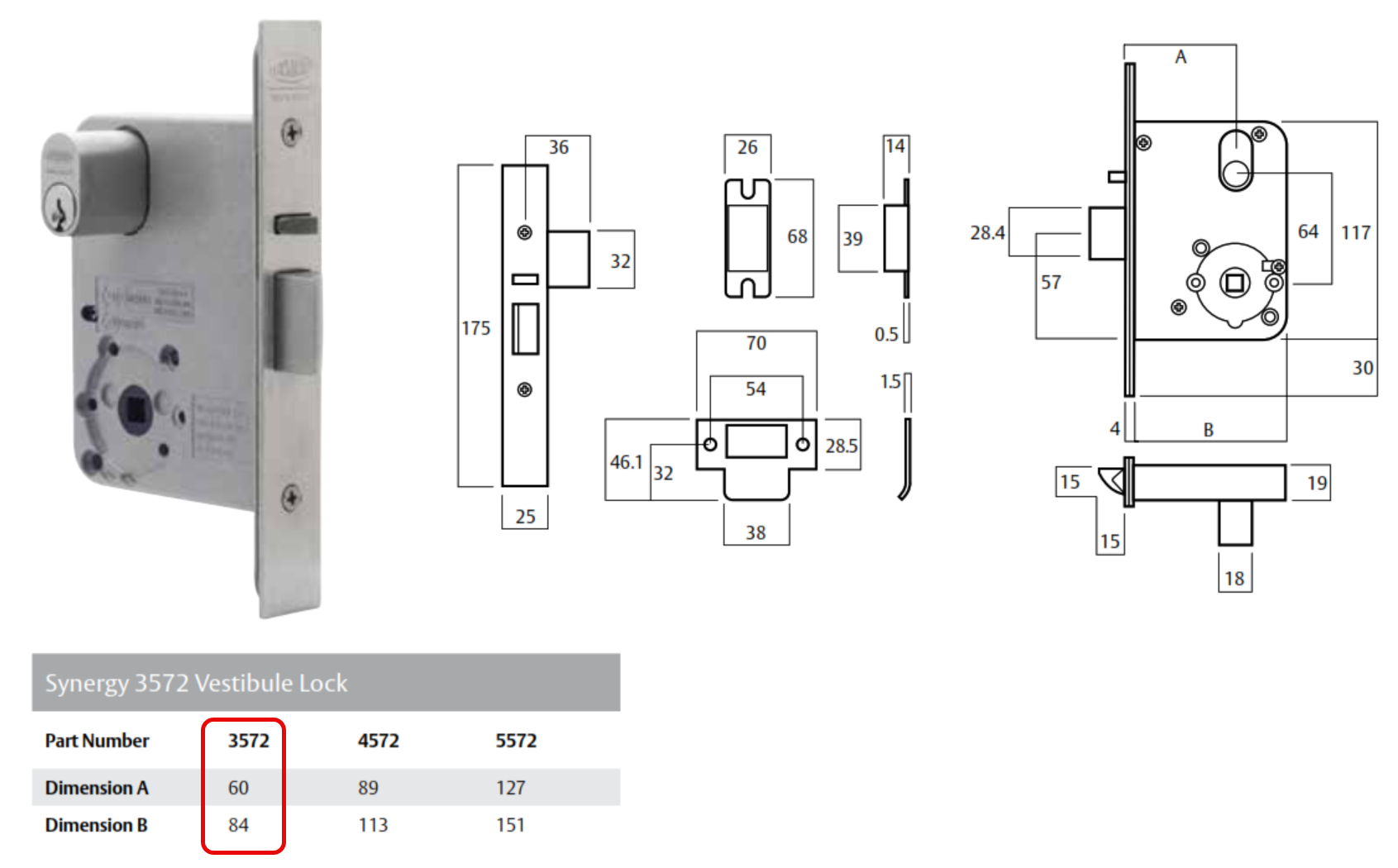

Lockwood 3572DX - Dimensions
Lockwood DX Mechanical Digital Range - Product Brochure
The complete mechanical digital section of the Lockwood Keyless Entry Catalogue - the 002, 530 and Selector DX families that sit alongside the 3572DX, plus the accessories, kits and ordering procedure for the range. Prefer it as a file? Download the catalogue excerpt (PDF).

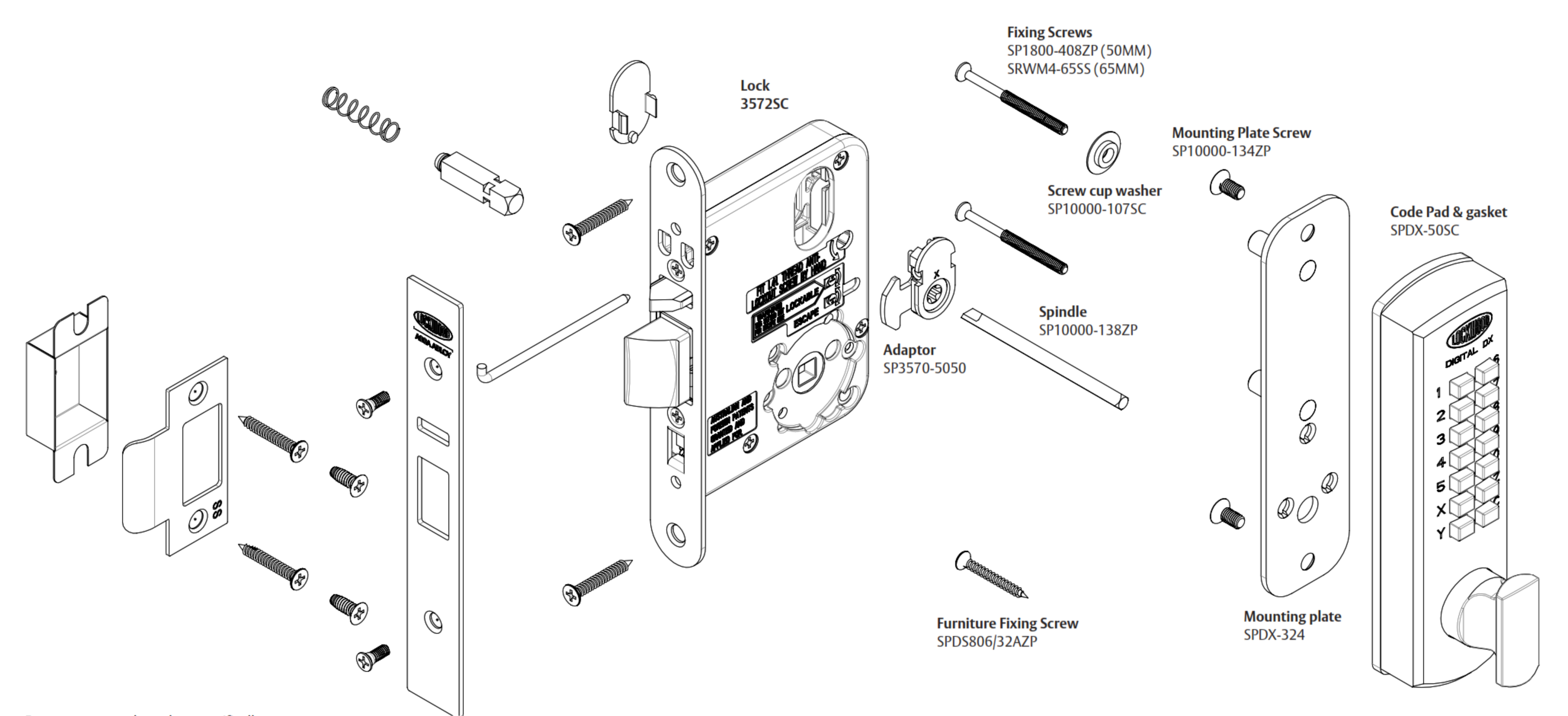

Lockwood DX Digital - Schematics and Exploded Views
The manufacturer's schematic and exploded-view sheets for the Lockwood DX digital lock range - useful for identifying parts, understanding the assembly, and ordering spares. The matching orderable parts tables are in the DX Digital Service Manual.
Lockwood DX Digital Service Manual - parts diagrams, code change procedure (page 4), parts tables for the 3572/4572/5572 series (page 9), mounting instructions and drilling templates (pages 19-20)
Lockwood DX Mechanical Digital Range - Catalogue Excerpt - the 002, 530 and Selector DX families, accessories and ordering procedure
Lockwood Warranty - 25 Year Mechanical - the full warranty terms, limitations and claims process
Lockwood Warranty
Lockwood branded products are covered by manufacturer warranties issued by ASSA ABLOY Australia Pty Ltd. Warranty periods vary by product type, with separate cover for mechanical components, electrical and electronic parts, keys, and finishes.
The summary below sets out the standard warranty structure. All warranty claims are handled by Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries. Full terms and exclusions are set out in the official Lockwood warranty document linked at the base of this page.
Warranty Summary
Finish Coverage Guide
- Everbrass finishes: up to 25 years against corrosion, tarnishing and discolouration.
- Stainless steel, polished stainless steel, chrome plating and anodised finishes: typically up to 10 years.
- PVD and VIVID finishes: typically up to 10 years.
- Symmetry range finishes: typically up to 5 years.
- Decorative finishes (Antique Copper, Architectural Bronze, Oil Rubbed Bronze, Aged Brass, Polished Brass, Satin Brass and related variants): typically up to 2 years against corrosion.
- Unlacquered brass finishes naturally age and change appearance over time. This is not considered a defect.
- Tea staining of stainless steel is not covered where the required cleaning and maintenance have not been followed.
How to Make a Claim
- Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries with your proof of original purchase.
- Keep the product securely packed and clearly identified, ready for assessment.
- Where a claim is escalated to the manufacturer, ASSA ABLOY may issue a case number before goods are returned.
- ASSA ABLOY assesses the claim and determines repair, replacement with the same or closest equivalent product, or refund of the purchase price.
Exclusions
- Normal wear and tear.
- Misuse, abuse, accidental damage or use outside published specifications.
- Improper maintenance or failure to follow care instructions.
- Unauthorised modification, repair or use of non-genuine parts.
- Exposure to corrosive environments including coastal air, salt spray, chemicals or pollution.
- Removal, refitment or associated labour charges.
- Products not originally sold in Australia through authorised channels.
These manufacturer warranties apply in addition to your rights under the Australian Consumer Law. Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure and to compensation for any other reasonably foreseeable loss or damage. Where a failure does not amount to a major failure, you are entitled to have the goods repaired or replaced.
