McGrath Windsor Fire Rated Smart Lock - 4-in-1 Access, 60/70mm Adjustable Latch
The McGrath Windsor is a versatile, non-biometric digital smart lock built for Australian residential, commercial, and retrofit applications. It offers four access methods - keypad PIN, RFID card or tag, Bluetooth eKey via the McGrath Locks App, and mechanical key override - with broad hardware compatibility that makes it a strong choice where fire-rated compliance, installer flexibility, and long-term local support all matter. For an overview of how each access method works, see our guide to smart lock access methods.
The Windsor is fire assessed up to 2 hours on Firecore and E-Core doors. Fire performance is system-based: it is achieved only when the lock is installed as part of an approved doorset configuration with a compatible latch or mortice. The lock is supplied with a McGrath 60/70mm adjustable tubular latch and is available in Matt Black and Satin Nickel.
Usually same day if ordered before 11am AEST (excluding weekends and QLD public holidays).
DDA compliance on the McGrath Windsor is achieved by fitting the optional DDA-compliant external levers. To convert the baseline Windsor to a DDA-compliant configuration, add the matching external and internal DDA handles for your chosen finish to your basket alongside this lock.
DDA lever handles - add to basket to make the Windsor DDA compliant: Terry's Locksmiths can pre-fit the DDA-compliant levers during installation, as correct fitment can be a little tricky. The DDA levers can be added on this product page or added to your cart during checkout. When fitted, the DDA levers meet BCA AS 1428.1-2009.
Available Finish Options
Matt Black
(This Product)
STK MLWIN
Satin Nickel
(This Product)
STK MLWIN
Black and Satin Nickel are finish options on this single listing - select your finish at checkout. Finish selection does not affect functionality, compliance, or performance.
* Wi-Fi remote access requires a separately purchased McGrath Locks gateway.
Key Features
- Four-in-one access methods: keypad PIN, RFID cards or tags, Bluetooth eKeys, and mechanical key override.
- Managed via the McGrath Locks App using Bluetooth, with optional Wi-Fi gateway for remote access.
- Fire assessed up to 2 hours on Firecore and E-Core doors in approved doorset configurations.
- DDA compliance achievable by fitting the optional DDA-compliant levers (BCA AS 1428.1-2009).
- Anti-peep PIN entry allows random digits before or after the correct code.
- Incorrect-attempt lock-out activates after repeated failed access attempts.
- Reset button can be disabled via the app for additional security.
- Passage mode allows the door to remain unlocked when required.
- Audit trail records door access events within the app.
- Tempered glass screen for durability in high-use environments.
- Field-changeable handing for left- or right-hand opening doors.
- Supplied with a McGrath 60/70mm adjustable tubular latch and strike plate.
Access Methods
For a detailed explanation of how each access method works and when to use each, see Chapter 03 - Smart Lock Access Methods.
Battery, Power & Backup Access
- Powered by 4 x AA alkaline batteries (not included). Terry's Locksmiths strongly recommends Duracell above any other battery brand.
- Use of lithium or rechargeable AA batteries is not recommended.
- Typical battery life up to 12 months based on approximately 10 uses per day.
- Low-battery warnings are provided both in the app and audibly at the lock.
- User credentials are retained during battery replacement.
- USB-C emergency power port allows temporary operation using a power bank if batteries are fully depleted.
- Mechanical key override provides fail-safe access in all power conditions. Two keys are supplied.
App Platform & Data Hosting
McGrath smart locks are backed by long-established industry partners and supported locally. To learn more, read Why Terry's Locksmiths, LSC & McGrath Locks Give Long-Term Confidence.
Wi-Fi Remote Access (Optional - Gateway Required)
The Windsor does not include native Wi-Fi connectivity. Remote access and management features are available only when the lock is paired with a compatible McGrath Locks gateway. When a gateway is installed, users can remotely unlock the door, issue or revoke access credentials, and view access activity through the McGrath Locks App from anywhere with an internet connection.
Not sure whether you need a gateway? See our guide to whether you actually need a gateway, or the full differences between the McGrath G2, G3, G4 and G5 gateways. Browse the current range: G3 PoE Ethernet gateway, G4 4G / Wi-Fi gateway, and G5 dual-band Wi-Fi gateway.
Fire Rated
- Fire assessed up to 2 hours on Firecore and E-Core doors.
- Fire performance applies only when installed with approved hardware configurations.
- Approved configurations include the dormakaba MS2602 mortice lock, the McGrath adjustable tubular latch (Black / Stainless Steel), or a Lockwood 530-style tubular latch.
- Fire compliance is system-based and limited by the Fire Resistance Level of the complete doorset.
- Fire certification documentation is available in the Fire Cert Docs tab.
Looking for other fire-rated smart lock options?
Fire-rated smart locks must be selected carefully. Fire performance applies to the complete doorset - the lock, latch or mortice, door leaf, and installation method. Different smart lock models suit different fire door configurations and usage requirements.
To view our full range of smart locks suitable for fire door applications when installed in approved configurations, visit: Browse Fire-Rated Smart Locks for Fire Doors.
If you would like a clearer understanding of how fire doors, certifications, and smart lock approvals work, these guides may help:
Specifications
IP rating note: The IP65 rating applies to the external handle assembly only. The internal unit and battery compartment are not IP rated and must not be exposed to water or moisture. Install in a sheltered position.
Dimensions
Lock case: 180 mm H x 72 mm W x 25 mm D. Outside handle projection: 70.6 mm (73 mm with DDA lever). Door thickness range: 35 - 54 mm.
McGrath Fire Rated & Standard-Stile Smart Locks
Where the Windsor sits in the McGrath standard-stile smart lock range. All are managed by the McGrath Locks App.
Accessories & Spares
DDA levers, latches, spare cylinders, keys, scar plates, and gateways confirmed to suit the McGrath Windsor.

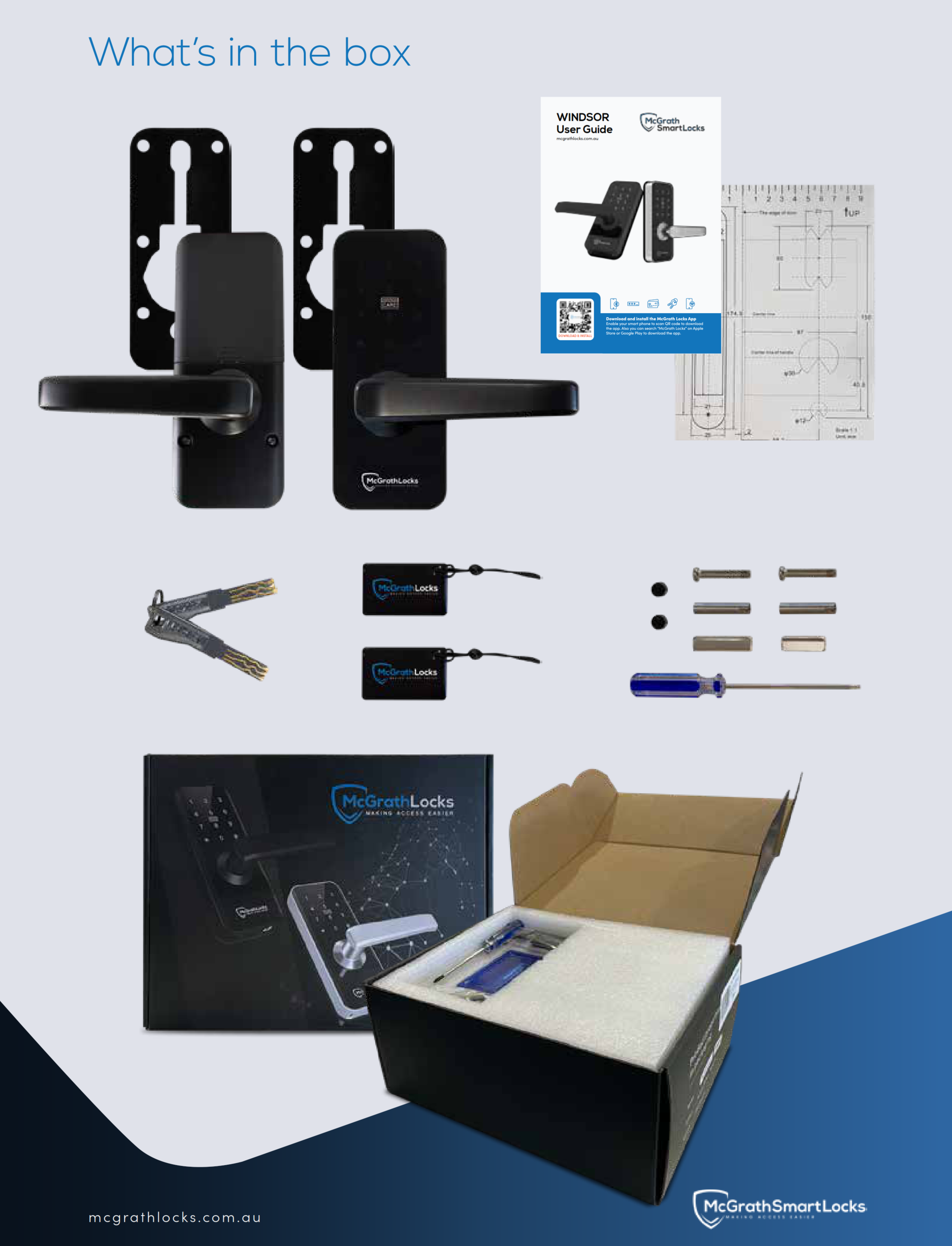

What's in the Box
- Exterior lock assembly (keypad and RFID reader side)
- Interior lock assembly
- McGrath 60/70mm adjustable tubular latch with strike plate
- Drill positioning template
- 2 x backup mechanical keys
- 2 x RFID access tags
- Mounting screws
- Mini security screwdriver
- Installation guide
Note: DDA levers, gateway (for Wi-Fi remote access), and batteries are not included.
Suitable Uses
- Fire-rated timber doorsets (Firecore / E-Core) in approved configurations, where a 2-hour fire assessment is required.
- Residential front and rear entry doors on timber or aluminium frames.
- Commercial offices, retail premises, clinics, and professional suites.
- Accessible entrances requiring DDA-compliant levers (BCA AS 1428.1-2009) when fitted with the optional DDA handles.
- Retrofit onto existing doors using approved latch or mortice configurations.
- Applications needing four keyless access methods without biometrics.
Frequently Asked Questions
No. The Windsor is supplied with a McGrath 60/70mm adjustable tubular latch. It is also compatible with approved mortice locks - such as the dormakaba MS2602 - when specified separately.
Yes, when installed on Firecore or E-Core doors using approved latch or mortice configurations. Fire performance is system-based and limited by the Fire Resistance Level of the complete doorset. Certification documents are in the Fire Cert Docs tab, and our guide to fire door types and smart lock certification explains how this works.
Fit the optional DDA-compliant levers. Add the external DDA handle for your finish (Black or Satin Nickel) plus the matching internal handles (Black or Satin Nickel) to your basket. When fitted, they meet BCA AS 1428.1-2009. Terry's can pre-fit them during installation.
No. The lock operates locally via Bluetooth using the McGrath Locks App. Remote access and management require an optional Wi-Fi gateway. Not sure whether you need one? See our guide to whether you actually need a gateway.
No. The Windsor is a non-biometric model and does not support fingerprint, palm, or face recognition. If you need fingerprint access on a standard-stile door, ask us about alternative McGrath models.
Additional Information
Use only standard AA alkaline batteries. Lithium or rechargeable batteries are not recommended. User credentials are retained during battery replacement, and USB-C emergency power allows temporary access if batteries are fully depleted.
The IP65 rating applies to the external handle only and is intended for sheltered installations. The internal assembly and battery compartment are not IP rated and must not be exposed to water or moisture. See Chapter 11 - Australian Smart Lock Standards for a plain-English explanation of IP ratings.
Installation should be carried out by a qualified locksmith or installer, particularly for fire-rated doorsets where approved hardware configurations must be maintained. Terry's Locksmiths can supply and fit the Windsor across South East Queensland.
McGrath Locks is distributed in Australia through LSC. For why the Terry's and LSC distribution chain matters for long-term support and parts availability, see why Terry's, LSC, and McGrath Locks give long-term confidence.
12-month warranty against defects in materials and workmanship (24-month on ALBION, ASCOT, WINDSOR, ULTRA SECUA, HAMILTON, BARDON and STAFFORD models). McGrath Locks will repair, replace, or refund at their discretion. Proof of purchase required for all claims. Returns & Warranty | McGrath Locks Warranty
What's in the Box - McGrath Windsor
- Exterior lock assembly (keypad and RFID reader side)
- Interior lock assembly
- McGrath 60/70mm adjustable tubular latch with strike plate
- Drill positioning template
- 2 x backup mechanical keys
- 2 x RFID access tags
- Mounting screws
- Mini security screwdriver
- Installation guide
Note: DDA levers, gateway, and batteries are not included.
McGrath Windsor Smart Lock - Real Installations (Black)
Real installations of the McGrath Windsor Fire Rated Smart Lock in matte black - the majority fitted across South East Queensland by Terry's Gold Coast Smart Locks, plus a customer installation in Melbourne. Shown across residential and commercial fire doors and entry doors of many styles.
McGrath Windsor Smart Lock - Real Installations (Satin Nickel)
Real installations of the McGrath Windsor Fire Rated Smart Lock in satin nickel, fitted across South East Queensland by Terry's Gold Coast Smart Locks across residential and commercial doors.
McGrath Windsor - Dimensions
McGrath Windsor - Fire Certification Documents
McGrath Locks Warranty
Warranty Summary
How to Make a Claim
- Contact Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries (the place of purchase) within the applicable warranty period.
- Supply your proof of original purchase — a receipt or tax invoice is required.
- Provide a clear description of the fault and your contact details.
- You may be asked to return the product for assessment before a remedy is determined.
- McGrath Locks will, at their discretion, repair the product, replace it with the same or an equivalent model, or provide a refund of the purchase price.
Exclusions
This warranty does not cover:
- Normal wear and tear
- Products that have been disassembled
- Damage caused by improper handling, incorrect installation, misuse, abuse, neglect, modification, or accident
- Installation by unlicensed persons (including non-licensed locksmiths or technicians)
- Products not used in accordance with the supplied instructions
- Cosmetic damage that does not affect functionality
- Labour or installation costs related to the removal or reinstallation of products
- Exposure to conditions outside normal environmental use
- Work completed before warranty approval
- Damage caused by battery leakage, battery failure, or force majeure
Important Notes
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. This warranty is provided in addition to your rights and remedies under the Australian Consumer Law.
Further Information
