Vault Neo Smart Lock - Lever or Knob - for 5050 Mortice and Tubular Latch Doors
Vault Neo - At A GlanceAt A Glance
DISPATCH3 Business Days
Fingerprint
PIN Code
RFID Card / Fob
App (Bluetooth)
Mechanical Key
FaceNot Available
PalmNot Available
The Vault Neo (Vault_Neo) is a compact smart lock offered in both knob and lever-handle variants, so it can suit a wide range of residential and light commercial doors. It fits both tubular latch and 5050 (50mm) mortice preparations, with the lock body selected at checkout.
Neo opens by fingerprint, PIN code, RFID card or fob, Bluetooth from the Vault Smart Locks app, and a mechanical override key. It is available in Silver or Black with a knob, or Black with a lever handle, and remote access is available when you add the optional Vault G5 Gateway.
If you need a slimline body for a narrow stile, see the Vault Eclipse; for a plain lever on a standard door, the Vault Prime.
Estimated warehouse dispatch is 3 business days.
Key Features
- Available in knob and lever-handle variants for a wide range of doors.
- Fits both tubular latch (single latch) and 5050 (50mm) mortice (dual latch) preparations.
- Access by fingerprint, PIN code, RFID card or fob, Bluetooth app unlock, and mechanical override key.
- Finishes: Silver or Black with a knob, or Black with a lever handle.
- Bluetooth-first control, with optional Wi-Fi remote access via the Vault G5 Gateway.
- IP55 weather-rated external module; mechanical key backup included.
- Powered by 4 x AA batteries with a bottom USB port for emergency power-bank access.
- Handle direction reversible on both the exterior and interior locks.
The external (outside) module is IP55 weather rated for everyday outdoor exposure against limited dust ingress and low-pressure water jets. The internal module, which houses the battery compartment and electronics, is for interior use only and is not weather rated. See the IP ratings guide, and for salt-air positions our notes on coastal environments.

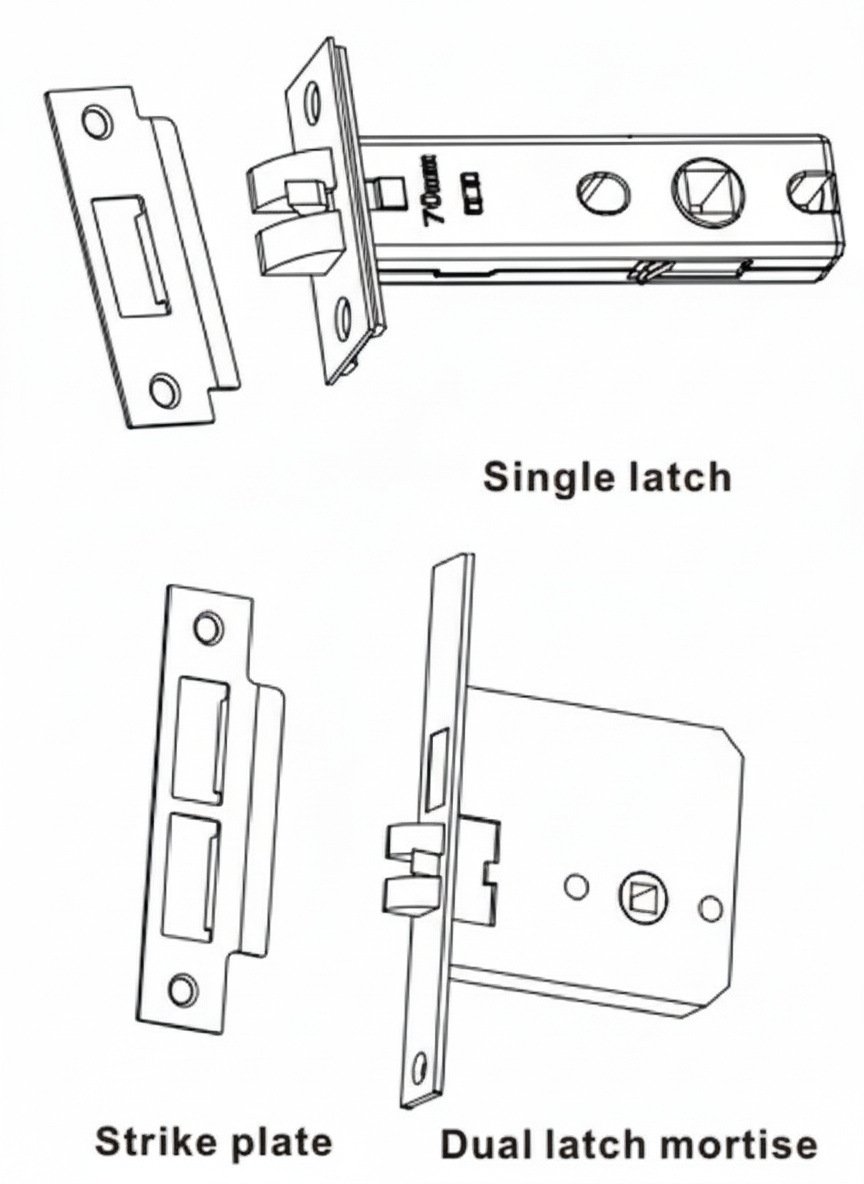

Latch and Mortice Options
The Neo works with either a tubular latch (single latch) or a 5050 (50mm) mortice (dual latch), selected at checkout. Getting the lock body right is critical for correct fitment, handle operation and strike alignment. Confirm your door type and check your backset and door thickness first.
For rebated double doors there are two kits - the Vault Rebate Kit for Tubular Latch Locks for the tubular latch option and the Vault Rebate Kit for Mortice Locks for the 5050 mortice. Choosing the wrong lock body is one of the common pre-purchase mistakes to avoid.

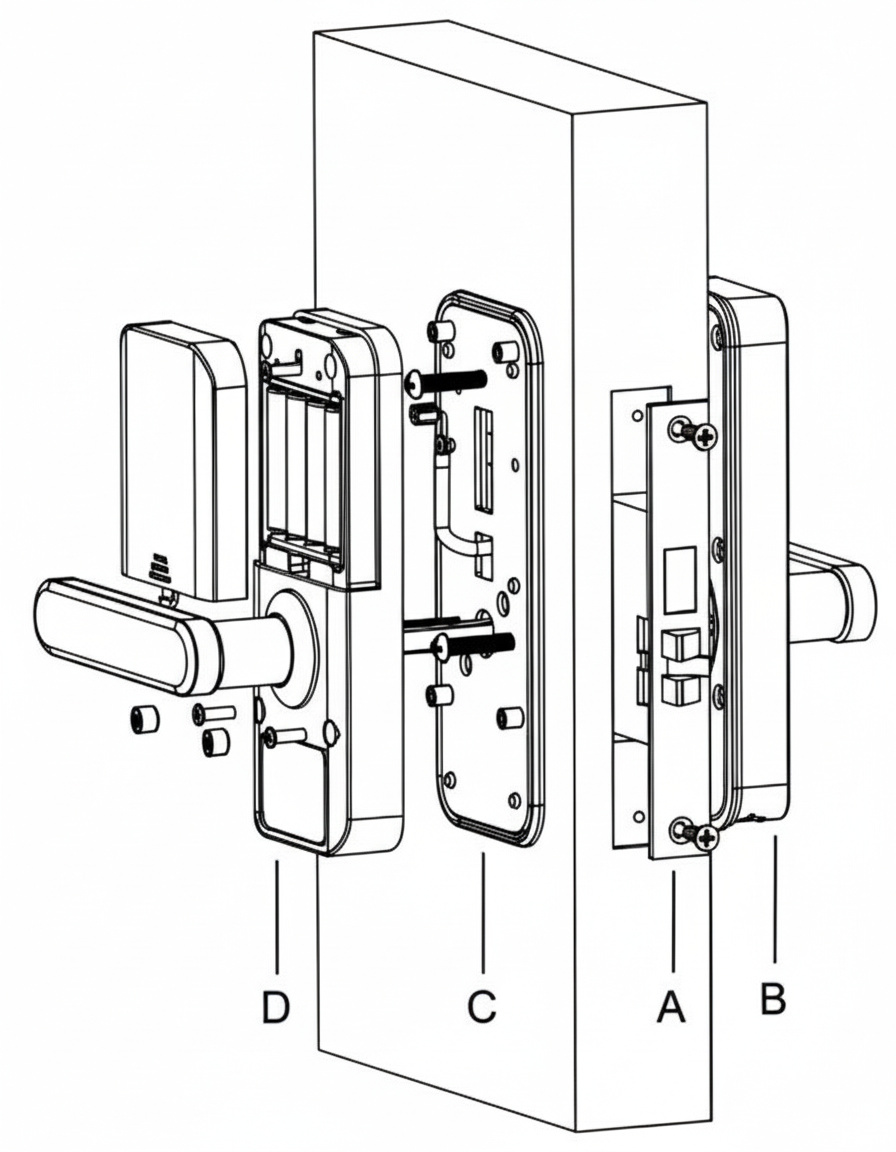

Lock Assembly
What's in the Box
- Vault Neo exterior and interior units
- Mounting plate (with rubber gasket)
- Tubular latch or 5050 mortice (depending on the selected configuration)
- Strike plate
- Spindle
- Fixing screws and accessories pack
- Mechanical override keys
- RFID fobs x2
- Installation template
- User manual
Batteries (4 x AA) and the optional Vault G5 Gateway are not included. Exact contents may vary; confirm on delivery.
Battery, Power and Backup Access
Neo is powered by 4 x AA batteries (not included). Use new alkaline batteries only and do not mix new and old cells. A low-battery voice alert sounds when the voltage drops below 4.8V, so replace the batteries promptly. A bottom USB port lets you connect a power bank for temporary power during setup or if the batteries are flat.
Neo includes mechanical override keys for entry if the batteries are depleted or electronic access is unavailable. Keep a spare key off-site rather than inside the door it opens. See where the keyhole is and what to do when the battery dies.
Suitable Uses
- Residential front, side and internal doors - see the regular front door range
- Doors currently prepared for a tubular latch or a 5050 (50mm) mortice
- Homes and offices wanting a choice of knob or lever handle
- Light commercial doors such as offices, studios and consulting rooms
- Bedroom and internal doors well suited to a tubular latch where a deadbolt is not required
Access Methods
Compare credential types in the access methods comparison.
Available Finish Options
Black
Knob or Lever
STK Vault_Neo
Silver
Knob only
STK Vault_Neo
The Neo is offered as Silver/Knob, Black/Knob and Black/Lever variants on one listing. Handle availability differs by finish: the knob is available in Silver or Black, and the lever is available in Black only. Confirm the required handle style and finish before ordering. Finish selection does not affect functionality, compliance, or performance.
Vault Lever and Knob Smart Lock Range
Dimensions
Full Specifications
The Neo manual does not publish credential-capacity figures (fingerprints, PIN codes, cards), so none are stated here.
Wi-Fi Remote Access (Optional)
Neo is controlled over Bluetooth from the Vault Smart Locks app, available on iOS
and Android
. Bluetooth control works when you are near the door and needs no internet connection.
Adding the optional Vault G5 Gateway bridges the lock to your home Wi-Fi so you can unlock remotely, issue and revoke passcodes from anywhere, and view unlock history. For how a gateway works and whether you need one, see what a gateway does and the note on 2.4GHz Wi-Fi and band steering, or the blog on whether you need a gateway at all.
Frequently Asked Questions
Yes. The Neo range includes knob and lever-handle variants: knob in Silver or Black, and lever in Black. Choose the handle and finish before ordering.
Neo fits a tubular latch (single latch) or a 5050 (50mm) mortice (dual latch), selected at checkout. Confirm your existing door preparation and backset before ordering.
No. Neo uses fingerprint, PIN, RFID card, Bluetooth app control and mechanical key. For 3D facial recognition on a lever lock, see the Vault Guardian.
By 4 x AA alkaline batteries, with a low-battery voice alert under 4.8V. If they run flat, use the mechanical override key or connect a power bank to the bottom USB port for temporary power. See what to do when the battery dies.
Yes, with the optional Vault G5 Gateway. Without the gateway it works locally over Bluetooth and onboard credentials. See what a gateway does.
More detailed owner questions - variants, lock bodies, power options, gateways, warranty claims - are answered in the FAQ tab above.
Additional Information
Neo is sold in both knob and lever-handle configurations across two lock-body types. Choose the correct handle, finish and lock body before ordering, as these cannot be exchanged after purchase. Selecting the wrong lock body is one of the most common errors, covered in backset mistakes and spindle mistakes.
The handle direction can be reversed on both the exterior and interior locks to match a left or right-handed door. On the Gold Coast we also offer a measure and install service.
Neo is the flexible knob-or-lever lock for tubular latch and 5050 mortice doors. For a slimline narrow-stile body, see the Eclipse; for a plain lever, the Prime or Triton. See the full Vault range guide and the Vault brand profile.
Warranty
Vault Smart Locks products purchased in Australia are covered against defects in materials and workmanship under normal residential or commercial use for:
- Standard range: 12 months from the date of purchase
- Select Signature Range models: 24 months (as stated on the product listing or packaging)
Returns & Warranty|View Vault Warranty Policy
This warranty operates in addition to your rights under the Australian Consumer Law.
Download PDF Resources
13-page user manual for the Neo: lock structure and inclusions, installation diagrams with handle direction, and app setup for passcodes, cards and fingerprints.
4-page manual for the optional G5 Wi-Fi gateway - the accessory that adds remote access, remote passcode management and unlock-record reading to this lock.
Vault Neo - FAQ, Setup and Owner's Guide
Deeper answers for owners and buyers of the Vault Neo. For category-wide questions, see our Smart Lock FAQ (Chapter 13) and the Buyer's Guide.
Choosing Your Variant
Both operate the same lock. A knob keeps the slimmest 60mm profile (65mm clearance); the lever is easier to operate with full hands or limited grip strength and projects to 71mm (75mm clearance). Note the finish coupling: the knob comes in Silver or Black, the lever in Black only.
No. The three variants on this listing are Silver/Knob, Black/Knob and Black/Lever. If you want a silver lever lock on the same Vault platform, look at the Vault Prime, which comes in Black, Silver or Gold.
Yes. The handle direction can be reversed on both the exterior and interior locks to match a left or right-handed door - set it during installation before the panels go on.
Access and Credentials
Permanent, timed and one-time codes, all managed from the Vault Smart Locks app - handy for guests, cleaners and tradespeople. See PIN codes explained.
Yes - two RFID fobs ship in the box, and additional cards, fobs and tags are enrolled at the lock via the app. Extras are available from our RFID cards, fobs and tags range. The Neo manual does not publish credential-capacity figures, so we do not quote maximum counts.
Like most smart locks, the mechanical cylinder is kept unobtrusive. Our blog shows where smart lock keyholes hide and how to store the override key sensibly.
No. Neo's credentials are fingerprint, PIN, RFID and Bluetooth app, plus the mechanical key. For 3D face recognition on a lever lock, see the Vault Guardian or browse the face and palm recognition range.
Fit, Lock Bodies and Installation
Look at your door edge: one visible bolt is a tubular latch (single latch), two is a mortice (dual latch). The Neo's lock body is selected at checkout, so confirm the preparation and your backset first. If in doubt, send us photos of your door edge before ordering.
Rebated (overlapping) pairs need a rebate kit matched to the lock body you chose: the Vault Rebate Kit for Tubular Latch Locks with the tubular latch, or the Vault Rebate Kit for Mortice Locks with the 5050 mortice. Confirm latch and strike alignment for your doors before ordering.
On a door already prepared for a tubular latch or a 5050 mortice, a competent DIYer can follow the manual's installation diagrams (an installation template is included in the box). If a new mortice pocket has to be cut, or the door needs packing and alignment work, use a professional - see when DIY makes sense and our Gold Coast measure and install service.
Power and Batteries
4 x AA alkaline batteries, not included. Use new alkaline cells only and do not mix new and old. A voice alert sounds when the voltage drops below 4.8V - change the set promptly when you hear it. For battery habits that avoid lockouts, see the realities of electronic locks.
Emergency power. If the batteries run flat, connect a standard power bank to the bottom USB port to wake the lock and unlock as normal, then replace the batteries. It also provides temporary power during setup.
Two options: the mechanical override key, or a power bank on the bottom USB port. Keep a spare key off-site - our blog covers what to do when the battery dies.
Remote Access and App
Only for remote features. Locally, Bluetooth handles unlocking and credential management when you are at the door. The Vault G5 Gateway adds remote unlock, remote passcode changes and unlock history from anywhere. Chapter 08 explains what a gateway does; the blog asks whether you need one at all.
Yes - the G5 is dual-band, which avoids the band-steering pairing problem that affects single-band gateways. See Chapter 08 - band steering and the gateway comparison blog.
The Vault app keeps unlock records, and with the G5 Gateway fitted you can view unlock history remotely. Assign each fingerprint, code and fob to a named user so the history is meaningful.
Suitability
No. Vault smart locks carry no fire-door certification. Chapter 05 explains where fire doors are required and which locks are certified for them.
Yes - timed and one-time PIN codes suit guests and cleaners, fingerprints suit long-term tenants. Pair with the G5 Gateway to issue and revoke codes remotely between stays. Browse other PIN code smart locks to compare.
The external module is IP55 rated for everyday outdoor exposure - limited dust ingress and low-pressure water jets. The internal module is interior-only. A covered position extends the life of any electronic lock.
Care, Warranty and Support
The Neo carries Vault's standard 12-month warranty. Note that Vault charges a refundable assessment holding fee for warranty assessments - $200 in metropolitan areas and $250 elsewhere - refunded when the claim is accepted. Full terms are in the Vault warranty policy and our Returns & Warranty page.
IP55 covers everyday covered outdoor exposure, but salt air is a corrosion question and coastal corrosion is excluded from warranty cover. A sheltered mounting position and regular wipe-downs help - see coastal environment realities.
Related products, guides and chapters
Vault range: Guardian lever (3D face) - Prime lever - Triton lever - Pearl lever - Eclipse slimline - G5 Gateway
Kits and accessories: Tubular Latch Rebate Kit - Mortice Rebate Kit - mortice locks for smart locks - RFID cards, fobs and tags
Buyer's Guide: Ch 01 - Latches and mortices - Ch 02 - Measuring your door - Ch 03 - Access methods - Ch 05 - Fire doors - Ch 08 - Gateways - Ch 10 - Vault brand profile - Ch 11 - IP ratings - Ch 12 - Installation - Ch 13 - Smart Lock FAQ
Blogs: Vault range overview - Neo - Measuring your backset - Mechanical key override - Gateways compared - Realities of electronic locks - 3 common DIY mistakes
What's in the Box - Vault Neo
- Vault Neo exterior and interior units
- Mounting plate (with rubber gasket)
- Tubular latch or 5050 mortice (depending on the selected configuration)
- Strike plate
- Spindle
- Fixing screws and accessories pack
- Mechanical override keys
- RFID fobs x2
- Installation template
- User manual
Vault Neo - User Manual
PDF Files - Vault Neo
13-page user manual for the Neo: lock structure and inclusions, installation diagrams with handle direction, and app setup for passcodes, cards and fingerprints.
4-page manual for the optional G5 Wi-Fi gateway - the accessory that adds remote access, remote passcode management and unlock-record reading to this lock.
Vault Warranty
Vault Smart Locks products are backed by a manufacturer's warranty against defects in materials and workmanship under normal residential or commercial use. All claims are handled locally by Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries - start with us and we'll manage the process with Vault on your behalf.
Warranty Summary
How to Make a Claim
- Contact Terry's Gold Coast Smart Locks through the Returns & Warranty page above, with your proof of purchase (invoice or receipt).
- Have your product model and serial number (if applicable) ready, along with a brief description of the fault and your installation address.
- We assess your claim with Vault and advise the outcome and next steps. You may be asked to return the product for inspection.
What This Warranty Does Not Cover
- Normal wear and tear.
- Cosmetic damage that does not affect performance.
- Damage caused by incorrect installation, misuse, neglect, modification, or accident.
- Damage due to improper handling, or installation by an unlicensed technician.
- Products that have been disassembled, tampered with, or where the security seal or warranty label has been removed.
- Battery leakage or failure, or damage caused by incorrect battery usage.
- Environmental or weather damage caused by use outside recommended operating conditions.
- Labour, installation, or removal costs associated with replacing or reinstalling products.
- Work performed before warranty approval or assessment.
Important Notes
Where a Vault product carries an Ingress Protection (IP) rating, that rating is stated on the individual product listing, packaging or technical documentation. Unless stated otherwise in writing, the IP rating applies only to the external-facing side of the lock - not to the internal assembly, handle, battery compartment, electronics, cables or connectors. The internal side must be installed in a dry, sheltered position. An IP rating describes water resistance, not waterproofing: the lock must not be submerged, pressure washed, or exposed beyond its stated rating, and all seals, gaskets and covers must be correctly fitted and undamaged.
Vault's manufacturer policy applies a warranty assessment holding fee, which is refundable if the fault is found to be covered under warranty. If a product is assessed as outside warranty or damaged by an excluded cause, a discounted replacement may be offered. We will confirm any applicable fees and options with you before any assessment proceeds.
This warranty is provided in addition to your rights under the Australian Consumer Law (ACL). Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure, and to have goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.
