Vault Quantum Push Pull Smart Mortice Lock with 3D Face Recognition
At A GlanceAt A Glance
DISPATCH3 Business Days
Face
Fingerprint
PIN Code
RFID Card
App
Key
Wi-Fi Via G5
The Vault Quantum (Vault_Quantum) is a slim, full-height push-pull smart mortice lock for main entry doors. It combines 3D facial recognition with fingerprint, PIN code, RFID card or fob, Bluetooth app and mechanical key access, and comes with the 35mm Vault Innovative Mortice as its lock body, with 60mm and 70mm backsets available separately.
The Quantum runs on Bluetooth as standard, with remote access, activity history and remote passcodes available through the optional Vault G5 Gateway. It suits timber and aluminium entry doors 35mm to 60mm thick. For the closely related push-pull models with an internal cat-eye screen, see the Vault Titan and Vault Olympus.
Estimated warehouse dispatch is 3 business days.
The Vault Quantum comes with the Vault Innovative Mortice in a 35mm backset, included in the base price. It also works with the 60mm and 70mm backset versions of the same mortice. Those are an additional-cost option and are not swapped in for you: if your door needs one, add the 60mm or 70mm Innovative Mortice to your cart as a separate item. The 35mm mortice is still supplied in the box. Measure your backset before ordering - see Mortice and Door Fit.
Key Features
- Slim push-pull smart mortice lock - 40mm-wide full-height panels for main entry doors.
- 3D facial recognition plus fingerprint, PIN code, RFID card or fob, Bluetooth app unlock and mechanical override key.
- Comes with the auto-locking Vault Innovative Mortice in a 35mm backset; the 60mm and 70mm backset versions are an additional-cost option, added to the cart separately.
- Interior electronic unlocking button on the back panel (turn directions set by door handing).
- Aluminium alloy body in Black; IP55 weather-rated external module.
- Rechargeable lithium battery with a low-voltage alarm (under 6.8V).
- Bluetooth-first control, with optional Wi-Fi remote access via the Vault G5 Gateway.
Facial Recognition Access
The Quantum includes 3D structured-light facial recognition for fast, touch-free entry - it captures depth rather than a flat image. For the plain-English difference between camera types, see Chapter 06 - 2D vs 3D facial recognition. Vault does not publish a face-profile figure for this model; enrolment is managed in the app.
Face recognition works alongside fingerprint, PIN, RFID card, Bluetooth app control and backup key access - compare them in Chapter 03 - Access Methods, or browse every face-recognition smart lock we stock.
User capacity and performance depend on the model-specific hardware and setup.
The external (outside) module is IP55 weather rated for everyday outdoor exposure - protection against limited dust ingress and low-pressure water jets. The internal module, which houses the battery compartment and electronics, is for interior use only and is not weather rated. See Chapter 11 - IP ratings.
Access Methods
The Quantum offers six ways in, plus optional Wi-Fi remote access. For a plain-English comparison of what each method does well, see Chapter 03 - Access Methods.
Palm Recognition
What's in the Box
- Front panel (exterior) with camera, keypad and fingerprint reader
- Back panel (interior) with battery compartment and unlocking button
- Vault Innovative Mortice - 35mm backset, 85mm lock centres
- Strike and strike box
- Waterproof rubber plate and U clip
- RFID cards x3
- Mechanical override keys x2
- Fixing screws (mortise screws, screw stubs and machine screws for aluminium and timber doors)
- User manual
The optional Vault G5 Gateway is sold separately, and so are the 60mm and 70mm Innovative Mortices - see Mortice and Door Fit. Exact contents may vary; confirm on delivery.
Mortice and Door Fit
The Quantum comes with the Vault Innovative Mortice in a 35mm backset as its lock body, included in the base price - an auto-locking body on 85mm lock centres whose sensor engages the deadbolt as the door is pushed closed. A 35mm backset on 85mm centres is the format often written as 3585. Confirm it against your actual door preparation before ordering - Chapter 01 explains mortice formats, and Chapter 02 shows how to measure the backset. For the larger 6068 push-pull models, see the Titan and Olympus.
The Quantum also works with the 60mm and 70mm backset versions of the same mortice. These are an additional-cost option and are not swapped for the 35mm body: if your door has a 60mm or 70mm backset, add that Innovative Mortice to your cart as a separate item. The 35mm mortice still arrives in the box.
Our full mortice range is under Mortice Locks for Smart Locks.
Battery, Power & Backup Access
The Quantum is powered by a rechargeable lithium battery. A low-voltage alarm (under 6.8V) warns you when the battery is running low, so you can recharge before the lock stops responding.
Mechanical override keys cover entry if the battery is depleted or electronic access is unavailable - keep a spare key off-site rather than inside the door it opens. See where the keyhole is and what to do when the battery dies.
Suitable Uses
- Main residential front and entry doors wanting touch-free face-recognition entry
- Timber and aluminium hinged doors 35mm to 60mm thick
- Narrow-profile entry doors where a slim 40mm push-pull panel suits the door
- Homes wanting face recognition plus fingerprint, PIN, card and app access
- Light commercial entrances where a full-height push-pull lock suits the door
Available Finish Options
Black
(This Product)
STK Vault_Quantum
Finish selection does not affect functionality, compliance, or performance.
Vault Push-Pull Face-Recognition Range
Confirm the exact specification of each model on its own product page. For the full lineup, manuals and background, see the Vault Smart Lock Range guide and the Vault brand profile.
Dimensions
Full Specifications
Wi-Fi Remote Access (Optional)
The Quantum is controlled over Bluetooth from the Vault Smart Locks app as standard, available for iOS and Android . Bluetooth control works when you are near the door and needs no internet connection.
Adding the optional Vault G5 Gateway bridges the lock to your home Wi-Fi so you can unlock remotely, issue and revoke passcodes from anywhere, review unlock records, and add supported Alexa and Google Home voice control - see what the G5 adds. The dual-band G5 avoids the band-steering problem that affects single-band gateways; for how a gateway works and whether you need one, see Chapter 08 - what a gateway does or the blog on whether you need a gateway at all.
Browse the wider range of modules and Wi-Fi gateways or Terry's full WiFi smart lock selection.
Mechanical Key Backup
The Quantum includes a mechanical key override, so entry remains available if the battery is depleted or electronic access cannot be used. Two keys are supplied, and the interior unlocking button gives push-button exit from inside.
Keep a spare key somewhere off-site rather than inside the door it opens. For where the keyhole is hidden and what to do when the battery goes flat, see where the keyhole is and what to do when the battery dies. More locks with a physical fallback are in the Has Backup Key category.
Frequently Asked Questions
3D. The Quantum uses 3D structured-light recognition, which captures depth rather than a flat image. See 2D vs 3D facial recognition. Vault does not publish a face-profile figure for this model.
The Vault Innovative Mortice. A 35mm backset version is in the box and included in the price; 60mm and 70mm backset versions are an additional-cost option that you add to your cart separately. Confirm your door preparation before ordering; for the larger 6068 push-pull models see the Titan and Olympus.
Yes, with the optional Vault G5 Gateway. Without the gateway it works locally over Bluetooth and its onboard credentials. See Wi-Fi and remote access.
No. Vault smart locks are not certified for fire-rated doors. For Queensland fire-door compliance requirements, see Chapter 05 of the Buyers Guide.
Additional Information
The Quantum comes with a 35mm backset mortice, so measure your door's backset before ordering - if it is 60mm or 70mm, add that Innovative Mortice to your cart as well. Common fitting errors are covered in backset mistakes and spindle mistakes - on the Gold Coast we also offer a measure and install service.
3D recognition is convenient, but enrol faces carefully and pair them with a PIN or fingerprint as a backup. For performance, privacy and anti-spoofing background, see liveness detection and the Privacy Act notes.
The Quantum is the slim push-pull face-recognition mortice lock without a cat-eye screen. For the screen, see the Titan or Olympus; other formats include the Fortress, the deadbolt Nexus and the slimline Zenith. See the Vault range guide and the Vault brand profile.
The IP55 rating applies to the external module only, and salt air accelerates wear on all electronic hardware regardless of IP figures - see our notes on coastal Queensland environments and lock lifespan near the coast.
Vault's warranty policy includes a refundable assessment holding fee of $200 (metro) or $250 (elsewhere) when a returned lock is booked in for assessment - see the Vault warranty policy for how it works, and talk to us first so your claim starts in the right lane.
Warranty
Vault Smart Locks products purchased in Australia are covered against defects in materials and workmanship under normal residential or commercial use for:
- Standard range: 12 months from the date of purchase
- Select Signature Range models: 24 months (as stated on the product listing or packaging)
Returns & Warranty|View Vault Warranty Policy
This warranty operates in addition to your rights under the Australian Consumer Law.
Download PDF Resources
The 13-page Quantum manual - inclusions, specifications, system initialisation, the interior unlocking button, the seven-step installation sequence and the Vault app operation chapters (passcodes, eKeys, cards, fingerprints and gateway management).
The guide to the optional G5 Wi-Fi gateway - app registration, connecting a lock, and the gateway's role in remote access and record keeping.
Vault Quantum Push Pull Smart Mortice Lock with 3D Face Recognition - FAQ, Setup and Owner's Guide
The deeper questions we get asked about the Quantum, answered in one place. For the basics across every brand, start with Chapter 03 - Smart Lock Access Methods and the Vault Smart Lock Range guide.
Access and Credentials
200 fingerprints, 150 PIN codes and 200 RFID cards or fobs. Vault does not publish a face-profile figure for this model - face enrolment is managed in the app. Every credential is added, renamed and removed from the Vault Smart Locks app, so you can run the whole household or a small team from one screen. For what each credential type does well, see Chapter 03 - Access Methods compared.
Yes. The app issues permanent, timed and one-time PIN codes. Standing next to the door, Bluetooth is all you need; to send or cancel a code from somewhere else you need the optional Vault G5 Gateway - see whether you need a gateway at all.
The Quantum reads the Vault RFID cards and fobs supplied with the lock, with capacity for up to 200. Browse other card and fob smart locks if RFID is your main credential.
Face Recognition
It uses 3D structured-light recognition, which reads the depth of a face rather than a flat image - a printed photo does not have depth, so it does not read as a face. For the plain-English difference between camera types, see Chapter 06 - 2D vs 3D facial recognition, and for how liveness detection works across face-recognition locks, the liveness detection section.
3D structured-light systems project their own pattern rather than relying on ambient light, so they are not dependent on daylight the way a plain camera is. Enrol faces carefully at the installed height and keep a PIN or fingerprint as the everyday backup - see Chapter 06 for realistic expectations.
Deploying facial recognition in a commercial, strata or managed rental setting may trigger obligations under the Australian Privacy Act - review the Privacy Act notes in Chapter 06 before installation. For homes there is no such hurdle. Other face-capable models are in the Palm or Face Recognition category.
No - the Quantum does not include the internal cat-eye viewing screen. For that feature in the same push-pull face-recognition format, see the Vault Titan or Vault Olympus.
Door Fit and Mortice
The Vault Innovative Mortice in a 35mm backset - an auto-locking body on 85mm lock centres, a format often written as 3585 - is in the box and included in the price. Confirm it against your actual door preparation before ordering - for mortice format background see Chapter 01 - mortice deadbolts. If your door has a 60mm or 70mm backset, the same mortice is made in both: add the one you need to your cart as a separate item, at additional cost. The 35mm body still comes with the lock.
It suits aluminium and timber hinged doors 35mm to 60mm thick, and its slim 40mm-wide panels make it the narrowest push-pull panel in the family. Measure before ordering - Chapter 02 - Measuring Your Door shows how.
Rebated (overlapping) pairs need the Vault Rebate Kit, which converts the Vault mortices for double-door use - confirm latch and strike alignment against your pair before ordering. Flush pairs and single doors do not need it.
No. Vault smart locks are not certified for fire-rated doors. For where fire-door compliance applies in Queensland, see Chapter 05 - Fire Door Smart Locks.
Power and Batteries
By a rechargeable lithium battery housed in the interior module. A low-voltage alarm warns you once the supply drops below 6.8V, so you can recharge before the lock stops responding. For charge and maintenance expectations across electronic locks, see the realities of electronic door locks.
Vault does not publish a battery-life figure for the Quantum - real-world life depends on how many unlocks a day the door sees and which credentials you use. Recharge when the low-voltage alarm sounds rather than running it flat.
Use the mechanical override key. Two mechanical override keys are supplied, and the key works in every power condition. See what to do when the battery dies and where the keyhole is hidden.
Remote Access and the Vault App
No. It runs on Bluetooth as standard - every credential works at the door with no internet at all. Wi-Fi only enters the picture if you add the optional Vault G5 Gateway for remote features. See what a gateway does and does not add.
Remote lock and unlock, remote passcode creation and deletion, unlock-record viewing and supported Alexa and Google Home voice control - the lock talks Bluetooth to the G5, and the G5 talks to your router. The full list is on the G5 Gateway page, with the range comparison in Chapter 08.
Smart lock gateways use the 2.4GHz band, and routers that auto-merge 2.4GHz and 5GHz cause most dropouts. The dual-band G5 avoids the worst of the band-steering problem; if you have had dropouts before, read why smart locks drop off Wi-Fi before setup.
The Vault Smart Locks app, available for iOS and Android
. One app manages every Vault lock in the house plus the G5 Gateway. Vault runs its own app platform - do not follow TTLock or Tuya setup guides for this lock.Weather and Coastal Exposure
The external (outside) module is IP55 weather rated - everyday outdoor protection against limited dust ingress and low-pressure water jets, on the outside module only. The internal module houses the battery and electronics and is for interior use only. For what IP figures actually mean, see Chapter 11 - IP ratings.
Salt air accelerates wear on every electronic lock, whatever its IP rating - rinse-free coastal care and realistic lifespan expectations are covered in coastal environments and how long digital locks last near the coast. A covered entry makes a real difference.
Installation and Setup
A confident DIYer with the right door preparation can, but most fit problems trace back to measuring - see when DIY makes sense and the common installation mistakes. On the Gold Coast, Terry's offers a site survey and installation service - or start with our advice and installation page.
Door thickness first - the Quantum suits doors 35mm to 60mm thick - then the backset against the 35mm Innovative Mortice it ships with (60mm and 70mm are optional extras). Start with Chapter 02 - door thickness, measuring your backset and the backset mistakes to avoid.
The Quantum's interior unlocking button assembly is configured to the door's handing during fitting - the knob turn directions differ by handing (manual section 1.5) - so confirm your door's handing when ordering.
The Quantum has an interior electronic unlock button on the back panel (manual section 1.5) - a press unlocks the door from inside, with the knob turn directions set by the door's handing.
Warranty and Support
Vault covers the standard range for 12 months from purchase, with select Signature Range models carrying 24 months where stated on the listing or packaging - the full terms are in the Warranty section above and the Vault warranty policy.
Yes - Vault's warranty policy includes a refundable assessment holding fee of $200 (metro) or $250 (elsewhere) when a returned lock is booked in for assessment. The fee and how it is refunded are set out in the Vault warranty policy; talk to us first and we will point your claim in the right direction.
Contact Terry's first - we sold it, and we will manage the claim path with Vault on your behalf. Start at Returns and Warranty.
Related products, guides and chapters

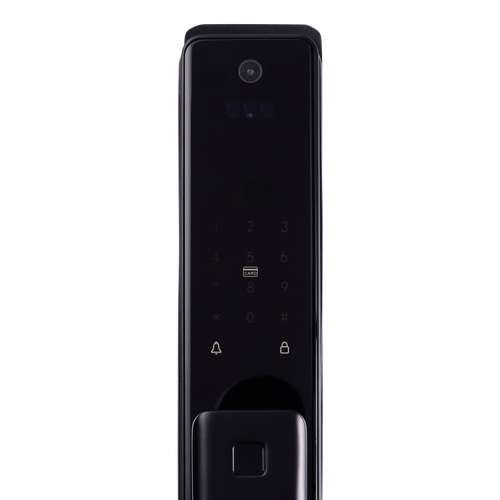

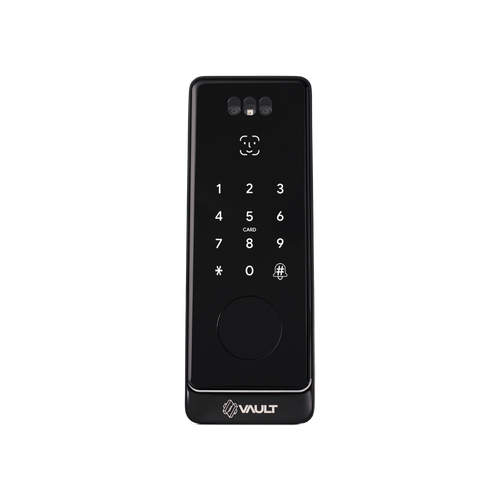

Vault range: Vault Fortress - Vault Olympus - Vault Titan - Vault Nexus - Vault Zenith - Fortress Vision - Guardian Vision - Nexus Vision
Mortices and accessories: Vault Innovative Mortice - Vault 6068 Mortice - Vault Hinged/Swinging Mortice - Vault Sliding Hook Mortice - Vault Rebate Kit - Vault G5 Gateway
Buyer's Guide chapters: Ch 01 - What Is a Smart Lock (mortice deadbolts) - Ch 02 - Measuring Your Door - Ch 03 - Access Methods - Ch 05 - Fire Door Smart Locks - Ch 06 - Facial Recognition - Ch 08 - Gateway Comparison - Ch 10 - Vault Brand Profile - Ch 11 - Australian Standards and IP Ratings - Ch 12 - Installation and Troubleshooting
Blogs: Introducing the Vault Smart Lock Range - Mechanical Key Override on Smart Locks - The Realities of Electronic Door Locks - G2, G3, G4 and G5 Gateways Compared - Why Smart Locks Drop Off Wi-Fi - Site Survey and Installation Services
Browse by category: Palm or Face Recognition - Fingerprint - PIN Code - Fob, Card and RFID - Bluetooth - Has Backup Key - Regular Front Door - Vertical Push/Pull Handle - Mortice Locks for Smart Locks - Modules and Wi-Fi Gateways
What's in the Box - Vault Quantum
- Front panel (exterior) with camera, keypad and fingerprint reader
- Back panel (interior) with battery compartment and unlocking button
- Vault Innovative Mortice - 35mm backset, 85mm lock centres
- Strike and strike box
- Waterproof rubber plate and U clip
- RFID cards x3
- Mechanical override keys x2
- Fixing screws (mortise screws, screw stubs and machine screws for aluminium and timber doors)
- User manual
The optional Vault G5 Gateway is sold separately and is required only for remote access and voice control. The 60mm and 70mm Innovative Mortices are sold separately too - the 35mm body is the one in the box. Exact contents may vary; confirm on delivery.

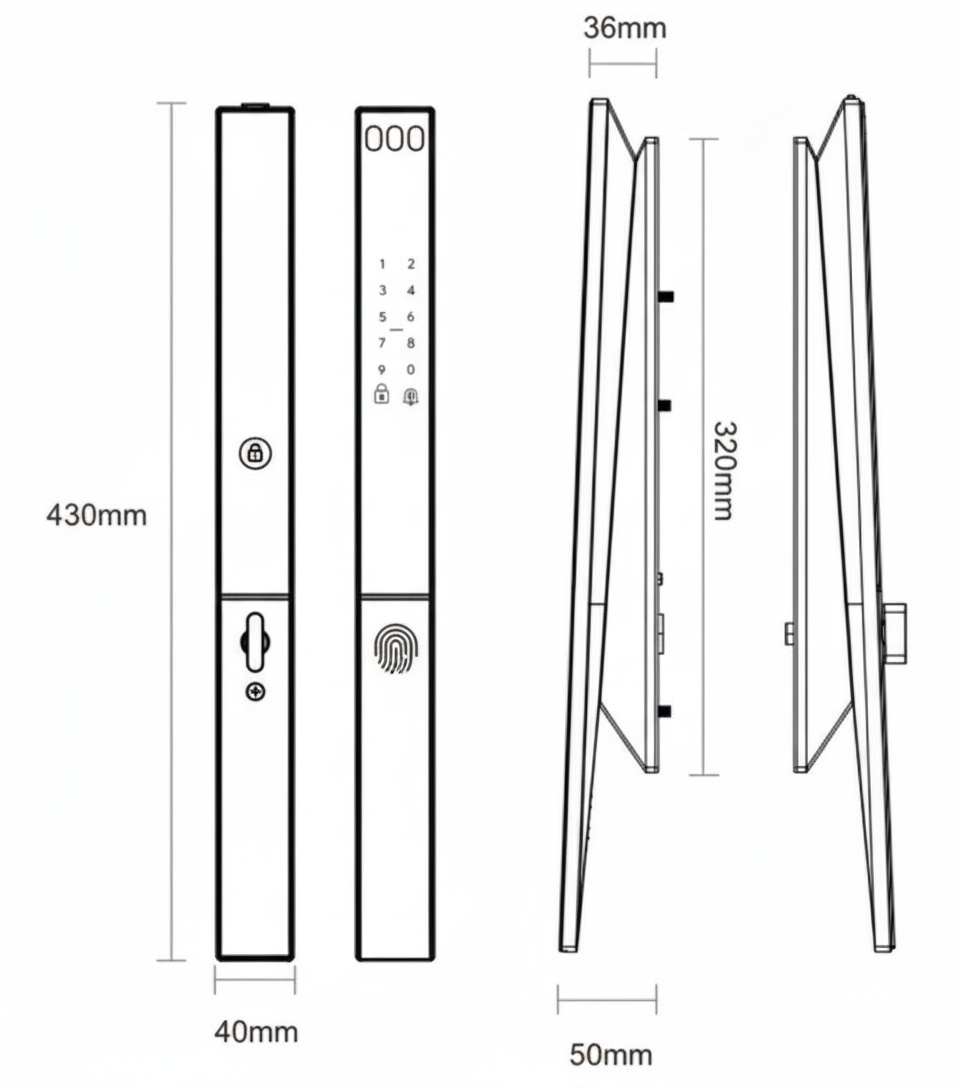

Vault Quantum - Dimensions
Vault Quantum - Product Brochure (User Manual)
PDF Files - Vault Quantum Push Pull Smart Mortice Lock with 3D Face Recognition
The 13-page Quantum manual - inclusions, specifications, system initialisation, the interior unlocking button, the seven-step installation sequence and the Vault app operation chapters (passcodes, eKeys, cards, fingerprints and gateway management).
The guide to the optional G5 Wi-Fi gateway - app registration, connecting a lock, and the gateway's role in remote access and record keeping.
Vault Warranty
Vault Smart Locks products are backed by a manufacturer's warranty against defects in materials and workmanship under normal residential or commercial use. All claims are handled locally by Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries - start with us and we'll manage the process with Vault on your behalf.
Warranty Summary
How to Make a Claim
- Contact Terry's Gold Coast Smart Locks through the Returns & Warranty page above, with your proof of purchase (invoice or receipt).
- Have your product model and serial number (if applicable) ready, along with a brief description of the fault and your installation address.
- We assess your claim with Vault and advise the outcome and next steps. You may be asked to return the product for inspection.
What This Warranty Does Not Cover
- Normal wear and tear.
- Cosmetic damage that does not affect performance.
- Damage caused by incorrect installation, misuse, neglect, modification, or accident.
- Damage due to improper handling, or installation by an unlicensed technician.
- Products that have been disassembled, tampered with, or where the security seal or warranty label has been removed.
- Battery leakage or failure, or damage caused by incorrect battery usage.
- Environmental or weather damage caused by use outside recommended operating conditions.
- Labour, installation, or removal costs associated with replacing or reinstalling products.
- Work performed before warranty approval or assessment.
Important Notes
Where a Vault product carries an Ingress Protection (IP) rating, that rating is stated on the individual product listing, packaging or technical documentation. Unless stated otherwise in writing, the IP rating applies only to the external-facing side of the lock - not to the internal assembly, handle, battery compartment, electronics, cables or connectors. The internal side must be installed in a dry, sheltered position. An IP rating describes water resistance, not waterproofing: the lock must not be submerged, pressure washed, or exposed beyond its stated rating, and all seals, gaskets and covers must be correctly fitted and undamaged.
Vault's manufacturer policy applies a warranty assessment holding fee, which is refundable if the fault is found to be covered under warranty. If a product is assessed as outside warranty or damaged by an excluded cause, a discounted replacement may be offered. We will confirm any applicable fees and options with you before any assessment proceeds.
This warranty is provided in addition to your rights under the Australian Consumer Law (ACL). Our goods come with guarantees that cannot be excluded under the ACL. You are entitled to a replacement or refund for a major failure, and to have goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.
