Austyle 59407 Digital Lever Entrance Set - Matt Black (Aluminium Doors, Includes 30mm Mortice)
At A Glance
At A Glance
DISPATCHSame-Day before 11am AEST
Fingerprint
PIN Code
RFID Fob
Bluetooth
WiFi (Optional)
Mech. KeyThe Austyle 59407 is a narrow-profile smart digital lever entrance set designed specifically for aluminium hinged doors. The panel measures 284mm tall and 35mm wide - engineered to mount directly onto the aluminium stile of standard residential aluminium entry doors without modification to the door frame. The included Austyle 49421 entrance mortice (304SS, 30mm backset) is matched to the standard lock hole pattern found in Australian aluminium hinged doors.
Access methods are fingerprint, PIN code, RFID fob, Bluetooth app, and mechanical key, all managed through the TTLock app (iOS and Android). A high-visibility colour indicator display on the panel provides visual status feedback - a distinguishing feature not present on the 59405 or 59406. Remote WiFi access, voice control via Google Assistant and Amazon Alexa, and automated access management are available when paired with the Austyle 59419 WiFi Gateway Hub (sold separately). Understand the difference between Bluetooth-only and gateway-connected operation before ordering.
Two alternative mortice options are available separately for non-standard or sliding door installations: the 49429 entrance mortice (60mm backset) for doors with deeper preparation, and the 49425 sliding door mortice (304SS, 28mm backset) for aluminium sliding doors.
Estimated Dispatch
Usually ships same day if ordered before 11am AEST (excludes weekends and Queensland public holidays).
Usually ships same day if ordered before 11am AEST (excludes weekends and Queensland public holidays).
Designed for Aluminium Hinged Doors
The 59407 is engineered for aluminium door stiles with a 30mm backset lock preparation. Check your door stile width and backset measurement before ordering. If your door is a sliding aluminium or security screen door, the optional 49425 sliding door mortice is available separately. For timber doors, see the 59406 Lever Entrance Set (60mm backset, includes 49429 mortice). Our guide to smart lock door type matching can help confirm the right product before ordering.
The 59407 is engineered for aluminium door stiles with a 30mm backset lock preparation. Check your door stile width and backset measurement before ordering. If your door is a sliding aluminium or security screen door, the optional 49425 sliding door mortice is available separately. For timber doors, see the 59406 Lever Entrance Set (60mm backset, includes 49429 mortice). Our guide to smart lock door type matching can help confirm the right product before ordering.
FingerprintPIN CodeRFID FobBluetoothWiFi (optional)Mech. Key
4 x AAA
Key Features
- Narrow 284mm x 35mm panel - engineered for aluminium hinged door stiles.
- Five access methods: fingerprint, PIN code, RFID fob, Bluetooth app, and mechanical key override.
- Up to 200 fingerprints, 150 passcodes, and 200 RFID credentials.
- Anti-peeping virtual passcode entry - enter random digits before or after your actual PIN, followed by #. See how PIN access works.
- High-visibility colour indicator display - provides visual status feedback including access confirmation and low battery indication. Not present on the 59405 or 59406.
- Includes the Austyle 49421 entrance mortice (304SS, 30mm backset) as standard - matched to Australian aluminium hinged door lock preparation.
- Compatible with the optional 49429 entrance mortice (60mm backset) and 49425 sliding door mortice (304SS, 28mm backset) - both sold separately.
- TTLock app management (iOS
) - add and remove users, set timed, one-time, and recurring codes, share e-Keys, view access records. - Remote WiFi access via the 59419 WiFi Gateway Hub (sold separately) - enables voice control via Google Assistant
and Amazon Alexa
when connected. - Lever and latch handing are both reversible - suits left-hand and right-hand door configurations.
- IP55 weather rating - suitable for external residential doors when installed under an eave or in a sheltered position.
- 200,000 operating cycles and 200 hours salt-spray resistance (per manufacturer specification).
- Micro USB emergency power port - connect a power bank if batteries are fully depleted.
- Powered by 4 x AAA alkaline batteries (not AA - see Battery section). Aluminium alloy panel. Weight: 2.5kg. Suits doors 35-65mm thick.
Access Methods
For a plain-English guide to how each credential type works, see our smart lock access methods guide.
Face Recognition
Palm Recognition
What's in the Box
- 1 x Exterior panel (keypad with colour indicator display, fingerprint reader, and lever)
- 1 x Interior panel (lever and battery compartment)
- 1 x Austyle 49421 entrance mortice - 304SS, 30mm backset
- 1 x Tubular latch (reversible)
- 3 x RFID fobs
- 2 x Mechanical keys
- 1 x Allen key
- 1 x Square spindle set (50mm, 57mm, and 67mm lengths)
- 1 x U-Spring
- 1 x Installation template
- 1 x User manual
- 1 x Sliding T-slot screw M5 x 11mm
- Threaded sleeves - M5 x 30mm x 2 and M5 x 35mm x 2
- Timber door screws (#8 x 25mm x 4)
- Aluminium door screws (M5 x 10mm x 4)
- M5 machine screws - 25mm, 30mm, 40mm, 50mm, 60mm
Note: The 59419 WiFi Gateway Hub and AAA batteries are sold separately and not included. The 49429 entrance mortice and 49425 sliding door mortice are optional upgrades sold separately. The 49421 30mm mortice is included as standard.
Suitable Uses
- Residential aluminium hinged entry doors with a 30mm backset lock preparation.
- Narrow-stile aluminium doors - the 35mm panel mounts directly on the stile. Retrofit installation includes an installation template for accurate door preparation.
- Doors requiring multi-credential access: fingerprint, PIN, RFID fob, and app.
- Aluminium sliding or security screen doors using the optional 49425 sliding door mortice (28mm backset, sold separately).
- Short-stay rental and Airbnb installations using timed PIN codes and e-Key sharing (with the 59419 hub for remote management) - see our guide to using TTLock for Airbnb in Australia and property management system integration for multi-property operators.
- Installations requiring reversible lever and latch handing for left-hand or right-hand doors.
Available Finish Options
Matt Black
(This Product)
STK 59407
Finish selection does not affect functionality, compliance, or performance.
Austyle Smart Digital Lever Range
The 59407 sits within a family of Austyle TTLock lever sets. Match the model to your door type, backset and whether you want built-in WiFi or a master-key-compatible mechanical key.
Locking Options - Mortice Selection
The 49421 (30mm backset, 304SS) is included as standard. The 49429 entrance mortice and 49425 sliding door mortice are optional upgrades sold separately.
All three fit the 59407. Browse more mortice locks for smart locks, or confirm your backset with our backset measuring guide.
Austyle Smart Lock Accessories
Full Specifications
Dimensions

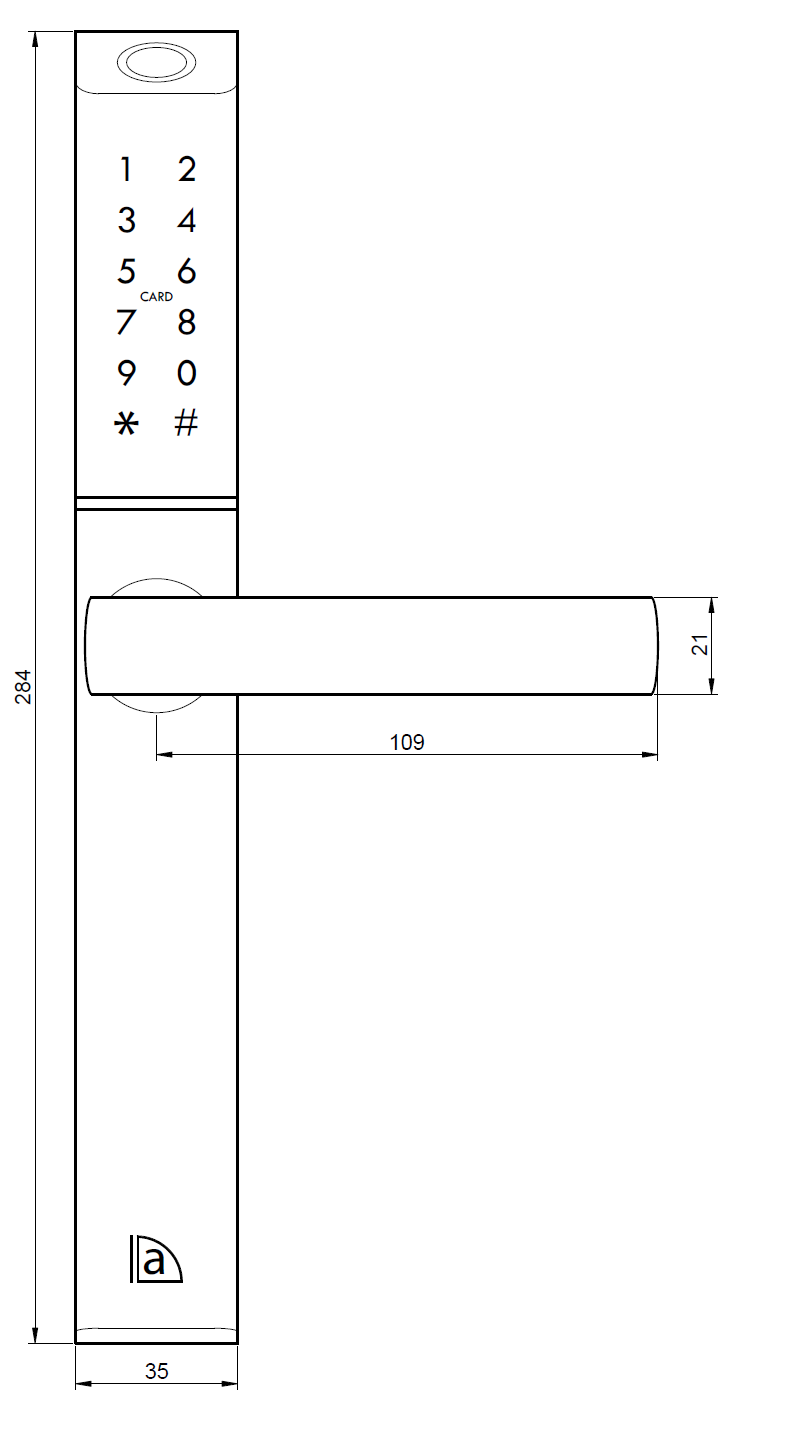

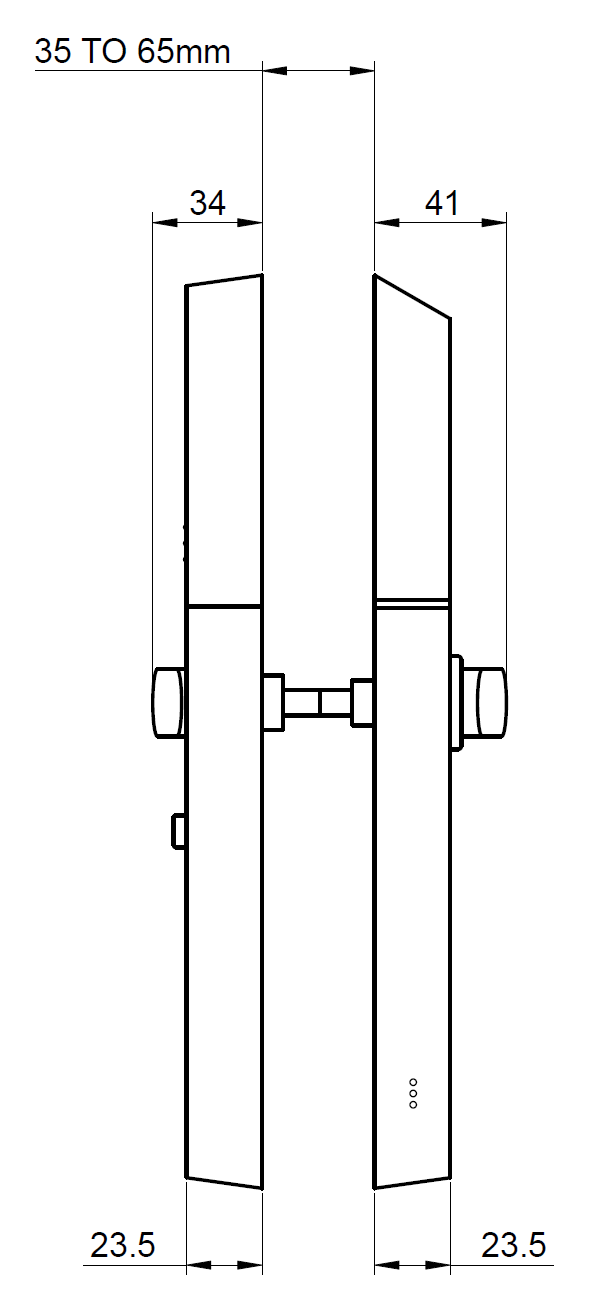

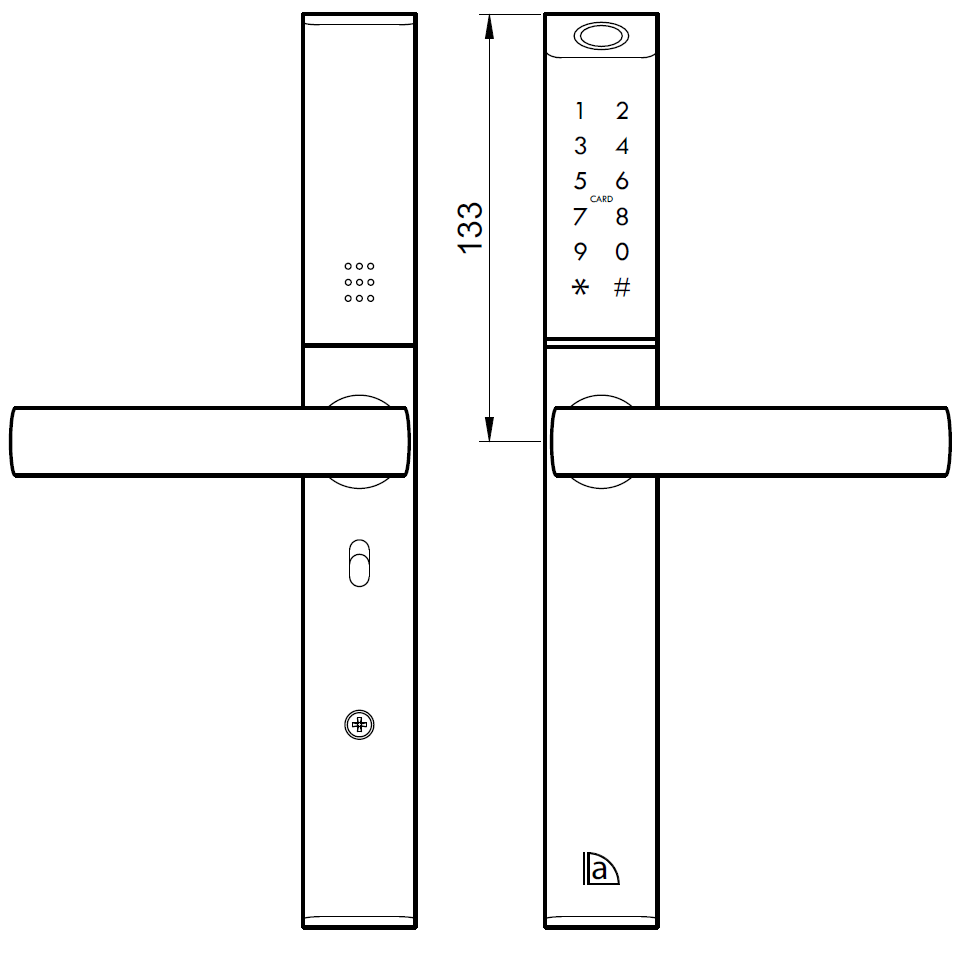

Manufacturer dimensional drawing for the Austyle 59407. Panel height 284mm, width 35mm, depth 23.5mm per side, lever projection 109mm, door thickness 35-65mm. Mortice backset 30mm (included 49421).
Battery, Power & Backup Access
- Powered by 4 x AAA alkaline batteries (6V total) - not included. Alkaline only; lithium and rechargeable batteries are not supported.
- Low battery alarm activates below 4.8V via app notification and onboard indicator. Replace all four batteries at the same time with fresh alkaline AAA batteries. See our TTLock battery management guide.
- Micro USB emergency power port located beside the key barrel under the exterior panel. Connect a power bank to power the lock when batteries are fully depleted - then use PIN, RFID fob, or the app to unlock.
- Mechanical key override provides physical backup access at all times. Keep at least one key stored in a secure location outside the door.
Remote App Access (Optional - WiFi Gateway Required)
The 59407 has no built-in WiFi. Remote access features - including remote unlock, timed PIN code management, access history, and voice control via Google Assistant and Amazon Alexa - require pairing the lock with the Austyle 59419 WiFi Gateway Hub (sold separately). The hub must be installed within 10m of the lock, connects to your 2.4GHz home WiFi, and bridges the lock to the TTLock cloud. For guidance on whether a gateway is right for your situation, see our smart lock gateway guide.
Important - 2.4GHz only: The gateway requires a 2.4GHz WiFi network. Many modern routers use band steering which may push devices onto 5GHz. If you experience connectivity issues, see our guide to band steering and smart lock WiFi setup and our blog on why smart locks drop off WiFi.
Without a gateway, the 59407 operates fully as a standalone unit - fingerprint, PIN code, RFID fob, Bluetooth app (within approximately 5m), and mechanical key. If you need built-in WiFi without a separate gateway, see the Austyle 59410 Smart Digital Lever Set, which includes built-in 2.4GHz WiFi.
Frequently Asked Questions
Is the 59407 suitable for my aluminium door?
The 59407 is designed for standard residential aluminium hinged doors with a 30mm backset lock preparation. The included 49421 mortice fits the standard Australian aluminium hinged door hole pattern. If your door is an aluminium sliding door, the 49425 sliding door mortice is available separately. For timber doors, see the 59406 Lever Entrance Set (60mm backset, includes 49429 mortice). Use our door type matching guide and backset measurement guide to confirm compatibility before ordering.
The 59407 is designed for standard residential aluminium hinged doors with a 30mm backset lock preparation. The included 49421 mortice fits the standard Australian aluminium hinged door hole pattern. If your door is an aluminium sliding door, the 49425 sliding door mortice is available separately. For timber doors, see the 59406 Lever Entrance Set (60mm backset, includes 49429 mortice). Use our door type matching guide and backset measurement guide to confirm compatibility before ordering.
What batteries does the 59407 use?
The 59407 uses 4 x AAA alkaline batteries - not AA. This is a common point of confusion when comparing with the 59405 and 59406 (which both use 4 x AA). Only high-quality alkaline batteries are supported. Lithium and rechargeable batteries cannot be used with this lock. If fingerprint reader accuracy decreases over time, check battery condition first - low voltage commonly affects biometric performance before the low battery alarm activates. See our TTLock battery management guide.
The 59407 uses 4 x AAA alkaline batteries - not AA. This is a common point of confusion when comparing with the 59405 and 59406 (which both use 4 x AA). Only high-quality alkaline batteries are supported. Lithium and rechargeable batteries cannot be used with this lock. If fingerprint reader accuracy decreases over time, check battery condition first - low voltage commonly affects biometric performance before the low battery alarm activates. See our TTLock battery management guide.
What are the alternative mortice options?
The 59407 supports three mortice configurations. The 49421 (30mm backset, 304SS) is included as standard and suits most aluminium hinged doors. The 49429 (60mm backset) suits doors with deeper lock preparation. The 49425 (304SS, 28mm backset) suits aluminium sliding or security screen doors. The 49429 and 49425 are sold separately. Confirm your door type and backset before ordering an alternative mortice - browse all mortice locks for smart locks.
The 59407 supports three mortice configurations. The 49421 (30mm backset, 304SS) is included as standard and suits most aluminium hinged doors. The 49429 (60mm backset) suits doors with deeper lock preparation. The 49425 (304SS, 28mm backset) suits aluminium sliding or security screen doors. The 49429 and 49425 are sold separately. Confirm your door type and backset before ordering an alternative mortice - browse all mortice locks for smart locks.
What is the correct spindle hub arrow direction?
The 59407 spindle hub rule is the reverse of the 59405/59406. With the 59407: the arrow must point upward when using the tubular latch only, and toward the handle when using any mortice (49421, 49429, or 49425). This differs from the 59405/59406, where the arrow points toward the handle for latch-only and down for the mortice. Confirm the correct orientation before final tightening. See our guide to the spindle position installation mistake.
The 59407 spindle hub rule is the reverse of the 59405/59406. With the 59407: the arrow must point upward when using the tubular latch only, and toward the handle when using any mortice (49421, 49429, or 49425). This differs from the 59405/59406, where the arrow points toward the handle for latch-only and down for the mortice. Confirm the correct orientation before final tightening. See our guide to the spindle position installation mistake.
How do I reset the lock to factory settings?
Remove the battery cover on the interior panel. Long-press the reset button beneath the battery cover for 5 seconds until you hear "Please Input Initialisation Passcode." Enter 000# on the keypad. All stored users, codes, and credentials are cleared. Re-link the lock to your phone via the TTLock app. See the Austyle Factory Reset SOP for the full procedure and our TTLock user manual reference for broader app guidance.
Remove the battery cover on the interior panel. Long-press the reset button beneath the battery cover for 5 seconds until you hear "Please Input Initialisation Passcode." Enter 000# on the keypad. All stored users, codes, and credentials are cleared. Re-link the lock to your phone via the TTLock app. See the Austyle Factory Reset SOP for the full procedure and our TTLock user manual reference for broader app guidance.
Additional Information
Spindle Hub Arrow Direction - Critical (differs from 59405/59406):
The 59407 spindle arrow rule is the reverse of the 59405/59406. With the 59407: arrow must point UP for latch only; arrow must point toward the HANDLE for any mortice (49421, 49429, or 49425). The power cable connecting front to back panel must be carefully routed through the door during installation - do not pull on the cable with force and do not allow the hardware to hang from the cable. See our blog on common smart lock DIY installation mistakes and our installation and troubleshooting guide. Not confident fitting it yourself? See advice and installation services.
The 59407 spindle arrow rule is the reverse of the 59405/59406. With the 59407: arrow must point UP for latch only; arrow must point toward the HANDLE for any mortice (49421, 49429, or 49425). The power cable connecting front to back panel must be carefully routed through the door during installation - do not pull on the cable with force and do not allow the hardware to hang from the cable. See our blog on common smart lock DIY installation mistakes and our installation and troubleshooting guide. Not confident fitting it yourself? See advice and installation services.
IP55 Rating and Weather Exposure:
IP55 means the exterior panel is tested against water spray from any direction and dust ingress. The internal module houses the battery compartment and is for interior use - it is not weather rated. The lock must not be installed in prolonged direct rain or sunlight - position under an eave or in a sheltered area. No warranty is provided for water entering from inside the door. Not suitable for tongue-and-groove doors. Not suitable for gate installation. See our guide to IP ratings.
IP55 means the exterior panel is tested against water spray from any direction and dust ingress. The internal module houses the battery compartment and is for interior use - it is not weather rated. The lock must not be installed in prolonged direct rain or sunlight - position under an eave or in a sheltered area. No warranty is provided for water entering from inside the door. Not suitable for tongue-and-groove doors. Not suitable for gate installation. See our guide to IP ratings.
Colour Indicator Display:
The 59407 includes a high-visibility colour LED indicator strip between the keypad and lever on the exterior panel. This provides visual status feedback including access confirmation, low battery indication, and lock status. This feature is not present on the 59405 or 59406 and is a practical differentiator for installations where clear visual feedback at the door is important.
The 59407 includes a high-visibility colour LED indicator strip between the keypad and lever on the exterior panel. This provides visual status feedback including access confirmation, low battery indication, and lock status. This feature is not present on the 59405 or 59406 and is a practical differentiator for installations where clear visual feedback at the door is important.
Electronic Privacy / Secure Lock:
When electronic auto-lock engages, the handle disengages from the latch mechanism. The exterior cannot be opened by the handle alone without a valid credential. To understand how this interacts with the interior knob or passage mode, see our blog on secure lock and the internal snib on smart locks.
When electronic auto-lock engages, the handle disengages from the latch mechanism. The exterior cannot be opened by the handle alone without a valid credential. To understand how this interacts with the interior knob or passage mode, see our blog on secure lock and the internal snib on smart locks.
Not Suitable for Gates:
This lock is not rated for gate installation. The Austyle warranty explicitly excludes gate use. For gate-suitable smart lock options, ask Terry's team for a recommendation.
This lock is not rated for gate installation. The Austyle warranty explicitly excludes gate use. For gate-suitable smart lock options, ask Terry's team for a recommendation.
Warranty
Warranty
1-year mechanical and 1-year electronic warranty on residential installations, provided by Austyle Architectural Hardware. Proof of purchase required for all claims. Batteries, water ingress from inside the door, and damage caused by incorrect installation or use outside stated specifications are not covered. Returns & Warranty
1-year mechanical and 1-year electronic warranty on residential installations, provided by Austyle Architectural Hardware. Proof of purchase required for all claims. Batteries, water ingress from inside the door, and damage caused by incorrect installation or use outside stated specifications are not covered. Returns & Warranty
Download PDF Resources
59407 Installation Manual (PDF)
Full installation manual for the 59407 - dimensions, spindle hub set-up (arrow UP for latch, toward the handle for a mortice), packing list, product specifications, lever and mortice handing, step-by-step fitting, and the factory reset procedure.
Full installation manual for the 59407 - dimensions, spindle hub set-up (arrow UP for latch, toward the handle for a mortice), packing list, product specifications, lever and mortice handing, step-by-step fitting, and the factory reset procedure.
59407 Installation Template (PDF)
Full-size (1:1) door-preparation template for the 59407, with a "check scale = 100mm" verification bar and two alternative bore patterns on the one sheet - FOR LATCH and FOR MORTISE LOCK.
Full-size (1:1) door-preparation template for the 59407, with a "check scale = 100mm" verification bar and two alternative bore patterns on the one sheet - FOR LATCH and FOR MORTISE LOCK.
49421 Mortice Installation Template (PDF)
Full-size drilling template for the included 49421 30mm-backset 304SS entrance mortice - the mortice body supplied with the 59407.
Full-size drilling template for the included 49421 30mm-backset 304SS entrance mortice - the mortice body supplied with the 59407.
Austyle Factory Reset SOP (PDF)
Step-by-step procedure for manually resetting Austyle digital locks to factory settings, clearing all stored users, codes and credentials before re-linking to the TTLock app.
Step-by-step procedure for manually resetting Austyle digital locks to factory settings, clearing all stored users, codes and credentials before re-linking to the TTLock app.
Austyle 2026 Digital Range Catalogue (PDF)
The complete Austyle digital smart lock range (edition V.05/26), covering the 59407 alongside the wider lever, deadbolt and door-handle range and the 49421 / 49429 / 49425 mortice options.
The complete Austyle digital smart lock range (edition V.05/26), covering the 59407 alongside the wider lever, deadbolt and door-handle range and the 49421 / 49429 / 49425 mortice options.
Austyle 59407 - FAQ, Setup and Owner's Guide
Everything a buyer, installer or owner tends to ask about the 59407 aluminium-door lever set - door fit, access methods, the WiFi gateway, batteries, installation and weather. For the platform behind it, read our TTLock Platform Guide (Chapter 14) and the Smart Lock Access Methods guide (Chapter 03).
Door Fit & Compatibility
Will the 59407 fit my aluminium door?
Yes, if your door is an aluminium hinged door with a 30mm backset lock preparation and is 35-65mm thick. The narrow 35mm panel is made to sit on an aluminium stile without altering the frame, and the included 49421 30mm mortice matches the standard Australian aluminium hinged-door hole pattern. Measure your stile width and backset first, and check the door-type compatibility matrix to confirm.
Yes, if your door is an aluminium hinged door with a 30mm backset lock preparation and is 35-65mm thick. The narrow 35mm panel is made to sit on an aluminium stile without altering the frame, and the included 49421 30mm mortice matches the standard Australian aluminium hinged-door hole pattern. Measure your stile width and backset first, and check the door-type compatibility matrix to confirm.
What is the difference between the 59407, 59405 and 59406?
All three are Austyle TTLock lever sets, but they suit different doors. The 59407 (this lock) is the narrow-stile aluminium-door version: 284 x 35mm panel, 30mm backset, 4 x AAA batteries, and a colour indicator display. The 59406 is the timber-door entrance set with a 60mm-backset 49429 mortice included and 4 x AA batteries. The 59405 is the same lever set as the 59406 but with an adjustable 60-70mm tubular latch and no mortice in the box. The main description carries a full Austyle lever range comparison table.
All three are Austyle TTLock lever sets, but they suit different doors. The 59407 (this lock) is the narrow-stile aluminium-door version: 284 x 35mm panel, 30mm backset, 4 x AAA batteries, and a colour indicator display. The 59406 is the timber-door entrance set with a 60mm-backset 49429 mortice included and 4 x AA batteries. The 59405 is the same lever set as the 59406 but with an adjustable 60-70mm tubular latch and no mortice in the box. The main description carries a full Austyle lever range comparison table.
Can I use it on a sliding or security screen door?
Yes, with the optional 49425 sliding door mortice (304SS, 28mm backset), which is sold separately. The lever set is the same; the mortice changes to suit an aluminium sliding or security screen door. Confirm the door preparation before ordering.
Yes, with the optional 49425 sliding door mortice (304SS, 28mm backset), which is sold separately. The lever set is the same; the mortice changes to suit an aluminium sliding or security screen door. Confirm the door preparation before ordering.
What backset and door thickness does it need?
A 30mm backset as standard, via the included 49421 mortice - or 60mm with the optional 49429, or 28mm with the optional 49425. Door thickness is 35-65mm, handled by the three included square spindles (50, 57 and 67mm). If you are unsure how to measure, read our door thickness guide and standard backset sizes.
A 30mm backset as standard, via the included 49421 mortice - or 60mm with the optional 49429, or 28mm with the optional 49425. Door thickness is 35-65mm, handled by the three included square spindles (50, 57 and 67mm). If you are unsure how to measure, read our door thickness guide and standard backset sizes.
Access, Credentials & the App
How many fingerprints, codes and fobs can it store?
Up to 200 fingerprints, 150 passcodes and 200 RFID credentials, plus unlimited e-Keys shared through the app. Three RFID fobs are included; add more with the 59418 RFID fobs or 59417 RFID stickers. For how each credential behaves, see fingerprint and RFID access.
Up to 200 fingerprints, 150 passcodes and 200 RFID credentials, plus unlimited e-Keys shared through the app. Three RFID fobs are included; add more with the 59418 RFID fobs or 59417 RFID stickers. For how each credential behaves, see fingerprint and RFID access.
How do I add users and share access remotely?
Through the TTLock app (iOS and Android). The first account to pair the lock becomes the administrator. You can issue permanent, timed, one-time or recurring passcodes and share e-Keys. Sending a code or e-Key to a phone that is not at the door needs the gateway (below). For a full walkthrough see the TTLock user manual.
Through the TTLock app
(iOS and Android). The first account to pair the lock becomes the administrator. You can issue permanent, timed, one-time or recurring passcodes and share e-Keys. Sending a code or e-Key to a phone that is not at the door needs the gateway (below). For a full walkthrough see the TTLock user manual.
What is anti-peeping passcode entry?
It lets you type random digits before or after your real PIN, then press #, so anyone watching cannot pick out the actual code. The lock ignores the extra digits and reads the valid sequence within. It is a standard TTLock feature - see how PIN access works.
It lets you type random digits before or after your real PIN, then press #, so anyone watching cannot pick out the actual code. The lock ignores the extra digits and reads the valid sequence within. It is a standard TTLock feature - see how PIN access works.
Does it work with Google Assistant and Alexa?
Yes, once the lock is paired with the 59419 WiFi Gateway Hub. Voice control and remote features run through the gateway, not the lock itself - without it the lock is Bluetooth-only. See the gateway comparison guide.
Yes, once the lock is paired with the 59419 WiFi Gateway Hub. Voice control and remote features run through the gateway, not the lock itself - without it the lock is Bluetooth-only. See the gateway comparison guide.
Remote Access & the WiFi Gateway
Does the 59407 have built-in WiFi?
No. The 59407 is Bluetooth-only at the door; remote unlocking, timed-code management, access history and voice control all require the 59419 WiFi Gateway Hub (sold separately). If you would rather have WiFi built into the lock with no separate hub, look at the Austyle 59410. The trade-off between the two approaches is covered in Bluetooth vs gateway.
No. The 59407 is Bluetooth-only at the door; remote unlocking, timed-code management, access history and voice control all require the 59419 WiFi Gateway Hub (sold separately). If you would rather have WiFi built into the lock with no separate hub, look at the Austyle 59410. The trade-off between the two approaches is covered in Bluetooth vs gateway.
The gateway will not connect - what is wrong?
Almost always the network band. The 59419 needs a 2.4GHz WiFi network and cannot use 5GHz. Many modern routers "band-steer" both bands under one name and hand the gateway a 5GHz connection, which fails. Split or temporarily disable band steering, or create a 2.4GHz-only network for setup, and keep the hub within 10m of the lock. See band steering explained and our fixes for smart locks dropping off WiFi.
Almost always the network band. The 59419 needs a 2.4GHz WiFi network and cannot use 5GHz. Many modern routers "band-steer" both bands under one name and hand the gateway a 5GHz connection, which fails. Split or temporarily disable band steering, or create a 2.4GHz-only network for setup, and keep the hub within 10m of the lock. See band steering explained and our fixes for smart locks dropping off WiFi.
Can I use it for Airbnb or short-stay rentals?
Yes. With the gateway you can issue and revoke timed PIN codes remotely, watch access history, and connect a property management system for automatic guest codes. Read using TTLock for Airbnb in Australia and PMS integration for multi-property operators.
Yes. With the gateway you can issue and revoke timed PIN codes remotely, watch access history, and connect a property management system for automatic guest codes. Read using TTLock for Airbnb in Australia and PMS integration for multi-property operators.
Power & Batteries
What batteries does it use, and how long do they last?
Four AAA alkaline batteries (not AA - the 59405 and 59406 use AA). Use quality alkaline only; lithium and rechargeable cells are not supported. The lock warns you below 4.8V through the app and the onboard indicator - replace all four together at that point. Remote features drain quicker than local ones, so a gateway-connected lock is worth watching; our battery management guide explains why.
Four AAA alkaline batteries (not AA - the 59405 and 59406 use AA). Use quality alkaline only; lithium and rechargeable cells are not supported. The lock warns you below 4.8V through the app and the onboard indicator - replace all four together at that point. Remote features drain quicker than local ones, so a gateway-connected lock is worth watching; our battery management guide explains why.
What happens if the batteries go completely flat?
Two backups. There is a Micro USB emergency power port beside the key barrel under the exterior panel - connect a power bank and the keypad, fobs and app work again long enough to open the door. And the mechanical key always works regardless of battery state, which is why we recommend keeping one key stored securely outside. Batteries and door alignment are the two most common real-world causes of trouble on any electronic lock - see what actually fails.
Two backups. There is a Micro USB emergency power port beside the key barrel under the exterior panel - connect a power bank and the keypad, fobs and app work again long enough to open the door. And the mechanical key always works regardless of battery state, which is why we recommend keeping one key stored securely outside. Batteries and door alignment are the two most common real-world causes of trouble on any electronic lock - see what actually fails.
The fingerprint reader has become less reliable - why?
Most often it is low batteries. Voltage drop affects the biometric sensor before the low-battery alarm triggers, so if reads are getting fussy, fit fresh AAA alkalines first. Re-enrolling the finger at a slightly different angle also helps. More in the TTLock tips guide and the realities of electronic locks.
Most often it is low batteries. Voltage drop affects the biometric sensor before the low-battery alarm triggers, so if reads are getting fussy, fit fresh AAA alkalines first. Re-enrolling the finger at a slightly different angle also helps. More in the TTLock tips guide and the realities of electronic locks.
Installation, Weather & Setup
Which way does the spindle hub arrow point?
On the 59407 the rule is the reverse of the 59405/59406: point the arrow UP for the latch only, and toward the handle for any mortice (49421, 49429 or 49425). Getting this wrong is the single most common install error on these locks. Route the panel-to-panel cable gently and never let the hardware hang from it. See the spindle position mistake and our 3 common DIY installation mistakes.
On the 59407 the rule is the reverse of the 59405/59406: point the arrow UP for the latch only, and toward the handle for any mortice (49421, 49429 or 49425). Getting this wrong is the single most common install error on these locks. Route the panel-to-panel cable gently and never let the hardware hang from it. See the spindle position mistake and our 3 common DIY installation mistakes.
How do I factory reset the lock?
Take off the interior battery cover and long-press the reset button beneath it for about 5 seconds until it announces "Please Input Initialisation Passcode," then enter 000#. This clears every stored user, code and credential, so re-pair the lock in the TTLock app afterwards. Always reset a second-hand or re-commissioned lock before setup. Full steps are in the Austyle Factory Reset SOP.
Take off the interior battery cover and long-press the reset button beneath it for about 5 seconds until it announces "Please Input Initialisation Passcode," then enter 000#. This clears every stored user, code and credential, so re-pair the lock in the TTLock app afterwards. Always reset a second-hand or re-commissioned lock before setup. Full steps are in the Austyle Factory Reset SOP.
Is it suitable for coastal or weather-exposed doors?
The exterior module is IP55 rated - tested against water spray from any direction and dust - and Austyle quotes 200 hours of salt-spray testing (a laboratory cabinet figure, per manufacturer specification, not a warranty for coastal service). Mount it under an eave or in a sheltered position; the internal module is interior-use only and is not weather rated. In a beachfront or salt-air setting, rinse and maintain the hardware and expect finishes to weather faster. See our guide to IP ratings, our Queensland climate notes, and coastal environments.
The exterior module is IP55 rated - tested against water spray from any direction and dust - and Austyle quotes 200 hours of salt-spray testing (a laboratory cabinet figure, per manufacturer specification, not a warranty for coastal service). Mount it under an eave or in a sheltered position; the internal module is interior-use only and is not weather rated. In a beachfront or salt-air setting, rinse and maintain the hardware and expect finishes to weather faster. See our guide to IP ratings, our Queensland climate notes, and coastal environments.
Can I fit it to a gate?
No. The 59407 is not rated for gate installation and the Austyle warranty excludes gate use. It is a residential entrance-door lock. If you need a gate-suitable smart lock, ask Terry's team for a recommendation, or read our door-type compatibility guide.
No. The 59407 is not rated for gate installation and the Austyle warranty excludes gate use. It is a residential entrance-door lock. If you need a gate-suitable smart lock, ask Terry's team for a recommendation, or read our door-type compatibility guide.
Related products, guides and chapters
Austyle lever range: 59405 Lever Latch Set · 59406 Lever Entrance Set (timber, 60mm) · 59410 (built-in WiFi) · 59413 C4 Key-In Lever (Black) · 89413 C4 Key-In Lever (Silver White) · 59409 Smart Digital Deadbolt
Mortices & accessories: 49429 Entrance Mortice (60mm) · 49425 Sliding Door Lock (28mm) · 59419 WiFi Gateway Hub · 59418 RFID Fobs (Pack of 3) · 59417 RFID Stickers (Pack of 3)
Browse categories: Narrow-frame smart locks · Fingerprint smart locks · Mortice locks for smart locks · Modules & WiFi gateways · All smart locks
Buyer's Guide chapters: Ch 02 Measuring Your Door · Ch 03 Access Methods · Ch 04 Door Types · Ch 08 Gateways · Ch 11 Standards & IP · Ch 12 Installation · Ch 14 TTLock Platform · Ch 15 App Platforms
Blogs: TTLock User Manual · TTLock Tips & Tricks · Measuring Your Lock Backset · Why Smart Locks Drop Off WiFi · Secure Lock & the Internal Snib · The Realities of Electronic Door Locks
What's in the Box - Austyle 59407
- 1 x Exterior panel (keypad with colour indicator display, fingerprint reader, and lever)
- 1 x Interior panel (lever and battery compartment)
- 1 x Austyle 49421 entrance mortice - 304SS, 30mm backset
- 1 x Tubular latch (reversible)
- 3 x RFID fobs
- 2 x Mechanical keys
- 1 x Allen key
- 1 x Square spindle set (50mm, 57mm, and 67mm lengths)
- 1 x U-Spring
- 1 x Installation template
- 1 x User manual
- 1 x Sliding T-slot screw M5 x 11mm
- Threaded sleeves - M5 x 30mm x 2 and M5 x 35mm x 2
- Timber door screws (#8 x 25mm x 4)
- Aluminium door screws (M5 x 10mm x 4)
- M5 machine screws - 25mm, 30mm, 40mm, 50mm, 60mm
Note: The 59419 WiFi Gateway Hub, AAA batteries, and the optional 49425 sliding door mortice are sold separately and not included. The 49421 30mm mortice is included as standard.
Austyle 59407 - Dimensions
Manufacturer dimensional drawing for the Austyle 59407. Panel height 284mm, width 35mm, depth 23.5mm per side, lever projection 109mm, door thickness 35-65mm. Mortice backset 30mm (via included 49421).
Austyle 59407 - Installation Manual
Page 1 - Cover
Page 2 - Introduction and installation guidelines
Page 3 - Lock dimensions
Page 4 - Spindle hub setup: arrow UP for latch only, arrow toward HANDLE for any mortice
Page 5 - Packing list
Page 6 - Product specifications
Page 7 - Mortice handing
Page 8 - Lever handing instructions
Page 9 - Installation steps: mortice and exterior panel fittings
Page 10 - Interior panel installation and final commissioning
Page 11 - Installation checklist and factory reset procedure
Page 12 - Operating guide, key override, and maintenance schedule
PDF Files - Austyle 59407
59407 Installation Manual (PDF)
Full installation manual for the 59407 - dimensions, spindle hub set-up, packing list, product specifications, lever and mortice handing, step-by-step fitting, and the factory reset procedure.
Full installation manual for the 59407 - dimensions, spindle hub set-up, packing list, product specifications, lever and mortice handing, step-by-step fitting, and the factory reset procedure.
59407 Installation Template (PDF)
Full-size (1:1) door-preparation template with a check-scale bar and two bore patterns on one sheet - FOR LATCH and FOR MORTISE LOCK.
Full-size (1:1) door-preparation template with a check-scale bar and two bore patterns on one sheet - FOR LATCH and FOR MORTISE LOCK.
49421 Mortice Installation Template (PDF)
Full-size drilling template for the included 49421 30mm-backset 304SS entrance mortice supplied with the 59407.
Full-size drilling template for the included 49421 30mm-backset 304SS entrance mortice supplied with the 59407.
Austyle Factory Reset SOP (PDF)
Step-by-step procedure for manually resetting Austyle digital locks to factory settings, clearing all stored users, codes and credentials before re-linking to the TTLock app.
Step-by-step procedure for manually resetting Austyle digital locks to factory settings, clearing all stored users, codes and credentials before re-linking to the TTLock app.
Austyle 2026 Digital Range Catalogue (PDF)
The complete Austyle digital smart lock range (edition V.05/26), covering the 59407 and its 49421 / 49429 / 49425 mortice options.
The complete Austyle digital smart lock range (edition V.05/26), covering the 59407 and its 49421 / 49429 / 49425 mortice options.
Austyle Warranty
Warranty Summary
How to Make a Claim
For full returns and warranty claim procedures, visit our Returns & Warranty page - this is kept up to date and is the authoritative reference for current claim steps.
- Retain your proof of purchase - you will need it to make a warranty claim.
- Complete the warranty card supplied in the box (product name, model number, purchase date, store name, receipt number) and keep it in a safe place.
- Contact Terry's Tradies Pty Ltd at your original place of purchase in the first instance.
- If directed to contact Austyle directly:
Email: info@austyle.com.au
Phone: +61 3 9553 3599
Warranty Registration
No online registration is required. Complete and retain the physical warranty card included in the box along with your proof of purchase.
Exclusions - What This Warranty Does Not Cover
- Commercial installations - this lock is rated for residential use only
- Damage caused by water entering from the inside of the door (the exterior is rated IP55; internal water ingress is not covered)
- Installation on tongue-and-groove doors, where water can penetrate through the groove
- Installation on gates
- Prolonged direct exposure to sunlight or rain - the lock must be positioned under an eave or in a sheltered area
- Damage caused by use of lithium or rechargeable batteries - only high-quality alkaline AA batteries (4 x AA) are supported
- Damage resulting from incorrect installation, misuse, or failure to follow the installation instructions
- Normal wear and consumable items, including batteries
Important Notes
To maintain warranty coverage, the lock must be installed on a smooth, flat door surface with the rubber gasket correctly seated. Only 4 x AA alkaline batteries are supported - lithium and rechargeable batteries are not compatible and their use may void the warranty. Austyle products purchased from another retailer or website cannot be returned to Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries for warranty assessment.
Confused? Overwhelmed? We get it.
Choosing the right smart lock can be genuinely tricky - door types, backsets, app platforms, compatibility with your existing hardware... there is a lot to consider. We have decades of experience fitting locks of all types, including smart locks, and we are happy to help.
Our expert recommendation service is free. Upload a few photos of your door and describe what you need, and one of our qualified locksmiths will give you a personalised recommendation.
Get Your Free Recommendation →How it works - three easy steps:
1. Upload photos
A few clear shots of your door, lock and frame - inside and out.
2. We assess
Our locksmith reviews your setup and requirements - door type, weather exposure, how you want to use it.
3. You get a recommendation
A personalised recommendation tailored to your door, budget and needs. No pressure, no upsell.
Also useful while you are deciding:
