Austyle 59413 Smart C4 Key In Lever Set - Black
At A Glance
At A Glance
DISPATCHSame Day Before 11am
App / Bluetooth
PIN Code
RFID Card
Fingerprint
C4 Key
Remote (Optional Hub)The Austyle 59413 is a smart digital lever latch set designed for residential entry doors. It combines Bluetooth app control, PIN code, RFID card, fingerprint, and a C4 Australian standard profile mechanical key into a single compact unit - five access methods in a 139mm panel. The C4 key profile integrates with local locksmith master-keying systems, allowing the lock to participate in a property's broader key hierarchy.
The 59413 is managed through the TTLock app (iOS
), allowing user management, timed and recurring codes, e-Key sharing, and access record review over Bluetooth at close range. Remote WiFi access, voice control, and cloud-based log access require pairing with the Austyle 59419 WiFi Gateway Hub (sold separately; 2.4GHz only). Understand the difference between Bluetooth-only and gateway-connected operation before ordering.
The 59413 is the Black finish variant of this lock. The identical lock is available in Silver White as the 89413. Rated IP55, 35-65mm door thickness, aluminium alloy panel, 4 x AA batteries. The mechanical key is the only backup access method - this model has no USB emergency power port.
Estimated Dispatch
Usually ships same day if ordered before 11am AEST (excludes weekends and Queensland public holidays).
Usually ships same day if ordered before 11am AEST (excludes weekends and Queensland public holidays).
BluetoothPIN CodeRFID CardFingerprintC4 KeyWiFi (optional)
4 x AA
Available Finish Options
Black
(This Product)
STK 59413
Finish selection does not affect functionality, compliance, or performance. The Silver White 89413 is listed separately.
The Owner's Pick"I could have fitted a lock so fortified it would make Ethan Hunt cry and have the CIA calling in the tactical entry squad. But no - I chose this one. Cheap, reliable, simple, and a genuinely neat little unit. Turns out the best lock on the street isn't the one that needs a Hollywood heist crew to crack it - it's the one that just quietly works, every single day."
Jim Noort - Owner, Terry's Locksmiths
Key Features
- Five access methods: Bluetooth app, PIN code, RFID card, fingerprint, and C4 mechanical key override.
- C4 Australian standard profile mechanical key - integrates with local locksmith master-keying systems; compatible with C4 key-cut services.
- Credential capacity: up to 200 fingerprints, 150 passcodes, 200 RFID cards.
- Anti-peeping virtual passcode entry - enter random digits before or after your actual PIN, then press #.
- Passage mode via the TTLock app - hold the lock in an unlocked state for deliveries, cleaners or open-house periods, then return it to secured operation.
- TTLock app management - add and remove users, set timed, one-time, and recurring codes, share e-Keys, view access records. See our TTLock tips and tricks.
- Remote WiFi access, voice control via Google Assistant and Amazon Alexa, and cloud access log available when paired with the 59419 WiFi Gateway Hub (sold separately; 2.4GHz only).
- Adjustable tubular latch (60-70mm) with high-security guard bolt included.
- IP55 weather rating - suitable for external residential doors in sheltered positions (external panel only).
- 200,000 operating cycle rating and 200-hour salt-spray durability (per manufacturer specification).
- Compact 139mm x 77mm panel - lower profile than the 59405 / 59406 lever range.
- Aluminium alloy panel construction. Weight: 2kg. Suits doors 35-65mm thick.
- Available in Black (59413) and Silver White (89413). Browse all Bluetooth smart locks and fingerprint smart locks.
Access Methods
For a plain-English guide to how each credential type works, see our smart lock access methods guide.
Face Recognition
Palm Recognition Suitable Uses
- Residential entry doors requiring smart multi-credential access with a C4 mechanical key backup integrated into a building's master-key system.
- Installations where a Black finish is required to match existing door and window hardware.
- Compact panel profile (139mm x 77mm) where the larger 59405 / 59406 lever range does not suit.
- Retrofit installation on existing 60-70mm backset doors with timber or aluminium framing, mounted on a smooth flat door surface.
- Short-stay rental and Airbnb installations using timed PIN codes and e-Key sharing (with the 59419 hub for remote management) - see our guide to using TTLock for Airbnb in Australia.
- Properties with multiple tenants requiring per-person timed credentials and access history.
What's in the Box
- 1 x Exterior panel (keypad and lever assembly)
- 1 x Interior panel (lever assembly)
- 1 x High-security guard bolt tubular latch (adjustable 60-70mm)
- 3 x RFID tags/cards
- 2 x Mechanical keys (C4 profile)
- 2 x Rubber gaskets (inner and outer)
- 1 x Installation template
- 1 x User manual
- 1 x Reset pin
- 2 x Location pins 35mm
- 1 x Allen key
- 1 x Spindle 60mm (for doors 35-48mm)
- 1 x Spindle 75mm (for doors 48-65mm)
- 4 x Screws #8 x 25mm
- 3 x Screws M4 x 45mm and 3 x Screws M4 x 65mm
- 3 x Threaded sleeves M4 x 30mm and 3 x Threaded sleeves M4 x 35mm
- 3 x Self-adhesive screw cover buttons
Note: the 59419 WiFi Gateway Hub and AA batteries are sold separately and not included. Austyle recommends 4 x AA high-quality alkaline batteries (Energizer Max Plus or equivalent); lithium and rechargeable cells are not compatible. This lock does not have a USB emergency power port - the C4 mechanical key is the only backup access method.
Full Specifications
Dimensions

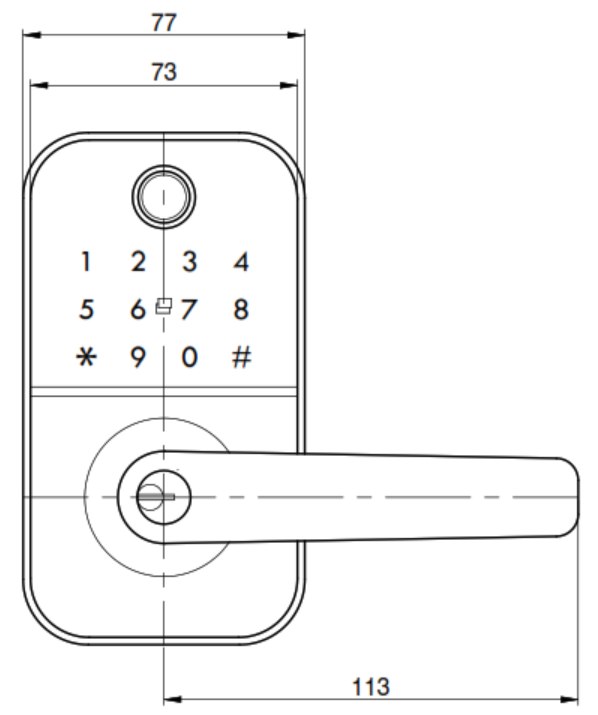

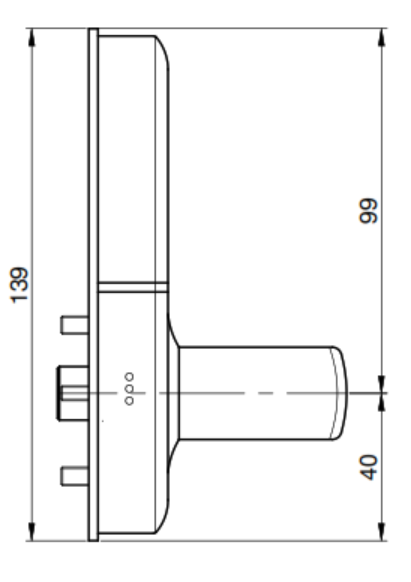

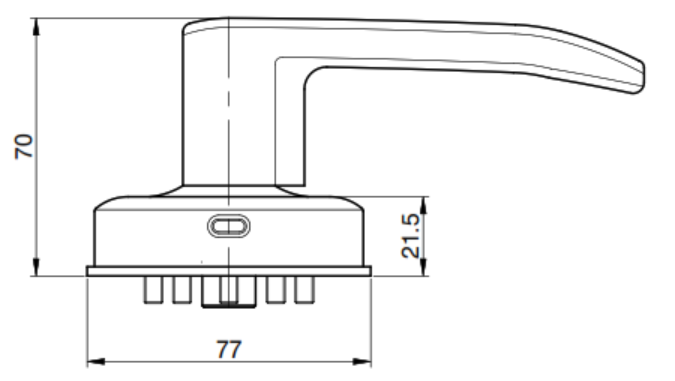

Exterior panel: height 139mm, width 77mm, projection 70mm. Total assembly width 113mm each side from spindle.
Interior panel and door preparation: door thickness 35-65mm, max spindle protrusion 30mm from inside face, adjustable latch backset 60-70mm.
Battery, Power & Backup Access
No USB Emergency Power Port: The 59413 does not have a USB emergency power input. If batteries are fully depleted, the C4 mechanical key is the only way to access the door. Keep at least one key stored in a secure location outside the door at all times - see our guide to safe key storage. Replace batteries promptly when the low battery alarm activates.
- Powered by 4 x AA alkaline batteries (6V total) - not included. Austyle recommends Energizer Max Plus or equivalent high-quality alkaline cells; lithium and rechargeable batteries are not compatible and may void warranty. See choosing and monitoring batteries.
- Low voltage alarm activates below 4.8V via app notification and onboard indicator. Replace all four batteries at the same time.
- Battery, power and backup questions are covered in our smart lock FAQ.
Remote Access (WiFi Hub Required)
The 59413 has no built-in WiFi. Remote access features - including remote unlock from anywhere, cloud access history, timed PIN code management, and voice control via Google Assistant and Amazon Alexa - require pairing with the Austyle 59419 WiFi Gateway Hub (sold separately). The hub connects to your 2.4GHz home WiFi and bridges the lock to the TTLock cloud. For guidance on whether a gateway is right for your situation, see our smart lock gateway guide.
Gateway placement: for reliable performance, install the 59419 gateway within 10 metres of the lock, ideally in the same room with a clear line of sight. See our notes on gateway placement.
Important - 2.4GHz only: The gateway requires a 2.4GHz WiFi network. Dual-band routers with band steering may prevent the gateway from connecting. If you experience connectivity issues, see our guide to band steering and smart lock WiFi setup and our blog on why smart locks drop off WiFi.
Without a gateway, the 59413 works fully as a standalone unit over Bluetooth (within approximately 5m), PIN code, RFID card, fingerprint, and C4 mechanical key. If you need built-in WiFi without a separate gateway, see the Austyle 59410 Smart Digital Lever Set, which includes built-in 2.4GHz WiFi. Browse all WiFi-capable smart locks.
Frequently Asked Questions
What is a C4 key and why does it matter?
The C4 is an Australian standard key profile used in many residential and commercial locks supplied through hardware and locksmith channels. Because the 59413 uses the C4 profile, your locksmith can cut additional keys, include this lock in a master-key system, or match it to other C4 hardware on the property. This is the key differentiator between the 59413/89413 and the other Austyle smart levers, which use proprietary key profiles that cannot be master-keyed locally.
The C4 is an Australian standard key profile used in many residential and commercial locks supplied through hardware and locksmith channels. Because the 59413 uses the C4 profile, your locksmith can cut additional keys, include this lock in a master-key system, or match it to other C4 hardware on the property. This is the key differentiator between the 59413/89413 and the other Austyle smart levers, which use proprietary key profiles that cannot be master-keyed locally.
What happens if the batteries go flat?
The C4 mechanical key is the only way to access the door if the batteries are fully depleted. This lock has no USB emergency power port. Keep at least one C4 key stored in a secure location outside the door at all times. The low voltage alarm activates below 4.8V with plenty of warning - do not ignore it. Only use high-quality alkaline AA batteries (Energizer Max Plus or equivalent); lithium and rechargeable batteries are not compatible. See our TTLock battery management guide.
The C4 mechanical key is the only way to access the door if the batteries are fully depleted. This lock has no USB emergency power port. Keep at least one C4 key stored in a secure location outside the door at all times. The low voltage alarm activates below 4.8V with plenty of warning - do not ignore it. Only use high-quality alkaline AA batteries (Energizer Max Plus or equivalent); lithium and rechargeable batteries are not compatible. See our TTLock battery management guide.
Can I unlock this door remotely from my phone?
Yes, but only when the Austyle 59419 WiFi Gateway Hub is installed (sold separately; 2.4GHz only, within 10 metres of the lock). Without the hub, the lock operates on Bluetooth (within approximately 5m), PIN, RFID, fingerprint, and mechanical key - all working without internet. If you need remote access without buying a gateway, see the Austyle 59410, which has built-in WiFi. For an explanation of what the gateway does and whether you need one, see our TTLock platform guide.
Yes, but only when the Austyle 59419 WiFi Gateway Hub is installed (sold separately; 2.4GHz only, within 10 metres of the lock). Without the hub, the lock operates on Bluetooth (within approximately 5m), PIN, RFID, fingerprint, and mechanical key - all working without internet. If you need remote access without buying a gateway, see the Austyle 59410, which has built-in WiFi. For an explanation of what the gateway does and whether you need one, see our TTLock platform guide.
Will it fit my door?
The 59413 suits doors 35-65mm thick with a 60-70mm backset, mounted on a smooth flat surface. Two spindles are supplied - the 60mm spindle for 35-48mm doors and the 75mm spindle for 48-65mm doors - with a 30mm maximum spindle protrusion from the inside face. It is not suitable for tongue-and-groove doors or gate installation. Check the drawings in the Dimensions section and measure before ordering.
The 59413 suits doors 35-65mm thick with a 60-70mm backset, mounted on a smooth flat surface. Two spindles are supplied - the 60mm spindle for 35-48mm doors and the 75mm spindle for 48-65mm doors - with a 30mm maximum spindle protrusion from the inside face. It is not suitable for tongue-and-groove doors or gate installation. Check the drawings in the Dimensions section and measure before ordering.
Does it suit a left or right hand door?
Yes. The handle direction can be reversed in the field on both the exterior and interior panels during installation, so the one lock suits left or right hand doors. Set the handing before final fitting, following the installation manual.
Yes. The handle direction can be reversed in the field on both the exterior and interior panels during installation, so the one lock suits left or right hand doors. Set the handing before final fitting, following the installation manual.
Additional Information
Installation - Template and Door Preparation:
An installation template is included. Use it to mark the panel and latch hole positions accurately before drilling. The panel faces are flush-mounted against a smooth flat door surface - no mortice is required, and the lock is not suitable for tongue-and-groove doors. Confirm door thickness and spindle protrusion limits (max 30mm inside) before purchasing spindle extensions. For a guide to common installation mistakes, see our blog on common smart lock DIY installation mistakes and Chapter 12 installation troubleshooting.
An installation template is included. Use it to mark the panel and latch hole positions accurately before drilling. The panel faces are flush-mounted against a smooth flat door surface - no mortice is required, and the lock is not suitable for tongue-and-groove doors. Confirm door thickness and spindle protrusion limits (max 30mm inside) before purchasing spindle extensions. For a guide to common installation mistakes, see our blog on common smart lock DIY installation mistakes and Chapter 12 installation troubleshooting.
Guard Bolt and Anti-Rattle Tongue:
The included tubular latch is a high-security guard bolt type. The guard bolt must be in the deployed (extended) position when the door is closed for the lock to engage correctly. If the guard bolt is not deploying when the door closes, check that the strike plate is correctly aligned and that the door is sitting squarely in the frame. The latch also has an adjustable anti-rattle tongue to take up movement on a slightly loose-fitting door.
The included tubular latch is a high-security guard bolt type. The guard bolt must be in the deployed (extended) position when the door is closed for the lock to engage correctly. If the guard bolt is not deploying when the door closes, check that the strike plate is correctly aligned and that the door is sitting squarely in the frame. The latch also has an adjustable anti-rattle tongue to take up movement on a slightly loose-fitting door.
TTLock App Administration:
The first TTLock account to add this lock becomes the administrator. If recommissioning a previously used lock, perform a factory reset first (see the Austyle Factory Reset SOP in the PDF Files tab). For a full TTLock app walkthrough, see our TTLock user manual reference. For a deeper look at the TTLock platform including data hosting and security, see Chapter 15. For tips on getting the most out of the TTLock app, see our TTLock tips and tricks guide.
The first TTLock account to add this lock becomes the administrator. If recommissioning a previously used lock, perform a factory reset first (see the Austyle Factory Reset SOP in the PDF Files tab). For a full TTLock app walkthrough, see our TTLock user manual reference. For a deeper look at the TTLock platform including data hosting and security, see Chapter 15. For tips on getting the most out of the TTLock app, see our TTLock tips and tricks guide.
IP55 Rating and Weather Exposure:
IP55 means the external panel is tested against water spray from any direction and dust ingress. The rating applies to the outside panel only - the internal panel houses the battery compartment and is for interior use. Install under an eave or in a sheltered position; avoid prolonged direct rain or sunlight, and note that Austyle provides no warranty for water entering from inside the door. See our guide to IP ratings.
IP55 means the external panel is tested against water spray from any direction and dust ingress. The rating applies to the outside panel only - the internal panel houses the battery compartment and is for interior use. Install under an eave or in a sheltered position; avoid prolonged direct rain or sunlight, and note that Austyle provides no warranty for water entering from inside the door. See our guide to IP ratings.
Cleaning and Maintenance:
Wipe the exterior panel with a dry or lightly damp cloth. Do not use solvents, abrasive cleaners, or high-pressure water. The fingerprint reader should be kept free of moisture, oils, and contamination for reliable performance. Carry out the manufacturer's six-monthly maintenance check, applying a small amount of dry lubricant to the latch mechanism.
Wipe the exterior panel with a dry or lightly damp cloth. Do not use solvents, abrasive cleaners, or high-pressure water. The fingerprint reader should be kept free of moisture, oils, and contamination for reliable performance. Carry out the manufacturer's six-monthly maintenance check, applying a small amount of dry lubricant to the latch mechanism.
Warranty
Warranty
1-year mechanical and 1-year electronic warranty on residential installations, provided by Austyle Architectural Hardware. Proof of purchase required for all claims. Batteries, water ingress from inside the door, and damage caused by incorrect installation or use outside stated specifications are not covered. Returns & Warranty
1-year mechanical and 1-year electronic warranty on residential installations, provided by Austyle Architectural Hardware. Proof of purchase required for all claims. Batteries, water ingress from inside the door, and damage caused by incorrect installation or use outside stated specifications are not covered. Returns & Warranty
Download PDF Resources
59413 / 89413 Installation Manual (PDF)
Version 4 Austyle installation manual covering both finishes - dimensions, packing list, spindle and screw selection, the full product specification table, C4 key override, and the complete TTLock app section.
Version 4 Austyle installation manual covering both finishes - dimensions, packing list, spindle and screw selection, the full product specification table, C4 key override, and the complete TTLock app section.
59413 / 89413 Outside Panel Dimensions (PDF)
Dimensioned drawing of the exterior keypad and fingerprint panel - 139mm x 77mm panel with detail dimensions.
Dimensioned drawing of the exterior keypad and fingerprint panel - 139mm x 77mm panel with detail dimensions.
59413 / 89413 Inside Panel Dimensions (PDF)
Dimensioned drawing of the interior lever panel, matching the exterior panel envelope.
Dimensioned drawing of the interior lever panel, matching the exterior panel envelope.
Austyle Factory Reset SOP (PDF)
Standard operating procedure for a manual reset to factory settings on Austyle digital locks - verify install, reset (hold the reset button five seconds), initialise (enter 000#), and reconfigure administrator or user profiles.
Standard operating procedure for a manual reset to factory settings on Austyle digital locks - verify install, reset (hold the reset button five seconds), initialise (enter 000#), and reconfigure administrator or user profiles.
Austyle 2026 Digital Range Catalogue (PDF)
The whole Austyle digital smart lock range at a glance - useful for comparing the 59413 against the wider Austyle family.
The whole Austyle digital smart lock range at a glance - useful for comparing the 59413 against the wider Austyle family.
Austyle 59413 - FAQ, Setup and Owner's Guide
Everything below is here to help you choose, install, set up and live with your Austyle 59413 Smart C4 Key In Lever Set. For general smart-lock questions see our Smart Lock FAQ (Chapter 13), and for measuring and fitting see the installation and troubleshooting chapter.
Access, Credentials and the C4 Key
How many ways can I unlock the 59413?
Five. You can unlock with the TTLock app over Bluetooth, a PIN code on the keypad, an RFID card or fob, a fingerprint, or the C4 mechanical key. A sixth option - remote unlock over WiFi from anywhere - is added when you fit the 59419 gateway (sold separately). See how each credential type works in Chapter 03.
Five. You can unlock with the TTLock app over Bluetooth, a PIN code on the keypad, an RFID card or fob, a fingerprint, or the C4 mechanical key. A sixth option - remote unlock over WiFi from anywhere - is added when you fit the 59419 gateway (sold separately). See how each credential type works in Chapter 03.
Why is the C4 key such a big deal?
Because it is a genuine Australian standard C4 profile, any locksmith can cut extra keys and, more importantly, bring the 59413 into a property's master-key system. The other Austyle smart levers use proprietary key profiles that cannot be master-keyed locally, so if key hierarchy matters to you, the 59413 and its Silver White 89413 twin are the ones to choose.
Because it is a genuine Australian standard C4 profile, any locksmith can cut extra keys and, more importantly, bring the 59413 into a property's master-key system. The other Austyle smart levers use proprietary key profiles that cannot be master-keyed locally, so if key hierarchy matters to you, the 59413 and its Silver White 89413 twin are the ones to choose.
How many codes, cards and fingerprints can it hold?
Up to 150 passcodes, up to 200 RFID cards, and up to 200 fingerprints, all managed from the TTLock app. Three RFID cards are included; extra credentials are available as RFID stickers or fobs, or from the wider RFID credentials range. How RFID works.
Up to 150 passcodes, up to 200 RFID cards, and up to 200 fingerprints, all managed from the TTLock app. Three RFID cards are included; extra credentials are available as RFID stickers or fobs, or from the wider RFID credentials range. How RFID works.
How do I get reliable fingerprint reads?
Enrol each finger from a few slightly different angles, pressing the same way you naturally would in daily use. Keep the reader clean and dry - oils and moisture are the usual cause of failed reads. Our three-angle enrolment technique walks through it.
Enrol each finger from a few slightly different angles, pressing the same way you naturally would in daily use. Keep the reader clean and dry - oils and moisture are the usual cause of failed reads. Our three-angle enrolment technique walks through it.
What is anti-peeping PIN entry?
You can type random digits before or after your real PIN and finish with #, so anyone watching cannot tell which digits are the actual code. The lock only checks that your real code appears somewhere in the sequence you enter.
You can type random digits before or after your real PIN and finish with #, so anyone watching cannot tell which digits are the actual code. The lock only checks that your real code appears somewhere in the sequence you enter.
TTLock App, Codes and Sharing
Which app does it use, and where do I get it?
It uses the TTLock app, free on iOS and Android. The first account to add the lock becomes the administrator. See the TTLock user manual and the TTLock platform overview.
It uses the TTLock app, free on iOS
and Android. The first account to add the lock becomes the administrator. See the TTLock user manual and the TTLock platform overview.
What kinds of PIN code can I create?
Permanent, timed (valid for a date range), one-time, and recurring codes - useful for tenants, cleaners and tradespeople. Note the platform's 24-hour activation rule for permanent codes: a new permanent code must be used at the lock within 24 hours of being created or it expires. Our passcode types guide and activation windows table explain it.
Permanent, timed (valid for a date range), one-time, and recurring codes - useful for tenants, cleaners and tradespeople. Note the platform's 24-hour activation rule for permanent codes: a new permanent code must be used at the lock within 24 hours of being created or it expires. Our passcode types guide and activation windows table explain it.
Can I leave the door unlocked for a set period?
Yes. Passage mode holds the lock in an unlocked state so people can come and go freely - handy for deliveries, an open house or a busy morning - and you switch it back to secured operation from the app afterwards.
Yes. Passage mode holds the lock in an unlocked state so people can come and go freely - handy for deliveries, an open house or a busy morning - and you switch it back to secured operation from the app afterwards.
Can I share access without handing over a key or code?
Yes. Send an e-Key from the TTLock app to another person's phone, with permanent, timed or one-time validity, and revoke it whenever you like. See how e-Keys work. For short-stay hosting, our guide to using TTLock for Airbnb in Australia covers automation and audit trails.
Yes. Send an e-Key from the TTLock app to another person's phone, with permanent, timed or one-time validity, and revoke it whenever you like. See how e-Keys work. For short-stay hosting, our guide to using TTLock for Airbnb in Australia covers automation and audit trails.
Remote Access, Gateway and Voice Control
Do I need the 59419 gateway?
Not to use the lock - it works fully over Bluetooth, PIN, RFID, fingerprint and the C4 key on its own. You only need the 59419 WiFi Gateway Hub (sold separately) for remote unlock from anywhere, cloud access history and voice control. It connects to a 2.4GHz network and should sit within 10 metres of the lock. For the concept, see what a gateway does.
Not to use the lock - it works fully over Bluetooth, PIN, RFID, fingerprint and the C4 key on its own. You only need the 59419 WiFi Gateway Hub (sold separately) for remote unlock from anywhere, cloud access history and voice control. It connects to a 2.4GHz network and should sit within 10 metres of the lock. For the concept, see what a gateway does.
Does it work with Alexa and Google Assistant?
Yes, once the 59419 gateway is connected - voice control through Amazon Alexa and Google Assistant runs via the gateway and the TTLock cloud, not from the lock directly. Without the gateway there is no voice control.
Yes, once the 59419 gateway is connected - voice control through Amazon Alexa and Google Assistant runs via the gateway and the TTLock cloud, not from the lock directly. Without the gateway there is no voice control.
My gateway keeps dropping off WiFi - what is wrong?
Almost always the 2.4GHz band. The 59419 needs a 2.4GHz network; dual-band routers that merge the bands under one name (band steering) often hand the gateway a 5GHz connection it cannot use. Split the bands or give the 2.4GHz band its own name. Our blog on why smart locks drop off WiFi and how to improve stability has the fixes.
Almost always the 2.4GHz band. The 59419 needs a 2.4GHz network; dual-band routers that merge the bands under one name (band steering) often hand the gateway a 5GHz connection it cannot use. Split the bands or give the 2.4GHz band its own name. Our blog on why smart locks drop off WiFi and how to improve stability has the fixes.
I want built-in WiFi without a separate hub - what should I look at?
The Austyle 59410 Smart Digital Lever Set has 2.4GHz WiFi built in, so it does not need the 59419 gateway for remote access. It is a larger lever set (235mm panel) rather than the compact 139mm C4 unit, and it uses a proprietary key profile rather than C4. Browse all WiFi smart locks.
The Austyle 59410 Smart Digital Lever Set has 2.4GHz WiFi built in, so it does not need the 59419 gateway for remote access. It is a larger lever set (235mm panel) rather than the compact 139mm C4 unit, and it uses a proprietary key profile rather than C4. Browse all WiFi smart locks.
Fit, Installation and Handing
What doors does the 59413 suit?
Smooth flat residential entry doors 35-65mm thick with a 60-70mm backset. It is a flush-mounted lever latch set - no mortice is cut. It is not suitable for tongue-and-groove doors or for gate installation. Two spindles are supplied: 60mm for 35-48mm doors and 75mm for 48-65mm doors, with a 30mm maximum protrusion inside. Measure first and check the Dimensions drawings.
Smooth flat residential entry doors 35-65mm thick with a 60-70mm backset. It is a flush-mounted lever latch set - no mortice is cut. It is not suitable for tongue-and-groove doors or for gate installation. Two spindles are supplied: 60mm for 35-48mm doors and 75mm for 48-65mm doors, with a 30mm maximum protrusion inside. Measure first and check the Dimensions drawings.
Is it handed - will it suit my door swing?
It suits both. The handle direction is reversible in the field on the exterior and interior panels, so one lock covers left or right hand doors. Set the handing during installation before final fixing, following the installation manual.
It suits both. The handle direction is reversible in the field on the exterior and interior panels, so one lock covers left or right hand doors. Set the handing during installation before final fixing, following the installation manual.
Can I fit it myself?
Yes - an installation template, both spindles, screws, threaded sleeves and an Allen key are supplied, and no mortice is required. Take care to pick the correct spindle for your door thickness and to keep spindle protrusion under 30mm inside. If you would rather not, our team can fit it. Common DIY pitfalls are covered in 3 common DIY installation mistakes and Chapter 12.
Yes - an installation template, both spindles, screws, threaded sleeves and an Allen key are supplied, and no mortice is required. Take care to pick the correct spindle for your door thickness and to keep spindle protrusion under 30mm inside. If you would rather not, our team can fit it. Common DIY pitfalls are covered in 3 common DIY installation mistakes and Chapter 12.
The guard bolt is not engaging when the door closes - what do I check?
The high-security guard bolt must be extended when the door is closed for the lock to secure. If it is not deploying, check that the strike plate lines up with the latch and that the door sits squarely in the frame; adjust the anti-rattle tongue if the door is a loose fit. Misalignment is the most common cause - see installation troubleshooting.
The high-security guard bolt must be extended when the door is closed for the lock to secure. If it is not deploying, check that the strike plate lines up with the latch and that the door sits squarely in the frame; adjust the anti-rattle tongue if the door is a loose fit. Misalignment is the most common cause - see installation troubleshooting.
Power, Weather and Maintenance
What batteries does it take and what if they go flat?
4 x AA alkaline batteries (Energizer Max Plus or equivalent recommended; lithium and rechargeable cells are not compatible). A low voltage alarm warns you below 4.8V through the app and at the lock. Because there is no USB emergency power port, the C4 mechanical key is the only backup if the batteries are fully depleted - keep a key stored securely off the door. See choosing and monitoring batteries.
4 x AA alkaline batteries (Energizer Max Plus or equivalent recommended; lithium and rechargeable cells are not compatible). A low voltage alarm warns you below 4.8V through the app and at the lock. Because there is no USB emergency power port, the C4 mechanical key is the only backup if the batteries are fully depleted - keep a key stored securely off the door. See choosing and monitoring batteries.
Can it go on an exposed door?
The external panel is IP55 rated against dust and water spray, so it suits an external residential door in a sheltered position - under an eave or a porch. The internal panel holds the battery compartment and is for interior use, and Austyle gives no warranty for water entering from inside the door. Avoid prolonged direct rain or sun. It is not for gate use. IP ratings are explained in Chapter 11.
The external panel is IP55 rated against dust and water spray, so it suits an external residential door in a sheltered position - under an eave or a porch. The internal panel holds the battery compartment and is for interior use, and Austyle gives no warranty for water entering from inside the door. Avoid prolonged direct rain or sun. It is not for gate use. IP ratings are explained in Chapter 11.
How does it hold up near the coast?
Austyle quotes a 200-hour salt-spray figure for the finish - a laboratory cabinet test rather than a guarantee of coastal service. In real salt-air conditions, mount it in a sheltered spot, rinse and wipe the exterior regularly, and expect finishes and electronics near the beach to have a harder life than inland.
Austyle quotes a 200-hour salt-spray figure for the finish - a laboratory cabinet test rather than a guarantee of coastal service. In real salt-air conditions, mount it in a sheltered spot, rinse and wipe the exterior regularly, and expect finishes and electronics near the beach to have a harder life than inland.
How do I look after it?
Wipe the panel with a dry or lightly damp cloth - no solvents, abrasives or high-pressure water. Keep the fingerprint reader clean and dry. Carry out Austyle's six-monthly maintenance check, applying a little dry lubricant to the latch mechanism.
Wipe the panel with a dry or lightly damp cloth - no solvents, abrasives or high-pressure water. Keep the fingerprint reader clean and dry. Carry out Austyle's six-monthly maintenance check, applying a little dry lubricant to the latch mechanism.
Choosing Between the Austyle Range
How is the 59413 different from the other Austyle smart levers?
The 59413 (Black) and 89413 (Silver White) are the compact C4 key-in-lever set - a 139mm panel with a master-keyable C4 key and a tubular latch. The 59405 and 59406 are larger lever sets (the 59406 includes a mortice); the 59407 is a narrow entrance set for aluminium doors; the 59409 is a deadbolt; and the 59410 is a lever set with built-in WiFi. Choose the 59413 when you want the compact profile and the C4 master-key advantage.
The 59413 (Black) and 89413 (Silver White) are the compact C4 key-in-lever set - a 139mm panel with a master-keyable C4 key and a tubular latch. The 59405 and 59406 are larger lever sets (the 59406 includes a mortice); the 59407 is a narrow entrance set for aluminium doors; the 59409 is a deadbolt; and the 59410 is a lever set with built-in WiFi. Choose the 59413 when you want the compact profile and the C4 master-key advantage.
Related Products, Guides and Chapters
This lock and its finishes: Black (this product) · Silver White 89413
Austyle smart range: 59405 Lever Latch Set · 59406 Lever Entrance Set · 59407 Aluminium Door Entrance Set · 59409 Smart Deadbolt · 59410 Lever Set (built-in WiFi)
Accessories: 59419 WiFi Gateway Hub · 59417 RFID Sticker (Pack of 3) · 59418 RFID Fob (Pack of 3)
Browse categories: Bluetooth · Fingerprint · PIN Code · Fob / Card / RFID · Has Backup Key · WiFi
Buyer's Guide chapters: Ch 03 Access Methods · Ch 07 Airbnb & Short-Stay · Ch 08 Gateways · Ch 11 Standards & IP · Ch 12 Installation · Ch 13 Smart Lock FAQ · Ch 14 TTLock Platform · Ch 15 App Platforms
Helpful blog reading: TTLock Tips and Tricks · Using TTLock for Airbnb in Australia · Why Smart Locks Drop Off WiFi · Mechanical Key Override on Smart Locks · Smart Lock Not Locking? 3 DIY Mistakes · TTLock User Manual
What's in the Box - Austyle 59413
- 1 x Exterior panel (keypad and lever assembly)
- 1 x Interior panel (lever assembly)
- 1 x High-security guard bolt tubular latch (adjustable 60-70mm)
- 3 x RFID tags/cards
- 2 x Mechanical keys (C4 profile)
- 2 x Rubber gaskets (inner and outer)
- 1 x Installation template
- 1 x User manual
- 1 x Reset pin
- 2 x Location pins 35mm
- 1 x Allen key
- 1 x Spindle 60mm (for doors 35-48mm)
- 1 x Spindle 75mm (for doors 48-65mm)
- 4 x Screws #8 x 25mm
- 3 x Screws M4 x 45mm and 3 x Screws M4 x 65mm
- 3 x Threaded sleeves M4 x 30mm and 3 x Threaded sleeves M4 x 35mm
- 3 x Self-adhesive screw cover buttons
Note: the 59419 WiFi Gateway Hub and AA batteries are not included. Austyle recommends 4 x AA high-quality alkaline batteries (Energizer Max Plus or equivalent); lithium and rechargeable cells are not compatible. This lock has no USB emergency power port - the C4 mechanical key is the only backup if batteries are depleted.
Austyle 59413 - Dimensions
Exterior panel dimensions for the Austyle 59413. Panel height 139mm, width 77mm, projection 70mm. Total assembly width 113mm each side from spindle.
Interior panel and door preparation dimensions. Door thickness 35-65mm. Max spindle protrusion 30mm from inside face. Latch backset adjustable 60-70mm.
Austyle 59413 / 89413 - Installation Manual
Page 1 - Cover
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
The complete Version 4 manual is also available as a single download in the PDF Files tab: 59413 / 89413 Installation Manual (PDF).
PDF Files - Austyle 59413
59413 / 89413 Installation Manual (PDF)
Version 4 Austyle installation manual covering both finishes - dimensions, packing list, spindle and screw selection, the full product specification table, C4 key override, and the complete TTLock app section.
Version 4 Austyle installation manual covering both finishes - dimensions, packing list, spindle and screw selection, the full product specification table, C4 key override, and the complete TTLock app section.
59413 / 89413 Outside Panel Dimensions (PDF)
Dimensioned drawing of the exterior keypad and fingerprint panel - 139mm x 77mm panel with detail dimensions.
Dimensioned drawing of the exterior keypad and fingerprint panel - 139mm x 77mm panel with detail dimensions.
59413 / 89413 Inside Panel Dimensions (PDF)
Dimensioned drawing of the interior lever panel, matching the exterior panel envelope.
Dimensioned drawing of the interior lever panel, matching the exterior panel envelope.
Austyle Factory Reset SOP (PDF)
Standard operating procedure for a manual reset to factory settings on Austyle digital locks - verify install, reset (hold the reset button five seconds), initialise (enter 000#), and reconfigure administrator or user profiles.
Standard operating procedure for a manual reset to factory settings on Austyle digital locks - verify install, reset (hold the reset button five seconds), initialise (enter 000#), and reconfigure administrator or user profiles.
Austyle 2026 Digital Range Catalogue (PDF)
The whole Austyle digital smart lock range at a glance - useful for comparing the 59413 against the wider Austyle family.
The whole Austyle digital smart lock range at a glance - useful for comparing the 59413 against the wider Austyle family.
Austyle Warranty
Warranty Summary
How to Make a Claim
For full returns and warranty claim procedures, visit our Returns & Warranty page - this is kept up to date and is the authoritative reference for current claim steps.
- Retain your proof of purchase - you will need it to make a warranty claim.
- Complete the warranty card supplied in the box (product name, model number, purchase date, store name, receipt number) and keep it in a safe place.
- Contact Terry's Tradies Pty Ltd at your original place of purchase in the first instance.
- If directed to contact Austyle directly:
Email: info@austyle.com.au
Phone: +61 3 9553 3599
Warranty Registration
No online registration is required. Complete and retain the physical warranty card included in the box along with your proof of purchase.
Exclusions - What This Warranty Does Not Cover
- Commercial installations - this lock is rated for residential use only
- Damage caused by water entering from the inside of the door (the exterior is rated IP55; internal water ingress is not covered)
- Installation on tongue-and-groove doors, where water can penetrate through the groove
- Installation on gates
- Prolonged direct exposure to sunlight or rain - the lock must be positioned under an eave or in a sheltered area
- Damage caused by use of lithium or rechargeable batteries - only high-quality alkaline AA batteries (4 x AA) are supported
- Damage resulting from incorrect installation, misuse, or failure to follow the installation instructions
- Normal wear and consumable items, including batteries
Important Notes
To maintain warranty coverage, the lock must be installed on a smooth, flat door surface with the rubber gasket correctly seated. Only 4 x AA alkaline batteries are supported - lithium and rechargeable batteries are not compatible and their use may void the warranty. Austyle products purchased from another retailer or website cannot be returned to Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries for warranty assessment.
Confused? Overwhelmed? We get it.
Choosing the right smart lock can be genuinely tricky - door types, backsets, app platforms, compatibility with your existing hardware... there is a lot to consider. We have decades of experience fitting locks of all types, including smart locks, and we are happy to help.
Our expert recommendation service is free. Upload a few photos of your door and describe what you need, and one of our qualified locksmiths will give you a personalised recommendation.
Get Your Free Recommendation →How it works - three easy steps:
1. Upload photos
A few clear shots of your door, lock and frame - inside and out.
2. We assess
Our locksmith reviews your setup and requirements - door type, weather exposure, how you want to use it.
3. You get a recommendation
A personalised recommendation tailored to your door, budget and needs. No pressure, no upsell.
Also useful while you are deciding:
