McGrath A236 Slimline Digital Smart Lock - 35mm Euro Mortice

At A Glance

At A Glance

DISPATCHSame Day Before 11am

LOCK TYPESlimline Euro Mortice Smart Lock

FINISHMatt Black or Silver - One Listing

IN THE BOX35mm Euro Mortice + 2 Keys + 2 RFID Tags

WARRANTY12 Months

BODY WIDTH36mm Slimline

SUPPLIED BACKSET35mm Euro, 85mm Pitch

DOOR THICKNESS38mm - 55mm

FINGERPRINTUp to 100 Users

PIN CODES250 Codes, 4-9 Digits

RFID1,000 MIFARE Credentials

BLUETOOTH5.0 BLE, Unlimited eKeys

REMOTE ACCESSOptional G3 / G4 / G5 Gateway

KEY OVERRIDEEuro Cylinder, 2 Keys

POWER4 x AAA, Approx 12 Months

FLAT BATTERY?USB-C Power Bank or Key

WEATHERIP65 External Module Only

DURABILITY100,000 Cycles

PASSAGE MODEYes - Free Entry Hours

ACTIVITY LOGWho Opened, When - In App

APPMcGrath Locks App (TTLock)

SUPPORTAustralian-Based via LSC

PIN SECURITYAnti-Peep Entry + Lockout

NOT FORExposed Gates or Fire Doors

RANGECompare A210 / A231 / A236

SLIMLINE SMARTLOCKSBrowse All Narrow-Frame Locks

WANT CHEAPER?See Vault Phantom - Slimline Lever or Knob

WANT HIGHER SPECS?See Schlage Omnia - Fire + DDA

UNLOCK WITH

McGrath Locks App PIN Code Fingerprint RFID Card / Fob Mechanical Key Remote (Optional Gateway) Face
Not Available Palm
Not Available

The McGrath A236 is a slimline 5-in-1 digital smart lock built for narrow-stile aluminium doors and standard timber doors. Its 36mm wide body and the supplied 35mm backset European mortice lock (85mm centres) let it fit door frames where a full-width smart lock simply will not go - if your stile is between 50mm and 70mm, check stile width in Measuring Your Door (Chapter 02) and how to measure your backset before ordering. It is the 36mm hinged-door member of the McGrath slimline range, sitting between the 43mm A210 and the 31mm ultra-slim A231 - the slimline comparison table below shows where each fits.

Every A236 is managed through the McGrath Locks App on the TTLock platform over Bluetooth as standard, and unlocks by keypad PIN, MIFARE RFID credential, fingerprint, Bluetooth eKey, or the mechanical key in the Euro cylinder. Remote unlocking, remote credential management and cloud activity records are added by pairing a McGrath Wi-Fi gateway (sold separately) - what changes when you add a gateway is a short read before you decide whether you need one.

Where the A236 earns its place is the mortice. The supplied body is a Euro mortice with dead-latching and a lift-lever deadbolt from the McGrath 85 Series - 1.5mm SS304 case, SS304 latch and deadbolt, tested to 500,000 cycles - and the same series is stocked in 28, 30, 45, 50, 60 and 70mm backsets, so the lock can be matched to an existing door preparation rather than the door re-cut to suit the lock. Terry's Locksmiths stocks the A236 for residential, light-commercial and office entry doors across the Gold Coast, and McGrath Locks is the brand we recommend most often for TTLock-platform installs.

Estimated Dispatch
Usually ships same day if ordered before 11am AEST (excludes weekends and Queensland public holidays).

Looking at other slimline smart lock options?
If the A236 does not suit your door profile, the whole narrow-frame smart lock range is in one place. Within McGrath: the A210 (43mm body, hinged doors), the A210 Double-Sided (keypad on both faces), the A231 (31mm, the slimmest, lever or hex handle) and the A231 with Hook Bolt for sliding doors. Outside McGrath, the Vault Phantom is a lower-priced slimline lever-or-knob option on the same TTLock platform. Not sure which body will fit? The door type compatibility matrix and a free recommendation from our team will settle it.

Key Features

• 5-in-1 access - keypad PIN, MIFARE RFID card or tag, fingerprint, Bluetooth eKey and mechanical key override, with Wi-Fi remote access as an optional sixth layer via gateway. How the credential types compare is in Chapter 03; the authentication stack in Chapter 01 explains why a key override still matters on a smart lock.
• 36mm slimline body - McGrath describes it as perfect for narrow stiles, and it is: the 36mm width clears the aluminium door stiles that stop most smart locks. Browse everything we stock for narrow-frame doors.
• Supplied 35mm backset Euro mortice (85mm pitch) - dead-latching SS304 latch and deadbolt in a 1.5mm SS304 case, 500,000-cycle tested, passes BHMA Level 2 and 3, lift the lever to throw the deadbolt manually. The full Euro 85 Series mortice specification sheet (PDF) shows every backset drawing. Standard Australian backset sizes explains why 35mm is the narrow-aluminium norm.
• Reversible mortice latch and standard Euro cylinder - the 85 Series latch reverses for left- or right-hand doors (how to determine your handing) and takes a standard Euro profile cylinder, so keyed-alike and keyed-to-differ override cylinders are a straight swap.
• Bluetooth management via the McGrath Locks App - a McGrath-branded build of TTLock, supported in Australia. Issue permanent, time-limited, one-time, cyclic, customised or erase passcodes and Bluetooth eKeys to family, tenants and trades - read the 24-hour activation rule before you hand a new code to a guest.
• Optional Wi-Fi remote access - pair a G5 dual-band Wi-Fi, G4 4G SIM or G3 PoE Ethernet gateway to unlock, issue and revoke credentials and view activity from anywhere - the four gateway generations compared. See the wider Wi-Fi capable smart lock range.
• Fingerprint recognition for up to 100 users - the fastest everyday method for family and staff. Enrolment technique matters on any fingerprint lock; the three-angle enrolment technique noticeably improves read reliability. More fingerprint smart locks.
• Passage mode - hold the door unlocked for business hours or a party, then return it to secure with a tap in the app. When to disable touch-to-unlock covers the related convenience settings.
• Anti-peep PIN entry and wrong-attempt lockout - pad a code with random digits either side so an onlooker cannot read it; repeated wrong entries lock the keypad out temporarily while the app and other credentials keep working. Standard on the TTLock platform.
• Activity records in the app - see who unlocked the door and when. Local records read over Bluetooth; add a gateway and they sync to the cloud in real time, which is what makes an audit trail useful for dispute resolution on rentals.
• USB-C emergency power - if the AAA batteries are ignored until flat, a power bank on the exterior USB-C port wakes the lock long enough to get in, and the Euro cylinder key works regardless - what to do when the battery dies.
• IP65 rated external module (outside face only) - dust-tight and protected against water jets for a sheltered entry. The interior module houses the battery compartment and is not weather rated - what the IP scale means, and for salt-air positions read coastal environments on the Gold Coast.
• 100,000-cycle durability test on the lock body - what a cycle rating means for lifespan.
• Distributed by LSC, supported by Terry's - McGrath, LSC and Terry's Locksmiths form the supply chain behind every McGrath install, which matters more than any single feature when you ask what actually fails on electronic locks.

Access Methods

Five ways in, plus optional remote access. The app is available for iOS and Android (Android 4.3 / iOS 7.0 and later). Every method below is explained in plain English in Smart Lock Access Methods (Chapter 03).

Access Method	Availability	Notes
Keypad / PIN Code	Yes	Up to 250 codes, 4-9 digits (minimum 4 when set in the app); anti-peep entry. Six passcode types - see passcodes in the TTLock manual (PDF, page 24).
Fingerprint	Yes	Up to 100 enrolled fingerprints. Enrol each finger from three angles; wet or worn fingers are the usual failure mode.
RFID Card / Tag	Yes	13.56MHz MIFARE, up to 1,000 credentials - card, fob, wristband or sticker. Two tags in the box; cards can be revoked individually.
Bluetooth (App)	Yes	Bluetooth 5.0 BLE; unlimited eKeys via the McGrath Locks App - how eKeys work. Local control within roughly 10 metres, no internet needed. Adding the lock to the app (PDF, page 15).
Wi-Fi Remote Access	Optional	Requires a G3, G4 or G5 gateway (sold separately). Choosing the right gateway; on a 2.4GHz / 5GHz mesh network read about band steering first.
Mechanical Key	Yes	Standard Euro profile cylinder in the mortice, 2 keys supplied. What the override is for and where to keep the key (not inside the house). Spares: A236 key blank.
Face Recognition	Not Available	Not supported on this model.
Palm Recognition	Not Available	Not supported on this model.

Every A236 is an app-enabled smart lock out of the box. Without a gateway it is a smart lock, not a connected one - PIN, fingerprint, RFID and key all work with no internet at all, and what TTLock can do without Wi-Fi covers exactly how far that goes.

What's in the Box

Note: 4 x AAA alkaline batteries are not included - Terry's Locksmiths recommends Duracell, and the truth about smart lock battery life explains why brand matters. The Wi-Fi gateway is sold separately. Alternative 85 Series mortice backsets are available if the supplied 35mm body does not match your door preparation.

Suitable Uses

• Narrow-stile aluminium hinged doors where a full-width lock body will not fit - shopfronts, unit entries, framed glass doors. Measure the stile width and backset first; the door type compatibility matrix confirms aluminium doors are in scope.
• Timber and aluminium front doors in the 38mm to 55mm thickness range - check door thickness against that range before ordering.
• Retrofit onto an existing Euro mortice preparation - the 85 Series body is also sold in 28, 30, 45 and 50mm, 60mm and 70mm backsets, so a door already cut for a Euro lock usually needs no re-machining. Mortice versus bored cylindrical door prep explains the difference.
• Households wanting fingerprint and PIN entry for the family, with RFID tags for kids and Bluetooth eKeys for visitors and trades.
• Short-stay and rental properties on the TTLock platform - time-limited and one-time codes over Bluetooth, or add a gateway for PMS integration and remote check-in. Read how TTLock automation really works for Airbnb and which platform suits short-stay.
• Small offices, clinics and light-commercial entries where staff use fingerprint or RFID and management wants an activity record - TTLock attendance management is built in at no extra cost.
• Sliding doors: the purpose-built A231 with Hook Bolt is our first recommendation. McGrath also lists the A236 body as compatible with its Euro Hook Mortice - confirm your door with our team before ordering that configuration.
• Not suitable for: external pedestrian gates or fully exposed weather positions - the IP65 rating covers the external face only, not the internal battery unit (for a gate, see the exposed-gate smart lock range); fire doors (no fire test - the fire-rated McGrath models are the Windsor, Stafford, Hamilton and Bardon, see fire door smart locks). On a security screen door, check the screen-to-door clearance - it is the most common screen-door mistake.
• Prefer a keypad on a narrow aluminium door with no batteries at all? The mechanical digital Borg BL2702SCECP (28mm latch, key override, on-door code change) and Borg BL2002SC are the battery-free alternatives - what a mechanical digital lock is.

Available Finish Options

•
  Matt Black
  (This Product)
  STK MLA236
•
  Silver
  (This Product)
  STK MLA236

Matt Black and Silver are both supplied under this one listing (SKU STK MLA236) - select your finish at checkout. Finish selection does not affect functionality, compliance, or performance.

McGrath Slimline Range - Where the A236 Sits

Three slimline bodies share the same McGrath 85 Series Euro mortice, the same McGrath Locks App and the same 5-in-1 credential set. The differences that decide the purchase are body width, handle style and the door you are fitting.

Need a wider body for a standard timber door? The McGrath NX5 shares the 85 Series mortice option in a 65mm body with a large retrofit footprint. Comparing the A210 and A231 in more depth? Both pages carry their own slimline comparison tables, and Terry's writes up the whole brand in the McGrath brand profile.

Accessories and Spares

Everything below is confirmed to suit the A236 and stocked by Terry's. Mortice bodies are in the mortice locks for smart locks category, override cylinders under cylinders and barrels, blanks under keys and key blanks, credentials under RFID fobs, tags and cards and gateways under modules and Wi-Fi gateways.

Place the gateway within roughly 8 to 10 metres of the lock with as few walls as possible - gateway placement is the usual cause of a lock that "keeps dropping offline". The G-series is interchangeable across TTLock brands, so one gateway can serve a McGrath A236 and a Lockton or Vault lock on the same property.

Battery, Power and Backup Access

4 x AAA Alkaline - Approximately 12 Months
The A236 runs on four AAA alkaline batteries (not included) in the interior unit, operating between 4.5V and 9V. McGrath rates battery life at 12 months based on ten uses a day; a busy family door or an office entry will see less, and what really affects battery life explains why a stiff or misaligned door is the usual culprit rather than the lock. Terry's Locksmiths recommends Duracell and never mixing old and new cells. Like every battery-powered smart lock it is independent of mains power, so a power outage changes nothing at the door.

• Low-battery warning - the lock warns audibly when the battery pack drops below 4.8V, and the McGrath Locks App shows the battery level each time you connect. Change the batteries when warned; the power and battery FAQs cover what to expect.
• USB-C emergency power - a USB-C port on the exterior unit accepts a phone power bank. Plug in, wait a moment, then use your PIN or fingerprint as normal. It is temporary power to get in, not a charger - the batteries still need replacing.
• Mechanical key override - the Euro cylinder in the mortice accepts the two supplied keys at any time, batteries or not. Where the keyhole is, and why the spare key should live outside the house - a McGrath TTLock key safe on the same app is the tidy answer.
• Credentials survive a battery change - PINs, cards, fingerprints and eKeys are stored in the lock and the app, so swapping batteries does not mean re-enrolling anyone.

Wi-Fi Remote Access (Optional Gateway)

No Wi-Fi Built In - Add a McGrath G3, G4 or G5 Gateway
The A236 talks to your phone over Bluetooth 5.0 within roughly 10 metres. A gateway plugged in nearby bridges that Bluetooth link to your internet connection, and from then on you can unlock the door, issue or revoke codes and eKeys, and read the activity log from anywhere. What a gateway does and whether you actually need one are the two questions to settle first - many households never do.

• G5 Wi-Fi Gateway - dual-band 2.4GHz and 5GHz, our default recommendation for homes on a mesh or combined-band router because it sidesteps the band-steering problem.
• G4 Gateway - 2.4GHz Wi-Fi with a 4G SIM fallback for holiday homes and remote properties where the NBN is not reliable.
• G3 Ethernet Gateway - PoE or USB-C powered, wired only, for offices and IT-managed sites - G3 in Chapter 08.

If the internet drops, PIN, fingerprint, RFID, key and Bluetooth all keep working at the door - only the remote layer pauses (what happens when the internet goes down). A lock that keeps dropping offline is almost always a placement or 2.4GHz issue, not a fault. Gateway setup steps are in the TTLock manual, page 52 (PDF). The G-series works across TTLock brands, so one gateway can also serve a Vault or Lockton lock on the same property.

McGrath A236 - Technical Specifications

Dimensions

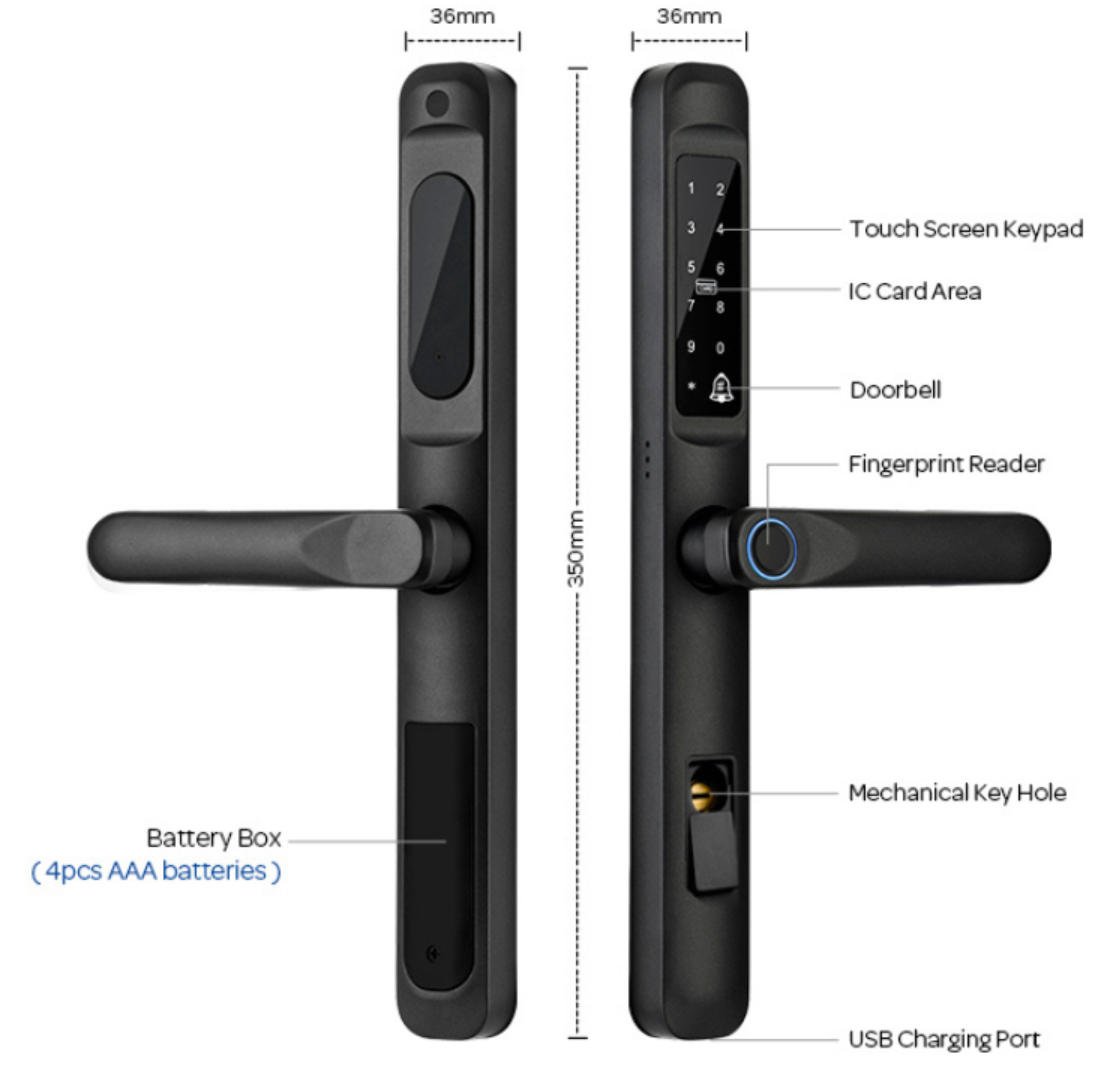

All dimensions are in millimetres. The first drawing is the McGrath annotated view of the slimline lock body; the second is the Euro 85 Series mortice engineering drawing covering every backset McGrath makes. Full-width versions are in the Dimensions tab.

McGrath's annotated drawing of the exterior and interior units. The exterior carries the touch keypad, RFID card area and fingerprint reader; the interior carries the AAA battery box, mechanical key hole and USB-C port. McGrath's technical sheet gives the case as 320mm high, 36mm wide and 24.3mm deep, with a 58.5mm outside handle projection.

Euro 85 Series mortice bodies - 240mm faceplate, 22mm faceplate width and 85mm centres on every variant; overall case widths 43, 45, 51.5, 61.5, 66.5, 76.5 and 86.5mm for the 28, 30, 35, 45, 50, 60 and 70mm backsets. The A236 ships with the 35mm body (51.5mm overall). Measure your backset before ordering an alternative.

Frequently Asked Questions

Will the A236 fit my narrow aluminium door?
Very likely, if the stile is 50mm or wider and the door is 38mm to 55mm thick. The lock body is 36mm wide and the supplied Euro mortice has a 35mm backset with 85mm centres. Measure three things before ordering: stile width, backset and door thickness. If the stile is under 50mm, the 31mm A231 is the better fit; if you are unsure, send us a photo of the existing lock.

Does the A236 have built-in Wi-Fi?
No. Bluetooth is built in for local app control; remote unlocking, remote code management and cloud activity records need a G5, G4 or G3 gateway, sold separately. For most families the lock is complete without one; Bluetooth-only versus gateway lays out exactly what changes, and G2 vs G5 - gateway choice explains why we steer most homes to the G5.

My door already has a Euro mortice with a different backset - can I still use the A236?
Usually yes. The A236 body works with any McGrath 85 Series swing mortice, so if your existing prep is cut for a 28, 30, 45, 50, 60 or 70mm backset you order the matching body from the accessories list instead of re-machining the door. The two things that must match are the 85mm pitch and the 240mm x 22mm faceplate - backset and smart locks covers the checks, and the mortice lever and escutcheon measuring card shows where to take them.

What happens if the batteries go flat?
You will be warned first - an audible alert at the lock below 4.8V and a battery reading in the app. If they do run flat, hold a phone power bank to the USB-C port on the outside unit and use your PIN or fingerprint, or use one of the two mechanical keys in the Euro cylinder. Neither wipes any codes or fingerprints. What to do when the battery dies walks through it, and a key hider or key safe outside means the spare key is there when you need it.

The lock is installed but will not lock - what is wrong?
On a slimline mortice lock this is almost always spindle position, the wrong backset body, or door prep and alignment rather than a faulty lock - the three DIY mistakes are handle still opens when locked, wrong hardware or backset and poor door preparation. Also check the lock is not still in passage mode from setup. Ch 12's symptom-to-fix table covers the rest, and Terry's installs across the Gold Coast if you would rather not.

Additional Information

• Set the lock up in the app before you do anything else. A new TTLock-platform lock sits in an always-open state until batteries are fitted and an administrator is set in the McGrath Locks App - that is why a freshly fitted lock "won't lock". Add the lock over Bluetooth first (manual page 15), then enrol fingerprints and cards. Pick the app up from the TTLock App User Manual page.
• New PIN codes and the 24-hour rule. A permanent passcode created in the app must be used at the keypad within 24 hours or it lapses - the single most common TTLock support call. How to stop codes expiring and the activation window for each passcode type are worth two minutes before you hand a code to a tenant or cleaner.
• Bluetooth-only installs drift. Without a gateway the lock's clock is only corrected when a phone connects, and a drifted clock makes time-limited codes fail at the keypad. Calibrating without a gateway (manual page 17) takes seconds; a gateway does it automatically.
• Coastal and sheltered positions. The IP65 rating is for the outside unit and means dust-tight with protection against water jets - a covered entry, not a fully exposed door. Salt air is a separate question from rain: read coastal Queensland is not gentle and Queensland-specific considerations, and rinse and wipe the exterior periodically if you are near the beach.
• Selling or re-letting the property? Transfer the lock to the new owner in the app rather than factory-resetting it - the five-step handover checklist and the erase code (manual page 48) cover it. Keyed-alike sites should also change the override cylinder.

Warranty

Warranty
12-month warranty against defects in materials and workmanship (24-month on ALBION, ASCOT, ASHGROVE, BARDON, GRANGE, HAMILTON, KEDRON, MANLY, SANDGATE, STAFFORD, ULTRA SECUA and WINDSOR models). McGrath Locks will repair, replace, or refund at their discretion. Proof of purchase required for all claims. Returns & Warranty | McGrath Locks Warranty

Download PDF Resources

McGrath A236 Technical Specifications (PDF)
McGrath's current two-page specification sheet: cover with both finishes, then the full technical table - 38-55mm door thickness, 320 x 36 x 24.3mm case, 58.5mm handle projection, credential capacities, power figures, operating environment and the 12-month warranty. The spec table is on page 2.

McGrath A236 Product Data Sheet - 2023 (PDF)
McGrath's earlier one-page marketing sheet: unlock-method icons, product overview and an ML-A236 data list. Superseded on specifications by the Technical Specifications sheet above; useful for its passage-mode and mortice-compatibility notes.

Euro 85 Series Mortice Lock - Specifications (PDF)
The McGrath 85 Series swing mortice family supplied with the A236: SS304 construction, 500,000-cycle rating, BHMA Level 2 and 3, part numbers and dimension drawings for every backset from 28mm to 70mm. Read with how to measure your backset.

TTLock App User Manual (PDF)
The 56-page platform manual behind the McGrath Locks App - registration, adding a lock (page 15), passcode types (page 24), IC cards (page 32), fingerprints (page 34), transferring a lock (page 48) and gateways (page 52). Generic TTLock edition; the McGrath app shares the same menus. Also hosted on our TTLock App User Manual page.

App Platform & Data Hosting
The McGrath Locks mobile app is a customised, McGrath-branded platform tailored specifically for the McGrath Locks product range. The app is managed, supported and distributed locally by McGrath Locks in Australia. Australian-based support staff handle warranty claims, app troubleshooting and platform queries - you are not dealing with an overseas vendor. The underlying cloud infrastructure is provided by TTLock, a globally deployed IoT platform.

Long-Term Support & Confidence
McGrath smart locks are backed by long-established industry partners and supported locally. To learn more, read Why Terry's Locksmiths, LSC & McGrath Locks Give Long-Term Confidence - in particular why longevity matters more than features and warranty as a confidence signal.
