Auslock Ultra Slim S31B — Smart Lock for Sliding Doors
The Auslock Ultra Slim S31B is the only model in the Auslock range built from SS304 stainless steel and rated to IP66 — making it the right choice for sliding doors where weather exposure, condensation, or coastal salt-air would degrade an aluminium panel over time. With a 280 mm × 38 mm panel, it is the slimmest profile in the range and fits narrow aluminium door stiles that cannot accommodate wider escutcheons. Confirm your longplate mortice door preparation before ordering.
The S31B provides five access methods — fingerprint, PIN code, RFID card, Bluetooth app, and mechanical key — managed via the Auslock App. Remote access, voice control, and real-time notifications are available via the optional G2 or G3 Gateway. The door type compatibility matrix covers which smart locks suit which door types. Available in Silver, Black, Gold, Grey, and White. For the hinged door version, see the S31B Hinged Door.
Sliding doors require specialised mortice configurations. If this product isn't right for your door, explore our smart locks for sliding doors.
In-stock orders typically dispatch within 1–2 business days from our Gold Coast warehouse.
Key Features
- SS304 stainless steel construction — every external component: body panels, battery cover, and cylinder cover plate. The only stainless steel model in the Auslock range; all others use aluminium or zinc alloy
- IP66 rated — dust-tight and protected against powerful water jets; the only Auslock model rated for direct outdoor exposure. See corrosion resistance grades
- Ultra-slim 38 mm panel — fits narrow aluminium door stiles from ~38 mm wide
- Hook mortice for sliding doors — rotating hook engages a frame catch when the sliding door closes; provides positive latching that resists forced entry and lever-over attacks that a standard latch bolt cannot match on a sliding door
- Fingerprint sensor — up to 200; permanent or timed. Keep sensor dry for outdoor use
- PIN code — up to 150; permanent, timed, one-time, custom, or recurring. Permanent codes must be used within 24 hours of creation
- RFID card/tag access — up to 200 cards; 3 RFID tags included
- Widest temperature range in the Auslock range — −30 °C to 60 °C
- Suits aluminium, timber, and UPVC sliding doors; 35–75 mm door thickness
- Field-reversible lever handle — independently adjustable on both panels. The panel arrow must point the same direction as the handle after adjustment — see FAQ
- USB emergency power port — connect a power bank if batteries are flat
- 4 × AA alkaline batteries — not included; low-battery alert below 4.5 V
- 5 finishes — Silver, Black, Gold, Grey, White
SS304 stainless steel and IP66 are the strongest specifications in the Auslock range for resisting salt-air, moisture, and direct rain on the exterior panel. For sheltered exterior sliding doors (interior face protected) this is the correct model. See coastal installation realities and corrosion resistance grades.
Available Finish Options
Silver
STK AUSS31B-Slider
Black
STK AUSS31B-Slider
Gold
STK AUSS31B-Slider
Grey
STK AUSS31B-Slider
White
STK AUSS31B-Slider
All five finishes on this listing. Finish selection does not affect functionality, compliance, or performance.
Sliding vs Hinged Mortice — Which Version Do I Need?
The S31B uses the same panel hardware for both door types — the distinction is in the mortice body supplied. A sliding door uses a hook mortice: when the sliding door closes, a rotating hook engages a catch in the door frame, providing positive latching that resists forced entry and lever-over attacks that a standard latch bolt cannot match on a sliding door. The hook bolt throw secures the door against lateral force. A hinged door uses a different body — see the S31B Hinged Door for the latch/bolt mortice variant.
Mortice — Hook Type (Sliding Door)
The S31B for sliding doors ships with a hook mortice — specifically designed for sliding door applications. When the sliding door closes, the rotating hook engages a catch in the door frame, providing positive latching and resistance to forced entry that a standard latch bolt cannot achieve on a sliding door. The hook bolt throw secures the door against lateral force. Available in 28 mm and 35 mm backset sizes; custom sizes available on request. Confirm your sliding door frame backset by measuring your backset before ordering.
| Specification | Detail |
|---|---|
| Material | Premium stainless steel |
| Backset options | 28 mm, 35 mm; custom sizes on request — contact us before ordering |
| Mechanism | Rotating hook — positive latching engagement for sliding doors |
| Designed for | Auslock Ultra Slim S31B sliding door installations only |
Auslock S31B Slim Series — Hinged vs Sliding
| Version | SKU | Mortice type | Door type | Backset options |
|---|---|---|---|---|
| S31B Hinged Door | STK AUSS31B-Hinged | Latch/bolt mortice | Hinged swing doors | 28–76.5 mm (6 options) |
| S31B Sliding Door (This Product) | STK AUSS31B-Slider | Hook mortice | Sliding doors | 28 mm or 35 mm (custom available) |
Panel hardware, access methods, finishes, app platform, and all other specifications are identical between the two versions. The only difference is the mortice body supplied.
Access Methods
| Method | How It Works | Gateway Required? |
|---|---|---|
 Fingerprint |
Touch sensor — up to 200; permanent or timed. Fingerprint tips. Keep sensor dry for outdoor use. | No |
PIN Code |
4–8 digits + # — up to 150; permanent, timed, one-time, recurring. See PIN guidance. Permanent codes must be used within 24 hours. | No |
 RFID Card / Tag |
Tap card or fob — up to 200; 3 RFID tags included; permanent, timed, or recurring. | No |
 Bluetooth App |
Auslock App (iOS and Android) — within ~5 m; share e-keys, view history. | No |
 Remote App (Wi-Fi) |
Lock/unlock from anywhere; real-time notifications; remote credential management. | Yes — G2 or G3 (sold separately) |
 Backup Key |
Mechanical override — 2 keys included; keep one outside the premises. | No |

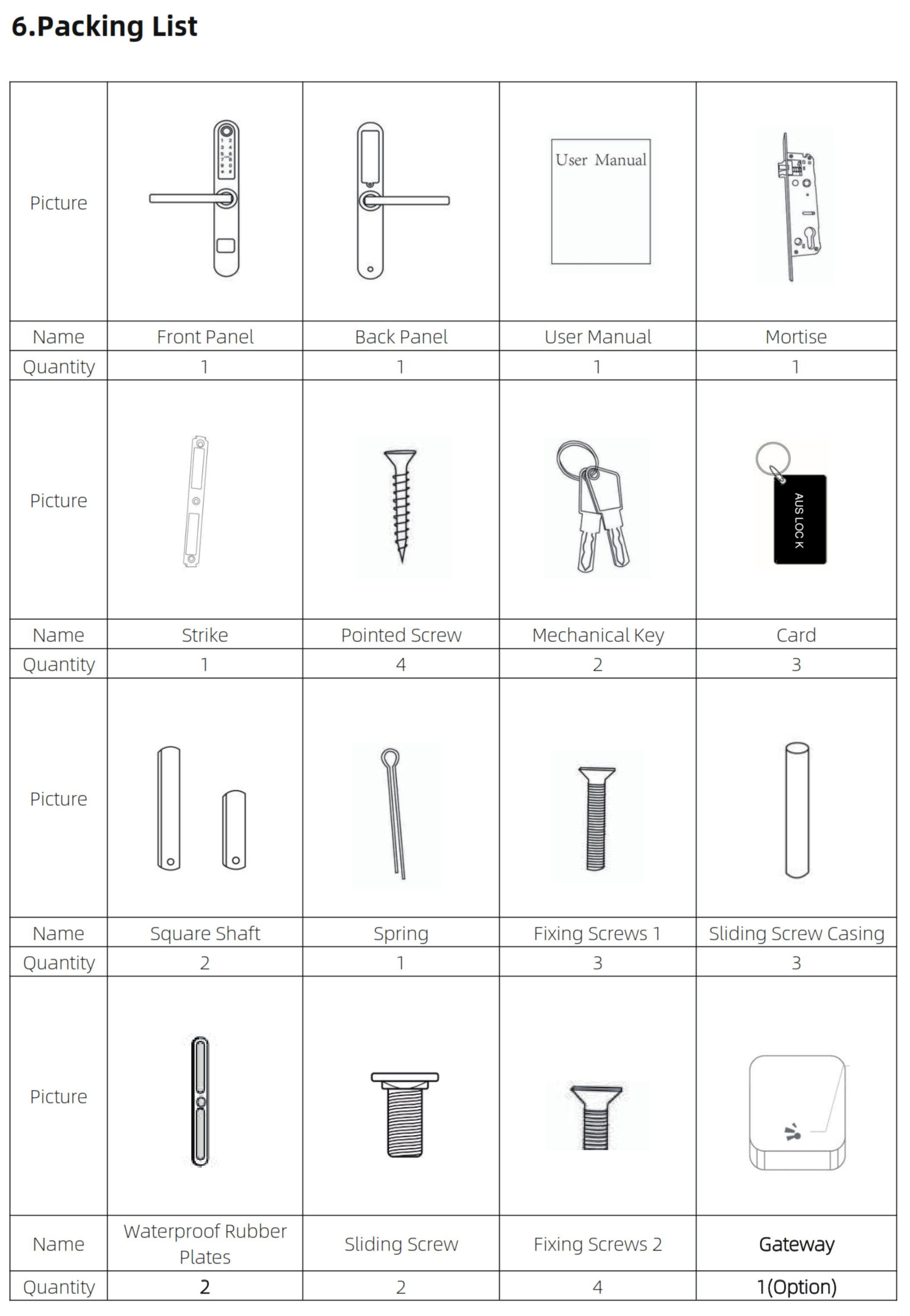

What's in the Box
- Front panel assembly (touch keypad with fingerprint sensor) ×1
- Back panel assembly (interior, with battery compartment) ×1
- Mortice lock body (hook — sliding door) ×1
- Strike plate ×1; waterproof rubber plates ×2
- RFID key tags ×3; mechanical override keys ×2
- Square shafts ×2; spring ×1
- Sliding screws ×2; sliding screw casings ×3
- Fixing screws 1 ×3; fixing screws 2 ×4; pointed screws ×4
- User manual
Suitable Uses
Full Specifications
| Specification | Detail |
|---|---|
| Model | Auslock Ultra Slim S31B — Sliding Door |
| SKU | STK AUSS31B-Slider |
| Lock type | Mortice smart lock — hook mortice for sliding doors |
| Material | SS304 stainless steel (all exterior components) |
| Finishes | Silver, Black, Gold, Grey, White (all on this listing) |
| Panel dimensions | 280 mm H × 38 mm W × 25 mm D |
| Overall width (with handle) | 134 mm |
| Hook mortice backset | 28 mm or 35 mm; custom available. How to measure your backset. |
| Door thickness | 35–75 mm. See door thickness guide. |
| Suitable door types | Aluminium, timber, UPVC — sliding doors. See door type compatibility guide. |
| IP rating | IP66 (external panel) — dust-tight; jet water. See IP ratings explained. |
| Stile width | 38 mm panel fits stiles from ~38 mm wide |
| Lock weight | 2.5 kg |
| Fingerprint capacity | Up to 200 |
| PIN capacity | Up to 150 |
| RFID card capacity | Up to 200 |
| Connectivity | Bluetooth (local); Wi-Fi via Auslock G2 or G3 Gateway (sold separately, 2.4 GHz) |
| App platform | Auslock App (iOS and Android) — not TTLock, not Tuya |
| Voice control | Google Assistant, Amazon Alexa (requires gateway) |
| Power | 4 × AA alkaline (not included); low-battery alert below 4.5 V; alkaline only |
| Emergency power | USB port on front panel — connect a power bank if batteries flat |
| Operating temperature | −30 °C to 60 °C — widest range in Auslock range |
| Operating humidity | 20–90% |
| Reset procedure | Hold Reset button (battery compartment) 5 s, then enter 000# on keypad |
| Fire rating | None |
| Warranty | 12 months |
Dimensions
Confirm your door's backset, door thickness, and stile width before ordering. For hook mortice backset, contact us to confirm 28 mm or 35 mm suits your sliding door frame.
Battery, Power & Backup
The S31B runs on 4 × AA alkaline batteries — not included. Alkaline only; lithium and rechargeable cells are not compatible. The low-battery alert fires below 4.5 V. For outdoor installations, battery drain accelerates in cold temperatures and high humidity. See what to expect from battery life in practice and Chapter 13 — battery FAQ.
Connect a USB power bank to the front panel port if batteries are fully flat — temporarily powers the lock for PIN or fingerprint entry; does not charge batteries. Keep a power bank accessible outside for this scenario.
Remote App Access & Gateway
The S31B connects to the Auslock App via Bluetooth for local control. For remote access, real-time notifications, and voice control, an Auslock Gateway is required. See do you need a gateway?
Auslock App
The S31B uses the Auslock App, available on iOS and Android. This is Auslock's own proprietary platform — not TTLock, not Tuya. Remote access requires an Auslock G2 or G3 Gateway.
Frequently Asked Questions
The external panel is IP66-rated and SS304 stainless steel — it handles direct rain, jet water, salt-air, and condensation on the exterior face. The IP66 rating applies to the external panel only. The interior unit (batteries) is not IP-rated. Not suitable for external pedestrian gates where the interior face is also exposed to weather. The McGrath Ascot is the only battery-operated digital smart lock in Terry's range confirmed for external gate use. See IP ratings explained, corrosion grades, and coastal installation realities.
Loosen the inner hexagon screw on the front panel counter-clockwise, remove the handle, reinsert in the correct position for your door handing, then retighten. Repeat on the back panel independently. Critical: the arrow moulded into the panel face MUST point in the same direction as the handle after adjustment. If misaligned, the motor will drive the hook in the wrong direction. See Chapter 12 — misalignment errors.
Permanent passcodes must be tested within 24 hours of creation, otherwise they auto-expire. Create the code, test it immediately, and it will remain active indefinitely.
Wet fingers, condensation on the sensor, and low battery voltage all degrade outdoor recognition. Keep the sensor clean and dry; wipe with a dry cloth before use. Delete and re-enrol at 2–3 different angles. Replace batteries. See fingerprint access tips.
Confirm AA batteries are inserted with correct polarity. Check the wire connection between front and back panels. Inspect the cable for kinks. See DIY install mistake 1 and mistake 2.
Additional Information
Register via the Auslock App while beside the lock; 4 scan presentations required; enrol at 2–3 angles. For outdoor installs, register after the lock reaches ambient temperature. Monitor recognition — if it degrades, check battery voltage and sensor cleanliness. See Chapter 03 — fingerprint access.
The S31B's 38 mm panel is narrower than any other Auslock model. Measure your door stile width before ordering. The screen door clearance guide covers the same measurement for security screen installations.
Confirm your door prep format before ordering. Apply lubricant to all mechanical moving parts at installation. Read the common DIY install mistakes before starting. See Chapter 12 — DIY suitability guide.
IP66 and SS304 address water ingress and corrosion, but electronic locks are not set-and-forget outdoors. Battery drain accelerates in cold. Keypad surfaces accumulate salt and grime. Fingerprint sensors degrade with moisture. Read the realistic maintenance expectation before installing outdoors. See how coastal conditions affect smart lock lifespan.
Warranty
12 months from date of sale covering defects in materials and electronic components under normal residential use. Does not cover misuse, improper installation, or vandalism. Terry's Locksmiths manages all Auslock warranty claims — contact us first and we'll handle it from there. This warranty operates alongside your rights under Australian Consumer Law.
PDF Downloads
Auslock Ultra Slim S31B User Manual (PDF)
Auslock App User Manual (PDF)
Auslock Alexa Setup Guide (PDF)
Auslock Google Home Setup Guide (PDF)
Auslock 2026 Product Catalogue (PDF)
For all resources visit the Auslock PDF Resources page.
What's in the Box — Auslock Ultra Slim S31B (Sliding Door)
- Front panel assembly (touch keypad with fingerprint sensor) ×1
- Back panel assembly (interior, with battery compartment) ×1
- Mortice lock body (hook — sliding door) ×1
- Strike plate ×1; waterproof rubber plates ×2
- RFID key tags ×3; mechanical override keys ×2
- Square shafts ×2; spring ×1
- Sliding screws ×2; sliding screw casings ×3; fixing screws 1 ×3; fixing screws 2 ×4; pointed screws ×4
- User manual
Auslock Ultra Slim S31B — Dimensions (Sliding Door)
Auslock Ultra Slim S31B — User Manual
Auslock Warranty
All Auslock products purchased through Terry's Tradies Pty Ltd (trading as Terry's Gold Coast Smart Locks and its associated websites and subsidiaries) are backed by a 12-month limited manufacturer's warranty. If something isn't right, contact us first — we manage all warranty assessments on your behalf and will work with you to get it resolved.
Warranty Summary
How to Make a Claim
- Contact Terry's Tradies Pty Ltd at your original place of purchase with a description of the fault.
- Have your proof of purchase ready (receipt or order confirmation).
- Provide clear photos and/or video of the defect — this is required before any assessment can begin.
- We may ask you to complete troubleshooting steps or a technical support form before the item is returned. Do not send the product back without our written approval.
- If the claim is approved, we will arrange the next steps with you directly — including return freight where applicable.
What the Warranty Doesn't Cover
The following are not covered under the Auslock manufacturer's warranty:
- Incorrect or improper installation
- Door or frame misalignment
- Incorrect mortise, latch, or backset selection
- Installation on doors outside the product's specifications
- Environmental exposure beyond the product's stated IP rating
- Water ingress not consistent with the product's IP rating
- Power surge, fire, flood, lightning, or other natural disaster
- Cosmetic damage or normal wear and tear
- Battery misuse or leakage
- Forced entry, vandalism, or tampering
- Unauthorised modification
- Use of non-Auslock components
- Commercial or high-traffic use (unless approved in writing)
Rechargeable battery products (Models A01, A02, A03, A519, A619): Battery-related damage is excluded where a non-certified charger, fast charger, incorrect voltage (outside 5.2V / 2A), third-party battery, or unsuitable charging environment has been used.
Change-of-Mind Returns
Change-of-mind returns are accepted at our discretion and subject to the manufacturer's return conditions. If you've changed your mind, contact us within 14 days of receiving your order and we'll let you know if a return is possible and what applies.
To be eligible, products must be:
- Unused and uninstalled
- Not powered on, activated, paired, programmed, or configured in any way
- In original, fully sealed condition with all packaging, accessories, and components
Where a return is approved, a 20% restocking fee applies and return shipping is at your cost. Products that have been installed, powered on, or had any credentials registered are not eligible for return.
