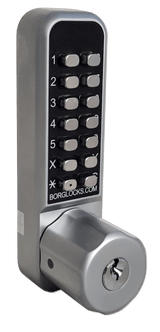

Borg BL2701SCECP Mechanical Digital Lock - Easicode Pro - Key Override - Satin Chrome
At A Glance
The Borg BL2701SCECP is a fully mechanical digital lock from the Borg BL2700 ECP series - Borg's direct upgrade to the standard BL2000 ECP series, with a key override cylinder built into the keypad itself rather than needing a separate lockcase fitted. No batteries, no mains power and no electronics are involved anywhere in the mechanism - every function is driven by the physical action of the keypad buttons. The lock accepts a single PIN code selected from over 4,000 possible combinations, with Borg's Easicode Pro system giving on-door code changing without tools or removing the lock, in around 10 seconds.
The BL2701SCECP includes a Silca YA5 6-pin mechanical key override cylinder as standard, giving keyway backup entry when needed. The body is finished in satin chrome, uses a standard 60mm backset (50mm/70mm also offered across the wider BL2700 ECP range), and is reversible for left-hand or right-hand door installation. A removable holdback function is included, letting the inside handle be held open where free passage is required.
Cycle tested to 50,000 operations, the BL2701SCECP is rated for internal light to medium use - residential entry doors, office access points, secure storage rooms, and similar low-traffic applications. It is one of six models in the Borg BL2700/BL2000 ECP family - if your door has a narrow stile or aluminium frame that a standard 60mm lock will not fit, see the short-backset BL2702SCECP instead.
Usually ships same day if ordered before 11am AEST (excludes weekends and Queensland public holidays).
Every function - keypad entry, code change, key override - is driven by the physical action of the keypad and key. There is nothing to charge, no batteries to replace, and no electronics to fail.
The access code is changed directly on the installed lock in around 10 seconds, using the dedicated code-change button and supplied block pin - no tools, no lock removal, no programming device. See our guide on changing codes on Borg Easicode Pro locks, or read more on what MG Pro and ECP actually mean on a Borg lock.
Supplied with a Silca YA5 6-pin key override cylinder and 2 keys. Keyed-alike ordering is available across multiple BL2701SCECP units, so one key operates every lock on the order - contact us when placing your order to specify keyed-alike. If a master keyed or restricted key profile is needed for site keying, confirm YA5-compatible cylinder availability with us before ordering.
The BL2701SCECP is built for internal residential and light commercial doors. For high-traffic commercial or heavy-duty applications, consider the Lockwood 3572DX, Borg BL7701 Heavy Duty, or Carbine CDL7100SC-HD. See our guide on heavy duty commercial mechanical digital locks for the full comparison.
Key Features
- Fully mechanical operation - no batteries, electronics, or mains power required.
- Easicode Pro on-door code change - the code is updated while the lock stays installed, no tools required.
- Silca YA5 6-pin key override cylinder and 2 keys included as standard.
- Over 4,000 unique PIN code combinations - single active code at any time.
- 14-button keypad: 12 coded buttons, 1 clear button, and 1 dedicated Easicode Pro code-change button.
- Anti-thrust deadlocking latch - automatically deadlocks when the door closes, resisting forced latch retraction.
- Fixed 60mm backset; 12.5mm latch projection.
- Free-turning inside knob - always allows immediate egress without entering a code.
- Code change block pin included - can be fitted to disable the external code-change function entirely.
- Removable holdback function - inside handle can be held open for free passage.
- Reversible for left-hand or right-hand door installation.
- Cycle tested to 50,000 operations.
- Cast housing and knob construction with stainless steel buttons; satin chrome finish.
- Suits internal doors up to 60mm thick on standard fixings, or up to 85mm with the XL fixing kit (Part No. S227).
- Backed by Borg's 12-month warranty, alongside your rights under Australian Consumer Law.
Access Methods
What's in the Box
- 1 x BL2701 mechanical digital keypad assembly (external)
- 1 x inside knob assembly with holdback paddle handle
- 1 x Silca YA5 6-pin key override cylinder
- 2 x keys for key override cylinder
- 1 x 60mm deadlocking tubular latch assembly
- 1 x strike plate
- 1 x Easicode Pro on-door code change mechanism
- 1 x code change block pin (used during code change; can also disable external code change function)
- 1 x set of fixings, including one 120mm sprung spindle
- 1 x installation instructions
Suitable Uses
- Internal residential doors needing PIN access control without electrical infrastructure
- Internal office doors and meeting rooms needing restricted access
- Secure storage rooms, server rooms, and utility areas
- Strata and apartment doors where battery maintenance is impractical
- Rental properties where codes must be changed on-site between tenancies
- Light commercial access points needing a backup mechanical key override
Available Finish Options
Finish selection does not affect functionality, compliance, or performance. The Marine Grade Pro Black variant is a separate listing (BL2701MGPRO) with an upgraded marine-grade coating and 316 stainless internals - note it changes code On The Bench rather than with Easicode Pro - see Item Code Family.
BL2000 / BL2700 Series - Item Code Family
All models below share the 2000-platform keypad. They differ in code change (Easicode Pro on the door, or On The Bench), latch/bolt type, key override and holdback.
Looking at a gate rather than a door? See the purpose-built Digital Mechanical Locks range, including Borg's dedicated gate lock series.
Accessories and Spares
No separate spare external keypad unit is currently catalogued for the BL2701SCECP - the closest replacement path is the complete external keypad assembly. Contact us if you need a keypad-only spare and we will confirm current availability.
Full Specifications
Dimensions
Frequently Asked Questions
No. The BL2701SCECP is a fully mechanical digital lock. All internal mechanisms are driven by the physical action of the keypad buttons - no electricity, batteries, or wiring are involved at any point. For a broader overview of how battery-free Borg locks sit within the smart lock category, see Lockwood vs Borg vs Carbine.
The code is changed directly on the installed lock using the dedicated Easicode Pro button and the supplied code change block pin - the process takes around 10 seconds and does not require removing the lock or using specialist tools. Full step-by-step instructions are in the BL2000 ECP Easicode Pro Installation Instructions, or see our guide on changing codes on Borg Easicode Pro locks.
Keyed alike, yes - ordering is available across multiple BL2701SCECP units, so a single key operates every lock on the order; specify this when placing your order. For a master keyed or restricted profile, the supplied Silca YA5 6-pin cylinder needs a YA5-compatible replacement - confirm availability with us before ordering, since not every cylinder fits without modification.
Yes. Unlike the short-backset BL2702SCECP's handed 28mm ali-latch, the BL2701SCECP's standard 60mm tubular latch is a drop-in reversible design - no LH/RH ordering is needed.
No. The BL2700 ECP series is rated for internal light to medium duty use only - it is not designed for prolonged external weathering, coastal salt air, or high-humidity environments. For external or coastal doors, look at the marine grade BL2701MGPRO (key override, On The Bench code change), or contact us for other weather-rated alternatives.
Additional Information
Easicode Pro is Borg's on-door code change system. Unlike Borg's On The Bench models, which come off the door for a code change, Easicode Pro lets the code be changed at any time while the lock stays installed, using the dedicated button and supplied block pin. This makes the lock well suited to rental and strata applications where tenant codes must be changed regularly. The same block pin can also be fitted permanently to disable the external code-change function - useful where the code must be locked down and only changeable by someone with physical access to the lock internals.
The Silca YA5 6-pin cylinder supplied with the BL2701SCECP is the same profile used across the BL2700 range. Keys can be duplicated at most locksmith workshops. If a restricted or master keyed profile is required, confirm YA5-compatible cylinder availability with us first. Duplicating or replacing cylinders is a job for a licensed locksmith; do not attempt to dismantle the cylinder housing, as this voids the warranty.
The BL2701 uses a deadlocking tubular latch with an anti-thrust pin. When the door closes fully, the latch bolt automatically deadlocks - preventing the bolt from being retracted by force using a card or flexible tool. For the deadlocking function to engage reliably, the strike plate must be correctly aligned and fully engaged with the latch bolt. See our guide on measuring your lock backset to confirm correct installation measurements before drilling.
Genuine Borg locks carry logged, traceable spare parts and documentation, unlike many hardware-store imitations. See our guide on why our mech-digi range beats hardware store imitations for the full comparison, covering retrofit kits, keypad-only spares, and scar plates.
Warranty
All Borg locks are warranted against mechanical defects in materials and workmanship under normal use and service for a minimum of 12 months from date of sale. The warranty does not cover damage arising from misuse, vandalism, or improper installation. The lock must not be dismantled - doing so will invalidate the warranty. Proof of purchase required for all claims.
Download PDF Resources
Series brochure covering the BL2701 ECP (single knob turn keypad) and BL2771 ECP (back-to-back keypads) - construction, buttons, finishes, fixings, cylinder, and full dimensions for both.
Installation and Easicode Pro code-change instructions for the BL2000/BL2700 ECP platform.
Overview of the full BL2000 ECP electronic-code-change range, including the BL2701/BL2702 key-override models and combination counts.
Wider BL2000-family overview leaflet (non-ECP base range) - useful background on the platform this ECP series is built on. It uses Borg's earlier model numbering.
Borg BL2701SCECP - FAQ, Setup and Owner's Guide
Everything below is specific to the BL2701SCECP. For the wider mechanical digital lock category, see our Mechanical Digital Locks Buyer's Guide chapter and the Changing Codes on Mechanical Digital Locks guide.
Fit and Compatibility
The BL2701SCECP has a fixed 60mm backset, matching the vast majority of Australian residential and commercial doors. Measure your existing latch backset before ordering - see our backset measuring guide. If your door only has around 25-30mm of clearance, the narrow-stile BL2702SCECP is the better fit instead.
Both share the same Easicode Pro keypad and 60mm tubular latch. The BL2201SCECP has holdback but no key override; the BL2701SCECP adds the Silca YA5 mechanical key override as a backup entry path, which the BL2201SCECP does not have. If you don't need a mechanical key backup, the BL2201SCECP is the simpler option. See Item Code Family for the full comparison.
Both have a key override and holdback. BL2701MGPRO uses Borg's Marine Grade Pro coating, 316 stainless internals and a stainless latch for coastal or exposed doors, but changes its code On The Bench rather than with Easicode Pro; this satin chrome BL2701SCECP suits internal residential and light commercial doors. See Item Code Family.
This listing is built and rated for internal residential and light-commercial doors, not gates - it carries no outdoor weather rating or gate-specific hardware. See our Digital Mechanical Locks range for Borg's dedicated gate lock series if you need one for a gate application.
Code, Keys and Servicing
Over 4,000 possible PIN combinations gives a far larger keyspace than the 3-4 digit codes on many consumer keypads, while Easicode Pro's on-door change means the active code can be rotated in seconds whenever tenants or staff change. Combined with the Silca YA5 key override as a mechanical fallback, this is standard commercial-grade practice for a light-duty internal keypad lock.
Not as a discrete keypad-only SKU at this time - see Accessories and Spares for what is currently catalogued (spare latches, code pieces, gasket, scar plate and spindles). If your external keypad assembly needs replacing, contact us and we will confirm current availability rather than guess.
The holdback mechanism is fully removable. When activated it holds the inside handle open so occupants can pass freely without operating the handle on each entry or exit. If holdback is not required for your installation, the mechanism can be removed - instructions are included in the product documentation.
With both credentials lost, entry requires a locksmith to pick or drill the lock - there is no factory backdoor or reset code. Keeping the key override cylinder and a written code record in a safe place avoids this scenario.
Related Products, Guides and Chapters
- Borg BL2201SCECP - the same Easicode Pro knob keypad with holdback, without key override
- Borg BL2701MGPRO - marine grade key override lock for external doors (On The Bench code change)
- Borg BL2702SCECP - key override and Easicode Pro with the 28mm narrow stile latch
- Borg BL2901SCECP - anti-ligature Easicode Pro knob keypad
- Borg BL7701 - heavy duty lever lock with key override and Easicode Pro
- Mechanical Digital Locks - Buyer's Guide Chapter 16
- Changing Codes on Mechanical Digital Locks
- MG Pro and ECP Explained
- Measuring Your Lock Backset
What's in the Box - BL2701SCECP
- 1 x BL2701 mechanical digital keypad assembly (external)
- 1 x inside knob assembly with holdback paddle handle
- 1 x Silca YA5 6-pin key override cylinder
- 2 x keys for key override cylinder
- 1 x 60mm deadlocking tubular latch assembly
- 1 x strike plate
- 1 x Easicode Pro on-door code change mechanism
- 1 x code change block pin (used during code change; can also disable external code change function)
- 1 x set of fixings, including one 120mm sprung spindle
- 1 x installation instructions
Borg BL2701SCECP - Dimensions
Borg BL2700 ECP Non-Marine-Grade Brochure - BL2701ECP / BL2771ECP
PDF Files - BL2701SCECP
Series brochure covering the BL2701 ECP (single knob turn keypad) and BL2771 ECP (back-to-back keypads) - construction, buttons, finishes, fixings, cylinder, and full dimensions for both.
Installation and Easicode Pro code-change instructions for the BL2000/BL2700 ECP platform.
Overview of the full BL2000 ECP electronic-code-change range, including the BL2701/BL2702 key-override models and combination counts.
Wider BL2000-family overview leaflet (non-ECP base range) - useful background on the platform this ECP series is built on.
Borg Locks Warranty
Borg products sold in Australia are covered against mechanical defects in materials and workmanship under normal use and service. Warranty claims are handled by Terry's Tradies Pty Ltd and its associated websites, trading names, and subsidiaries.
Warranty Summary
What the Warranty Covers
- Mechanical defects in materials and workmanship
- Defects arising under normal use and service conditions
- Repair or replacement of defective units at the discretion of the Australian distributor (LSC)
What the Warranty Does Not Cover
- Damage arising from misuse, vandalism, or abuse
- Damage resulting from improper installation
- Locks that have been dismantled - dismantling invalidates the warranty
- Normal wear and tear
- Cosmetic damage not affecting function
How to Make a Claim
- Contact Terry's Tradies Pty Ltd first if you purchased through us or one of its associated trading names - we will assess the issue and manage the warranty process with LSC on your behalf. You do not need to contact LSC or Borg Locks UK directly.
- Have your proof of purchase ready (receipt or order confirmation).
- Warranty claims for Borg products in Australia are processed through LSC, the authorised Australian importer and distributor. Where an item is returned to LSC, freight charges must be prepaid and the item returned within the warranty period.
- If LSC finds the returned item to be defective, it will be repaired or replaced, and a detailed assessment report is provided to the customer after examination.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The Borg manufacturer warranty above operates alongside - and does not limit - these statutory rights.
