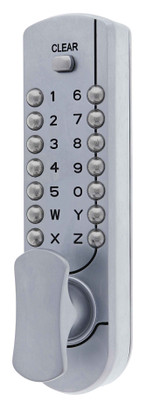

Carbine CDL7100-HBSC-HD Mechanical Digital Lock - Heavy Duty Knob / BCA Lever with Holdback
At A GlanceAt A Glance
PIN Code - Outside
Free Lever - Inside
Holdback - Free Passage
Key OverrideNot Available
The Carbine CDL7100-HBSC-HD is the holdback variant of the CDL7100 Heavy Duty mechanical digital lockset. It shares every specification and certification with the standard CDL7100SC-HD, and adds one genuinely useful function: a holdback button on the internal lever. Press it while turning the lever and the latch retracts and stays retracted - the door swings freely with no code needed - until you operate the lever again to release it. If mechanical digital locks are new to you, our guide to how a battery-free keypad lock works covers the coding chamber behind the buttons.
That makes this the pick for doors that live in two modes: code-controlled most of the day, held open for bursts of heavy traffic - loading docks during deliveries, reception entries at opening time, staff corridors at shift change. Our holdback mode explainer walks through exactly when this function earns its keep against the standard model.
Being a CDL7 HD series lock, it runs stainless steel cryptographic elements, exceeds 100,000 tested cycle openings, and is salt spray tested to 240 hours (C7 High) - the build detail our heavy duty commercial guide unpacks. The external face is a large easy-grip knob with ball bearing-style push buttons; the 58.75mm body covers NK2000 and Lockwood 530 fixing holes for clean retrofits. This variant ships in 60mm backset. It sits within the wider Digital Mechanical Locks range, with the CDL7 context in the Buyers Guide's commercial mech-digi chapter.
The Holdback Function
The holdback button sits on the internal (secure side) lever. Press the button while turning the lever and the latch bolt retracts and holds in the retracted position - the door opens and closes freely without the latch engaging the strike, and nobody needs the code in either direction. To return to normal code-controlled operation, operate the internal lever again and the latch springs back into service. The holdback can only be engaged and released from the internal face, so control of the door's mode stays on the secure side.
This is the only difference from the standard CDL7100SC-HD - every other spec, rating, and certification is identical. Our passage mode vs holdback mode guide covers how holdback differs from a clutching passage function, and one critical caution below: holdback and fire doors do not mix - see Fire Rating.
Exceeds 100,000 cycle openings with stainless steel cryptographic elements - steel where standard mechanical digital locks run zinc. Suited to high-volume commercial installations including retail, industrial, education, and institutional doors. Our guide to high-traffic keypad locks covers when heavy duty is worth paying for.
Salt spray tested to 240 hours per AS4145.2-2008 and rated C7 (High) - suited to moderate, tropical and industrial or marine environments roughly 100m to 10km inland. Finish degradation from salt and weather exposure is excluded from warranty, so on coastal sites plan on wiping the finish down regularly. Carbine's salt spray testing information sheet (PDF) explains the test method, and the Buyers Guide's corrosion grade explainer shows where C7 sits on the AS4145.2 scale.
The internal lever handle meets BCA accessibility requirements, with 35-45mm grip clearance at the centre section per AS1428.1. The lever always operates the latch freely - exit is single-action, no code needed to leave. Note the external face is a knob, not a lever - accessibility compliance applies to the internal side.
Key Features
- Holdback function: internal lever retracts and holds the latch open for free passage - released by operating the lever again.
- Fully mechanical push-button lockset - no batteries, electronics, or connectivity.
- Heavy duty series build: stainless steel cryptographic elements, exceeding 100,000 cycle openings.
- Large easy-grip external knob; BCA-compliant internal lever with holdback button (AS1428.1).
- Internal lever always operates the latch freely - single-action exit, no code needed to leave.
- Ball bearing-style push buttons resist code manipulation and decoding.
- Code changed via slider switches at the rear of the pad - lift-off back cover, no tools - see Code Control.
- Fire rated -/120/30 with the supplied latchset on Firecore and E-Core doorsets - but never engage the holdback on a fire door; see Fire Rating.
- 240 hour salt spray tested, rated C7 High per AS4145.2-2008.
- 60mm backset (this variant); suits doors 32-54mm thick; reversible for left and right hand doors.
- 58.75mm body width covers NK2000 and Lockwood 530 fixing holes for clean retrofits.
- Satin chrome finish. Factory default code C13579 - must be changed before installation.
Code Control
Entry is by code on the external keypad, then turning the knob; the internal lever always operates the latch freely, so exit never needs a code. Changing the code is a genuinely simple job on the HD series: the back cover of the external pad lifts off without tools, and the code is set on slider switches - slide each switch to expose the red indicator to include that digit. One behaviour worth knowing: after pressing the clear (C) button, digits can be entered in any order - any combination containing the set digits unlocks the lock. Carbine recommend 4-5 digit codes for higher security.
The factory default is C13579 and must be changed - and tested with the door open - before the door is closed on it. The full procedure with figures is in the installation instructions (PDF), and our Carbine slider code-change walkthrough steps it through with realistic timings.
What's in the Box
- 1 x CDL7100-HBSC-HD front body lock assembly (external knob and keypad)
- 1 x interior lever handle assembly with holdback button
- 1 x 60mm tubular latch assembly
- 1 x notched tailbar
- 1 x fitting plate
- 1 x strike box and strike plate
- 1 x latch support post
- 2 x gaskets (front and rear)
- 2 x 25mm M5-M5 hex lugs
- 2 x 30mm M5 screws and 2 x 40mm M5 screws (for varying door thickness)
- 4 x 8G x 25mm wood screws
- 1 x Allen key
- 1 x installation template and instruction manual
Suitable Uses
- Commercial entry and access doors where intermittent free-passage holdback is required
- Loading docks, reception entries, and staff access corridors with busy-period traffic
- Storerooms and back-of-house doors needing code control with holdback during service periods
- Schools and institutional facilities needing controlled access with timed open periods
- Fire-rated door assemblies on Firecore or E-Core systems - with the holdback caution in Fire Rating
- Pedestrian and service gates - see Gate Installations
- Retrofit of existing NK2000 or Lockwood 530 digital lockset installations
Gate Installations
The CDL7100 platform is a proven gate performer - the Installation Gallery tab includes a narrow stile gate install at Carrara, and the knob external face suits gates better than a break-point lever ever could. The C7 High salt spray rating handles exposed mounting, and the holdback is handy on service gates that stay open during work periods. One rule never changes: on a pool barrier, the gate must still self-close and self-latch to meet barrier requirements - never leave the holdback engaged on a pool gate. The pool gate section of our latch vs bolt guide covers the setup rules.
For gate posts and narrow frames, the Carbine Gate Guard for CDL7 (mounting box) adapts the lock to gate frames - see its specification sheet (PDF) and installation instructions (PDF). The Buyers Guide's gate keypad locks chapter covers stile widths, latch types, and exposure; our double-sided gate locks guide explains when a code is wanted from both sides instead.
Available Finish Options
Satin Chrome
(This Product)
STK CDL7100-HBSC-HD
Finish selection does not affect functionality, compliance, or performance.
CDL7 HD Series - Product Family
Four heavy duty configurations share the CDL7 platform - the differences are handle type, holdback, and how many keypads. Our three-brand comparison covers where the CDL7 sits against Lockwood DX and Borg equivalents.
All models satin chrome. HD series runs stainless steel cryptographic elements and exceeds the 100,000 cycle test. Don't need holdback? The standard CDL7100SC-HD is identical without it, and adds a 70mm backset option.
Full Specifications
Dimensions
Manufacturer dimensional drawing for the Carbine CDL7100-HBSC-HD. Overall height 190.75mm, body width 58.75mm, lever projection 110mm, knob depth 57mm. Backset 60mm. Door thickness 32-54mm.
Not sure of your backset? Our backset measuring guide shows how to check it in under a minute, and the Buyers Guide's door measuring chapter covers thickness, handing, and everything else worth checking before ordering.
Fire Rating - and the Holdback Caution
The lock itself is fire rated: FRL -/120/30 with the supplied 60mm tubular latchset on a tested Firecore or E-Core doorset, and the internal lever's free operation gives the single-action egress fire doors require. Warringtonfire assess the CDL7100 series on E-core doorsets in report FAS220275 (Table 10, pages 13-14 - both the CDL71/CDL7100 series line and the combined CDL7100 & CDL7200 line) and on Firecore doorsets in report FAS220387 (Table 9, page 10), with the CDL7100's CSIRO opinion in Certificate of Assessment 2374 (PDF).
For the wider picture: our guide to reading fire certification documents explains how to match a report to your actual door, the Buyers Guide's fire door core types chapter covers what E-core and Firecore mean, and our apartment fire door compliance guide explains FRL ratings. Browse everything we carry for those doors in the Fire Door category.
Frequently Asked Questions
The holdback button sits on the internal lever handle. Press the button while turning the lever and the latch retracts and holds in the retracted position - the door then opens and closes freely without the latch engaging the strike. Operate the internal lever again to release it and return to normal code-controlled operation. The holdback can only be engaged from the internal face.
This needs care. A fire door must be able to latch and hold closed in a fire event - engaging the holdback so it cannot latch compromises exactly that. If a fire door needs holding open, use a fire-rated door retainer or electromagnetic hold-open device designed for the purpose instead, and confirm requirements with your building certifier before specifying holdback on any fire door. See Fire Rating above for the full picture.
Only the internal lever handle. This model includes the holdback button that can retract and hold the latch open; the CDL7100SC-HD does not. All other specs, fire ratings, and certifications are identical.
This variant is supplied in 60mm backset only (item code CDL7100-HBSC-HD). The 70mm and 127mm options exist on the CDL7100 platform - contact us to confirm availability for the holdback variant specifically, or check your backset first with our backset measuring guide.
Yes - identical. The back cover lifts off the rear of the pad without tools, and the code is set on slider switches. The factory default C13579 must be changed before installation, and the lock function tested with the door open. Our Carbine code-change walkthrough covers it step by step.
Additional Information
Holdback and fire doors: If this lock is installed on a fire door, the holdback must not be used to prop the door open - a fire door must self-latch to achieve its rated performance. Consult your building certifier or fire engineer before specifying a holdback function on any fire-rated opening. Our apartment fire door compliance guide covers what certifiers check.
Code change before installation: The factory default C13579 must be changed and tested before fitting - test with the door open. After the clear (C) button is pressed, digits can be entered in any order; any combination containing the set digits unlocks the lock. Carbine recommend 4-5 digit codes. Our code change guide's test-five-times rule exists for exactly this moment.
Retrofit compatibility: The 58.75mm body covers NK2000 and Lockwood 530 fixing holes. Confirm the existing hole pattern against the supplied template before retrofitting. Our guide to retrofit kits and spare parts covers why serviceable hardware matters over a lock's life, and the Buyers Guide's door measuring chapter covers what to check first.
Salt spray rating context: The 240-hour C7 result is a laboratory test - continuous direct salt spray in a closed booth, far more aggressive than an installed lockset sees in the field. C7 indicates suitability under categories C2.3 (moderate/tropical) and C2.4 (industrial/marine, 100m-10km from coast). Finish degradation is excluded from warranty regardless of rating; a regular freshwater wipe-down keeps the satin chrome presentable, and the mechanism stays covered for the full 10 years.
Warranty
Carbine is a Davcor Group brand, and Davcor backs its mechanical digital locks with one of the longest warranties in the category: 10 years against defects in materials and workmanship from the date of original purchase. There are no electronics or batteries in this lock to shorten the cover - the whole product is warranted for the full term.
On a valid claim, Davcor will repair the lock, replace it, or supply an equivalent product. Keep your proof of purchase, and make the claim as soon as a defect becomes apparent.
What the warranty does not cover: fair wear and tear; damage caused by faulty installation, misuse, or modification of the product; and tarnishing or change to the finish from weather, salt, or chemical exposure. On coastal and exposed sites, regular cleaning of the finish is the practical answer - the lock mechanism itself remains covered.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Purchased through Terry's Locksmiths? Contact us first - we'll manage your warranty claim with Davcor on your behalf. Full terms: davcor.com.au/warranty
Download PDF Resources
- Carbine CDL7100 - Installation Instructions
- Carbine CDL7100 - Spec Sheet
- Carbine CDL7100 - Fire Certificate (CSIRO COA 2374)
- Warringtonfire Fire Assessment FAS220275 - E-Core Doorsets (CDL7100 series at Table 10, pages 13-14)
- Warringtonfire Assessment FAS220387 - Firecore Doorsets (CDL7100 at Table 9, page 10)
- Carbine CDL71 Tri - Spec Sheet
- Carbine CDL7 Lock Series - Brochure
- Carbine Salt Spray Testing Information
- Carbine Gate Guard for CDL7 - Specification Sheet
- Carbine Gate Guard for CDL7 - Installation Instructions
Carbine CDL7100-HBSC-HD - Deeper Questions
When a door genuinely lives in two modes. Loading docks during delivery windows, reception doors at opening time, staff corridors at shift change, storerooms during stocktake - anywhere the door would otherwise be propped with a wedge (which wrecks closers and hinges) or left swinging on a code every pass. If the door stays code-controlled all day, save the difference and take the CDL7100SC-HD - our holdback mode guide helps you decide.
Two different things. The lock body and latchset are assessed at -/120/30 on tested doorsets, and with the holdback released the door self-latches exactly as a fire door must. But the holdback's whole job is to hold the latch retracted - a fire door that cannot latch cannot perform in a fire event. So the lock may go on a fire door; the holdback function must never be engaged on one. Where a fire door needs holding open, a fire-rated retainer or electromagnetic hold-open (which releases on alarm) is the compliant tool. Confirm with your certifier - and see our holdback fire-door explainer.
The code lives in mechanical slide switches behind the external pad, so it can only be read or reset with the lock accessible - normally with the door open. Since the inside lever is always free, you can still get out; getting back in without the code is a locksmith visit. Record the code somewhere secure the day it is set.
A competent DIYer with the right tools can: the instructions call for a chisel, a 25mm spade bit, an 8.5mm drill bit, and a Phillips head screwdriver, and the box includes the drilling template. The bevelled latch bolt must face the direction the door shuts - the instructions (PDF) diagram it. If the door is a fire door, installation must not compromise the fire-rated doorset - that is a job for a competent installer. We install across the Gold Coast; the Installation Gallery tab shows our work.
In most cases, cleanly - the 58.75mm body covers the standard fixing holes both leave behind. Check the existing hole pattern against the supplied template before committing, and check your backset (how to measure) - this variant is 60mm.
No - this is a pure keypad lock: PIN entry outside, free lever inside, no key cylinder. No keys to cut, lose, or control; the discipline is guarding the code. If your application genuinely needs a key path, talk to us before ordering.
Gates yes - the gallery includes a narrow stile gate at Carrara, and the Gate Guard mounting box adapts the lock to gate frames. On a pool gate, the barrier must self-close and self-latch to meet barrier rules - which means the holdback must never be left engaged on a pool gate. The pool gate section of our latch vs bolt guide covers the requirements.
The lock is reversible for left and right hand doors - the handles are handed during installation per the figures in the installation instructions (PDF). Check your door's handing first; the Buyers Guide's handing explainer shows how.
All three are quality mechanical digital platforms - Lockwood's DX range converts existing mortice locks, Borg leads on marine-grade finishes and on-door code changing, and the Carbine CDL7 HD is the heavy duty commercial pick with its stainless internals - and this holdback variant is a function the others don't offer in this configuration. Our Lockwood vs Borg vs Carbine comparison puts them side by side, and the Buyers Guide's three-brand chapter goes deeper.
What's in the Box
- 1 x CDL7100-HBSC-HD front body lock assembly (external knob and keypad)
- 1 x interior lever handle assembly with holdback button
- 1 x 60mm tubular latch assembly
- 1 x notched tailbar
- 1 x fitting plate
- 1 x strike box and strike plate
- 1 x latch support post
- 2 x gaskets (front and rear)
- 2 x 25mm M5-M5 hex lugs
- 2 x 30mm M5 screws and 2 x 40mm M5 screws (for varying door thickness)
- 4 x 8G x 25mm wood screws
- 1 x Allen key
- 1 x installation template and instruction manual
Carbine CDL7100 Series - Real Installations
Dimensions
Manufacturer dimensional drawing for the Carbine CDL7100-HBSC-HD. Overall height 190.75mm, body width 58.75mm, lever projection 110mm, knob depth 57mm. Backset 60mm. Door thickness 32-54mm.
Carbine CDL7 Lock Series Brochure
Download the Carbine CDL7 Lock Series Brochure (PDF) - the CDL7100, CDL7100-HD, CDL7200, and NK2000 model spread is on page 2.
PDF Resources
- Carbine CDL7100 - Installation Instructions
- Carbine CDL7100 - Spec Sheet
- Carbine CDL7100 - Fire Certificate (CSIRO COA 2374)
- Warringtonfire Fire Assessment FAS220275 - E-Core Doorsets
- Warringtonfire Assessment FAS220387 - Firecore Doorsets
- Carbine CDL71 Tri - Spec Sheet
- Carbine CDL7 Lock Series - Brochure
- Carbine Salt Spray Testing Information
- Carbine Gate Guard for CDL7 - Specification Sheet
- Carbine Gate Guard for CDL7 - Installation Instructions
Carbine Warranty
Carbine is a flagship brand of Davcor Group Pty Ltd (ABN 95 003 562 598) - an Australian manufacturer, designer, and wholesale distributor of residential and commercial locking hardware. Engineered in collaboration with working locksmiths, Carbine products focus on high security, versatility, and ease of installation.
Davcor distributes Carbine through seven specialist divisions, including Lock and Key Co. - Davcor's dedicated trade distribution arm supplying locksmiths and the security industry across Australia, New Zealand, and beyond. Whether you purchased your Carbine product through Lock and Key Co., another trade channel, or directly through us, the same Davcor warranty applies.
All Carbine products are guaranteed by Davcor Group Pty Ltd to be free from defects in materials and workmanship from the date of original purchase, for the period applicable to the specific product category (refer to the Warranty Period table below). This warranty covers replacement of product only.
Warranty Summary
Warranty Periods by Product Category
Source: Davcor Warranty Against Defects - Appendix A. Warranty period runs from the date of original purchase.
How to Make a Claim
- Contact Terry's Tradies Pty Ltd (the place of purchase) in writing as soon as the defect becomes apparent - and no later than 14 days after the end of the applicable warranty period.
- Include in your written claim: a description of the defect, the date of supply, your contact details, and satisfactory proof of purchase.
- Do not return the product until a return authorisation number has been issued by Davcor. If return is required, the product must be in its original, complete, and saleable packaging.
- Davcor will test and assess the product. No claim is valid unless Davcor has confirmed a defect is present.
- Once a valid claim is confirmed, Davcor will - at its discretion - repair the defect, replace the product, or supply an equivalent product. If repair or replacement cannot be completed within a reasonable time, you may request a full refund, provided the product has been returned.
Delivery inspection: If you believe a product is defective or incorrectly supplied at the time of delivery, telephone notice must be given within 72 hours of receipt, with written notice (including full particulars) within 14 days of the invoice date.
Exclusions
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure, and to compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure. The Carbine/Davcor express warranty operates alongside and in addition to your rights under the Australian Consumer Law.
